METHVEN KAHA 3 Manuel utilisateur

Issue A435007

KAHA 3 HOLE DECK MOUNTED BASIN MIXER

INSTALLATION GUIDE

TECHNICAL SPECIFICATIONS

Operating Pressure:

Min 0.35 bar, Max 10 bar.

Recommended 0.35 bar - 5 bar.

Recommended installation of a pressure

limiting valve if supply exceeds 5 bar.

Operating Temperature:

Hot: Max 80°C.

Cold: Min 5°C.

Methven warrants this product against manufacturing defects and that it is suitable for use

under the operating conditions speciﬁed in this instruction sheet.

For your warranty please refer to www.methven.com or call Customer Service

New Zealand

0800 804 222

Australia

1300 638 483

0800 195 1602

Notes:

After installation all connections●

must be checked for leaks.

All installations must be carried●

out in compliance with relevant

water regulations.

IMPORTANT

Please read all of the instructions before installation

This mixer is designed for all pressure systems above 0.35 bar.

This mixer is not recommended for use in uncontrolled heating systems such as wet-backs or

solar heating units.

NOTE: Flat rubber seals to be used on all threaded joints.

All pipework must be thoroughly ﬂushed prior to the installation of the mixer. Inline ﬁlters (not

supplied) must be ﬁtted on both hot and cold supplies to prevent foreign particles damaging

the ceramic cartridge.

NOTE: Base ring use is optional and should be used when required to ensure a seal is

achieved between the tap and basin. If ﬁtting base ring please remove the o-ring from

the base of the tap body.

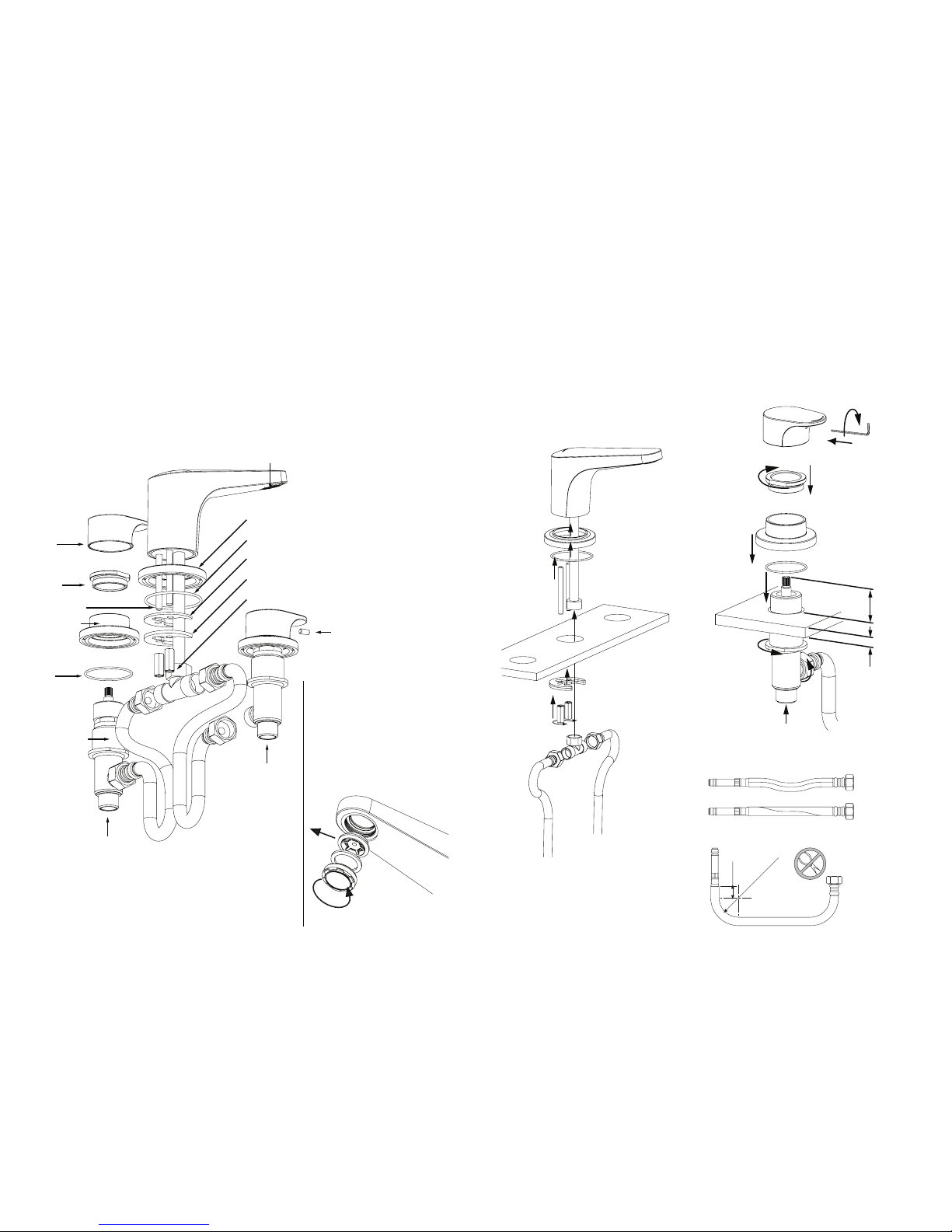

Max 40mm

32 - 42 mm

Cold

Hot

CORRECT

INCORRECT

DO NOT STRETCH OR TWIST HOSES

R35mm Min

20mm

DO NOT CRUSH

HOSE OR

SWAGED ENDS

Inlet

2.5mm Allen key

Hot

M5 -

Grubscrew

Cold

Body assembly

O-ring

Mounting gasket

Mounting plate

Mounting nuts

Base ring (optional)

O-ring

Stream shaper

Handle

Handle plate

Lock nut

Mounting stud

Equal Low Pressure

Installations.

Remove stream shaper using

cache key.

Remove ﬂow restrictor in spout

and insert rubber washer before

replacing stream shaper
