Merit 715T PLUS Manuel utilisateur
TREADMILL OWNER’S MANUAL
MANUAL DEL PROPIETARIO DE LA CAMINADORA
Read the TREADMILL GUIDE before using this OWNER’S MANUAL.
Lea la GUÍA DEL USUARIO DE LA CAMINADORA antes de usar este MANUAL DEL PROPIETARIO.
715T
2
3 ENGLISH
22 ESPAÑOL
3
ASSEMBLY
There are several areas during the assembly process that special attention must be paid. It is very important to follow the assembly
instructions correctly and to make sure all parts are firmly tightened. If the assembly instructions are not followed correctly, the
treadmill could have parts that are not tightened and will seem loose and may cause irritating noises. To prevent damage to the
treadmill, the assembly instructions must be reviewed and corrective actions should be taken.
Before proceeding, find your treadmill’s serial number located near the on/off
power switch and power cord and enter it in the space provided below.
ENTER YOUR SERIAL NUMBER IN THE BOX BELOW:
» Refer to the SERIAL NUMBER and MODEL NAME when calling for service.
» Be sure to enter both the SERIAL NUMBER and MODEL NAME on your warranty card.
SERIAL NUMBER:
MODEL NAME: MERIT 715T TREADMILL
WARNING
4

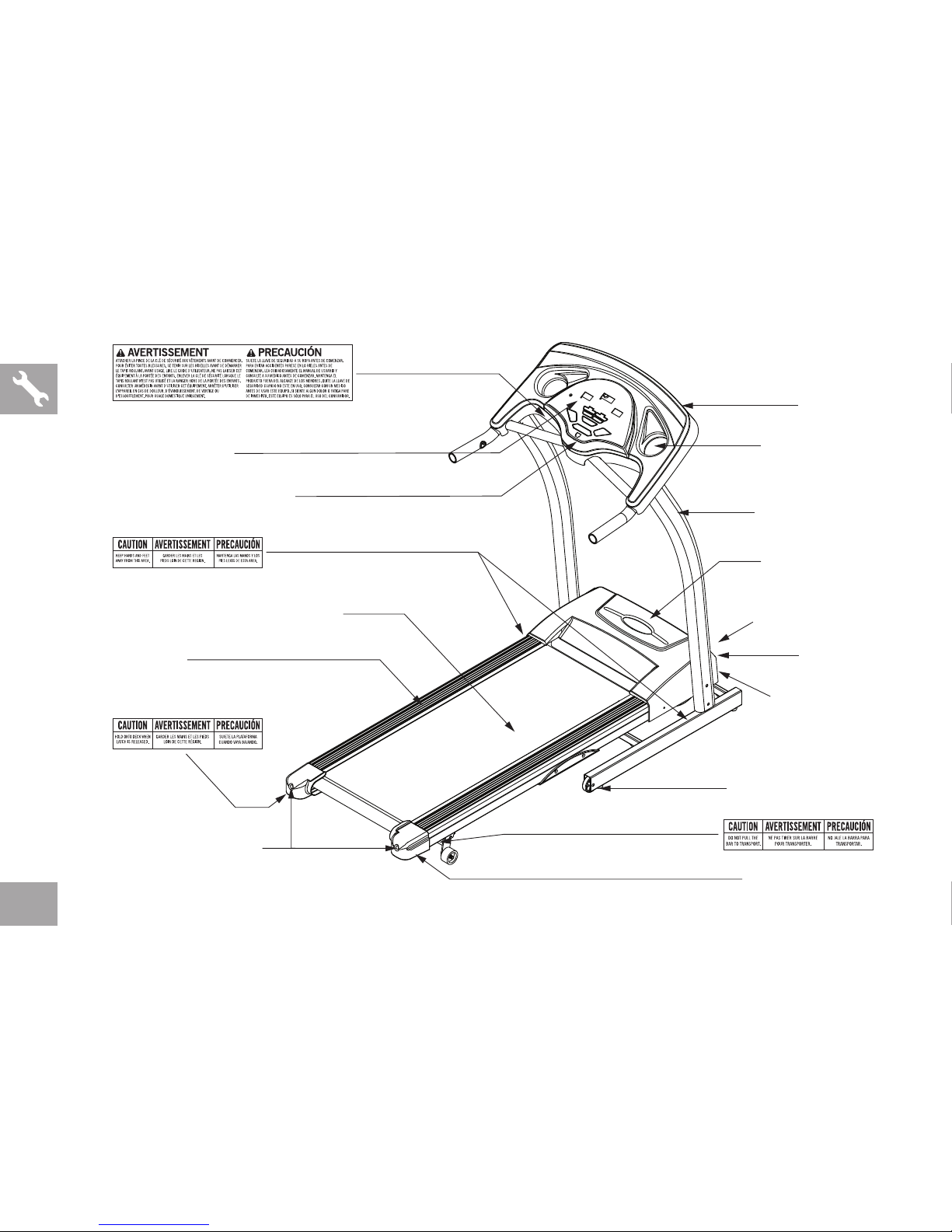

TRANSPORT WHEEL
ON/OFF SWITCH
CIRCUIT
BREAKER
POWER CORD
WATER BOTTLE
POCKET
SAFTEY KEY PLACEMENT
CONSOLE MAST
MOTOR COVER
RUNNING BELT/RUNNING DECK
SIDE RAIL
ROLLER END CAP
REAR ROLLER
ADJUSTMENT BOLTS
CONTROL PANEL
CONSOLE
5
TOOLS INCLUDED:
F5 mm L Wrench
F6 mm T-Wrench
FScrewdriver
PARTS INCLUDED:
F1 Safety Key
F1 Console Assembly
F2 Console Masts
F1 Water Bottle Pocket
F2 End Caps
F3 Hardware Bags
F1 Bottle of Silicone Lubricant
(for 2 applications)
If you have questions or if
there are any missing parts,
contact Customer Tech
Support. Contact information
is located on the back panel
of this manual.
DO NOT ATTEMPT TO LIFT THE TREADMILL! Do not move or lift treadmill
from packaging until specified to do so in the assembly instructions. You may
remove the plastic wrap from console masts.
WARNING
UNPACKING
Place the treadmill carton on a level flat surface. It is recommended that you place a
protective covering on your floor. Take CAUTION when handling and transporting this
unit. Never open box when it is on its side. Once the banding straps have been removed,
do not lift or transport this unit unless it is fully assembled and in the upright folded
position, with the lock latch secure. Unpack the unit where it will be used. Never grab
hold of any portion of the incline frame and attempt to lift or move the treadmill.
FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN INJURY!
WARNING
NEED HELP?
NOTE: During each assembly step, ensure that ALL nuts and bolts are in place and
partially threaded in before completely tightening any ONE bolt.
NOTE: A light application of grease may aid in the installation of hardware. Any grease,
such as lithium bike grease is recommended.
PRE ASSEMBLY
6
ASSEMBLY STEP 1
A Open HARDWARE BAG 1.
B Slide the right CONSOLE MAST down on to
the CONSOLE MAST SUPPORT TUBE. On
the front of the CONSOLE MAST, bolt in place
using 2 BOLTS (A), 2 SPRING WASHERS
(B), and 2 ARC WASHERS (D). On the side
of the CONSOLE MAST, bolt in place using 2
BOLTS (A), 2 SPRING WASHERS (B), and 2
FLAT WASHERS (C).
C Repeat on other side.
D On right side thread CONSOLE MAST WIRE
through CONSOLE MAST.
WASHER (C)
15.5 mm
Qty: 4
ARC WASHER (D)
17 mm
Qty: 4
SPRING WASHER (B)
15.4 mm
Qty: 8
BOLT (A)
15 mm
Qty: 8
HARDWARE BAG 1 CONTENTS :
BOLT (A)
SPRING WASHER (B)
CONSOLE MAST
CONSOLE MAST
SUPPORT TUBE
BOLT (A)
CONSOLE WIRE
SPRING WASHER (B)
ARC WASHER (D)
FLAT WASHER (C)
NOTE: While assembling the masts, do
not completely tighten any bolts until
the end of ASSEMBLY STEP 2. Ensure
that ALL bolts are in place and partially
threaded in before completely tightening
any ONE bolt.
7
ASSEMBLY STEP 2
A Open HARDWARE BAG 2.
B Attach the CONSOLE to the CONSOLE
MAST using 2 BOLTS (E), 2 SPRING
WASHERS (B), and 2 ARC WASHERS (D).
C Repeat on other side.
D After all bolts are inserted for assembly step
1 and assembly step 2, all bolts can be
completely tightened.
ARC WASHER (D)
17 mm
Qty: 4
SPRING WASHER (B)
15.4 mm
Qty: 4
BOLT (E)
25 mm
Qty: 4
HARDWARE BAG 2 CONTENTS :
BOLT (E)
SPRING WASHER (B)
ARC WASHER (D)
CONSOLE
CONSOLE MAST
NOTE: Be careful not to pinch any wires
while assembling the masts.
8
ASSEMBLY STEP 3
CONSOLE
CABLE
COVER
A Connect the CONSOLE CABLES and carefully
tuck wires in CONSOLE MAST to avoid
damage.
NOTE: Do not pinch console cable. Be sure the
console cable prongs are aligned and the ends
are tightly seated into each other.
B Attach CONSOLE CABLE COVER.
C Slide the WATER BOTTLE HOLDER down
into the hole in the CONSOLE and snap
together.
WATER BOTTLE HOLDER
CONSOLE
CONSOLE MAST
NOTE: There is no hardware bag for Assembly Step 3.
NOTE: Be careful not to pinch any wires
while assembling the masts.
9
ASSEMBLY STEP 4
A Open HARDWARE BAG 3.
B Fold up treadmill.
NOTE: Lock latch must be securely engaged
before proceeding with assembly.
C Attach the right ROLLER END CAP using 2
SCREWS (F).
D Repeat on the other side.
E Before the first use, lubricate the treadmill
deck by following the instructions in the
MAINTENANCE section in the TREADMILL
GUIDE.
SCREW (F)
15 mm
Qty: 4
HARDWARE BAG 4 CONTENTS :
SCREWS (F)
ROLLER END CAPS
YOU ARE FINISHED!
