Memphis Elite Built-In ITC 3 Manuel utilisateur

Read all instructions before installing and using this appliance

Save these instructions for future reference

Memphis Elite Built-In ITC 3

IntelliBurn TechnologyTM

Model Number VGB0002S

Memphis Component Diagram 12

Memphis Fuse Diagram 13

Built-In Grill Island Dimensions 3

Hardware Components 4

Grill Installation and Operation 5-9

Memphis WiFi Setup 10

Revision: A1VG0893

Clearance to Combustible Materials

Combustible Material is wood, dry wall, siding or any other material that has to ability to catch fire.

Built-in structures constructed of wood or other combustible materials may require the use of the OPTIONAL Built-In

Heat Shield Kit to maintain the required clearance to combustible materials. The grill may be supported by either the

three support brackets, or the four leveling feet. Please note that there must be at least 3/8” (1.0 cm) clearance

between the bottom of the grill and the structures.

DIMENSIONS

A 18” [45.8 cm]

B 3/8” [1.0 cm]

C 2” [5.1 cm]

D 3 1/2” [8.9 cm]

F 30” [76.2 cm]

E* 1/8” [0.5 cm]

Power Cable Locaon

Built‐in Bracket

*NOTE: Clearance dimension E may only be used when the

optional heat shield kit (VGBHSK) has been installed. This

distance is from the outside of the installed heat shield kit.

Built-In Cutout Dimensions

CUTOUT DIMENSIONS TOLERANCE

A 42 5/8” [108.3 cm] +/- 1/8” [0.30 cm]

B 16 3/4” [42.6 cm] +/- 1/8” [0.30 cm]

C 24 1/2” [62.9] +/- 1/8” [0.30 cm]

D 3 1/2” MIN [8.9 cm] -

E Standard Cabinet

Height

NOTE: Dimensions are to the finished surfaces.

Grill cavity surfaces are to be plumb and level

to ensure a proper fit.

Power Requirements

110/120VAC* supply required within 10 feet

of the ITC. Power cable located at the back

right of the grill. (See note on previous page)

*European 220VAC

Top View

Front View

Hardware Components

Description/ Part No. Qty: Picture:

8. Cord Wrap

VG0560 1

7. #10 Screw

(SS) DS2186 2

5. Bracket Bolt

DS2311 10

3. Direct Flame

Insert VG4407 1

2. Savorizer

VGE4403 1

1. VG0002 Grate

Kit 1

Description/ Part No. Qty: Picture:

OPTIONAL

17. #10 Screw (BLK)

DS2185 4

TIME REQUIRED

1.5 Hours

TOOLS REQUIRED

 3/8” Open End Wrench,

Socket or Adjustable Wrench

 Phillips Screw Driver or Drill

 Snips or Heavy Duty Scissors

 Cut Resistant Gloves

 5mm Allen Wrench

10. Leveling Feet

DS4668 4

9. Meat Probe

VG0956 1

11. Concrete Anchor

DS2349 2

12. #10 SS PH

Screw DS2350 2

6. Antenna

VG9023 1

14. Right Mounting Bracket

VG0802 1

13. Left Mounting Bracket

VG0803 1

15. Right Mounting Bracket

VGE0801 1

16. Heat Shield

VGBHSK 1

4. Genie Tool

VG1595 1

Grill Installation and Operation

Installation Requirement

A dedicated GFCI protected electrical circuit is required for all Memphis Wood Fire Grills and controller systems. This

circuit should be installed by a Certified Electrician. Although the Memphis Grill only uses about 2 amps of current

during startup, any other equipment (refrigerator, pool pump, fountains, ect.) that have high current draw, consistently

or intermittently, from the same electrical circuit can cause potential issues and/ or interruptions with the performance

of the grill. We recommend an on/off switch to be installed in this circuit so that the grill can be easily disconnected

from power when not in operation. This will prevent the buildup of interference that could affect the controller’s

operation.

Hopper Lid Orientation

For easier pellet refill, the hopper lid can be

oriented to open toward the front of the grill instead

of the rear when access to the back of the grill is

difficult or unavailable. To switch the orientation to

be opened from the front, the shoulder bolts

holding the hopper lid must be removed. Rotate the

lid so the mounting holes are towards the back of

the grill. Re-insert shoulder bolts into the rivnuts

towards the back of the grill.

*Note: The fill shield must be flipped up to cover

the smoke vent in this orientation. This is used to

block pellets from falling into the grill via the smoke

vent.

Other Grill Information

Main Grate Area– 37.1 in X 17.4 in. [94.3 cm X 44cm] 644 in. sq. [4,149 cm sq.]

Top Grate Area– 37.1 in. X 5.5 in [94.3 cm X 14 cm] 204 in. sq. [1,320 cm sq.]

Optional Middle Grate Kit Area– 37.1 in. X 11 in [94.3 cm X 28 cm] 408 in. sq. [2,640 cm sq.]

Grill Height with Hood Open– 47.1 in. [120 cm]

Installation Step 1: Unpacking

Grill requires (2) two people for safe assembly

Please note that during shipping some movement may have taken place, so a complete visual inspection is required.

Be sure to inspect entire grill after removing the protective shipping carton. Report any damage to your local dealer

immediately. Shipping damage is not covered under warranty. Some surfaces may be sharp so wear gloves when

assembling. Do not plug in the grill until it’s fully assembled, the plastic protective film is removed from all

stainless steel surfaces, and you’re ready to cook. See: “Startup Procedure” in the General Owners Guide for

more details.

Packaging Locations

Savorizer

Grates

Hardware Kit

Mounting Brackets

1. Remove the Savorizer (item 2) and included grates

(item 1) from inside the grill hood. To remove the

Savorizer, cut the 4 zip ties holding it in place. Set

aside grates and Savorizer until needed.

2. Peel all plastic protective film from the grill. Be diligent

about inspection as the protective film will be hard to

remove once the grill is installed and first burned.

Installation Step 2: Wiring

3. Remove two 5mm socket head screws from

Display Housing shipping bracket using the

5mm allen wrench.

4. Snip the zip tie that secures the Display

Housing to the shipping bracket and dispose.

This bracket is no longer needed.

5. Mount the Display Housing perpendicular to the

side panel over the Display Insert bracket using

the two 5mm x 40mm socket head screws in

the hardware kit. The original 5mm screws can

be disposed of.

6. Install Wifi Antenna (item 6) to bulkhead

connector located on the right panel of

the grill behind the Display Housing.

Follow the assembly steps listed below, prior

to installation of the unit.

3 4

Installation Step 3: Brackets

7. Remove the ash/grease drawers from the unit.

8. Fasten the left and right support brackets (items 13

and 14) to the unit using the ten 1/4”-20 stainless steel

hex bolts (item 5).

9. Fasten the rear support bracket (item 15) to the left

and right support brackets (items 13 and 14) with two

#10-24 x 1/2” long stainless steel screws (item 7).

10. This step is only to be done if the grill is going to be

supported by the four leveling feet (item 10) and not

the support brackets. Thread the four leveling feet

(item 10) into the bottom of the unit.

Follow the assembly steps listed below, prior to installation of the unit. The Unit can be supported by either the

support brackets (items 13, 14, and 15) or by the four leveling feet (item 10). Refer to page 4 for item part numbers,

descriptions, and quantities.

Note that the support brackets must be installed for either support method.

7-10

11. To reduce the clearance to

combustible materials, the

optional heat shield kit should

be used. Refer to page two to

determine if the heat shield kit

is required for your installation.

Follow the assembly

instructions provided with the

heat shield kit to properly

fasten the kit to the unit.

Optional:

Installation Step 4: Grill Mounting

Mounting Holes

12-13

14-16

17-18

12. Place the unit into the island and position it to the

desired depth. Ensure that the vent holes in the

support brackets are unobstructed for properly air

circulation.

13. Locate the two mounting holes found in the back of the

left and right support brackets (Items 13 and 14), and

mark the hole locations onto the island’s countertop.

14. Carefully slide the unit out of the island, exposing the

marked holes on the countertop.

15. Drill two 5/16” holes into the countertop using a drill bit

appropriate for the material of the countertop.

16. Insert two concrete anchors (item 11), into the two

5/16” holes.

17. Slide the unit back into position, lining up the mounting

holes in the left and right support brackets with the

concrete anchors.

18. Fasten the unit into place using the two 1 3/4” long

stainless steel screws (item 12). Do not over-tighten.

Installation Step 5: Final Assembly

Refer to page 4 for item part numbers, descriptions, and quantities.

19. Inset the three ash/grease drawers back into the unit.

20. Place Savorizer (item 2) onto the left and right lower brackets found inside the unit.

21. Place the main cook grates (item 1) onto the front and rear supports. Place the upper cook grate (item 1) onto

the left and right upper brackets found inside the unit.

Vent holes on the mounting brackets must remain unobstructed for proper air circulation.

Grill must be accessible (able to slide out) for any future repair or maintenance.

Refer to the Owners Guide for first time use instructions.

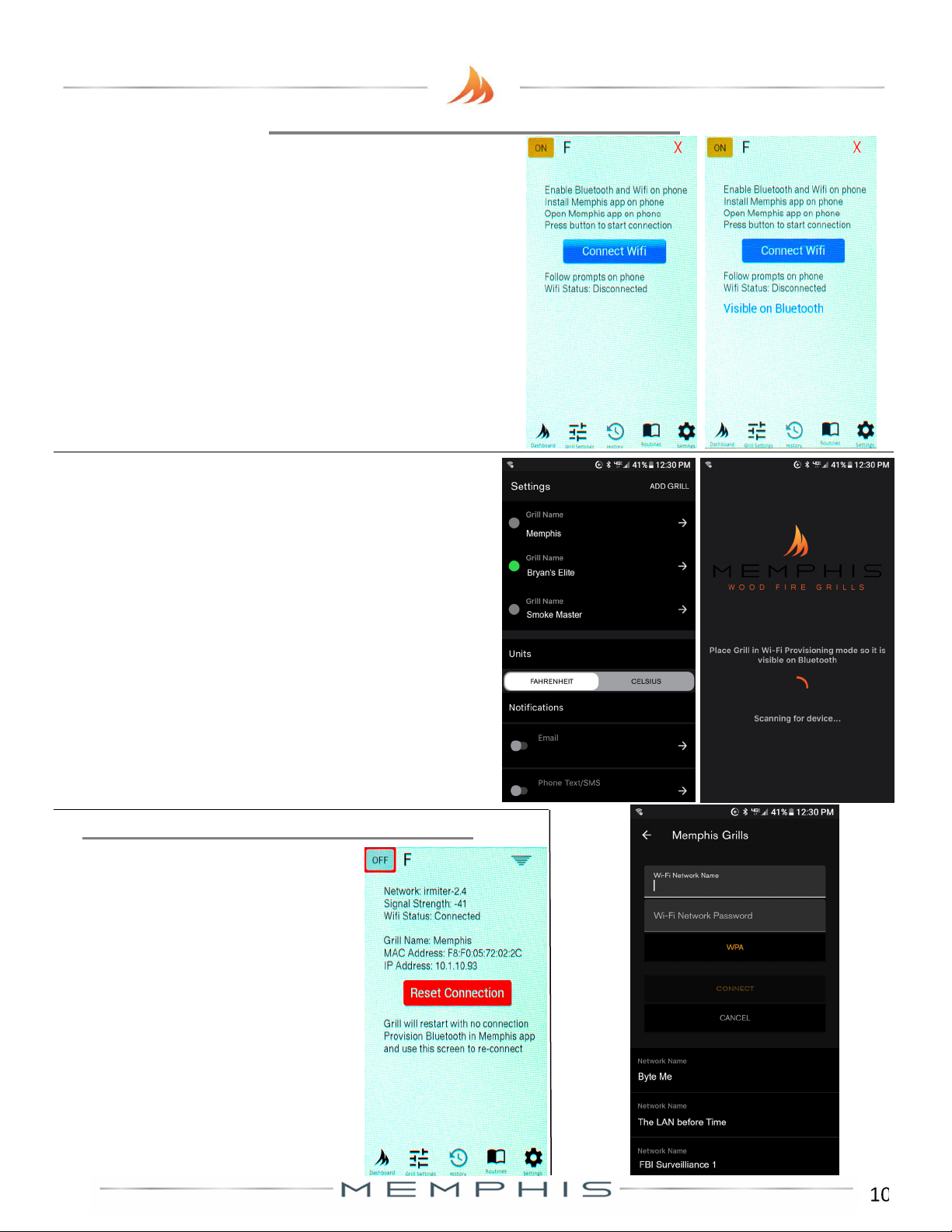

MEMPHIS WI-FI SET UP GUIDE

ON YOUR GRILL CONTROLLER:

1. Navigate to the Settings Screen on the display.

2. Select “Connect to WiFi” to navigate to the

Connection Screen.

3. Press the blue “Connect WiFi” button to broadcast

the BLE signal.

4. Follow the steps below on your Memphis 3 App.

ON YOUR PHONE OR TABLET: (In Memphis 3 App)

5. Log into Memphis 3 App using your account email and

password.

6. If no grill is connected, the BLE provisioning process

will begin automatically. Otherwise, navigate to the

Setting Screen and select “Add Grill”.

7. Select your grill from the provisioning screen.

8. Select the 2.4GHz network you would like to connect

to your Memphis grill, enter the network password, and

press “Provision”.

9. If successful, the controller will display “Connection

Successful” and show the WiFi signal strength in the

top right corner.

*Note: If a red X is displayed on the controller instead of

the signal strength the connection was unsuccessful.

Attempt to provision the controller again, otherwise contact

Memphis Technical Support.

Navigating back to the “Connect to Wifi”

Screen displays the Network information

as well the MAC Address and IP Address

of your Memphis Grill.

GRILL NETWORK INFORMATION
