Grill Guide

For Model BQ05051-3

LP Gas Barbecue Grill

FOR YOUR SAFETY:

1. Read this Grill Guide before attempting to assemble or operate your grill.

2. Follow all safety instructions.

3. Check for leaks according to directions in this Grill Guide before operating your grill,

even if purchasing an assembled grill.

4. Keep this Grill Guide for future reference.

5. Contact 1-800-933-0527 should you need assembly assistance or have any questions.

THIS GRILL IS FOR OUTDOOR USE ONLY.

If stored indoors, then detach and leave propane cylinder outside.

STOP!

Missing A Part? No Need

To Go Back To The Store!

The store where you made the purchase does not stock

parts for this item. If you need parts, whether they are

missing or damaged, please call our Toll Free Help Line 1-800-933-0527.

Call us between 8:30 AM and 5:00 PM Central Time, Monday through Friday.

Safety Precautions

Always read and follow all DANGER, WARNING, AND FOR YOUR SAFETY notices in this Grill

Guide. Failure to do may result in serious bodily injury or death, or in a fire or an explosion causing

damage to property.

1. Grill installation must conform with local codes or, in the absence of local codes, with either the

National Fuel Gas Code, ANSI Z223.1/NFPA 54, Natural Gas and Propane Installation Code, CSA

B149.1, or Propane Storage and Handling Code, B149.2.

2. This gas grill, when installed, must be electrically grounded in accordance with local codes or , in

the absence of local codes, with the National Electrical Code, ANSI/NFPA 70, or the Canadian

Electrical Code, CSA C22.1. This applies if an external electrical source is utilized.

3. This gas grill shall be used only outdoors, and not be used in a building, garage, or any other

enclosed area.

4. This gas grill is not intended to be installed in or on recreational vehicles and/or boats.

5. Never use any other type of fuel for this grill other than LP gas.

6. Only use the pressure regulator with a type 1 connector that is supplied with this gas grill.

7. Inspect the gas hose before each use. If it is evident there is excessive abrasion or wear, or the hose

is cut, it must be replaced prior to the gas grill being put into operation. The replacement hose

assembly shall be that specified by the manufacturer.

8. Always perform a Leak Test before operating your grill.

WARNING

1. Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or

any other appliance.

2. An LP cylinder not connected for use shall not be stored in the vicinity of this or any other

appliance.

TO THE INSTALLER OR PERSON ASSEMBLYING THIS GRILL:

Leave this Grill Guide with the consumer.

TO THE CONSUMER:

Retain this Grill Guide for future reference.

DANGER

If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open flame.

3. Open lid.

4. If odor continues, keep away from appliance and immediately call your gas supplier or your

fire department.

WARNING

Combustion by-products produced when using this product contain chemicals known to the State

of California to cause cancer, birth defects, and other reproductive harm.

Table of Contents

Safety Precautions……….……………………………..……………...…………...…… 2

Table of Contents…………………….…………………………………..……….……...3

Warranty……………………………….………………………………………….…….. 4

Customer Support Center……………….………………………………………….…….4

Assembly Instructions...…………………………………………………………..…..5-13

General Information and Operation………………..………………………………..14-23

Trouble Shooting Guide……………………………………………….................….23-24

Write down here and keep for future

reference

Date of Purchase: _________________

Serial Number: ___________________

The serial number may be found on the placard located

on the back of the grill

BQ05051-3

Sam’s Club

608 Southwest 8th Street

Bentonville, AR 72712

1-888-746-7726

Visit us at : www.samsclub.com

The manufacturer warrants to the original

consumer-purchaser that this product shall be

free from defects in workmanship and materials

under normal and reasonable use when

assembled and operated according to this Grill

Guide from date of purchase as follows:

One year except as noted below:

Stainless Steel Burners - 3 years

Cast Aluminum and Stainless Steel Cabinet

Parts and Control Panel – 5 years

The manufacturer will, at its option, refinish or

replace any product or part found to be defective

during the limited warranty period. There may

be a shipping charge. The manufacturer may

require you to return the part(s) claimed to be

defective for its inspection, freight or postage

prepaid. Contact our Customer Support Center as

shown below before returning any part(s).

Additional information can be obtained by

writing:

Barbecue Grills

Warranty Department

1375 Mitchell Blvd

Schaumburg, IL 60126

The manufacturer will require reasonable proof

of purchase. We strongly recommend you

keep your sales receipt and register your grill.

You can attach your receipt to this guide.

This limited warranty does not cover the cost of

any inconvenience or property damage due to

failure of the product and does not cover damage

due to misuse, abuse, alteration, improper or

failure to perform normal and routine

maintenance, discoloration, accident, or damage

arising out of transportation of the product. This

limited warranty will not apply to any grill used

for commercial use.

This limited warranty is the sole warranty given

by the manufacturer and is in lieu of all other

warranties; express or implied, including implied

warranty of merchantability or fitness for a

particular purpose. Neither manufacturer dealers

nor the retail establishment selling this product

have any authority to make any warranties or to

promise remedies in addition to or inconsistent

with those stated above.

This limited warranty applies only to products

sold at retail, and is not transferable.

The manufacturer's maximum liability, in any

event, shall not exceed the purchase price of the

product paid by the original consumer-purchaser.

Some states do not allow the exclusion or

limitation of incidental or consequential damages.

Therefore, the above limitations or exclusions

may not apply to you. This warranty gives you

specific legal rights and may also have other

rights, which vary from state to state.

Limited Warranty

Customer Support Center

Thanks for purchasing a Member’s Mark™ Grill. We’re here to help you maximize your enjoyment an

appreciation of your new grill. Please don’t hesitate to contact us should you have any questions regarding

assembly, performance, warranty, or accessories. Please have your model number ready before you contact us.

We have a full line of replacement parts available. We’re here to serve You!

• If you need assistance or to order parts: Call 1-800-933-0527 or send a FAX to 1-847-252-1001.

• Business hours: Monday through Friday; 8:30AM-5:00PM Central Time.

• Visit us on the web at: www.omahagrills.com

Assembly Instructions

This page will give you an overview of information to assemble your grill. The following pages will show in

step-by-step detail how to do so. We offer the following suggestions to make your grill assembly as easy as

possible.

1.) Read through the entire Assembly Instructions before you begin.

2.) Choose an area large enough to comfortably lay out all the parts and hardware with enough room to easily

maneuver.

3.) Have an area with a non-abrasive surface where you can lay parts without scratching them.

4.) Use 2 people to remove the Cabinet and Firebox Assembly from the carton.

5.) Lay all parts and hardware out and ensure you have everything listed on the Parts and Hardware page before

you begin assembly. See the Customer Support Page for contact information should any parts be damaged or

missing.

6.) A Phillips Head Screwdriver has been provided for assembly.

7.) Do not use a Power Screwdriver for assembly as you could strip the threads on the Nuts and Bolts.

8.) The propane tank for this grill is sold separately. See the LP Gas and Cylinder Information later in this

guide.

BQ05051-3

WARNING

Failure to follow all Danger,

Warnings, and For Your Safety

notices in this Grill Guide may

result in serious bodily injury o

death, or in a fire or an explosion

causin

dama

e to

ert

CAUTION

Perform the Leak Test explained

later in this Grill Guide before

operating your grill.

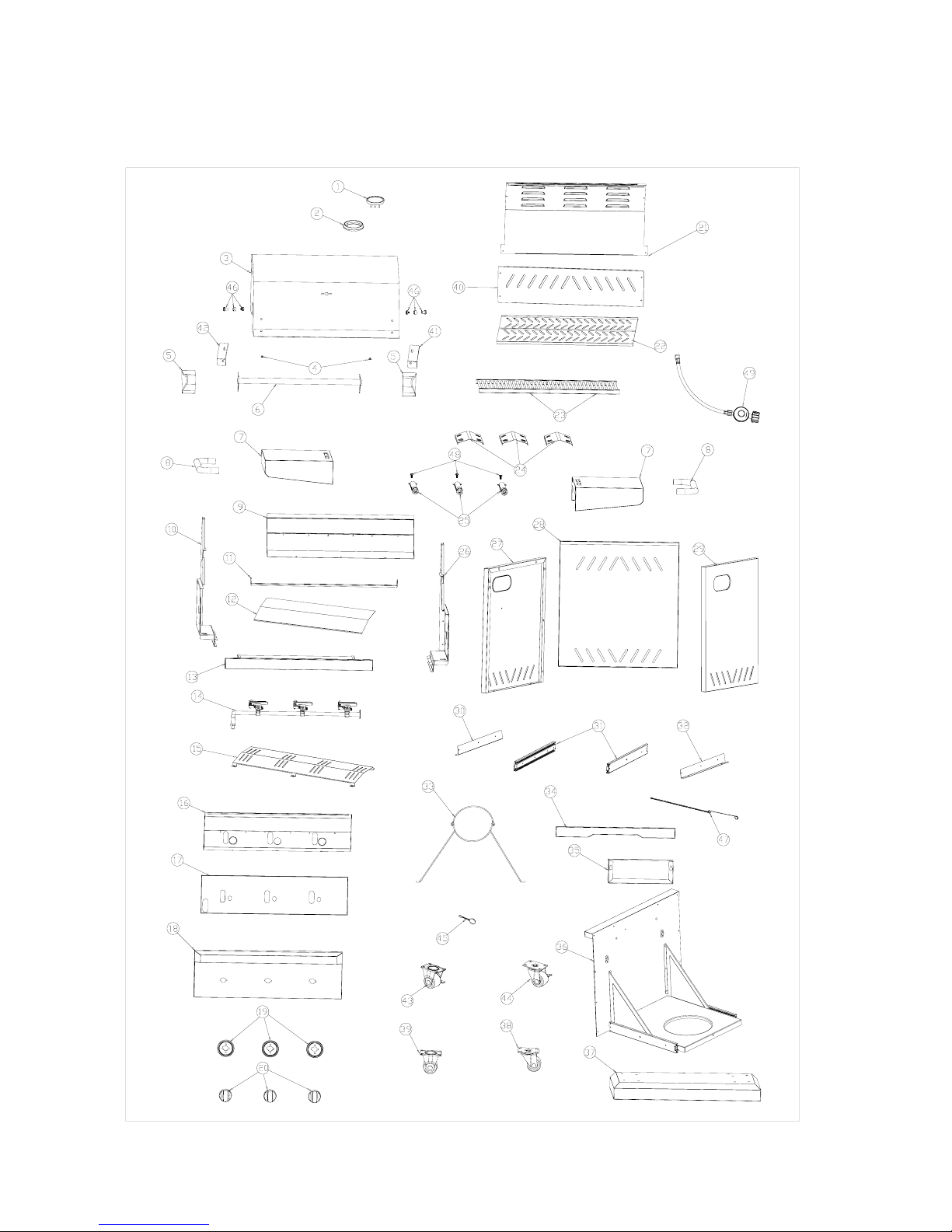

BQ05051-3 Detail Parts List

1 Thermometer 26 Firebox – Right Side Panel

2 Thermometer Seat 27 Cabinet – Left Side Panel

3 Hood 28 Cabinet – Back Panel

4 Silicon Stopper 29 Cabinet – Right Side Panel

5 Hood Handle Support 30 Glide Mounting Bracket - Left

6 Hood Handle 31 Glide

7 Side Shelf 32 Glide Mounting Bracket - Right

8 Side Shelf Handle 33 Cylinder Support Ring

9 Firebox – Back Panel 34 Cabinet Crossbar

10 Firebox – Left Side Panel 35 Condiment Box

11 Main Burner Bracket 36 Cylinder Drawer

12 Inner Heat Shield 37 Cabinet Bottom Shelf

13 Grease Tray 38 Swivel Caster

14 Gas Manifold Assembly 39 Caster

15 Bottom Heat Shield 40 Firebox Rear Panel

16 Firebox – Front Panel 41 Heat Pad - Right

17 Heat Shield for Control Panel 42 Heat Pad - Left

18 Control Panel 43 Locking Caster

19 Control Knob Seat 44 Locking Swivel Caster

20 Control Knob 45 Gas Hose Support Ring

21 Firebox – Back-Top Panel 46 Hood Bolt

22 Stamped Warming Rack 47 Manual Igniter

23 Cooking Grate 48 Burner Screw

24 Heat Diffuser 49 Regulator and Hose Assembly

25 Main Burner

BQ05051-3 Detail Parts List

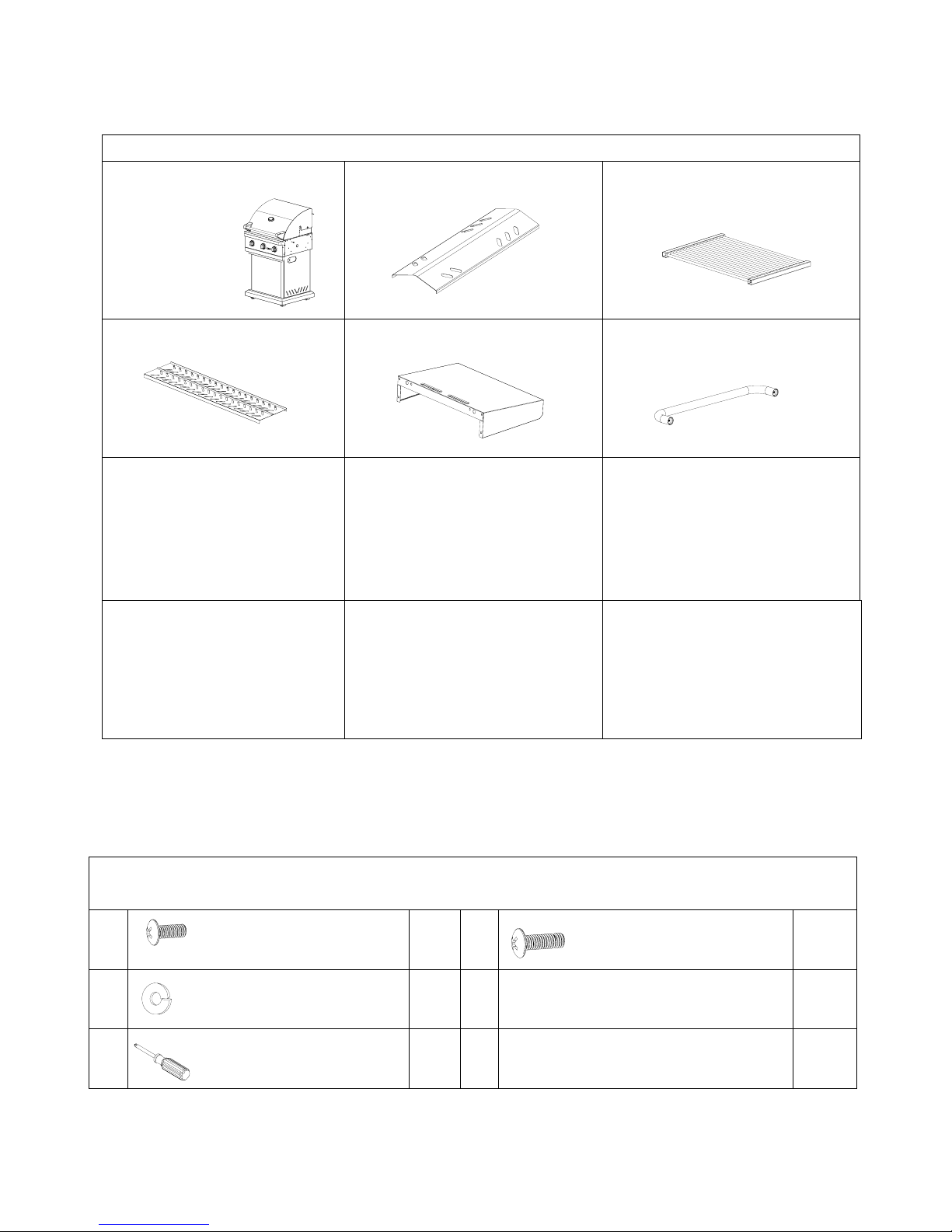

Assembly Parts List

1. Cabinet and Firebox

Assembly..1PC

2. Heat Diffuser…3PCS 3. Cooking Grate…2PCS

4. Stamped Warming Rack…1PC

5. Side Shelf Assembly…2PCS 6. Side Shelf Handle…2PCS

Hardware List

Phillips Head Bolt M6*3/8”L

8PCS

D Phillips Head Bolt M6*5/8”L

4PCS

Lock Washer

12PCS

Phillips Head Screwdriver

1PC

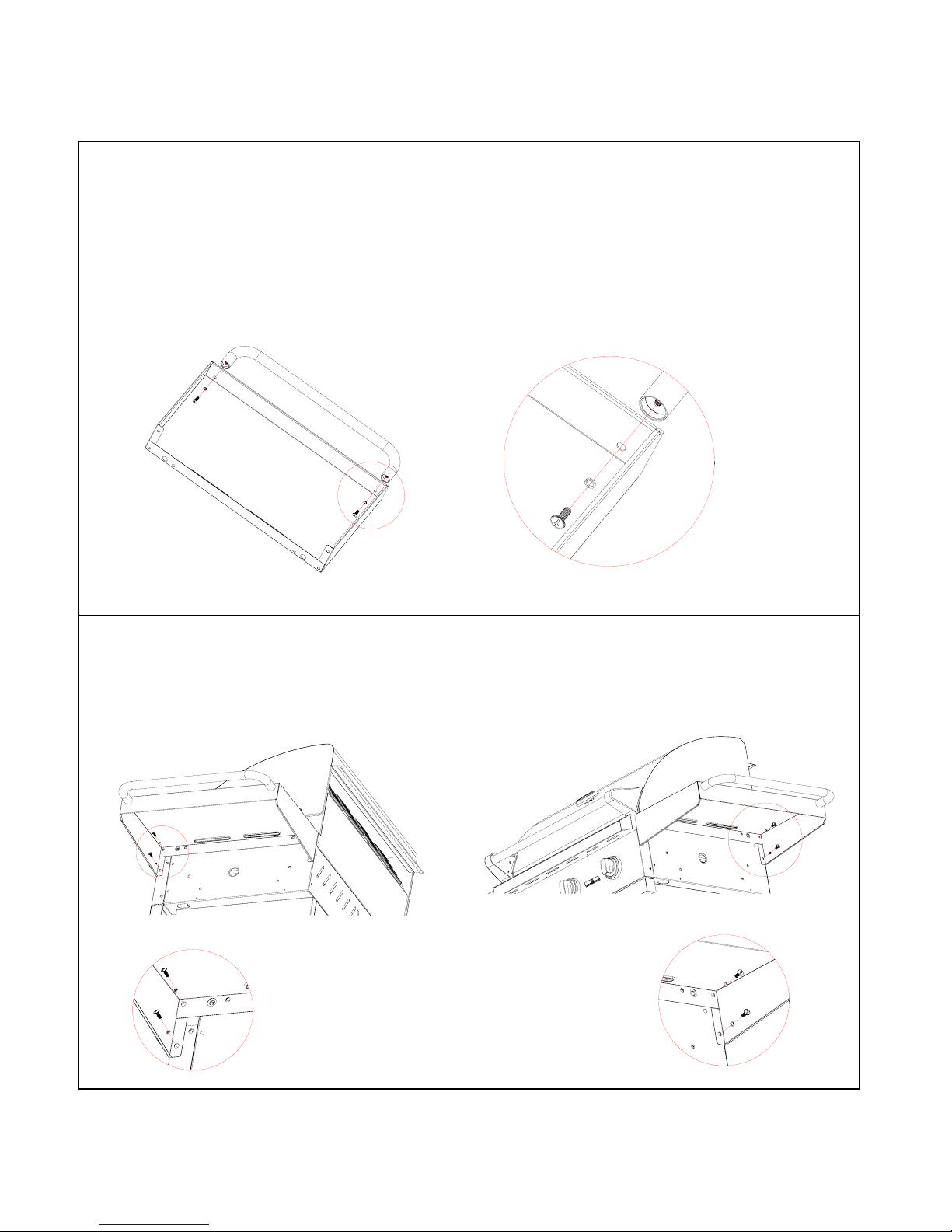

STEP 1

Use 2 Phillips Head Bolts (D) and 2 Lock Washers (B) to attach Side Shelf Handle to Side Shelf

Assembly. Repeat the same procedure to attach the second Side Shelf Handle to the second Side

Shelf Assembly.

STEP 2

Use 4 Phillips Head Bolts (A) and 4 Lock Washers (B) to attach Right Side Shelf Assembly to

Cabinet and Firebox Assembly.

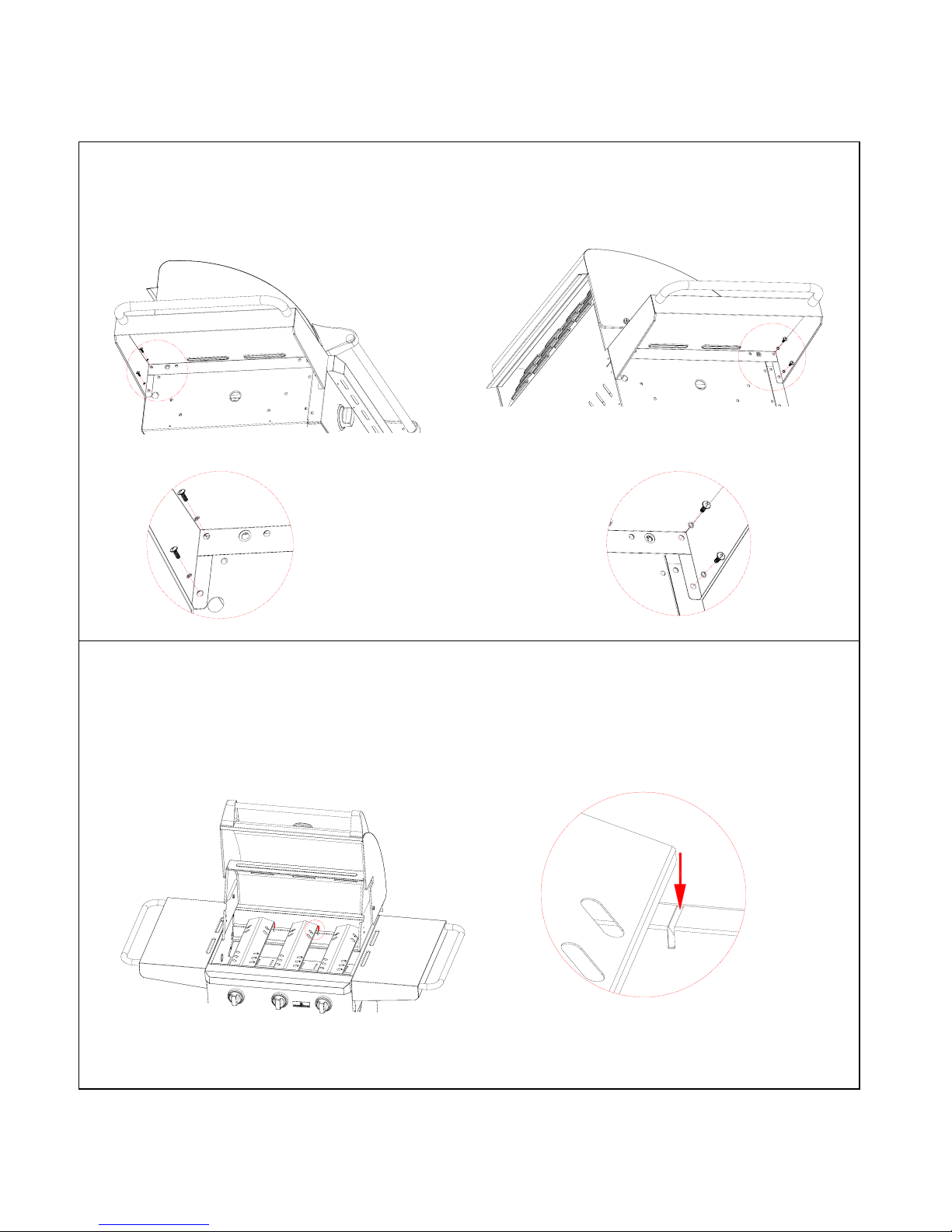

STEP 3

Use 4 Phillips Head Bolts (A) and 4 Lock Washers (B) to attach Left Side Shelf Assembly to Cabinet

and Firebox Assembly.

STEP 4

Place Heat Diffusers (2) in the Firebox in the appropriate slots.
