MeiTrack TC68 Manuel d'utilisation

File Name

MEITRACK Family OBD Edition

Creator

Renny Lee

Project

TC68

Creation Date

Update Date

2012-08-23

2013-06-27

Sub Project

User Guide

Page

- 1 - of 28

Revision

V1.2

Confidential

External Documentation

MEITRACK® Family GPS Tracking System

OBD Edition

Use Guide

- 1 -

File Name

MEITRACK Family OBD Edition

Creator

Renny Lee

Project

TC68

Creation Date

Update Date

2012-08-23

2013-06-27

Sub Project

User Guide

Page

- 2 - of 28

Revision

V1.2

Confidential

External Documentation

Content

1Copyright and Disclaimer.....................................................................................................................................- 3 -

2Quick Start Instruction .........................................................................................................................................- 4 -

2.1 Check IMEI Number ...............................................................................................................................- 4 -

2.2 Insert SIM Card.......................................................................................................................................- 4 -

2.3 Log in Platform.......................................................................................................................................- 4 -

2.3.1 Ways to Login ...............................................................................................................................- 5 -

2.3.2 Check Location .............................................................................................................................- 6 -

2.4 Troubleshooting .....................................................................................................................................- 7 -

2.4.1 Login Problem...............................................................................................................................- 7 -

2.4.2 Location Problem .........................................................................................................................- 7 -

3Software Function ..............................................................................................................................................- 10 -

3.1 Position .................................................................................................................................................- 10 -

3.1.1 Position .......................................................................................................................................- 10 -

3.1.2 History GPS Log ..........................................................................................................................- 17 -

3.2 Account Centre.....................................................................................................................................- 18 -

3.3 Statistics Centre ...................................................................................................................................- 19 -

3.3.1 History Record............................................................................................................................- 19 -

3.3.2 Alarm Records ............................................................................................................................- 21 -

3.3.3 Fault Records ..............................................................................................................................- 23 -

3.3.4 Snapshot .....................................................................................................................................- 24 -

3.4 Command Centre .................................................................................................................................- 26 -

3.4.1 Sending command......................................................................................................................- 26 -

3.4.2 Setting Command.......................................................................................................................- 27 -

- 2 -

File Name

MEITRACK Family OBD Edition

Creator

Renny Lee

Project

TC68

Creation Date

Update Date

2012-08-23

2013-06-27

Sub Project

User Guide

Page

- 3 - of 28

Revision

V1.2

Confidential

External Documentation

1Copyright and Disclaimer

MEITRACK and are trademarks that belong to Meitrack Group

The user manual may be changed without prior notification.

This user manual, or any part thereof, may not be reproduced for any purpose whatsoever without the written

authorization of Meiligao (MEITRACK), or transmitted in any form, either electronically or mechanically, including

photocopying and recording.

In no event shall Meiligao (MEITRACK) be liable for direct, indirect, special, incidental, or consequential damages

(including but not limited to economic loss, personal injury, and loss of asset and property) arising out of the use

or inability or illegality to use the product or documentation.

- 3 -

File Name

MEITRACK Family OBD Edition

Creator

Renny Lee

Project

TC68

Creation Date

Update Date

2012-08-23

2013-06-27

Sub Project

User Guide

Page

- 4 - of 28

Revision

V1.2

Confidential

External Documentation

2Quick Start Instruction

2.1 Check IMEI Number

Check the IMEI No. on TC68 which consists of 15 digits, this IMEI number can be used as account name to log in

Meitrack Family GPS Tracking System.

2.2 Insert SIM Card

The default setting of GPRS for the device is open to report and update location data to the server every 1

minute.

Insert the SIM Card and TF Card:

Notice

：

Please turn off TC68 before insert the SIM card and TF Card

SIM Card

：

Remove the cover of SIM card and insert SIM card as picture (chip down),then recover

it.

Notice：

�Make sure there is enough charge (test it by SMS and Call after the SIM card

inserted );

�Make sure turn off the PIN function of the SIM card ;

�Make sure you have set Caller Identification function if you want so.

TF Card

：

Remove the cover of TF card and insert TF card as picture (chip down), then recover it.

Insert SIM Card

Insert TF Card

2.3 Log in Platform

- 4 -

File Name

MEITRACK Family OBD Edition

Creator

Renny Lee

Project

TC68

Creation Date

Update Date

2012-08-23

2013-06-27

Sub Project

User Guide

Page

- 5 - of 28

Revision

V1.2

Confidential

External Documentation

2.3.1 Ways to Login

There are 4 ways to log in platform: IMEI number, QQ account, MSN account, self-registered account.

Note: data sync will not be affected by different login ways.

Logging in by IMEI number is fit for the users who have only one tracking device, it’s very convenient for the

first use through IMEI number.

Logging in by QQ/MSN account is fit for the users who have registered many user accounts.

Logging in by registered account is fit for the users who have more than one tracking devices, users can

name their own registered accounts.

2.3.1.1 Login by IMEI Number

Click the access icon, and enter your IMEI number:

Account: IMEI number

Password (Default): 0000 (User can change the password after logging in)

Select Mark Password and Auto Login, you don’t need to enter the Username and Password next time while

visiting the system.

The system will prompt Set User Information. There are two methods to login Meitrack Family GPS Tracking

System : “IMEI NO.” and “Account” . The Account name can be letters and numbers, case insensitive.

- 5 -

File Name

MEITRACK Family OBD Edition

Creator

Renny Lee

Project

TC68

Creation Date

Update Date

2012-08-23

2013-06-27

Sub Project

User Guide

Page

- 6 - of 28

Revision

V1.2

Confidential

External Documentation

Click Next to Set Vehicle Information. Meitrack Family will set your vehicle and the IMEI No. automatically.

2.3.1.2 Login by Self-Registered Account

If you want to use only one account to manage multi devices, you can register an account at first, then add more

other devices under this registered account.

When you register, it will require you to fill in the IMEI number of your first device. You can add more other

devices after log in the platform.

2.3.2 Check Location

After log in the platform successfully, you can choose the right device from the Device Panel on the right side to

check the latest real-time location.

- 6 -

File Name

MEITRACK Family OBD Edition

Creator

Renny Lee

Project

TC68

Creation Date

Update Date

2012-08-23

2013-06-27

Sub Project

User Guide

Page

- 7 - of 28

Revision

V1.2

Confidential

External Documentation

2.4 Troubleshooting

2.4.1 Login Problem

If fail in logging in by IMEI number, please contact your seller and inform your IMEI number to fix the problem.

2.4.2 Location Problem

If fail in checking location after logging successfully , or single clicking and double clicking the device, the device

doesn't send data to the server, and popping up the following notice, you can set and check problem by the

following methods:

2.4.2.1 Set by SMS Command

SMS: 0000,F12

Reply: IMEI,F12,OK

Note:

0000 is the default password of the device, not the pass word of Meitrack Family GPS Tracking System. Please use

the new password if you have changed.

This command is for running the GPRS report, and set GPRS parameter (default) as the below:

IP: 67.203.13.26

Port: 6800

GPRS Mode: TCP

Time Interval for Report : 60 secs

APN：CMNET

APN Account, APN Password: Null

- 7 -

File Name

MEITRACK Family OBD Edition

Creator

Renny Lee

Project

TC68

Creation Date

Update Date

2012-08-23

2013-06-27

Sub Project

User Guide

Page

- 8 - of 28

Revision

V1.2

Confidential

External Documentation

2.4.2.2 Configure by Computer with Meitrack Manager

If you use Meitrack Manager, please configure the parameter as following:

GPRS Connection Mode: TCP

IP Domain and Port: fill in the server's IP, our server's IP is 67.203.13.26. Port number is TCP/IP port on the

server used for receiving GPRS. Our server's port is 6800.

Backup IP Domain and Port: it fits for the users who have multi servers. When the first server can't work,

the device will automatically send data to the backup server. Our backup server's IP and port are

67.203.13.26 and 6801 respectively.

APN, APN User Name, APN Password: enter APN, APN Username, APN Password. You can leave them blank

if no APN username or password is required.

GPRS Time Interval: fill in the GPRS report time interval you want, the unit is 10 seconds, 6 represents one

minute is recommended.

GPRS Report Times: "No Limit" means no limit for report times. Fill in specific number to control GPRS

report times.

GPRS Time Zone: the default time zone is 0. The platform will automatically match the time zone with

user's computer system time.

- 8 -

File Name

MEITRACK Family OBD Edition

Creator

Renny Lee

Project

TC68

Creation Date

Update Date

2012-08-23

2013-06-27

Sub Project

User Guide

Page

- 9 - of 28

Revision

V1.2

Confidential

External Documentation

Items Descriptions

GPRS

Close: Close GPRS upload time.

TCP: TCP is a stable connection. It is recommended to use this model.

UCP: UCP can save rates, but is a less stable option.

IP/Domain Set main server’s IP address and port number.

Backup IP/Domain Backup server’s IP address and port number to avoid losing data when main server is

down.

APN, APN Username,

APN Password

Max 32 bytes. If no username and password, leave them blank.

China Mobile APN: CMNET, China Unicom APN: NINET, no username and password.

GPRS Time Interval

Track by time interval via GPRS

Set time interval for GPRS tracking, in 10 seconds ( fill in 6 means 60 seconds)

= 0, cancel GPRS tracking by time interval; max time interval = 65535*10 seconds.

GPRS Report Times

= 0, no limit, unlimited times for report;

= [1,65535], set report times, tracker will stop reporting when reaching the preset

times.

GPRS Time zone GPRS time zone minute = 0, GMT 0 (default)

GPRS time zone minute = [-32768,32767], set different time zones.

GPRS Timing Report

(Ignition Off)

This function is only for T1; not suit for MT90 and TC68.

After the Input 3 of T1 connected with ACC and set this function, the GPRS data can be

sent by different time interval while the engine is ON/OFF.

Setting GPRS Timing Report (Ignition Off)，the unit is 10 seconds(Set 6 means 60

seconds).

= 0, cancel the GPRS Time Interval; Max Time Interval=65535*10 seconds

Event Report List all the GPRS events, it was showed by different way by different items.

GPRS While the event which were set happened, the device will send the corresponding

GPRS event report to the server.

Sound Reminders

(TC68 Only)

This function is only for TC68. While the event which were set happened, The build-in

buzzer of TC68 will make a sound to remind.

Save Save current settings to the tracker.

- 9 -

File Name

MEITRACK Family OBD Edition

Creator

Renny Lee

Project

TC68

Creation Date

Update Date

2012-08-23

2013-06-27

Sub Project

User Guide

Page

- 10 - of 28

Revision

V1.2

Confidential

External Documentation

3Software Function

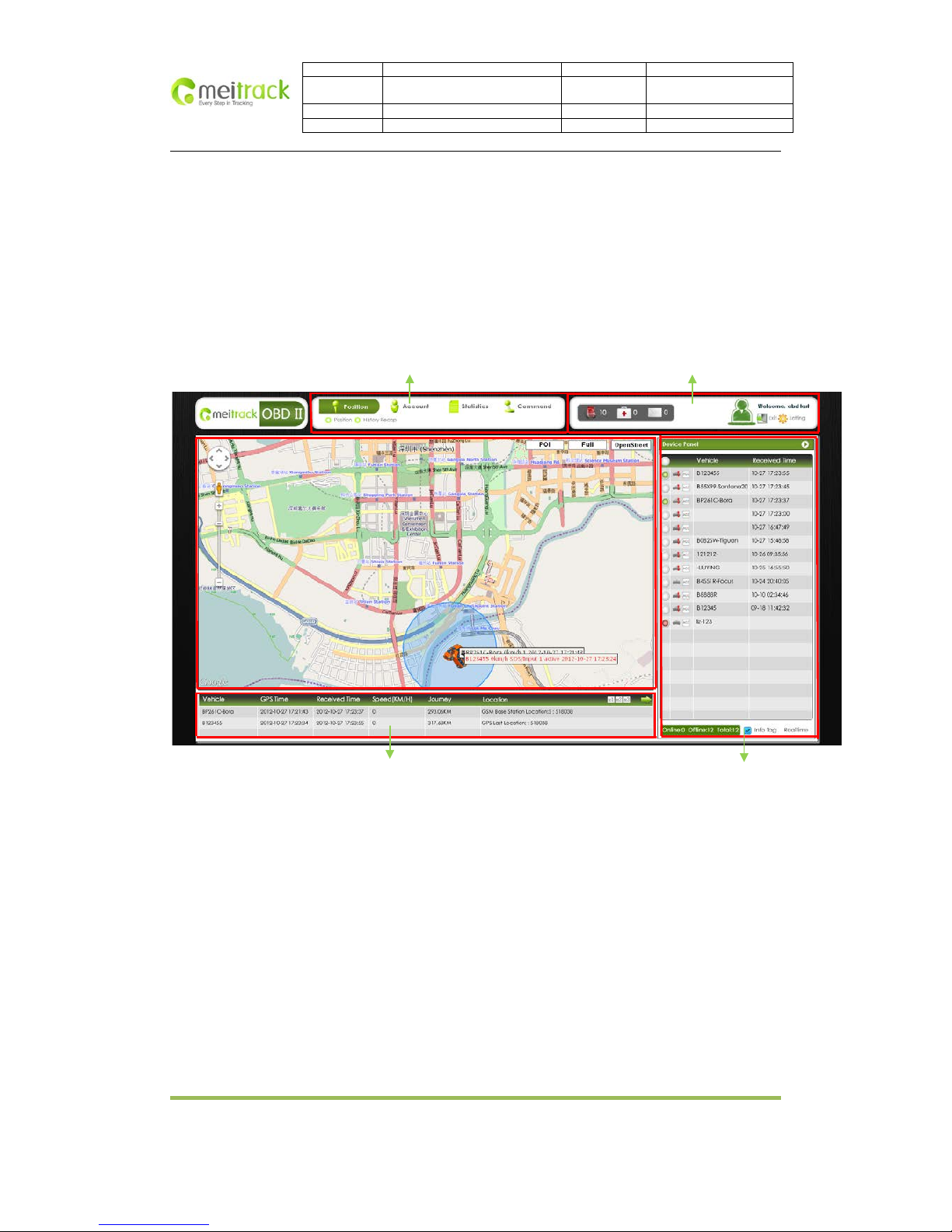

3.1 Position

There are two parts : Position and History Recap.

3.1.1 Position

3.1.1.1 Maps

Maps show on the main page, you can choose Map , Satellite, Chinese Map, and enclosed choice Geography.

On the right top of the map, Full Screen can make the map Max, suit for control center and big screen.

POI(Point of Interest): POI is mainly for locations on the map without detailed address or buildings without mark.

You can also create POI on locations where you often use in order to recognize them more conveniently.

Click "Point Of Interest" menu, the " Point Of Interest" dialog window will pop up.

1) Search POI

You can quickly search POI you've added already.

Enter the name of POI you want to search, then click "Sure" to search, all results will be shown.

Main Manual

Mail Box

Status

Device Panel

- 10 -

Autres manuels pour TC68

Table des matières

Autres manuels MeiTrack GPS

MeiTrack

MeiTrack T366 Manuel utilisateur

MeiTrack

MeiTrack iButton MVT600 Manuel utilisateur

MeiTrack

MeiTrack iButton MVT600 Manuel utilisateur

MeiTrack

MeiTrack MT90 Manuel utilisateur

MeiTrack

MeiTrack MT90G Manuel utilisateur

MeiTrack

MeiTrack Mobileye T622 Manuel utilisateur

MeiTrack

MeiTrack T633L Manuel utilisateur

MeiTrack

MeiTrack GT30i Manuel utilisateur

MeiTrack

MeiTrack MT90 Manuel utilisateur

MeiTrack

MeiTrack VT310 Manuel utilisateur

MeiTrack

MeiTrack GT30i Manuel utilisateur

MeiTrack

MeiTrack MS02 Manuel utilisateur

MeiTrack

MeiTrack MD500S Manuel utilisateur

MeiTrack

MeiTrack iButton T1 Manuel utilisateur

MeiTrack

MeiTrack TS299L Manuel utilisateur

MeiTrack

MeiTrack TC68L Manuel utilisateur

MeiTrack

MeiTrack MVT100 Manuel utilisateur

MeiTrack

MeiTrack T322X Manuel utilisateur

MeiTrack

MeiTrack T399G-GFB5 Manuel utilisateur

MeiTrack

MeiTrack P66 Manuel utilisateur

MeiTrack

MeiTrack TC68L Manuel utilisateur

MeiTrack

MeiTrack iButton T1 Manuel utilisateur

MeiTrack

MeiTrack MVT380 Manuel utilisateur

MeiTrack

MeiTrack iButton MVT600 Manuel utilisateur

Manuels GPS populaires d'autres marques

Raven

Raven Cruizer II Manuel

Hama

Hama 53118 Manuel utilisateur

Garmin

Garmin SOUNDER 125 Manuel utilisateur

Garmin

Garmin DEZL 580 Manuel utilisateur

Jigabot

Jigabot EX Manuel utilisateur

Pointer

Pointer Cellocator CelloTrack XT LTE Guide d'installation

Queclink

Queclink GV55LITE Manuel utilisateur

Voxson

Voxson Voxtrack GPS500 Manuel d'instructions

Garmin

Garmin ECHOMAP PLUS Manuel utilisateur

Starcom Systems

Starcom Systems Kylos Compact Manuel utilisateur

Garmin

Garmin 15 H Series Manuel utilisateur

Cobra

Cobra Marine MC 600Ci Manuel utilisateur

Cellocator

Cellocator CelloTrack T Manuel utilisateur

Enfora

Enfora Mini-MT GSM2228UG001 Manuel utilisateur

Magellan

Magellan eXplorist 100 Manuel utilisateur

LTE

LTE G50B Manuel utilisateur

Garmin

Garmin DEZL OTR500 Manuel utilisateur

SkyGolf

SkyGolf SkyCaddie SG1 Manuel utilisateur
