Megatron WSP-R241 Manuel utilisateur
WSP-R241
Mobile thermal printer
●Pocket size.
●Support text and graphic printing.
●Low power consumption
●Interface USB Bluetooth Ver3.0
●High resolution (203 dpi : 8 dots mm)
Version 0.1
Summary
Introduction...................................................................................................3
Operating precautions :.................................................................................4
Specifications :..............................................................................................5
Setting up the printer :..................................................................................6
Printer features :............................................................................................7
Dimensions :.................................................................................................8
Replacing the paper roll:...............................................................................9
Power supply :............................................................................................10
Control panel :............................................................................................12
Set operation mode :...................................................................................13
Interface :....................................................................................................15
The self-test :..............................................................................................18
Consumable parts :......................................................................................18
Doc WSP-R241 2
Introduction
→ The WSP-R241 printer is suitable designed for use with a growing variety of
mobile devices. Bluetooth USB interfaces make the WSP-R241 the perfect comrade for
applications such as point of transaction warehousing, distribution, point of sales,
hospitality, gaming and healthcare.
→ Her general features are as follows:
➢Light weight (193.5g) for true mobility.
➢Pocket size (79,5 x 104,4 x 37,6 mm)
➢Very silent printing thru direct thermal printing method.
➢High speed(100mm sec, MAX)
➢High resolution(203dpi : 8dots mm)
➢USB, Bluetooth Ver3.0 interface
➢Intuitive LED’s indicate Power(on off),Error, Bluetooth status, Battery status
➢Support Magnetic Stripe Reader [option]
➢Support text and graphic printing.
➢Easier paper loading by CLAMSHELL design.
➢One touch paper cover
➢Printer door open & Paper-out sensor
➢Easier maintenance with self-diagnostics.
➢In field programming – Update Firmware, Download Fonts and Logos
➢Microsoft Windows XP VISTA 7 8 CE, Linux, Android compatible.
➢Free fall: 1.5M drop resistance
➢Flow control : Software (XON XOFF)
3 Doc WSP-R241
Operating precautions :
→ Please follow the precautions below to enjoy and maintain the full
performance of the printer.
Using the printer :
•Be careful not to drop or bump the printer on a hard surface;
• Do not install the printer in direct sunlight or such areas. Suitable environment
for the use of the printer is as follows:
Operating temperature : -10°c à 50°C
Relative humidity : 30 % et 80 %
•Do not install the printer near devices that generate strong electromagnetic fields
such as a copy machine.
•Do not open platen cover during printing.
•Do not remove or reinstall the communication cable during printing or
transmission.
•Do not touch the connectors of the communication cable during printing.
•Switch the POWER OFF when not in use.
•Do not use other solvent.
•The AC adapter, the battery charger and the battery pack may
become warm when in use. This is normal and is not a malfunction.
•When the battery pack is used at low temperature, the length of time
the printer can be used may be shortened.
Thermal paper handling :
•Store the thermal paper in a cool, dry and dark place.
•Do not rub the paper with hard object.
•Do not allow plastic film, erasers, or adhesive tape to touch the paper for long
periods.
•Do not use chemical glue.
•Always use the clean thermal paper.
Doc WSP-R241 4
Specifications :
Item Specifications
Printing method Direct thermal line printing
Character size ont size A: 12x24 ont size B : 9x24 ont size C : 8x16
KOR : 24x24(16x24) CHN,JPN : 24x24
Characters per line A : 32cpl B : 42cpl C : 48cpl
KOR : 16cpl(24) CHN,JPN : 16 cpl
Character set
Alphanumérique : 95, extended graphics : 128x50 pages,
International : 10
Simplified Traditional Chinese, Japanese, Korean
Resolution 203dpi, 8 dots mm
Dimensions 79,5 x 114,3 x 43,5 mm
79,5 x 118,4 x 43,5 mm (MSR*)
Weight 197,2 g 202,1 g (MSR*)
Interface USB, Bluetooth ver3.0 interface
Paper supplied Thermal roll paper, Label roll
(58 mm wide, 40 Ø)
Barcodes
1-D : UPC-A, UPC-E, EAN-8, EAN-13, CODE-39, CODE-
93,
CODE-128, ITF, CODABAR
2-D : PDF417, Micro PDF417, Tru cated PDF417, QR-
CODE,
DATA Matrix, Maxicode
Etc :GS1 databar
Driver Microsoft Wi dows XP/VISTA/7/8/CE, Li ux, A droid
compatible
H W spec. MCU : RX-32bit, RAM : 128M bit, FLASH : 64M bit
Receive buffer size 1M bytes
MSR [option] Triple tracks (1&2&3 tracks reading)
Supports 3DES & AES encryption
Battery Rechargeable, 7,4V DC, 1100mAh (Li-ion)
Battery duration 1 hours continuous printing
5 Doc WSP-R241
Environment
conditions
Temperature : -10°C ~ 50°C (operating)
-10°C ~ 70°C (storage)
Humidity : 30 % ~ 80 % (operating)
10 % ~ 90 % (storage)
Limited warranty of
life Head : 100km
-MSR : Magnetic Stripe Reader
Setting up the printer :
a) Printer & accessories
→ Your printer should include these items. If any items are damaged or missing,
please contact your dealer for assistance.
Box contents :
•Printer WSP-R241 :
•Thermal Roll Paper :
•Communication cable :
•Battery pack :
•Battery charger adaptor :
Doc WSP-R241 6
Optional accessories:
•MSR :
•Car charger :
•External battery crade :
Printer features :
Note : The features are the same for the MSR printer.
7 Doc WSP-R241
Dimensions :
MSR model :
Doc WSP-R241 8
Replacing the paper roll:
Note : → Be sure too use paper rolls that meet the specifications.
→ Do not use paper rolls that have the paper glued to the core because the printer
can not detect the paper end correctly.
Steps to follow: →Make sure that the printer is not receiving data; otherwise, data may
be lost.
→ Remove the used paper roll (if there is one)
→ Install the paper roll as shown below :
1) – Open the paper cover by pressing the open switch:
2) – Insert the paper roll as shown:
3) – Tear the excess paper off using the edge of paper door as a tear bar :
9 Doc WSP-R241

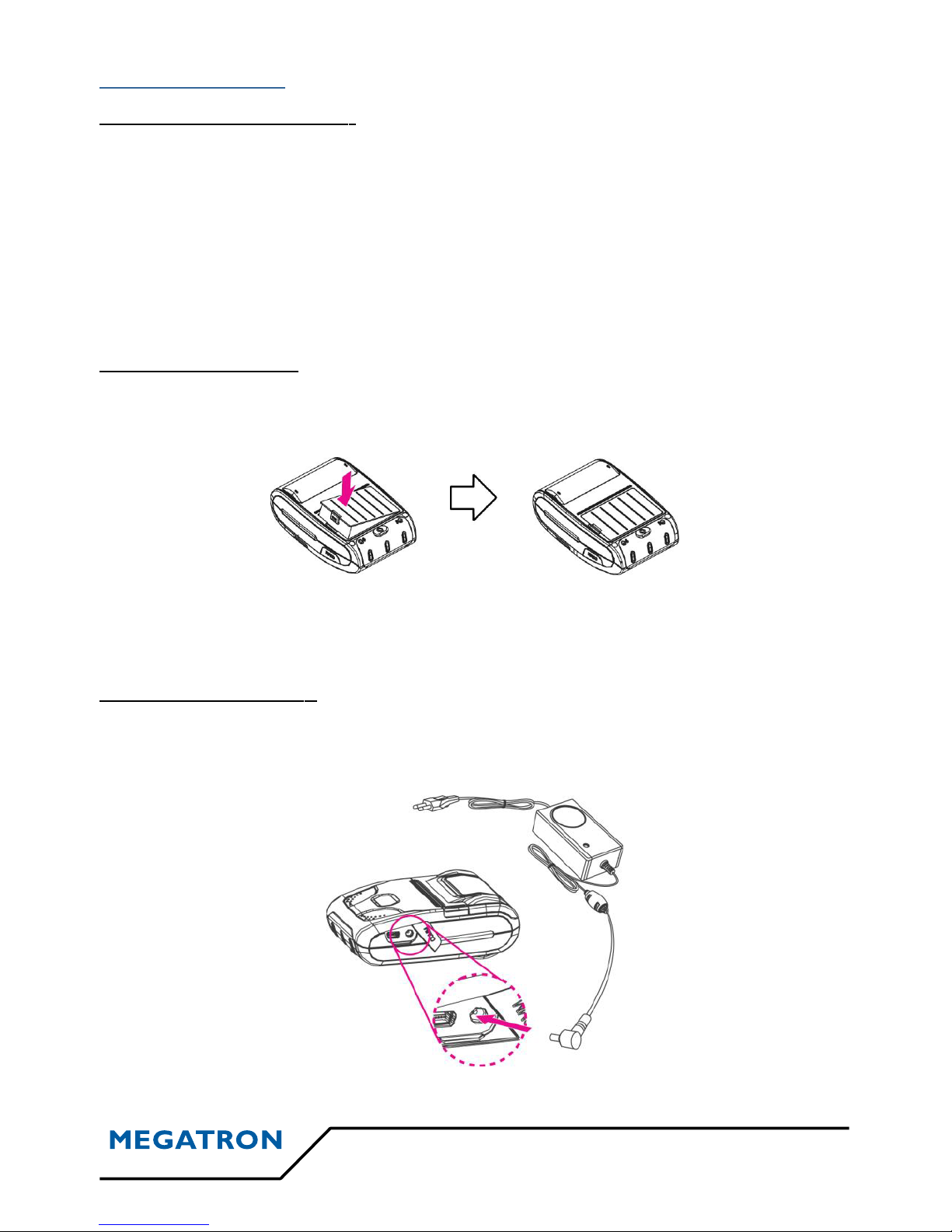

Power supply :
Power supply specifications :
→ The following specification is requested for power supply :
Input : 24V DC Max 3A
Avoid using power supply which it’s power capacity of power current is extremely high.
Installing the battery :
→ To install the battery, please follow the steps as shown below :
1) – Insert the battery connector in the direction of the arrow :
2) – To remove battery pack, proceed the above order reverse.
Recharging the battery :
→ For recharging the battery pack, insert the battery pack in the printer. Insert
the battery charger to the charge connector of the printer:
Doc WSP-R241 10
