Instrucon Manual
Entry Control Thermometer and Counter
Wall Mounted
CAT 65 GP100
Revision 1
MEFE—Mitchell Engineering Food Equipment Pty Ltd
23 Storie Street Clontarf QLD 4019 Australia
www.mefe.com.au | [email protected]
Page 2
+617 3283 4536
Free AU 1800 669 006

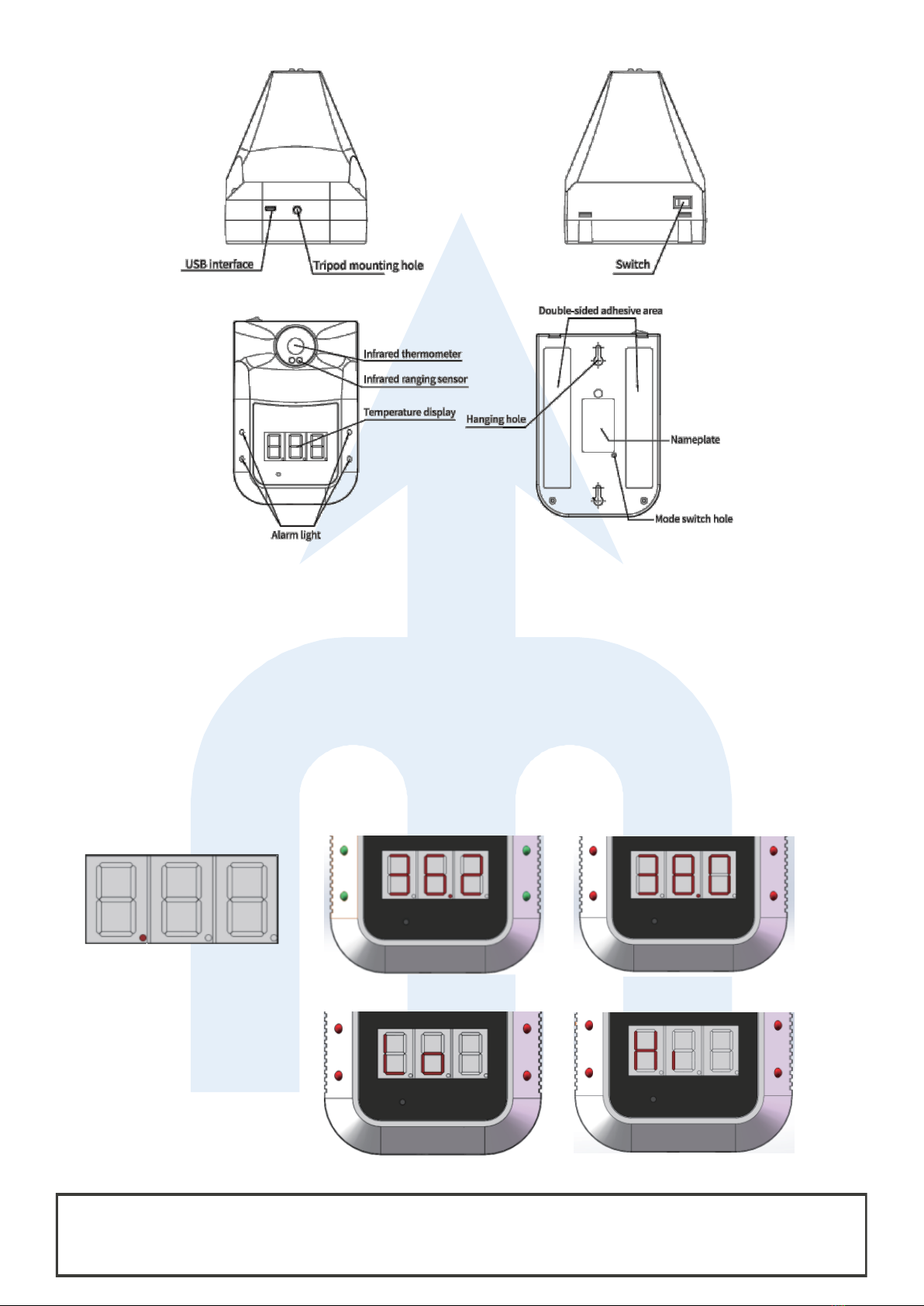

Parts
Status Descripon
1. Standby: A red dot in the boom secon of the display will light up in sequence from le to right (A).
2. Normal temperature: Flashing green lights on either side of the device and single beep (B).
3. Abnormal temperature: Flashing red lights and rapid beeps (C).
4. Default sengs (in body mode):
“Lo” Ultra-low temperature (D)
“Hi” Ultra-high temperature with alarm (E).
Note: In counng mode, each count will ash green with a single beep displaying the number.
BC
A
DE
MEFE—Mitchell Engineering Food Equipment Pty Ltd
23 Storie Street Clontarf QLD 4019 Australia
www.mefe.com.au | [email protected]
Page 3
+617 3283 4536
Free AU 1800 669 006
Operaon Instrucons
1. Temperature measurement: Approach the front of the thermometer within sensing range (5—10cm) (F).
2. Mode switching: Gently insert a 3mm diameter screwdriver into the hole on the back of the device and press down on
the buon (G).
3. Temperature selecon: Single press and cycle between “C” and “F” for Celsius or Fahrenheit.
4. Work mode selecon: Long press the mode switch buon for 3 seconds to switch the measurement work mode be-
tween Body, Surface, and Counng Mode.
Baery Install, Replacement, and Recharging
1. Remove the four screws on the back cover and open the base. This device uses a rechargeable 18650 Li-ion baery.
2. To charge the baery, connect the device via the USB cable to any USB interface. You should see a light through the
boom hook hole indicang the device is charging. Red requires charge, green indicates fully charged.
Installaon Methods
F
Nail hook Tripod mounted (tripod not supplied) Double-sided adhesive tape
G
MEFE—Mitchell Engineering Food Equipment Pty Ltd
23 Storie Street Clontarf QLD 4019 Australia
www.mefe.com.au | [email protected]
Page 4
+617 3283 4536
Free AU 1800 669 006
Soware User Guide
Note: This soware is only compable with Windows systems. Available in English, Spanish, Simpli-
ed Chinese, and Japanese.
Download the soware package “MEFE_Thermometer.exe” and follow the steps below:
1. Turn on the thermometer using the top switch. Once the device is On, connect the USB cable provided to the USB inter-
face on your computer.
2. Open the soware package (double-click the le).
3. Select “COM” from the drop-down list and “Connect” to the applicable port that matches your USB input (Figure 1).
Once connected, the thermometer will automacally convert each reading to data.
4. To set your own temperature thresholds for a green/normal reading or orange/abnormal reading by changing the “Up”
and “Down” temperature under “Warning”. Up sets the limit above which a temperature is abnormal. Down sets the
limit below which a temperature is abnormal.
5. You can switch between Temperature (Celsius/Fahrenheit) and Work Mode (Body/Body/Count).
6. To export data, select “Save”. The program automacally exports as a .txt le. Once exported, “Clear” the data.
7. Before disconnecng the USB, click “Disconnect” on the interface to safely shut down.
FAQ
1. Not recognising or nding the “COM” port? Disconnect the USB and make sure you have turned on the device rst,
then connect the USB to the computer.
2. The data does not refresh aer the port is open. Check the power switch is On, reconnect the device.
Figure 1 Figure 2
MEFE—Mitchell Engineering Food Equipment Pty Ltd
23 Storie Street Clontarf QLD 4019 Australia
www.mefe.com.au | [email protected]
Page 5
+617 3283 4536
Free AU 1800 669 006
Work Modes Body, Surface, Count Installaon Nail Hook, Double-sided adhesive
tape, tripod/stand mounted
Counng Capacity 999 Standby Approx. 7 days
Power USB Rechargeable 18650
Li-ion baery
Accuracy ±0.2 degrees (34-45°C). We recom-
mend you place it in the operang
environment for 30 minutes before
use.
Environment Temperature 10—40°C (recommended
15—35°C)
Sensing Distance 5—10cm
Infrared Measuring Range 0—50°C Dimensions 11 x 13 x 17cm
Response Time 0.5 seconds Weight 263g
Specicaons
Package Contents
Thermometer (rechargeable baery included)
USB Charger
Soware
