MEDIBIOS Plus Manuel utilisateur

USER MANUAL

MEDIBIOS plus

Mod. 048 EN - User manual MEDIBIOS plus - Rev. 1 –27/05/2020

Introduction

The present user manual must be considered as an integral part of the machine,

as it contains important information on proper utilization of MEDIBIOS plus

device. Keep in a protected but easily accessible place.

Every operator should carefully comply with warnings and instructions given in

this manual. Reproduction or translation of any part of the present manual is

forbidden without prior written consent of the Manufacturer Company.

The machine described in the present manual is a diffuser of ready-made liquid

solutions such as:

▪Medical devices

▪Biocides

▪Sanitizers

MANUFACTURER:

AMIL CARE CORP.

3326 NW 29 ST

MIAMI, FL 33142

Web site: www.amilcarecorp.com

For information about MEDIBIOS: info@amilcarecorp.com

For assistance: [email protected]

The “mandatory” symbol is used to describe safety

instructions and warnings to be complied with.

Disposal: The correct disposal of your old product will help prevent potential

negative consequences for our environment and human health. Do not dispose

of your old products with your normal household waste. Please act according

to your local rules.

Index

1. Safety instructions and warnings p. 6

2. General p. 8

3. Technical characteristics p. 8

4. Chart of consumption and emission duration

p. 8

5. List of visible external elements

p. 9

6. Labelling p. 9

7. General norms of usage p. 10

7.1.Unpacking the device

p. 10

7.2.Modalities of use

p. 10

7.3.Touchscreen

p. 11

7.3.1. Start p. 11

7.3.2. Stand-by and functions

p. 12

7.3.2.1. Program setting p. 13

7.3.2.2. Cycle type p. 15

7.3.2.3. Alarms p. 21

7.3.2.4. Settings p. 21

7.3.2.5. Reports p. 24

7.3.2.6. Bottle setting

p. 25

7.3.3. Cycle stop p. 26

7.3.4. Procedures in case of mains failure

p. 26

8. Guarantee

p. 27

Safety instructions and warnings

Here following is a list of warnings to be observed in order to

safely operate the device and to avoid risks to people and animals

or damage to the instrumentation. Before using this device it is

mandatory to observe the safety and usage instructions

described in the present manual. This manual can be modified

without prior notice.

▪This is a Class A product. In a domestic environment, this product may

cause radio interference, in which case the user may be required to take

appropriate measures.

▪The device must be used only by trained and authorized personnel, applying

exclusively the operative protocols.

▪The user operates under his/her own responsibility.

▪Don't use the device for purposes different from those for which it was

designed.

▪Only use the device with the products authorized by the producer (the list of

the authorized products is available on the website www.medibios.com or

please contact the local authorized distributor).

▪Carefully study the material safety data sheet of the product to be utilized

before using the device.

▪During device operation, the place must be totally devoid of people and

animals.

▪In case of weekly planning, ensure that all personnel are aware of the days

and times of device start and that outside the place to be treated a notice of

treatment in progress is exposed.

▪Before effecting a sanitation, disinfection, pest control or a washing cycle,

ensure that the place is suitable (see 7.2).

▪Enter the place again only after the value of the used substance correspond

to what indicated in the Safety Data Sheet (sect. 8 of the Safety Data Sheet)

Measure this value with suitable detector device.

▪Utilise the device in a dry and protected place.

▪Don't go near the device with inflammable or explosive materials.

▪Ensure that the power supply from mains is correct and complying with

relevant norms. In order to avoid electrical interference to the device it is

important to verify that the value of resistance to earth is efficient and well

suited to the protections of your electrical plant.

▪Periodically check the state of the power supply cable and never operate

the device when the cable shows any anomaly or is in any way damaged in

its structure.

▪Don't pull the cables to detach them from the device panel, but take them in

your fingers to extract them from the sockets.

▪Don't leave the instrument connected to mains when not in use: disconnect

the plug from mains when the device is not in use (except when a weekly

plan has been set).

▪Don't introduce any objects or liquids inside the pivoting nozzles of the

diffuser and don't cover them either during product emission or when the

equipment is off.

▪Place outside the room a suitable notice of sanitation/disinfection, pest

control or washing treatment in progress.

▪Keep the device in horizontal position, do not tilt it and turn it upside down.

▪Carefully set the device on a perfectly flat surface inside the room to be

treated, ensuring a distance of approximately 1 metre is left free of obstacles

in the emission direction, in order to ensure proper emission.

▪Position the device so that it rests on its damping feet and not on the lower

body plate, so as to ensure that ventilation and air aspiration slots are not

blocked.

▪Never try to set the device on unstable or unsuitably dimensioned surfaces.

▪Never tamper with the liquid bottle. The bottle can be removed and inserted

again several times.

▪Remove the bottle during any device move or transport.

▪When transporting, empty the device from any liquid inside through the

washing program (see 7.3.8.3).

▪The device is equipped with a special protection on the coupling of the bottle,

so before placing the bottle make sure to remove the protection. If the device

is not used for long periods, lift the bottle (see 7.2 - modality of bottle

extraction) and put the protection on the coupling.

▪Never use abrasive sponges or substances to clean the device, utilize

instead soft cloth moistened with warm water. Carry out all cleaning

operations with the machine in the OFF state and with mains cable

disconnected.

▪When opening the delivery package, verify that the device is intact, paying

special attention to any signs of damage. In case of damage, please

immediately contact Customer Assistance (see Introduction).

▪Take hold of the device exclusively from the specifically provided handle.

▪Never immerse the device in water.

▪It is recommended that the operator should never attempt improper use or

maintenance of the device. Maintenance can be carried out exclusively by

authorized personnel.

▪Do not tamper with the valve.

The Manufacturer shall not be held responsible for possible damage to people,

animals or things in case of improper use.

General

Name: MEDIBIOS

Model: plus

Purpose: Sanitation - Disinfection - Pest control

Use: in closed rooms

Medical Device Classification: class I

Appliance class: class I

Technical characteristics

▪Power: 1000 WATT

▪Supply voltage: 120 Volt ± 3 % or 230 Volt ± 3%

▪Mains frequency: 50 - 60 Hertz

▪Fuses: 10 A or 6,3 A

▪Turbine rotating speed: 22000 rpm

▪Bottles capacity: 1 Lt

▪Empty weight: 9 Kg

▪Service temperature: from 5°C to 40°C

▪Motor with thermal safety switch tripping at 80°C

▪Dimensions (cm): W 55 x D 35 x H 44

▪Body material: Makrolon® Polycarbonate

▪2 pivoting emission nozzles

▪Particle size: from <1 to 5 µm

▪Hourly consumption: 1.500 ml/h ± 10%

▪Treatable volume: from 10 to 1000 m3

Chart of consumption and emission

duration (1ml/m3)

For example:

Cubic Meters Cycle Time in seconds Consumption in ml

2,4

100

240

100

1000 2400 1000

List of visible external

elements

On the device, there are applied warning (the complete list of warnings are

described in this manual in section 1) and/or descriptive phrases and images

of some components.

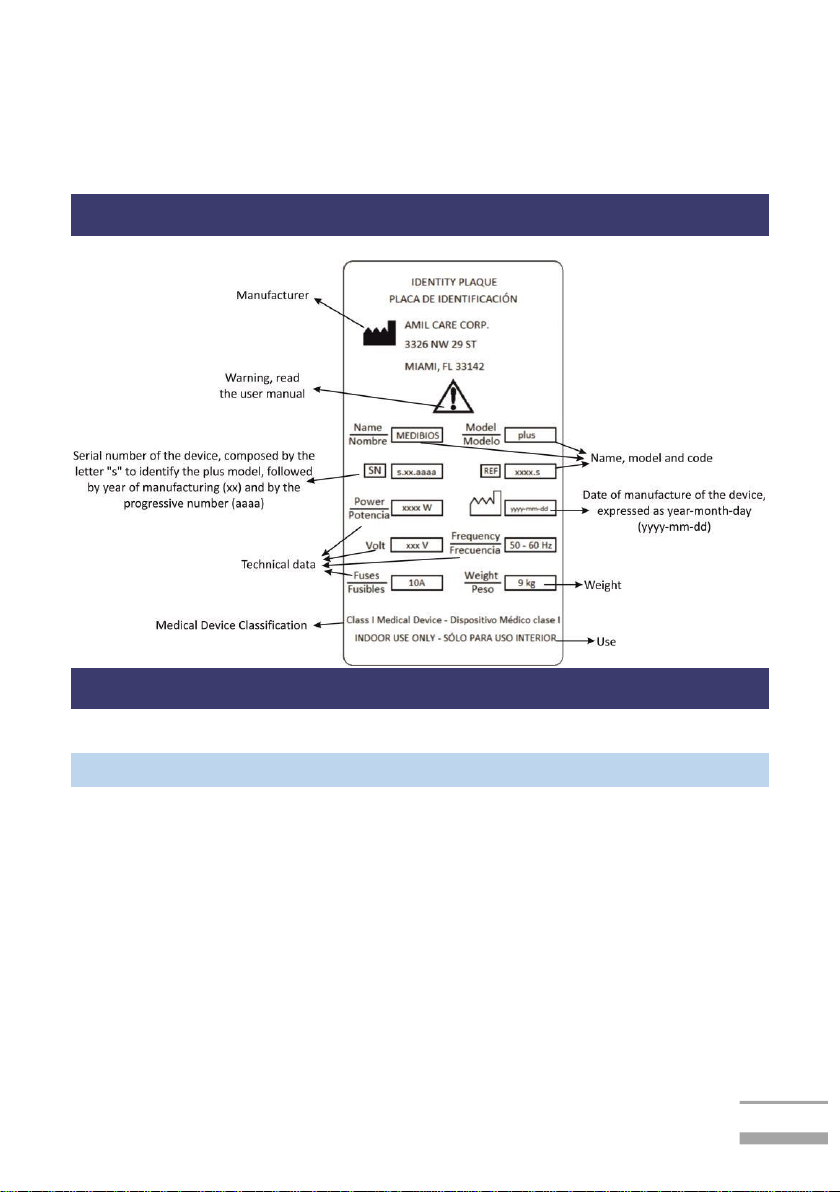

Labelling

General norms of usage

7.1.

Unpacking the device

The device is delivered inside a delivery package, check that it is intact and

therefore in good conditions.

Open the package without turning it upside-down. Lift the apparatus by its

handle to extract it from the cardboard box.

The packaging has to be preserved for the whole time of use of the device and

not just for the duration of the guarantee, since the device could need

calibration or tuning by the manufacturer or a service centre.

A non-original package doesn't guarantee the necessary correct protection of

the machine during transport.
