Quick Guide

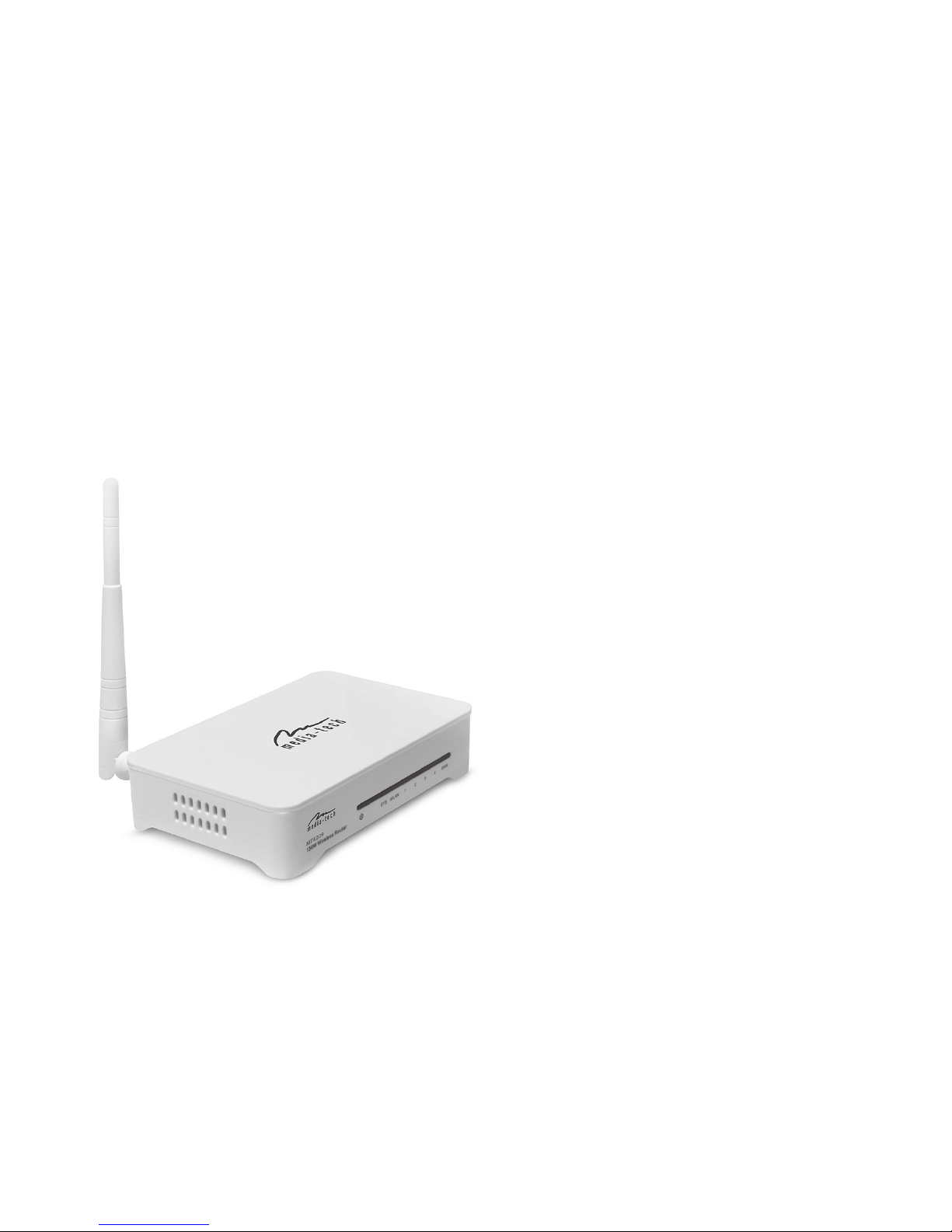

150M WIRELESS
ROUTER
High Speed Wireless Conectivity
MT4209
2
EN
DC input WAN port LAN port Reset switch
Overview
Conguration steps
1. Into WAN port plug via Ethernet cable Internet con-
nection (other router or ADSL/DSL modem). Into
LAN port plug PC computer to congure router.
2. Make sure that network card in Your computer is set
to work with DHCP server by obtaining IP and DNS
addresses automatically. To check it, choose Proper-
ties of Local area cable connection and then, choose
Properties of Internet Protocol V4 (TCP/IPv4).
3
EN
WAN interface setup
Method 1: Automatic obtain (Internet provider DHCP)
If you’re using the DHCP (auto cong) connection, the
router will receive IP parameters from your ISP. Entering
any special parameters is not neccesary.

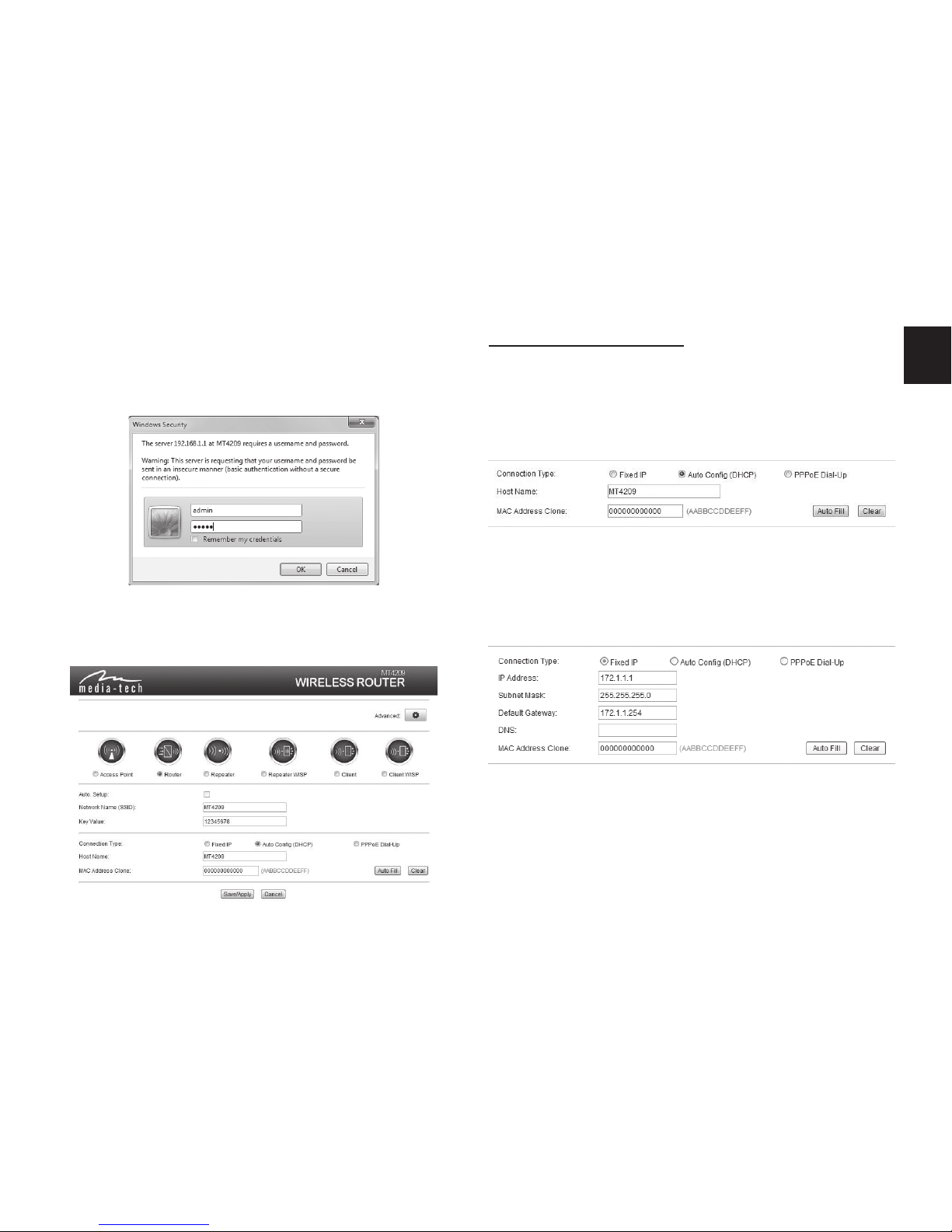

3. Launch web browser and enter default address
http://192.168.1.1, when password message box
appears enter default name “admin” and password
“admin”.
4. Router Management screen will appear (device is set
initially to Router mode). Set password for your net-
work (Key Value).
Method 2: Fixed IP (for semi-advanced users)
When Fixed IP connection will be marked, you’ll be
asked to enter static IP data such as local IP addres,
Subnet mask, Gateway and DNS.

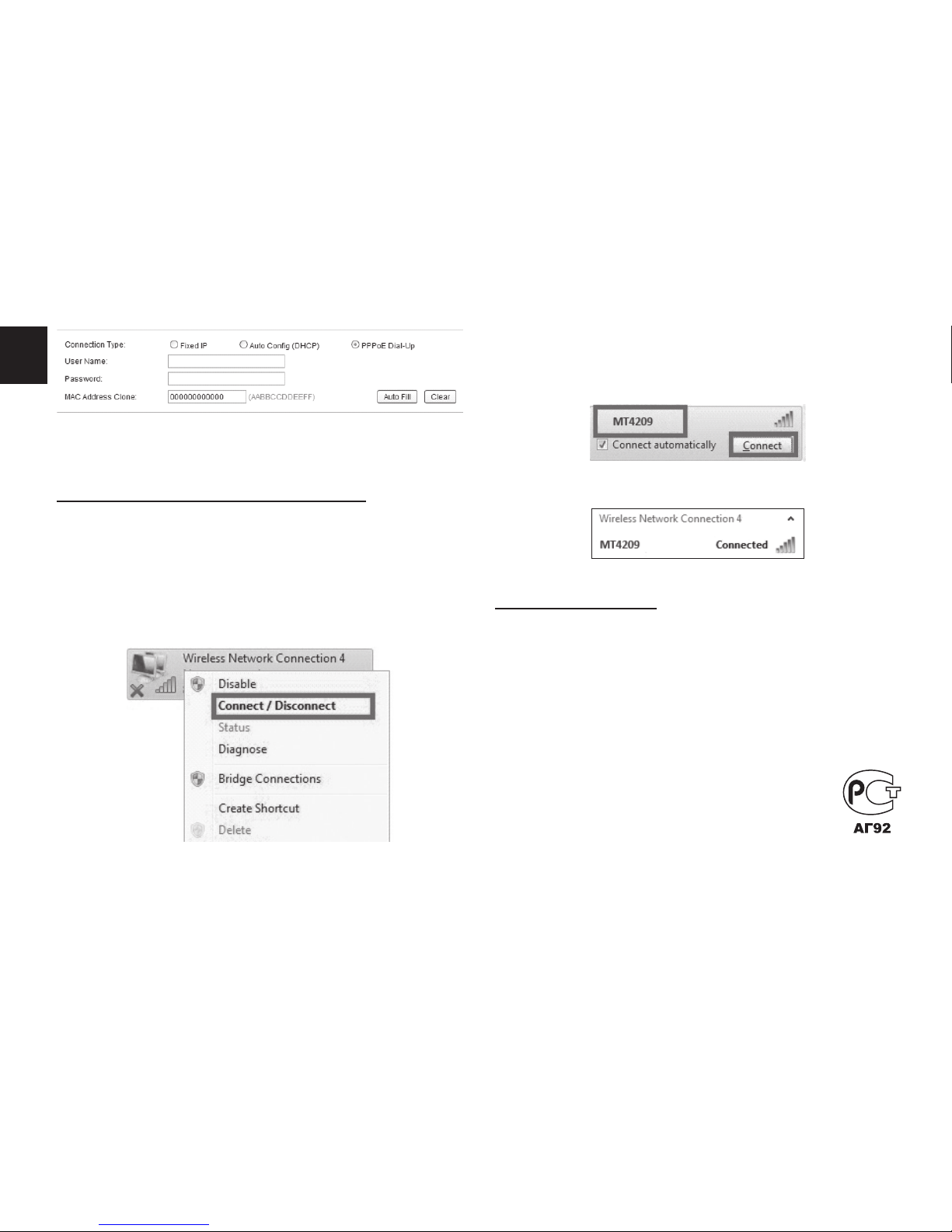

Method 3: PPPoE Connection
You can initiate internet connection by connected
ADSL modem to the router when the option “PPPoE
Dial-up”will be marked. Enter User name and Password
provided by your ISP.
4
EN
Troubleshooting
Q: How to restore factory settings?
A: Device should be powered on. Press and hold RESET
button for 10 seconds and then release. Wait for router
reboot.
Q: My laptop cannot receive the router signal?
A: Check if the laptop’s wireless interface is turned on
and enabled. If yes, please check if all drivers
of wireless card are installed properly.
Conrm if is enabled correct function
in router (Access Point).
■To nish connection settings click “Save/Apply” but-
ton.
Wireless connection to the router
For example Windows 7 OS:
■Navigate to “Start>Control Panel>Network and
Internet>Network and Sharing Center>Change
Adapter Settings>Wireless Network Connection”.
Then right-click “Wireless network connection” and
select “Connect/disconnect”.
■Enter Wi-Fi key and click“OK”
Note: Default SSID and Network key is printed on
the serial label on the bottom of the device.
■Connection is succesfull.
Due to continuous development specication and appearance of
product are subject to change without prior notice. For technical
support please visit www.media-tech.eu.
■Select the wireless network name of your router
(SSID) and click “Connect”.
