Car Digital Video Recorder
User Manual
Thank you for purchasing MLG-7117CVR Full HD 1080P Car Digital Video
Recorder/Camera (DVR) . In order to help you operate it correctly , please read
These instructions carefully before using.
MLG-7117CVR
Website: www.mediasonicusa.com
Support Forum: http://forum.mediasonic.ca/
-1-
USER MANUAL
Thank you for purchasing MLG-7117CVR, to ensure proper use of this
device, please read this manual thoroughly and carefully before using.
◆Caution
- Please do not disassemble or modify this product, which may lead to
electric shock or damage.
- This is not a toy, do not let children play with the device.
- Avoid using this device in damp environment, moisture could cause
device to malfunction
◆Recorder function
1. Low illumination high definition video (1080P@30fps, and 720P/30fps)
2. Built-in ultra-low illumination high light transmittance 148 degree wide
angle lens
3. 2.7 inch LTPS highlight color LCD Display
4. Instant Recording playback
5. Motion sensor recording
6. Collision auto lock file sensitivity adjustment
7. Super bright LED light
8. Drive synchronization starts
9. Support looping videos recording
10. HDMI output port
11. Maximum support 32G Micro SD memory card
12. Simultaneously charge and record
13. WDR wide dynamic range video
14. G-Sensor
-2-

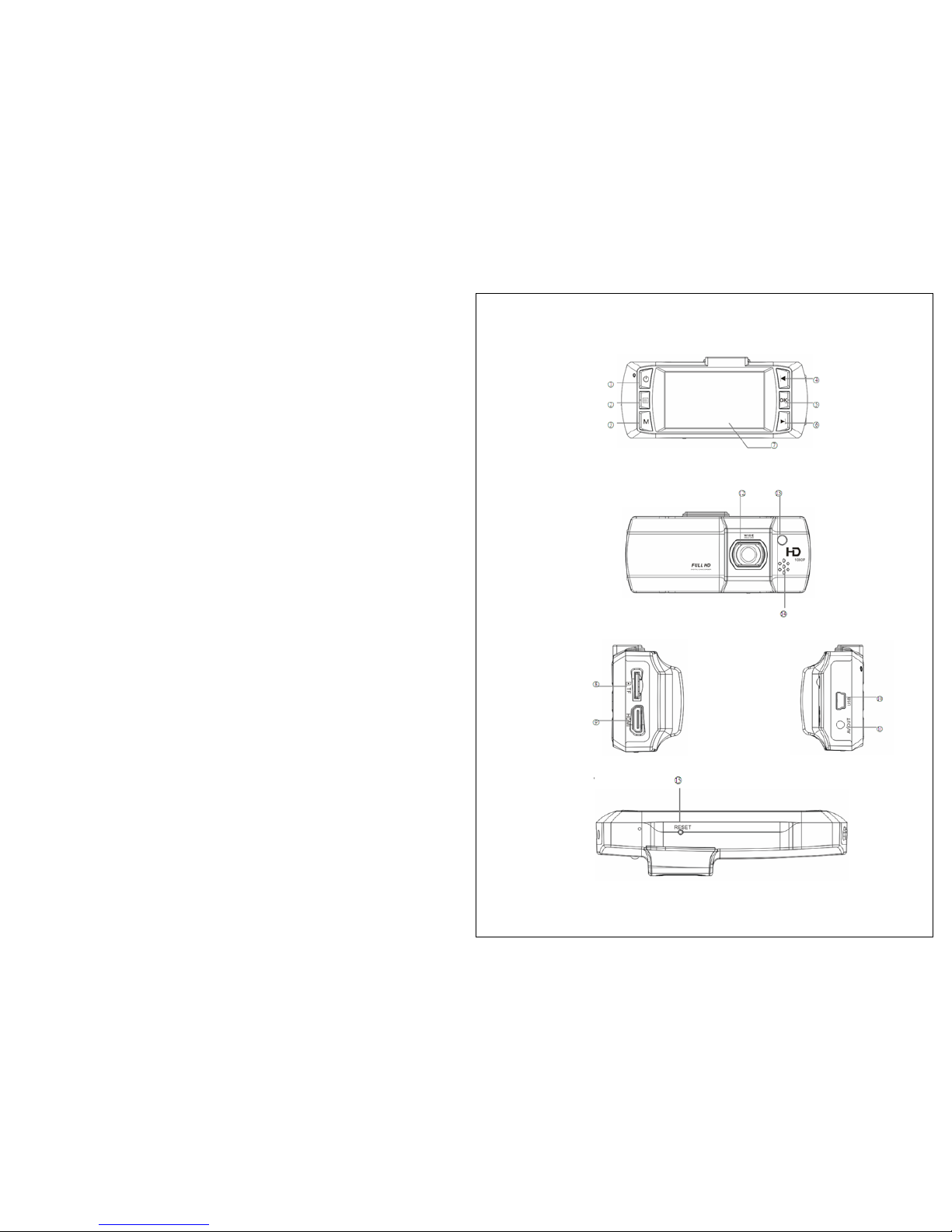

Product View
◆Front view
◆Back view
12. Camera 13. LED light 14. Speaker
1.Power 2. Menu 3. Mode 4. Up (left)
5. OK 6. Down (right) 7. Display
◆Left view
8. TF slot (Micro SD) 9. HDMI
◆Right view
10. USB 11. AV-OUT
◆Bottom view
15. Reset
-3-

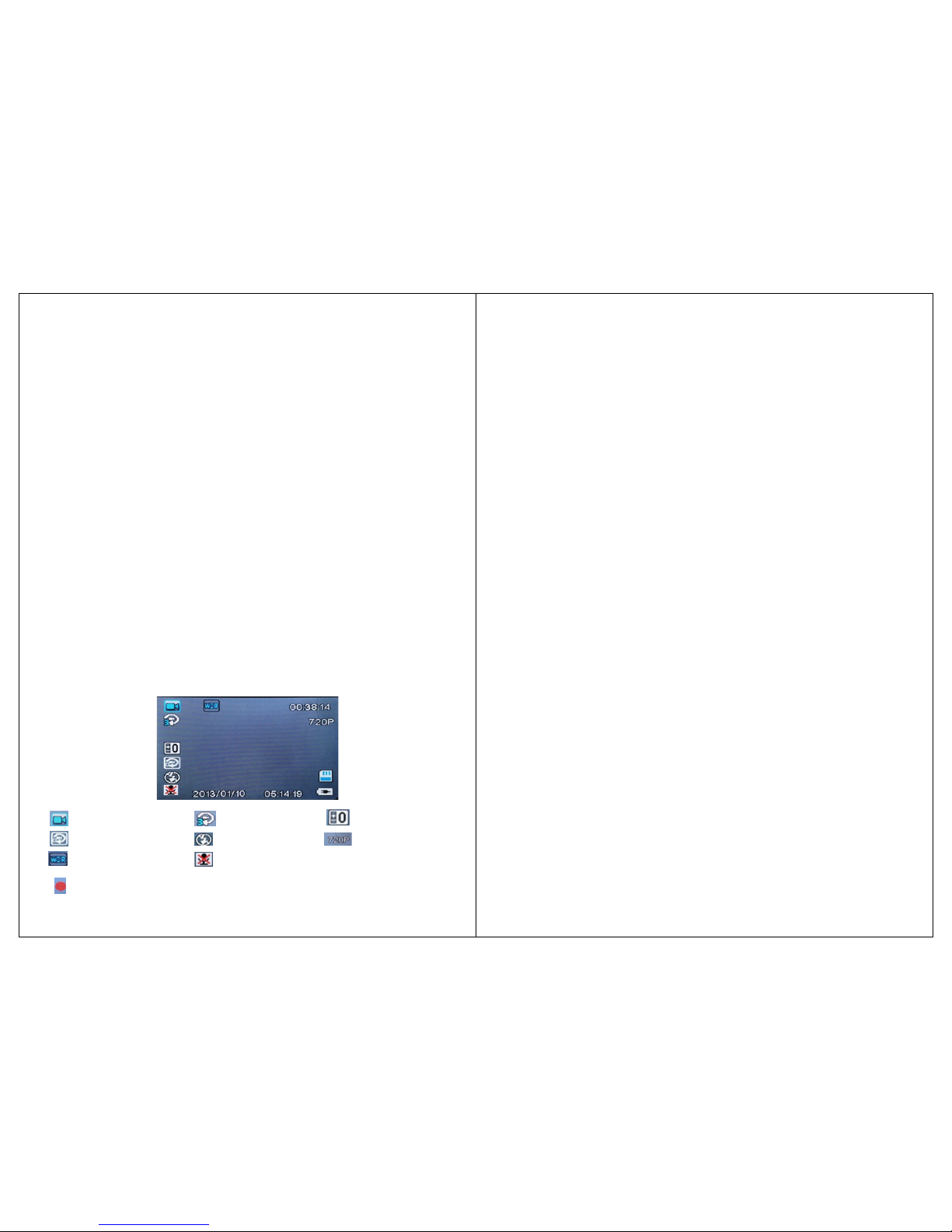

Video mode icon
Auto G-Sensor Recording
Wide dynamic range
Record button (Press “OK” button to Stop or Start Recording)
recording Cycling time
Flash light
Audio recording icon
Exposure compensation
Resolution
Operating Instructions
◆Inserting the memory card
1. Place the Micro Sd card into the card slot carefully
2. If the device does not recognize the card, try removing and reinserting
◆Turning Device On and Off
1. Connect the car power adapter to the car 12V/24V DC socket.
2. Press POWER button to turn on the car camera.
3. After the car is started and power is provided to the DC power port, the
car camera will start recording automatically.
4.
After the car has been turned off and the car camera is no longer receiving
power, it will automatically store all recorded data and power down by
itself.
◆Reset
If device powers on but is not operating properly, press reset button and
power on again, this will reset the car camera do default settings.
◆Switching modes
MLG-7117CVR has three functional modes: video, photo, and playback.
Press the MODE button to switch.
Video mode:
-8-
Video not Recording:
- Try a different Micro Sd card
- Change the recording resolution, frames per second.
- Make sure the card has been installed correctly (during the installation
process, you should hear a clicking sound).
- Delete unnecessary files from the memory card to release space.
Video is not clear:
- Ensure that the camera lens is clean.
- Wipe off the dust and dirt on the lens
Buttons on the camera is not responding:
- Press the reset button to reset to factory default
Troubleshooting
-4-
Playback modes:
Playback mode：Press "left" or "right" button to select file to play, press
"OK" button to play.Under the playback mode, press the "menu" button
to enter the playback menu, which allows you to delete and protect files,
you can also select slide show.
◆Settings and system settings menu
While in standby mode by pressing the MENU button, to enter system setup
menu page, then "menu settings" . Press “left” or “right” to select the desired
setting item and press "OK" button to confirm settings press the menu key
again to exit the menu.
Photo mode:
Photos: Press “OK” button to take pictures
Photo mode icon
Vibration Control
Image quality
white balance
Residual capacity
ISO
Image resolution
-7-
◆HDMI
Connecting MLG-7117CVR by HDMI, allow you to view recorded videos on
your TV.

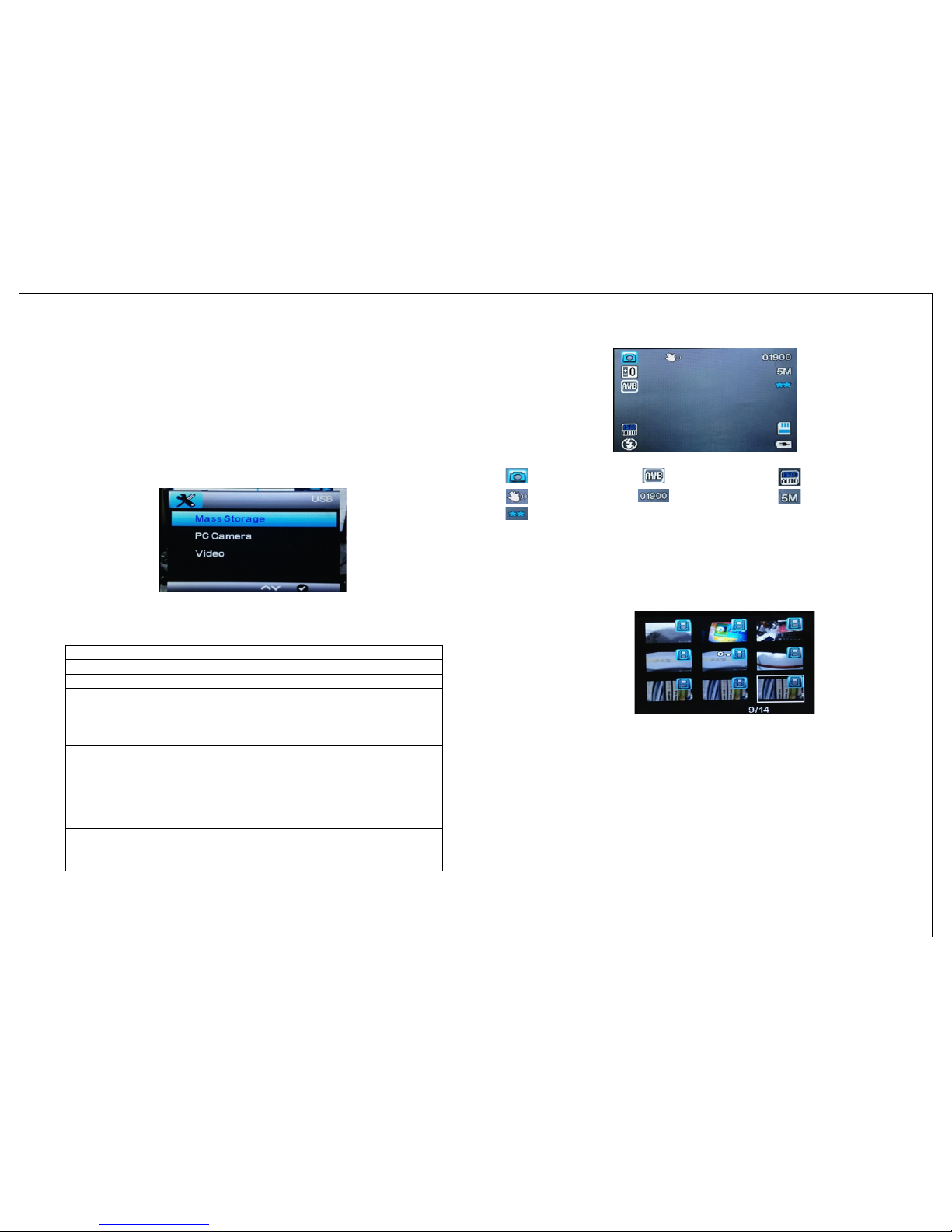

◆Connecting to PC
If you don’t have a card reader on your computer, you can connect the
MLG-7117CVR by USB, and select “Mass Storage” the Micro Sd card will
appear as removable disk in your computer, so you can access the files.
You can also use MLG-7117CVR as “PC Camera”. MLG-7117CVR will also
charge the battery while connected to your PC.
Product Specifications
LCD screen size
Pixels
Lens
Video resolution
Video format
Loop recording
Memory
USB
DC in
Frequency
Battery capacity
Power consumption
Microphone/speaker
Language
2.7 inch TFT
3M CMOS
148 degrees high-definition wide Angle lens
1080P / 720P / WVGA / 480P
MOV
2min /3 min / 5min
Micro Sd max to 32G
USB1.1 / 2.0
DC5V，1000mA
50HZ/60HZ
400mAh
220mA
support
English / French / Spanish/ Italian/ Portuguese /
German / Russian / Chinese Simplified /
Chinese Traditional
The specification may change without notice
-5-
◆Video mode options
Resolution: full HD 1080P 30fps / HD 720P 30fps / WVGA: 640*480P
Cycling videos: Off / 2 minutes / 3 minutes / 5 minutes
WDR: On / Off
Exposure compensation: -2--+2
Motion detection: On / Off
Video audio: On / Off
Date: On / Off
G-SENSOR: Off / low / medium / high
◆System Setup options
Date: 2013/8/27
At 12:00:00
YY/MM/DD
Automatic shutdown: Off / 3 / 5 / 10 minutes
Button sound: On / Off
Language Options: English / French / Spanish/ Italian/ Portuguese /
German / Russian / Chinese Simplified / Chinese Traditional
TV mode: PAL / NTSC
Source frequency: 50HZ/60HZ
LED Light: On / Off
Backlight: Off /1 min /3 min / 5 min
Format: memory card
Default: yes/no
◆Playback options
Delete current / delete all
Protect current / unlock all current / lock or unlock all
Slideshow: 2S, 5S, 8S
◆Image pixel options:
12M/10M/8M/5M/3M/2M/1.3M
◆USB:
Connect MLG-7117CVR by usb to view and copy files out. You can also
remote the Micro SD card and put into a card reader to view and copy
files out.
-6-
Function setting
◆Image resolution Settings
1. Turn on MLG-7117CVR, it goes standby mode automatically. Press the
“menu” button to Access image setting
2. Select the image resolution, press the “Left” and “right” button to scroll
up and down
◆Opening and closing video
In video mode or standby mode, press "down" button, to open or close video
◆Playback mode
Turn on MLG-7117CVR, it goes standby mode automatically. Click twice
on "mode" button to enter the playback screen, press “left” and “right”
button to select file for playback, press the mode button to return the
recording standby mode.
◆Language Settings
Turn on MLG-7117CVR, it goes standby mode automatically, click the
“menu “button to enter language option menu, press “left” and “right”
button to select preferred language, Press “OK” button to confirm selection
◆
Time and date settings
To set the current time and date in standby mode, press the “menu” button,
find the time option, press “left” or “right” button to set the time and date,
after setting the time and date, press the “OK” button to confirm the setting.
