Introduction
DX2 is the first in a new generation of joysticks to control the electric
wheelchair. With its large color LCD screen and its logical icon built menu
structure, it directs the user to the target.
Enjoy.
1
3
5
4
7
8
2
6
1 2 3 4 5 6
Quick guide P9-0290-Q 5 of 16 Version 1.0.2/2011
Medema Production A/S
Joystick parts

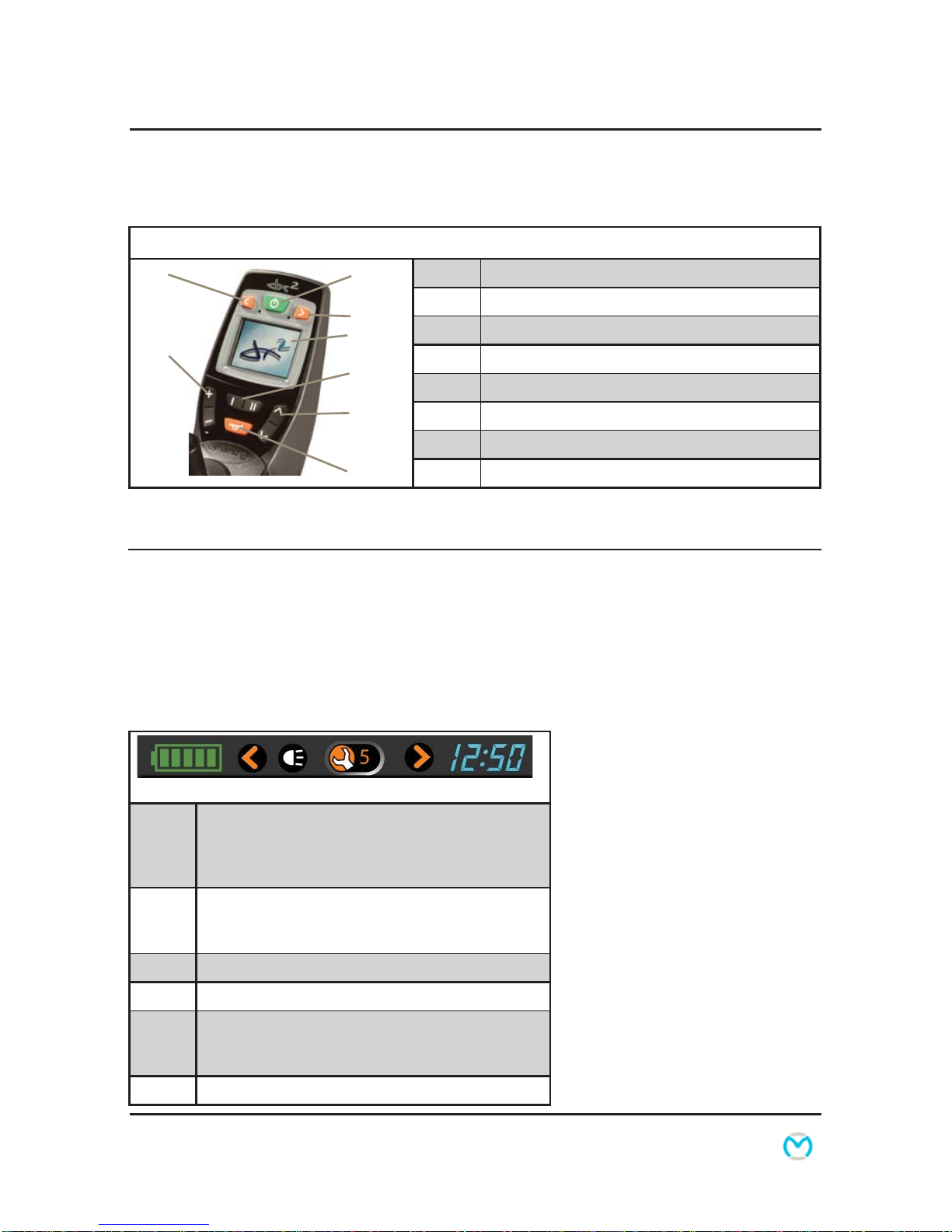

Dynamic DX2 AJR 1 Start/stop button
2 Indicator left
3 Indicator right
4 Select
5 Display
6 Speed selector
7 Accessory Selector
8 Horn
Operating
At the top of the display you will find the status bar. Battery indicator is
displayed constantly. The clock can be turned on or off as you wish. The
other is lit when the corresponding function is active.
1 Battery indicator
Green = fully charged
Yellow = least half full
Red = almost empty - charge now!
2 Indicator left is active
When hazard warning lights are active, both
icons blinks.
3 Lights on
4 Error code - see section on error codes.
5 Indicator right is active
When hazard warning lights are active, both
icons blinks.
6 Real time
Quick guide P9-0290-Q 6 of 16 Version 1.0.2/2011
Medema Production A/S
Clock on/off

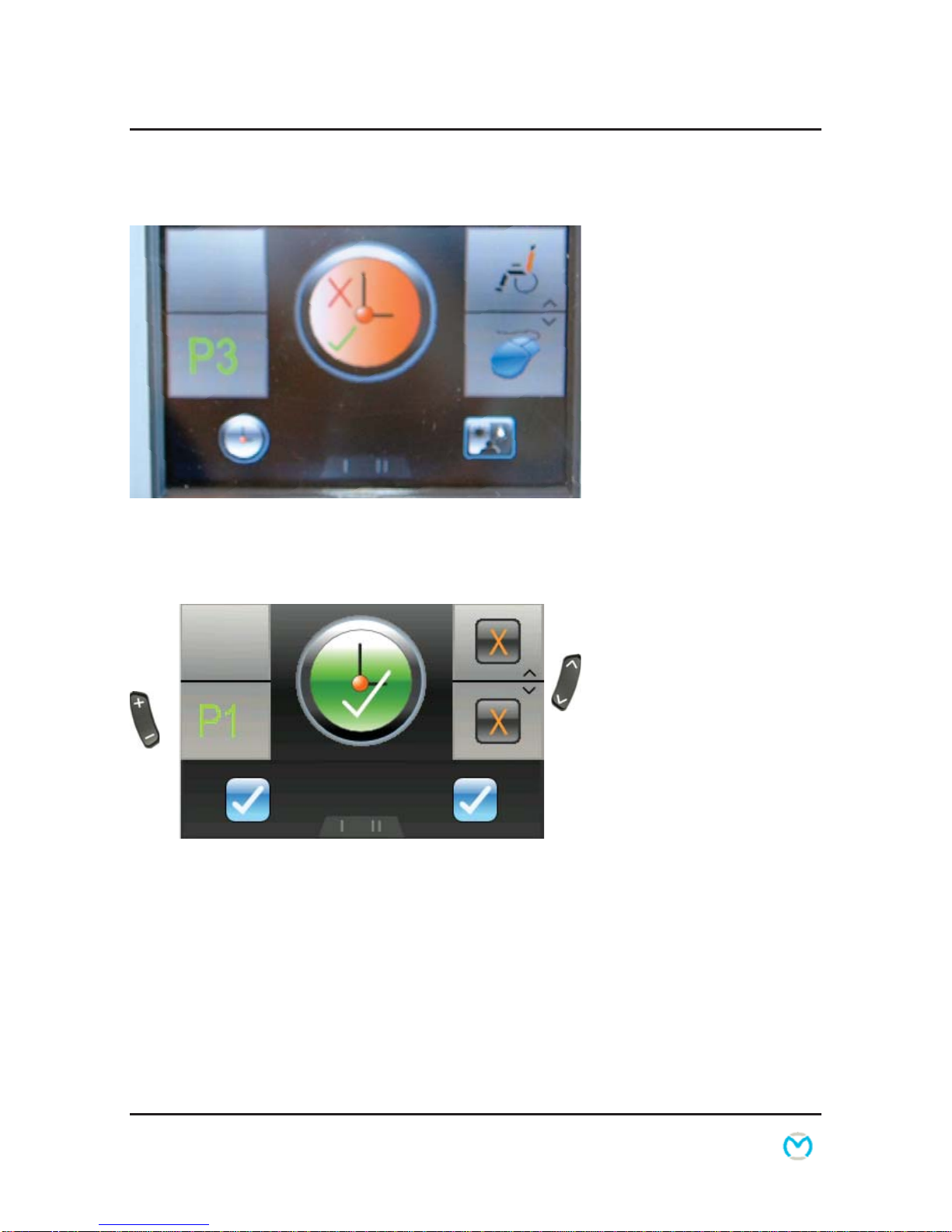

Press arrow up/down or joystick (push forward) until the above icon is
showed in the center of the screen.
Use ”Select” to switch between X and .
Accept by pressing the arrow up/down button.
Quick guide P9-0290-Q 7 of 16 Version 1.0.2/2011
Medema Production A/S
Set Speed

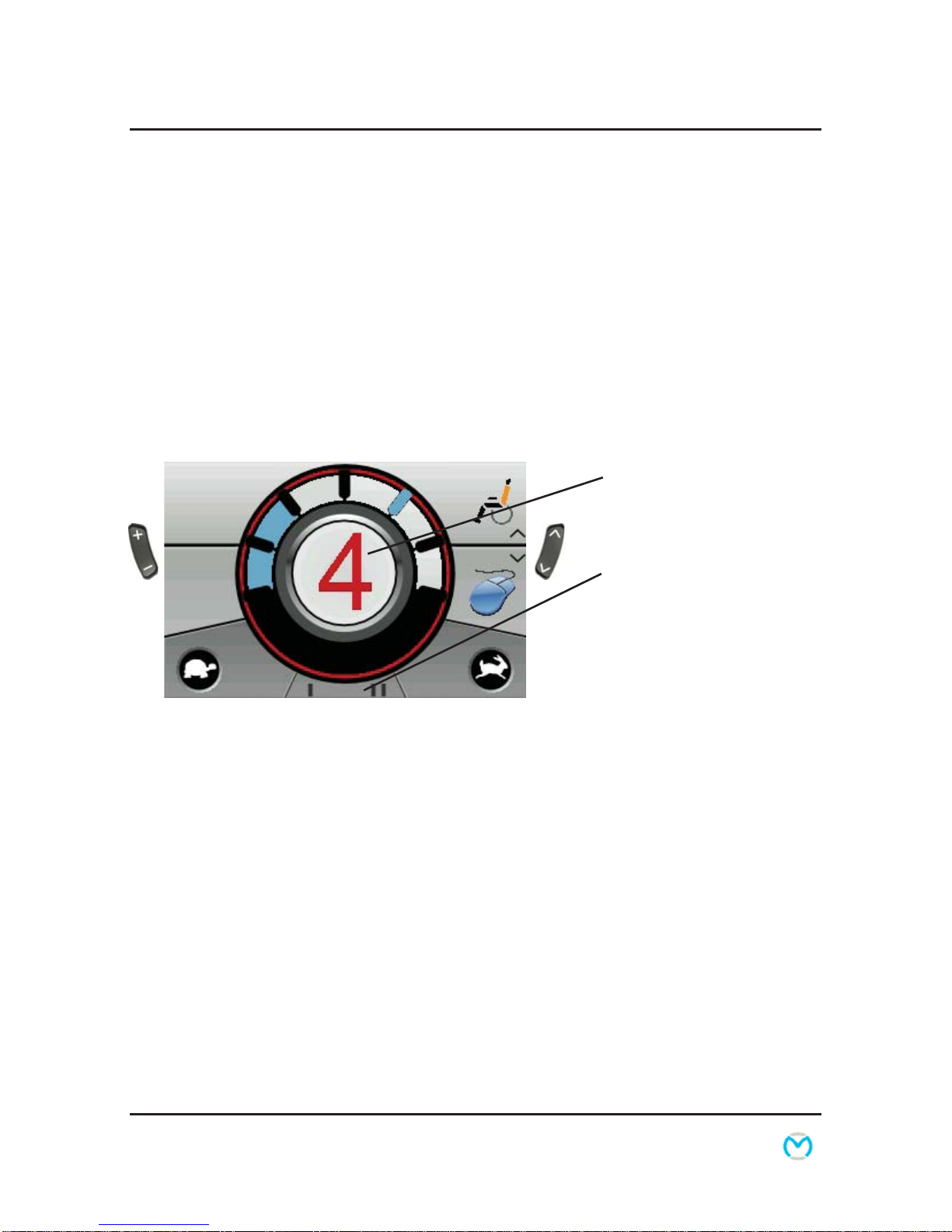

When you turn the joystick on, the image shown below will be presented in
the display. The number in the centre shows the speed you have chosen as
max speed. Change the Speed by selecting the plus / minus key. Maximum
speed is 5, lowest is 1.
Find the features in the bottom with the “Select” button.
Chosen speed
Select
Quick guide P9-0290-Q 8 of 16 Version 1.0.2/2011
Medema Production A/S
Chosen speed

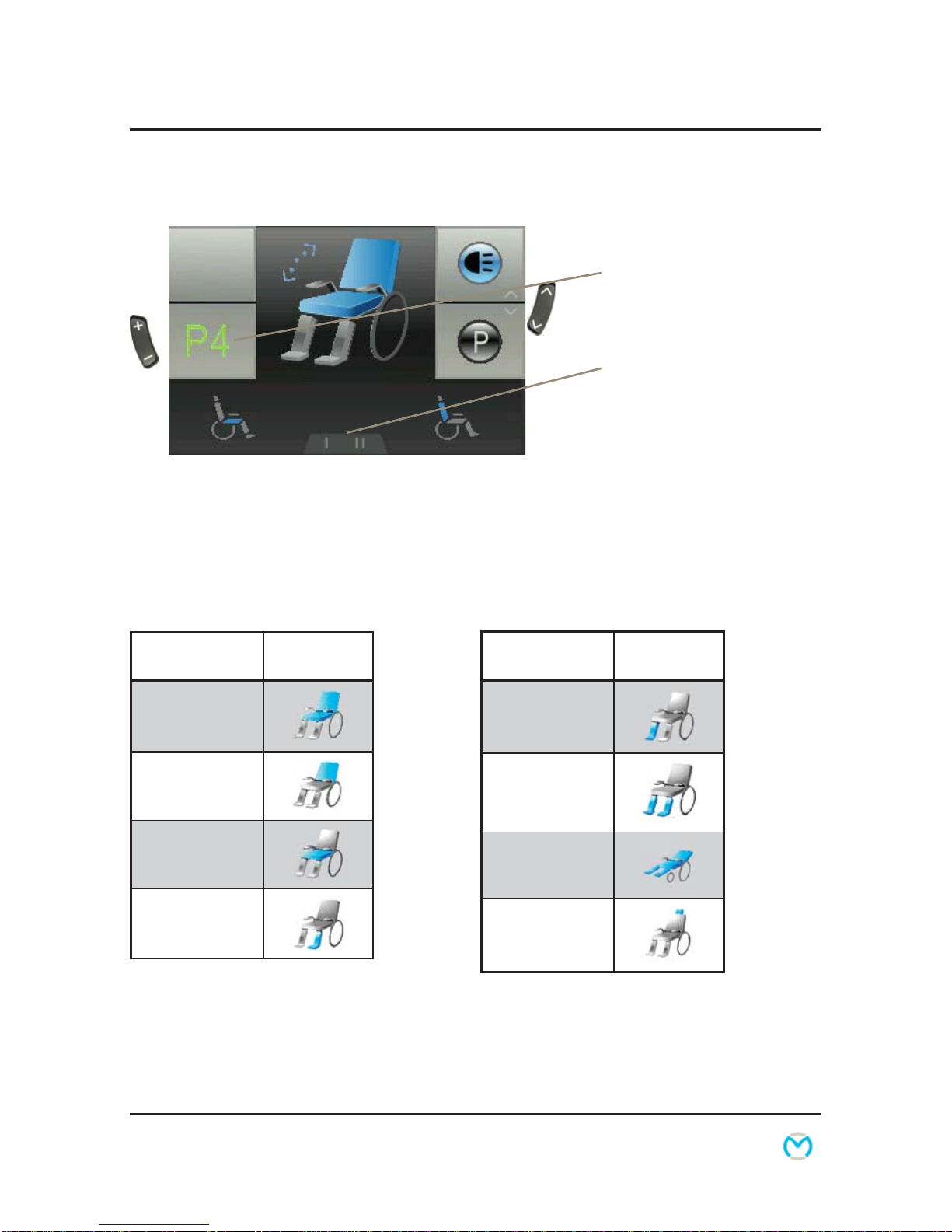

Press the arrow up / down until the image shows the chair. Use the “Select”
to choose the function you want modified. Use the joystick to change
example angle of the seat back.
Setting the seat - back and leg supports
Select
Function Icon
Seat angle (Tilt)
Backrest angle
Seat height
Left footrest
Function Icon
Right footrest
footrest both
Lying down
Headrest
Only the available options will be displayed.
Quick guide P9-0290-Q 9 of 16 Version 1.0.2/2011
Medema Production A/S
Light on / off
Push the arrow up / down until the image for light is shown in the centre.
Push the joystick forward to turn the light on. And again to turn of the light.
Push the joystick back to activate the hazard warning lights. Push the
joystick back again to turn it of.
Push the joystick right or left to activate the indicators right or left. Turn of
the indicators by puching the joystick to the same side again.
Press the arrow up / down until the sun i shown i the centre. Push the
joystick forward to enter the settings. Use the Select button or joystick right
/ left to change the brightness.
Use Joystick forward / back or arrow up / down to accept the new settings
and return to the main menu.
Quick guide P9-0290-Q 10 of 16 Version 1.0.2/2011
Medema Production A/S
Setting the display environment

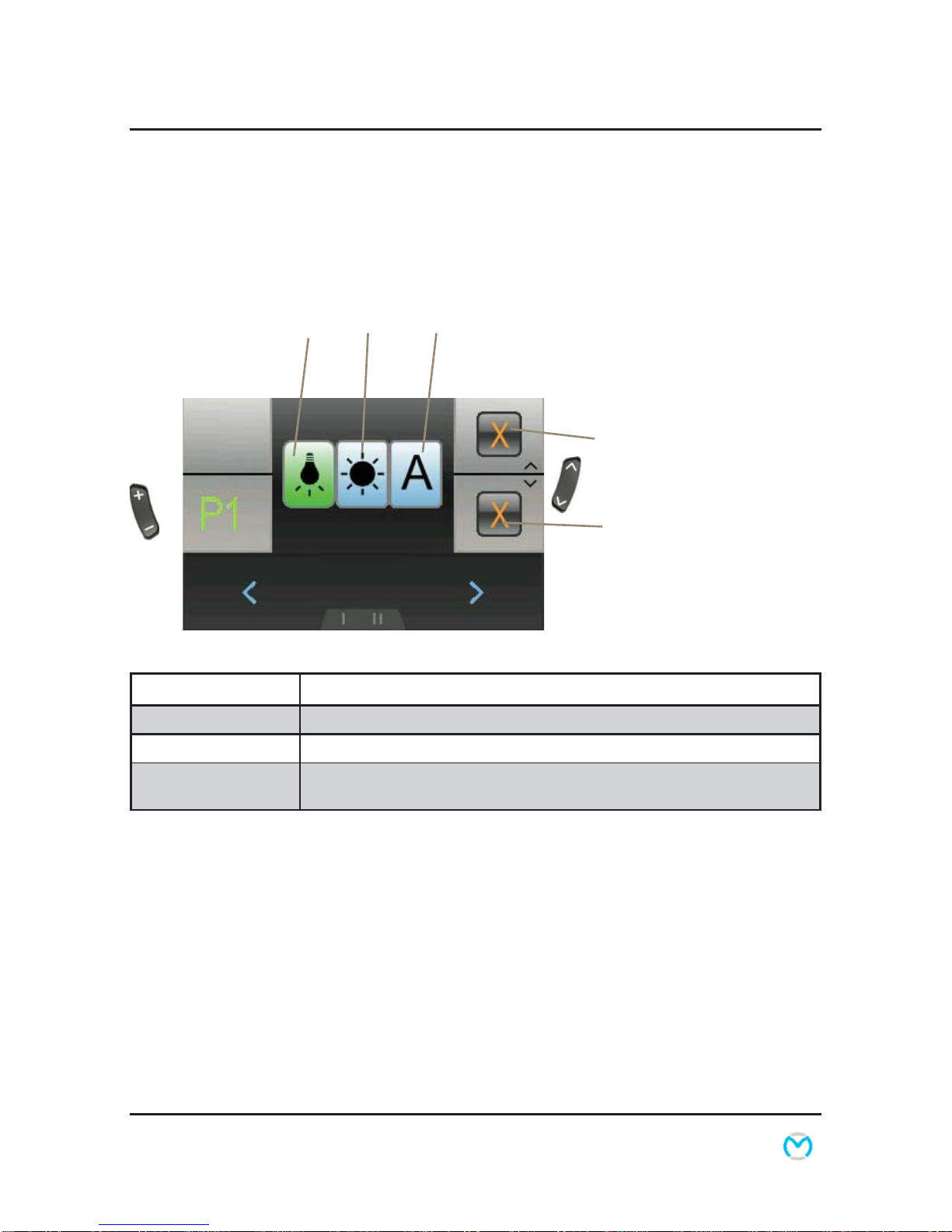

Use the arrows up /down until “day / night” icon i shown in the centre. Push
the joystick forward to enter settings. The image below will show.
1 2 3
Setting Result
1 - Indoor The display will show a black background color.
2 - Outdoor The display will show a white background color.
3 - Automatic The background color will change (black/white) accordingly to the
surrounding light.
Use ”Select” or joystick right / left to select setting.
Push the joystick forward to accept the new settings and return to the main
menu.
If you push the Joystick back or use the arrow up / down, the new setting
will be dismissed and you will return to the main menu.
Exit / Cancel
Exit / Cancel
