Mede8er Med1000X3D Manuel utilisateur
User Manual V1.0.1
July 2012
High Definition Multimedia Player
TM
High Definition 3D Multimedia Player
Page1
INDEX
page 1
page 2
page 3
page 4
page 5
page 6
page 7
page 8
page 9
page10
page11
page12
page13
page14
page15
page16
page17
page18
page19
page20
page21
page22
page23
page24
page25
page26
page27
page28
page29
page30
page31
page32
page33
page34
page35
page36
page37
page38
page39
page40
page41
page42
page43
page44
page45
Index
Introduction
Unpacking / Contents
General Overview
Installing a Hard Drive
Connections
Connections continued
Power Up & Standby
TV Output / Audio Settings
Formatting the Hard Drive / USB Connection to PC
Remote Functionality
Placement / External IR Sensor
USB Keyboard / Wired Network
My Shortcuts (Password protected shares)
USB WiFi Dongle / PCIE WiFi
Wireless Setup
Firmware Update Procedure / Web Remote / NDNLA DMR
Home Network Samba Server
Home Page
Media Library
Media Library Continued
Media Library Metadata
Adding Custom Backdrops
Movie JukeBox - XML Search
Using Movie JukeBox - XML Search
Media Library Music Player
Music Jukebox
Music Jukebox Continued
Music Jukebox Continued
Music Jukebox Continued
Cover Art Preview in Media Library
Play Folder / Play Video From Cover Art / Watched Indicator
Lock Facility / Pin Code / Folder Protection / Safely Remove USB
Favourites Manager
Adding Genre Art to Favourites / Locking - Unlocking Favourites - Scan XML
Video Info - GOTO Search / Alpha Jump
3D Menus / Toggle BD Manu / Video Zoom
Subtitles
Music Playlists / File Manager
File Manager Multiple Files
Pictures
Plasma Mode / Autoplay / Internet Media
NFS
Transmission BT
Setup Menu
Page2Page2
Thank you for purchasing the Mede8er Multimedia Player.
Mede8er has achieved the ultimate balance in design and functionality with the new MED1000X3D High
Definition 3D Multimedia Player. It may look like an alien spaceship but we can assure you that it was
designed and developed by very passionate people right here on Earth.
The Mede8er has some very unique features so we suggest you read this guide and visit the Mede8er forum
for additional help and information. The firmware is always “work in progress” so we suggest you regularly
check the Mede8er forum for updated firmware releases and updated User Manuals.
Please check the Mede8er forum for the latest user guide. www.mede8erforum.com
Warranty International
Mede8er products carry a 12 month from date of purchase warranty. In the event of warranty service please
provide proof of purchase. Return your product to the store that it was purchased from or return it directly to
Sanji Electronics (Pty) Ltd 12, Saddle Drive Woodmead Office Park, Woodmead, Gauteng, South Africa.
Warranty & Support Europe
Mede8er products carry a 60* month from date of purchase limited warranty. In the event of warranty service
or support, please contact one of the Mede8er Service Centers; www.mede8er.eu/support,
support@mede8er.eu or call +31(0)10-7142861 during business hours (CET). In order to obtain the extended
warranty service of in total 60* months after purchase, you need to register your product on
www.mede8er.eu/register within 1 month after purchase. * On accessories 24 months applies.
Warranty does not cover damage by
a) Lightning or over voltage
b) Water damage or liquid spill
c) Misuse or abuse
d) User tampering
e) Using non Mede8er approved Firmware
Sanji Electronics is not responsible for any loss of data irrespective of the cause.
Important Safety Instructions
Read these instructions for all components before using this product.
During electrostatic discharge and the strong electromagnetic field, the product maY malfunction. In such case,unplug
the power cable to power off your player. And the player will return to normal performance next time it is powered on.
· Do not use this apparatus near water or moisture. Do not use this product near a bathtub, washbowl, kitchen
sink, laundry tub, in a wet basement, near a swimming pool, or anywhere else that water or moisture are
present.
· Clean only with a soft dry cloth and as directed by the manufacturer. Unplug this product from the wall outlet
before cleaning.
· Do not block any ventilation openings. Install in accordance with the manufacturer instructions. To ensure
reliable operation of the product and to protect it from overheating, put the product in a position and location that
will not interfere with its proper ventilation. For example, do not place the product on a bed, sofa, or similar
surface that may block the ventilation openings. Do not put it in a built-in system, such as a bookcase or a
cabinet that may keep air from flowing through its ventilation openings.
· Do not install near any heat sources, such as radiators, heat registers, stoves or other apparatus that produce
heat.
· Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
· Only use attachments or accessories specified by the manufacturer.
· Unplug this apparatus during lightning storms or when unused for long periods of time to prevent damage to this
product.
Refer all servicing to qualified service personnel
Remove 5.5mm
Foam Pad
UNPACKING / CONTENTS
Contents: - X3 Remote, European Region only - AC/ DC Adapter 2 Pin Euro with slot in UK Plug,
International Region - 2 Pin Euro AC/DC Adapter, USB3.0 Cable, HDMI 1.4 Cable, AV Cable, Zip Bag with
Hard Drive Securing Screws, User Manual.
Should your X3 be pre bundled with a smaller
capacity Hard Drive casing then you must
remove the protective foam pad that is placed
on top of the hard drive.
USB 3.0 Cable
HDMI 1.4 Cable
AV Cable
Hard Drive Securing Screws
X3 Remote
AC/DC Adapter Europe / UK AC/DC Adapter International
Page3
GENERAL OVERVIEW
YUV - Component Video
Out
On/Off Switch
IR Receiver
RJ45 - Lan connector
HDMI connector
Page4
Cover
Setup
TV System
Menu
Return
Cover Release Button
Coax Digital Audio Out
Optical Audio Out
PCIe WiFi Antenna Hole
USB 3.0 Slave Port
External IR Jack
Card Slot
2 x USB Host Ports
Navigation Buttons
Top Navigation Buttons
Front View
Rear View
Y
Pb
Pr
Analogue Audio Out - Right
Analogue Audio Out - Left
Composite Video - Out
Page5
Most 3.5" or 2.5" SATA Hard Drive can be installed into the X3. If the unit is going to be moved around or
transported we strongly suggest you use the supplied Hard Drive securing screws. Use the Silver screw for
3.5" Hard Drives and the Black screw for 2.5" Hard Drives. Screw them in as shown in ‘A’ then turn the
Hard Drive around as shown in ‘B’. Press the lid opening release button as shown in ‘C’ and carefully lift the
lid up to its maximum position.
A B
C
Carefully slide the Hard Drive into position as shown in ‘D’. To secure the Hard Drive and engage the SATA
and Power connectors you need to push the Hard Drive casing with the left hand (to the right side) as
shown in ‘E’.
D E
2.5" HDD Securing Screw (BLACK)
FG
H
If you are using a 2.5" Hard Drive then you must use the Black 2.5" Hard Drive securing screws and
additionally add a black screw as indicated in ‘F’. Once you have completed the Hard Drive fitment then
close the lid as shown in ‘G’
To remove the Hard Drive you must firstly release it on the
Devices screen with F2 Button or switch the X3 ‘off’ and
then push the Hard Drive casing with your right hand
finger to the left side as indicated in ‘H’. The Hard Drive
will be released from the Sata and Power connector and
then it can be carefully lifted out.
3.5" HDD
2.5" HDD
2.5" HDD
Heat Transfer Pad
Do Not Remove
CONNECTIONS
Page6
HDMI 1.4 Cable
Component YUV
Composite Video / Analogue Audio
Co- Axial Digital / SPDIF Optical Audio
Component Video offers the next best picture quality to HDMI so if your system does not have a HDMI input
we suggest you use the Component Video Connection.
HDMI offers the best picture quality and should be used in preference of any other connection. Use the
supplied HDMI 1.4 Cable for use with the X3. The HDMI can be connected to a AV Amplifier or directly to a TV.
Composite Video offers the most basic picture quality connection and should only be used if your TV does not
have a HDMI or Component Video input. Use RCA analogue audio outputs in the absence of HDMI or Digital
Audio inputs on your TV or Home Theatre system. RCA analogue outputs will downmix all content from mutli-
channel to stereo.
For digital audio connection to your Home Theatre System you can either use the TOSLINK Optical or the Co-
Ax Digital output. The X3 supports both Passthrough and Downmix for both Dolby Digital and DTS signals. If
you want your Home Theatre Amplifier to decode the surround sound Bit Stream you can use either either
output and set the Audio Output to SPDIF Passthrough in the Setup menu.
Rj45 Ethernet Network
The X3 is equipped with Rj45 connector for connection to a wired network.

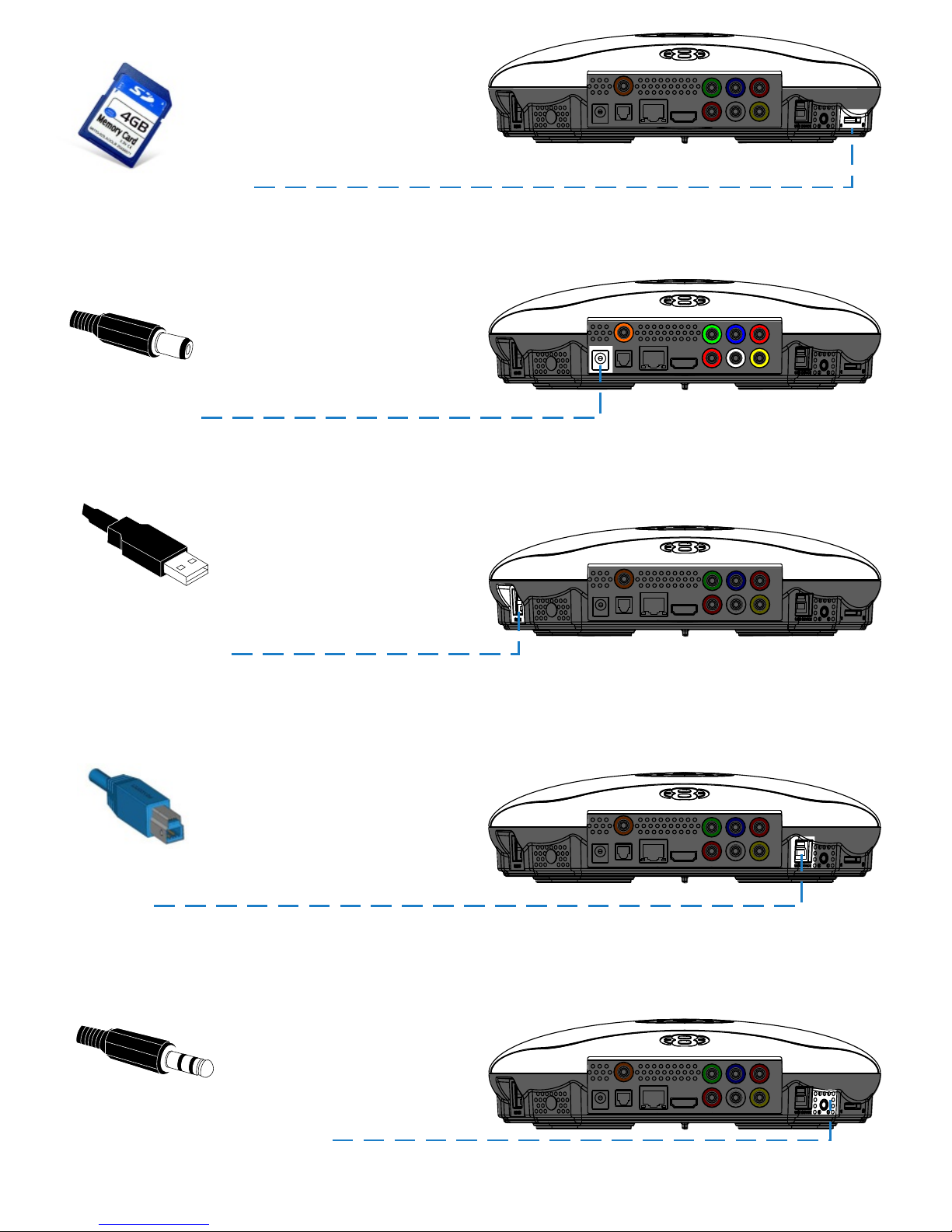

CONNECTIONS CONTINUED
Page7
SD Card Slot
DC Power Jack
2 X USB Host Ports
USB 3.0
DC input is specified at 12 Volt 2 Amp DC. Important-- Only use the supplied AC DC Adapter.
SD / SDHC / Sony Pro Due Memory Cards supported.
Host up to two external ‘Type A’ connector USB Devices. Note - Many USB External drives require an
independent power source and should be powered from their own power supplies.
You can transfer files to and from the X3’s internal hard drive via USB2.0 or USB3.0 transfer.
External IR Jack (Not Supplied)
The X3 is equipped with an external IR Jack for those who want to add a third party external IR Receiver to
the unit.
Plug the AC/DC adapter into the mains outlet and plug the DC Jack into the DC IN at the rear of the X3.
DO NOT USE ANY AC/DC ADAPTER AND ONLY USE THE ONE SUPPLIED otherwise you may cause
damage to the unit. The Navigation Pad LED will light up ‘RED’. Press the On/Off button on the X3 front panel
and the Navigation Pad LED will turn to Blue. You can switch the X3 ‘Off’ by pressing the ‘On/Off’ button on the
remote or by pressing the ‘On/Off’ button on the unit. When in standby the Top Navigation LED will turn Red.
On/Off Button
Using the left, right, up and down navigation buttons you can adjust the red rectangle to fit the outer frame
of your TV screen. Note - Do not oversize the screen size as this could result in image artifacts when
viewing still images on certain brands of TV’s.
Press Enter to save
Page8
Off On
SCREEN SIZE CALIBRATION
Set the X3 screen size to match the TV screen. This calibration will set the exact size of the screen for Video
Play and Image Viewing. Go to System Setup ----> Video -----> Screen Size
Page9
θ
TV OUTPUT SETTINGS
If you do not get to see the X3 GUI on your TV you will need to toggle the X3 TV output until you get a picture.
TV SYS Toggle Procedure
The X3 has three video output options ie Composite Video (yellow RCA connector), Component Video (Red -
Green- Blue connectors) and HDMI. Each output option offers different screen resolution settings and these
will need to be adjusted to match the type of TV used.
It is suggested to use the Setup Menu to change the TV Out resolution. If you do not get a picture in the first
place then you can try to change the TV Out Resolution via the TV Sys button. To change the Video Output
on the X3 press the TV SYS button on the remote and it will change the Video Output to the next available
output option. If after pressing the TV SYS button you still do not get a picture then press the TV SYS again
until you see the X3 GUI on your TV. Keep repeating this procedure until you see a picture on your TV.
AUDIO SETTINGS
Surround Sound
Select “Don’t Care” if you are using 2 CH stereo. If you are using SPDIF or Co-Axial Digital then
select “AC3". If you are using HDMI Audio to amplifier then select “True HD”
HDMI Auto
HDMI Auto is the suggested setting for HDMI Audio. All audio will automatically passed through to the
amplifier - Dolby / DTS Bitstream - Dolby True HD / DTSMA - PCM / Multi-Channel LPCM.
It is suggested to always use HDMI Auto in preference to HDMI Passthrough or LPCM Multi CH
SPDIF Passthrough
Use this setting to connect to an amplifier via Toslink optical cable or Co-Axial Digital RCA cable. The sound
will be passed through as Bitstream or PCM and the amplifier. Dolby True HD and DTSMA HD Audio and
Multi-Channel LPCM will not work on either SPDIF option.
SPDIF Downmix (2 channel)
Use this setting to connect to a Amplifier via Toslink optical cable or Co-Axial Digital RCA cable. The sound
will be downmixed to 2 channel stereo.
Once you see the X3 GUI on your TV then you must enter the Video Setup
mode and adjust the Video settings to match the screen size resolution of
your TV.
OR
