Drwg. No. 4896 GB
VIMARI 2316 - removable
INSTRUCTIONS VIMARI 2316
OPERATIONS FOR ORDINARY ROUTINE MAINTENANCE OF FADINI REMOVABLE BOLLARDS (EVERY SIX MONTHS)
The standard maintenance routine sequence is as follows:
• Clean the ground socket and remove dirt by a vacuum cleaner.
• Clean water drains located at the bottom of the ground cylinder/socket and/or excavation pit.
• Make sure all the screws/bolts fastening the bollard are properly lubricated.
• Clean and inspect the unlocking system for bollard removal.
INFORMATION ABOUT SAFETY AND PROPER FUNCTIONING OF THE SYSTEM
1) Installation operations, testing, analysis of the risks and future maintenance are to be executed by qualied and authorized technicians in
compliance with the existing regulations (www.fadini.net/supporto/download).
2) This automatic system is intended to be exclusively used for the applications described in this manual.
3) Any application not indicated in this manual may cause malfunctioning or damages to people and properties.

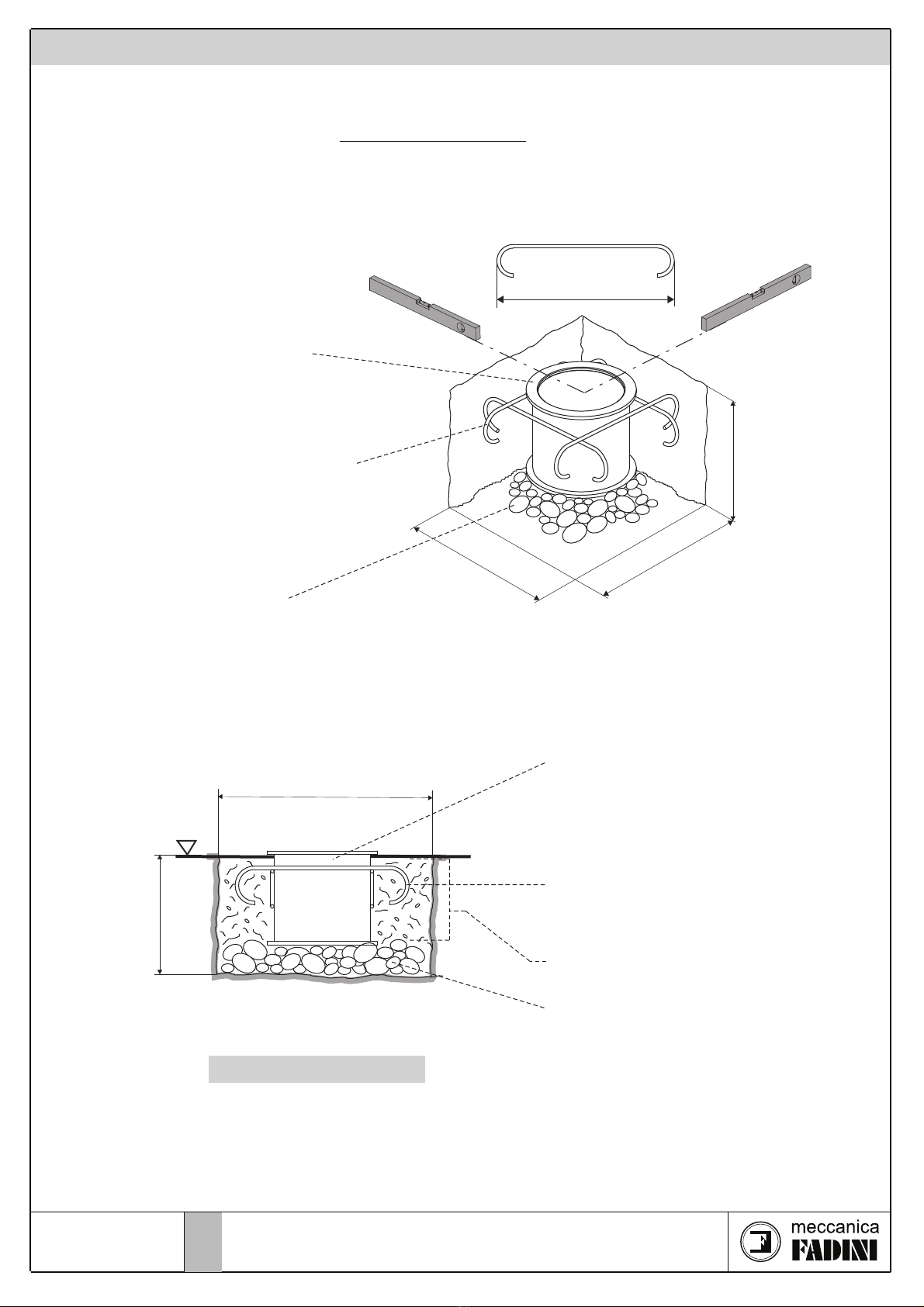

4) Providing a suitable reinforcement metallic framework ensures that the breakout resistance value be respected as stated in this manual.
NOTE: the iron framework (all of the steel rebars) is not supplied by our company. It has to be made locally in compliance with the technical data,
drawings and all of the indications described in this installation manual. The components of the structure developed in this way are able to make
the most of the performance features of each component and ensure the impact resistance features of the bollard as indicated.
5) Make sure the soil is adequate to take the bollard to avoid that settling at a later stage causes problems to the system.
6) Make sure the site is free from utilities that may interfere with it.
7) In case any components or accessories need replacing, use only original parts as provided by the manufacturer.
8) The installer shall inform the nal user of the dangers coming from the presence of persons, especially children, in the proximity of the bollard.
9) The manufacturer reserves the right to change this manual without previous notice.
As far as conguration and execution of the system are concerned, these are to comply with the laws in the country of installation.
PRODUCT SPECIFICATIONS

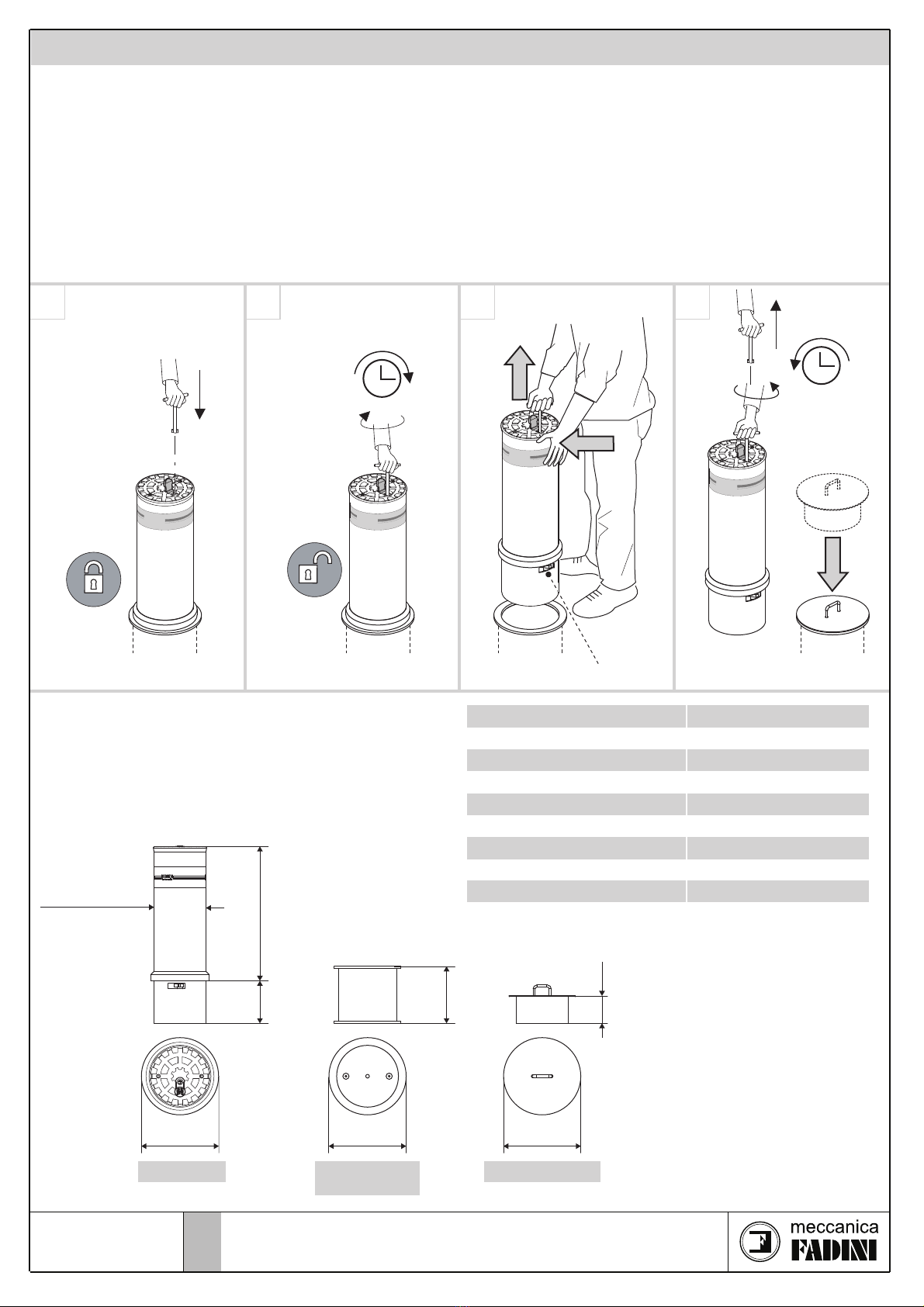

Removable bollard, unlocked and operated by a dedicated and specially shaped box spanner. Suitable for residential, industrial and urban areas.
The height of the bollard (from ground level) is 500/800 mm. Cylinder made of S235JRH steel, thickness 4 mm and Ø 200 mm, cataphoresis
treated and powder coated. AISI 304 brushed stainless steel option available. Walkable and carriageable cover. Rubber ring around the cylinder
head. Cylinder tted with high intensity, microprismatic, retroreecting approved sticker (h 80 mm). Breakout resistance 150.000 J.
CE DECLARATION OF CONFORMITY of the manufacturer:
Meccanica Fadini snc (Via Mantova, 177/A - 37053 Cerea - VR - Italy) declares under its own responsibility that Vimari 2316 is in compliance with
the Machinery Directive 2006/42/CE, moreover: is to be sold and installed as a comprehensive “Automatic System”, including the accessories and
components as recommended by the Manufacturing Company. In observance of the current directives, any automation is to be regarded as a
“machine”. Therefore it is required that all the applicable safety norms are strictly complied with by the installation agents, who are also required
to issue a Declaration of Conformity. The manufacturing company is not liable for incorrect applications or misuse of its products that are
declared to be produced in compliance with the following norms: Analysis of the risk and actions to cure them EN 12445 & EN 12453, Low Voltage
Directive 2014/35/UE, Electro-magnetic Compatibility Directive 2014/30/UE. In order to certify the product the Manufacturer declares under his
own responsibility the compliance with the PRODUCT regulations under the NORMS EN 13241-1. Meccanica Fadini s.n.c.
Responsible Manager
Meccanica Fadini is not liable for any possible damage derived from incorrect use or from any use not indicated in this manual,
furthermore it is not answerable for malfunctioning caused by the use of materials or accessories not approved by the company
itself. It is to be noted that the product respects the impact and breakout resistance values as indicated provided that the
installation of the same is carried out in observance of the specications included in this manual of instructions. Various factors
are to be carefully taken into consideration such as compaction index, soil permeability coecient, concrete type, which may
aect the indicated values even signicantly.
!
