Troubleshooting Guide

2015

This guide provides helpful hints and solutions for troubleshooting

of the product above.

Table of Contents

Model No.: FH1517204

Product Name: 72" Air Hockey

Maintain airﬂow on playﬁeld -------------------------------------------------------------------- page 1

No sound on Control Box and no numbers displayed on Scorers ---------- page 1,2

No sound on Control Box ------------------------------------------------------------------------- page 2

No numbers displayed on Timer/Scorers ------------------------------------------------- page 3,4

Incomplete Numbers displayed on Scorers/Timer ---------------------------------- page 5,6,7

No counting on Scorers ---------------------------------------------------------------------------- page 8

Unworkable button on the Control Box -------------------------------------------------- page 9

Replacement Parts# ----------------------------------------------------------------------- page 10

page 1

Maintain airﬂow on playﬁeld

a. Please use pin to clean up the holes if any dust on the playﬁeld.

b. Please use "furniture polish spray" to clean up the playﬁeld and maintain the

airﬂow smoothly. Such as : Pledge...etc.

Step 1: Keeping clean/maintain airﬂow on the playﬁeld.

No sound on Control Box and no numbers displayed on Scorers

Step 2: Please check the “power switch of Battery Box” if it is turned on.

Turn on the power switch of Battery Box.

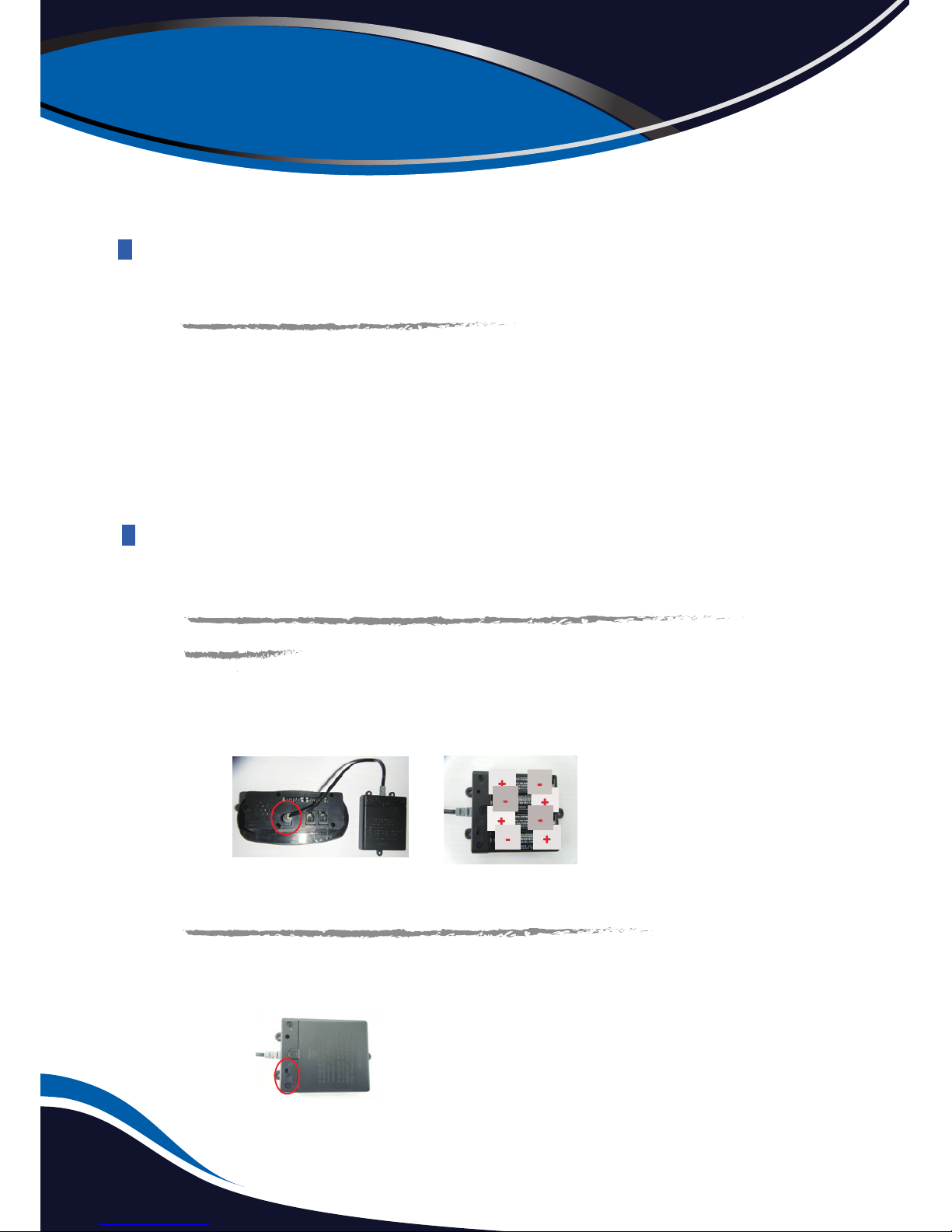

Step 1: Please check the “battery box wire” if it is plugged into the Control Box and

connected well.

Plug or Re - plug the battery box wire into the Control Box.

Please check Batteries if they are installed correctly.

page 2

Step 4: If it’s failed as above 3 steps, and then...

Replace the Control Box and Battery Box with a new one.

No sound on Control Box

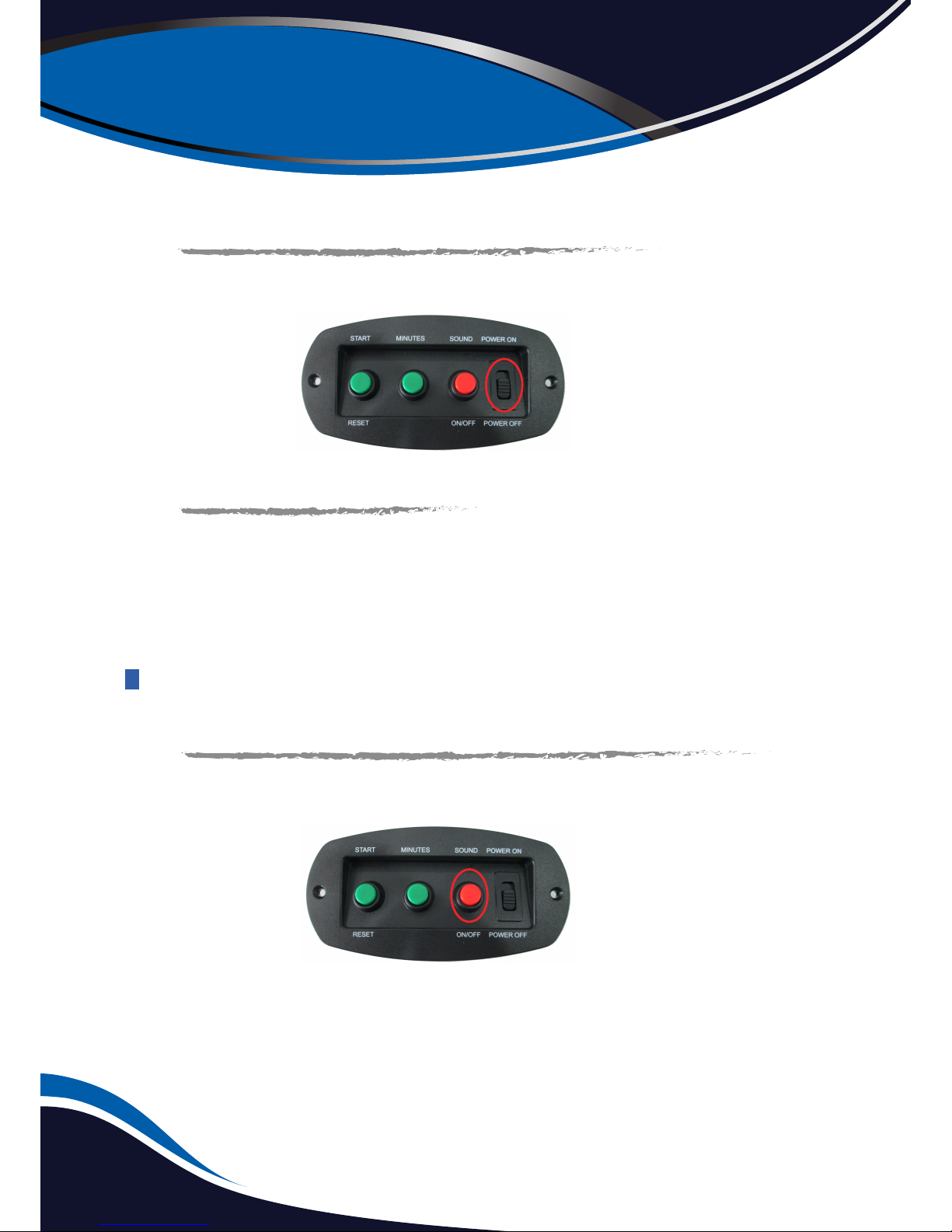

Step 1: Please check the button-"SOUND ON /OFF" on the Control Box if it is turned on.

Re-press the button-"SOUND ON /OFF" on the Control Box.

Step 2: If this fails to resolve the problem.

Replace the Control Box with a new one.

Step 3: Please check the “power switch of Control Box” if it is turned on.

Turn on the power switch of Control Box.

page 3

No numbers displayed on timer / scorers

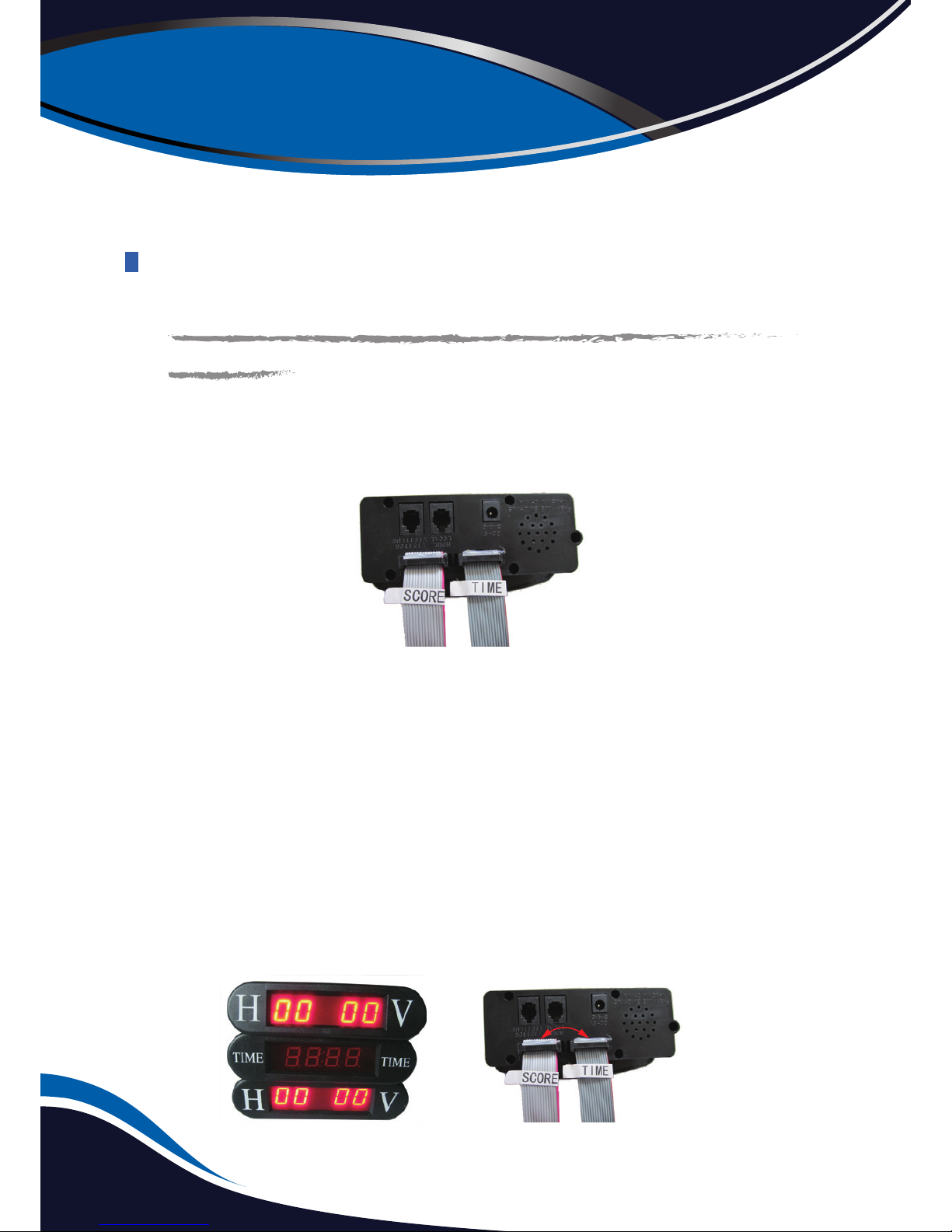

Step 1: Please check the Timer Display Wire and Scorer Display Wire if both are plugged into the

Control Box well.

Re - plug the Timer Display Wire and Scorer Display Wire into the Control Box.

Step 2: If no numbers displayed on Timer but on 1 or 2 pcs Scorers.

Interchange the Timer Display Wire and Scorer Display Wire, and plug into the

Control Box, it will come out the conditions as following a/b:

a) If numbers are displayed: Replace the Timer Display and Timer Display Wire

with a new one.

b) If no numbers on Timer: Replace the Control Box with a new one.

Interchange the Timer Display Wire and Scorer Display Wire, and plug into the

Control Box, it will come out the conditions as following a/b:

a) If numbers are displayed: Replace the Scorer Display Wire with a new one.

b) If no numbers on Scorer: Replace the Scorer Display with a new one.

page 4

Step 4: If no numbers displayed on "2 pcs Scorers" but on Timer.

Interchange the Timer Display Wire and Scorer Display Wire, and plug into the

Control Box.

a) If numbers are displayed: Replace the Scorer Display and Scorer Display Wire

with a new one.

b) If no numbers on Scorers: Replace the Timer Display with a new one.

Step 3: If no numbers displayed on "1 pc Scorer" but on Timer and 1 pc Scorer.

b) If no numbers on Scorers: Replace the Control Box with a new one.

page 5

Incomplete numbers displayed on timer / scorers

Step 1: Please check if the "Timer Display Wire" and "Scorer Display Wire" are connected well

into the Control Box.

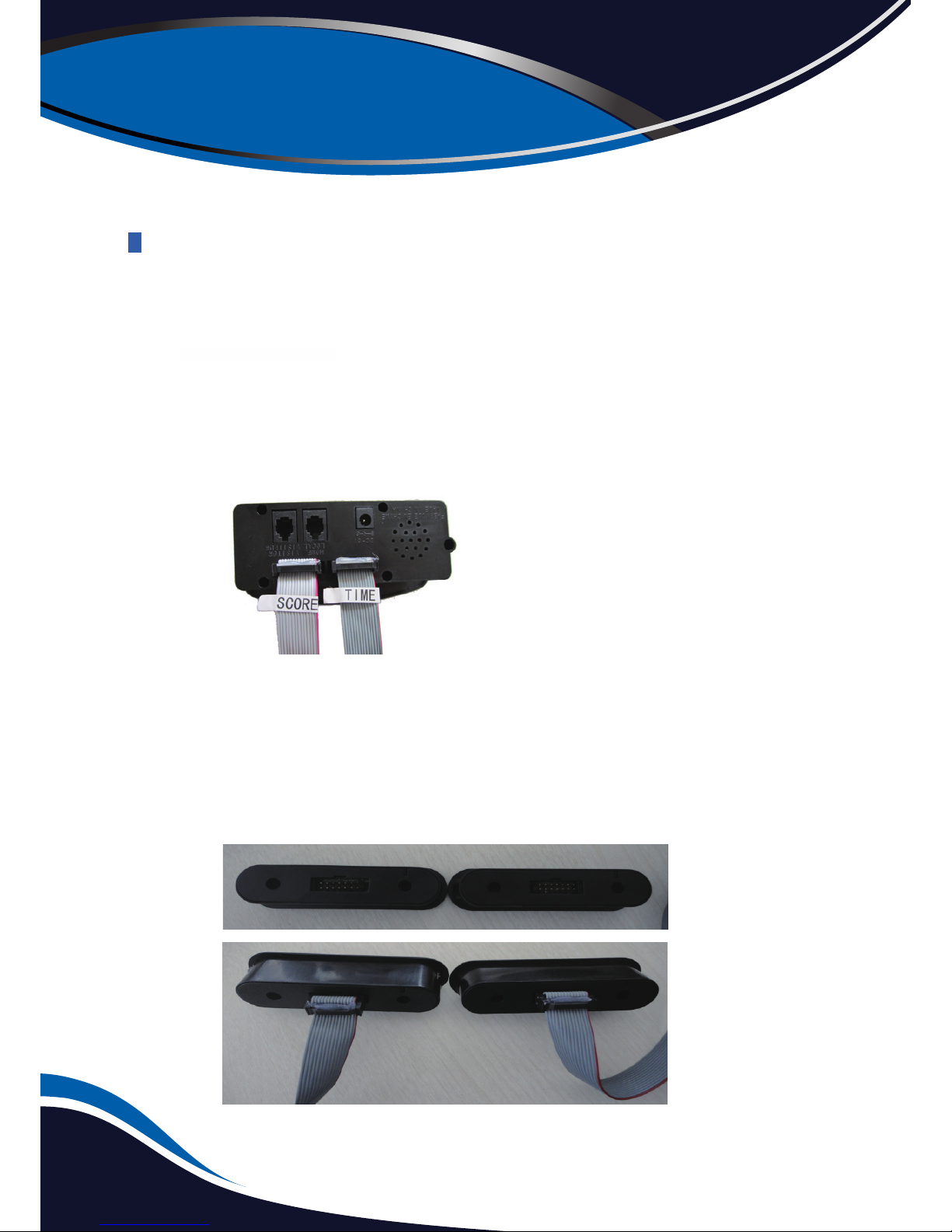

a. Please kindly pull out the Scorer Plug and Timer Plug from the Control Box.

b. Please kindly re-check the Score Plug, Timer Plug and Control Box Jack if there is

any glues or other dirty things on the parts, please help to clear up and re-connect

it as below pictures:

Step 2: If it still unworkable, please kindly try Step 2 below:

a. Please kindly pull out the Scorer Display and Time Display from the Top Rail.

b. Please kindly re-check the Score Plug , Time Display , Scorer and Time Display Jack

if there is any glues or other dirty things on the parts, please help to clear up and

re-connect it as below pictures:

Step 3: If incomplete numbers on 1pc Scorer only

Step 4: If incomplete numbers on "2pcs Scorers" with the same character or diﬀerent numbers.

Replace the Scorer Displays, Scorer Display Wire and Control Box with a new one.

page 6

Step 5: If incomplete numbers on Timer only.

Replace the Timer Display and Timer Display Wire with a new one.

Step 6: If incomplete numbers on all of the Scorer Displays and Timer Display with the same

character .

Replace the Control Box with a new one.

Take out both of Scorer Display and interchange to re-install:

a) If numbers are displayed: Replace the Scorer Display Wire with a new one.

b) If it still is not working: Replace the Scorer Display and Scorer Display Wire

with a new one.

page 7

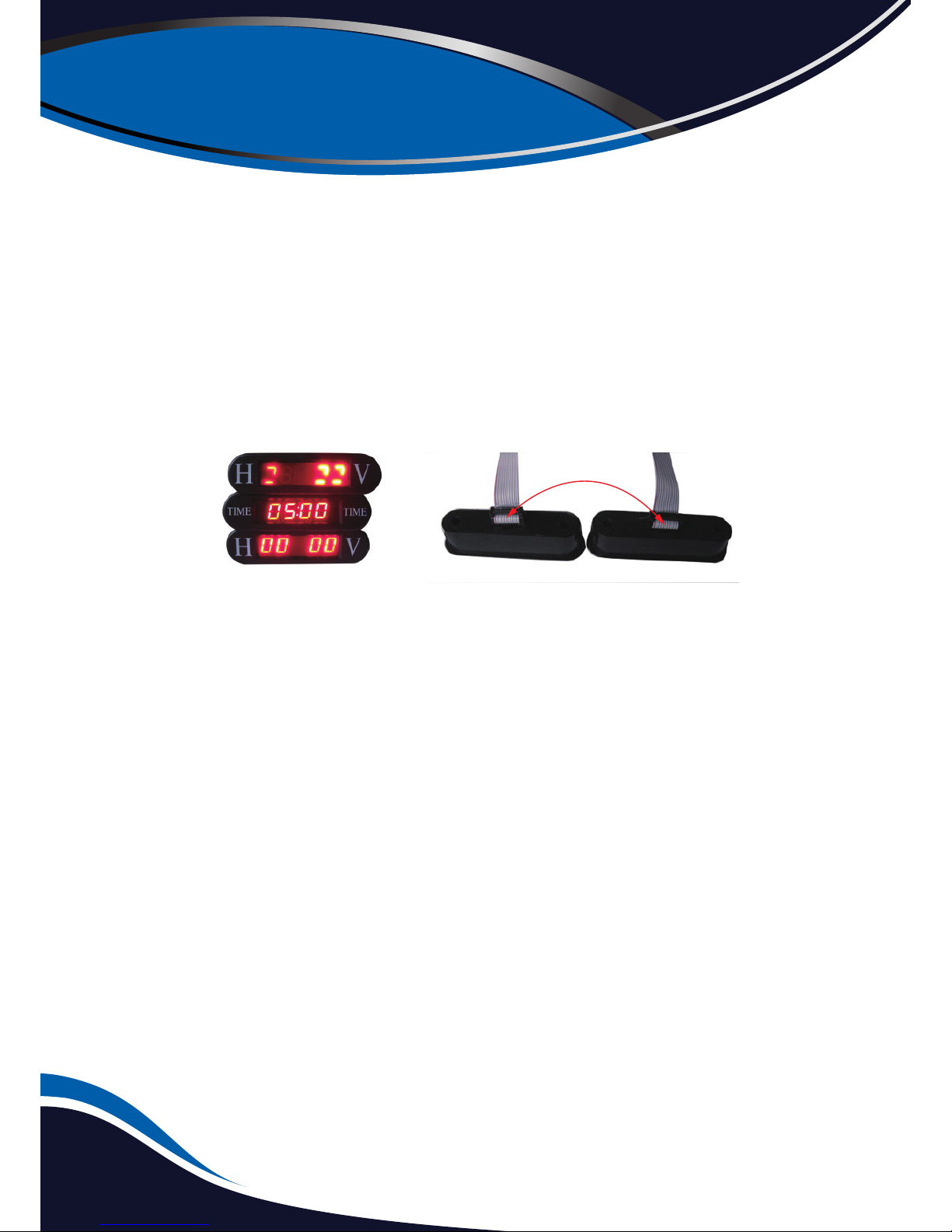

Step 7: If incomplete numbers on "2pcs Scorer Display & Timer Display". As same as the

image below-

Please re-check the Scorer Display Wire and Timer Display Wire if they are plugged in

the correct socket.

page 8

No counting on Scorers

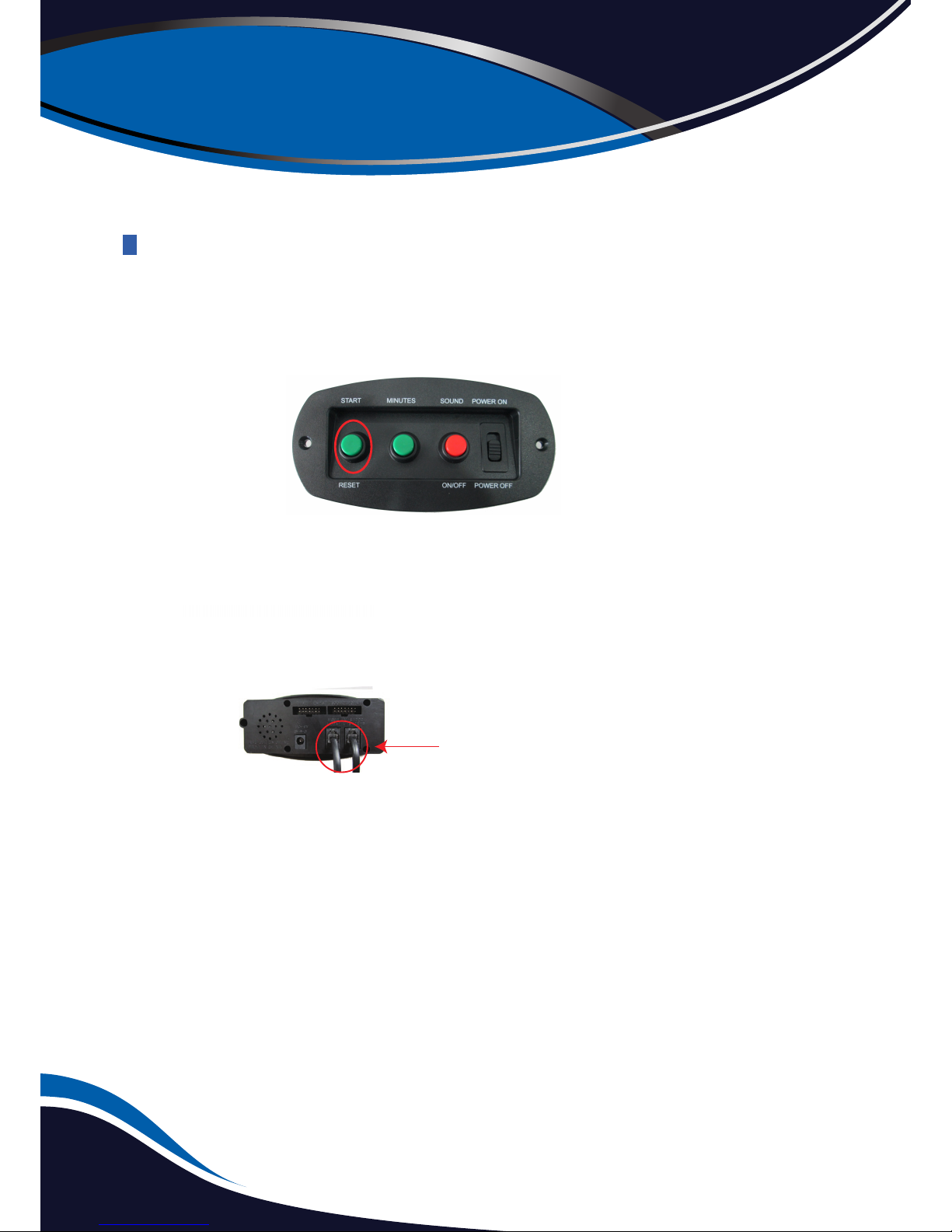

Step 1: Please check the button - “START” on the Control Box if it is turned on.

Re-press the button - “START” on the Control Box.

Step 2: Please check the “Puck Catcher Wire with Sensor -1 & 2” if both are connected

with the Control Box well.

Re-plug the Puck Catcher Wire with Sensor -1 & 2 on the Control Box and

connected well.

Step 3: 1pc Scorer: Failed to keep the score.

Interchange the Puck Catcher Wire with Sensor -1 & 2, and then plug into the

Control Box, it will come out conditions as follow:

a) If scorer keep score: Replace the Puck Catcher Wire with Sensor with a new one.

b) If it’s unworkable: Replace the Control Box with a new one.

Step 4: 2pcs Scorers: Failed to keep the score.

Replace the Control Box with a new one.

Puck Catcher Wire with Sensor

Apron corner reasembly

7Unworkable button on the Control Box

Step 1: Please check the “Electronic Scorer Operation Guides” on the Assembly Instruction

Refer to the Electronic Scorer Operation Guides and re-operate. If still, inoperable,

please replace the Control Box with a new one.

page 9
