MD SPORTS 58400 Manuel utilisateur

MODEL/MODELO: 58400

INSTRUCCIONES DE ARMADO

Please contact us before returning the product to the store.

Toll Free: 877-472-4296

Por favor póngase en contacto con nosotros antes de

devolver el producto a la tienda.

Número telefónico gratis: 877-472-4296

LIMITED 90 DAYS WARRANTY

This product is covered by a limited warranty that is effective for 90 days

from the date of purchase. The warranty covers any defects in parts and

workmanship.

This Limited Warranty gives you specific legal rights and you may also have

other rights which very from one state (province) to another.

If, during the limited warranty period, a part is found to be defective or

breaks, we will offer replacement part at no cost to you, the customer. The

only exceptions to the warranty include main frames, tabletops, playing

surfaces, batteries or tools.

The above warranty will not apply in cases of damages due to improper

usage, alteration, misuse, abuse, accidental damage or neglect.

Please Attention: Since you build all tables upside down, please inspect

table tops and playing surfaces right away before putting together.

“PLEASE SAVE THESE INSTRUCTIONS

AND PURCHASE RECEIPT!”

A PURCHASE RECEIPT (or other proof of purchase date) will be required

before any warranty service is initiated. All requests for warranty service can

be submitted by email, in writing or by contacting our Consumer service

Department at:

TOLL FREE: 877-472-4296

WEBSITE: www.medalsports.com.tw

*Please do not call our 800 NUMBER as well as email us. This will result in

duplicate orders and charges will occur.

*Please note that all damaged table tops need to be returned to the store.

We do not replace any tabletops or playing surfaces.

PLEASE CONTACT US BEFORE RETURNING THE

PRODUCT TO THE STORE. THANK YOU VERY MUCH!

Phillips Screwdriver – Not Included

Standard (Flat Head Screwdriver) – Not Included

Allen Wrench - Included

TOOLS REQUIRED:

ASSEMBLY TIPS:

:









!

IMPORTANT NOTICE! Please contact us before returning the product to the store.

Please read the instructions carefully, and follow all assembly, operation or safety instructions

properly in order to avoid damage or injury. For the assembly, at least two adults are required.

Some figures or drawings may not look exactly like your product. Please read and understand

the text before beginning each assembly step.

1 -

2 -

Please Keep Your Instructions! Your Model number is necessary should you need to contact

us. Please read through this instruction manual book to familiarize yourself with all parts and

assembly steps. Kindly refer to the parts identifier below and be sure that all parts have been

included.

Although we dedicated to giving our customers the best product possible, a question may

arise or parts may be missing. If you are missing parts, or, if you have any questions, please

contact our fast and friendly service centre on:

1 - This product is intended for INDOOR use only.

2 - Please Do Not sit, climb or lean on the game table.

3 - Please Do Not drag the table when moving it in order to avoid the damaged on the legs.

4 - Please only use spray furniture polish to clean the exterior surfaces on the game table.

5 - This is not a child's toy, adult supervision is required for children playing this game.

877-472-4296

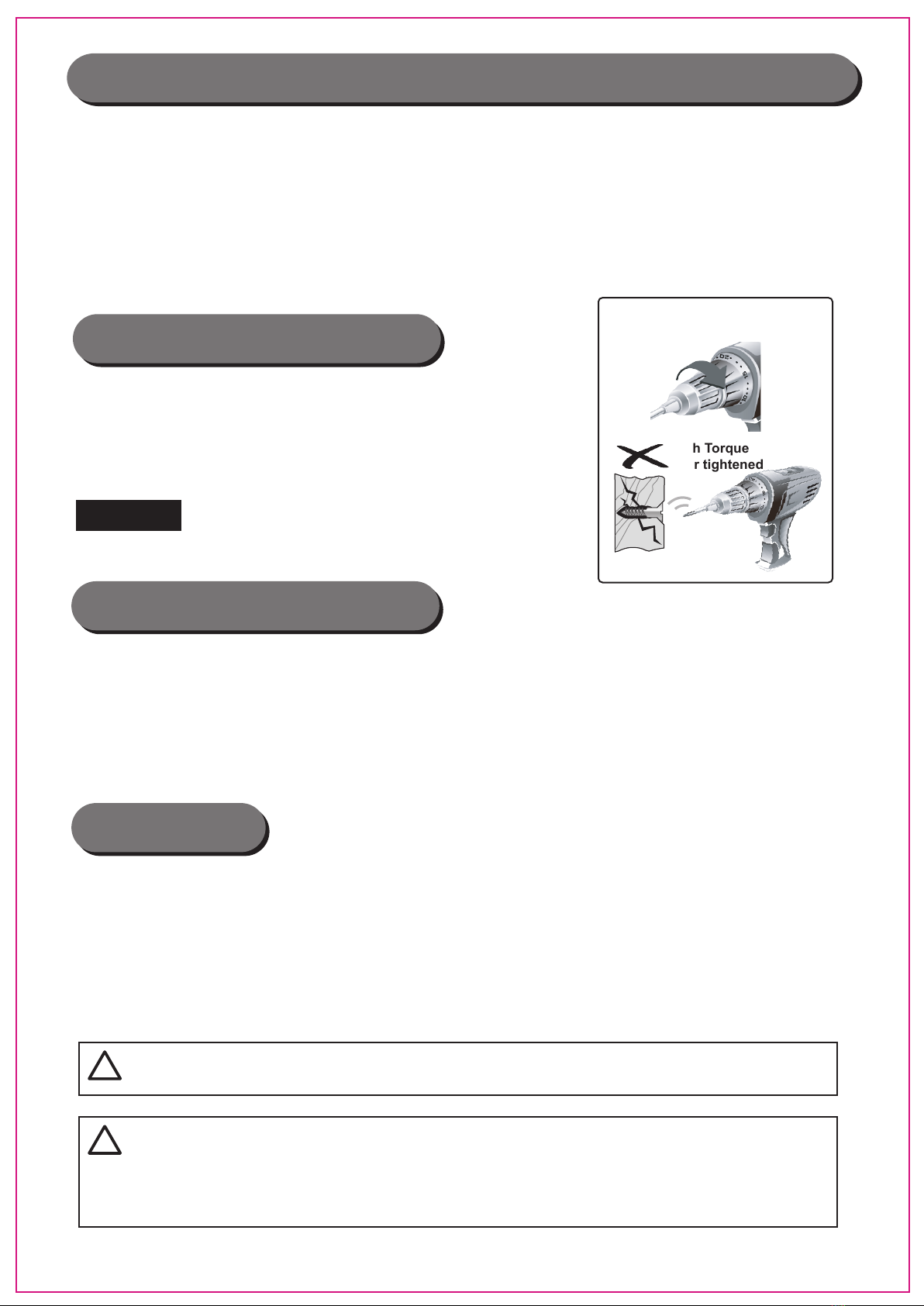

Power Tools

- Set Low Torgue

High Torque

over tightened

CAUTION !

Electric Screwdrivers may be helpful during

assembly; however, please set a low torque

and use extreme caution.

2 3 4 51

7 8 9 10

12 13 14 15

16 17 18 19 20

21 22 23 24 25

26 27

29 30

32 33 35

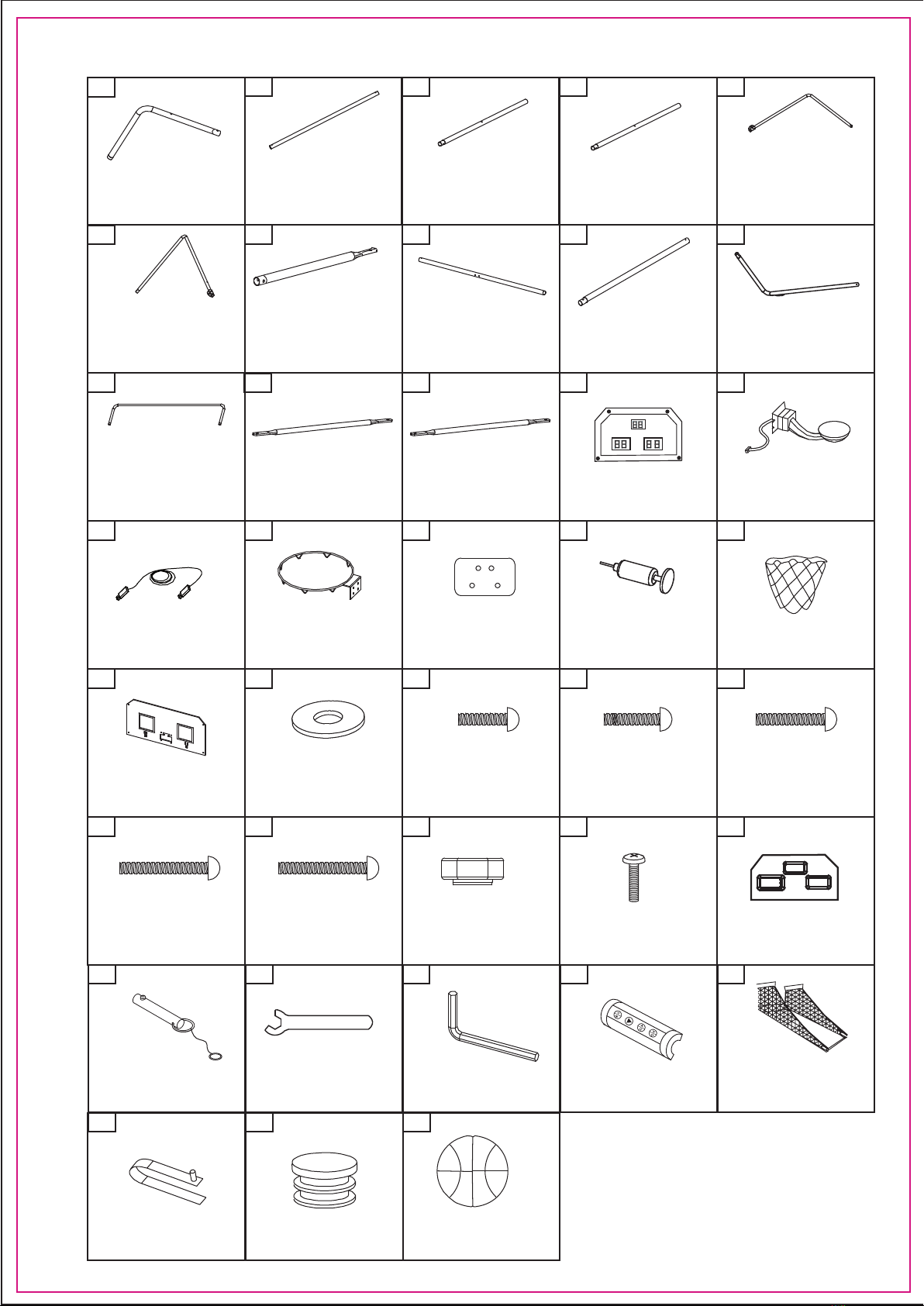

PARTS IDENTIFIER

Pre-installed

Pre-installed Pre-installed

3.5 x 10mm Bolt

4 Pieces

Electronic Scorer

Face Plate

1 Piece

Ball Return with

Side Netting

1 Piece

Control Box

1 Piece

Wrench

1 Piece

Plastic Pole Insert

6 Pieces

Spring Lock

9 Pieces

Lock Pin

2 Pieces Allen Key

1 Piece

HOME VISITOR

TIME

Net Hanger Tube

2 Pieces

Vertical Board Support

Mounting Tube

2 Pieces

Left Vertical

Support Tube

1 Piece

Left Horizontal

Frame Brace Tube

1 Piece

Right Horizontal

Frame Brace Tube

1 Piece

Angle Top Frame

Support Tube

2 Pieces

Angle Bottom Frame

Support Tube

2 Pieces

Middle Ramp Tube

2 Pieces

Front Ramp Tube

2 Pieces

Paddle with Sensor

2 Pieces

Metal Net

2 Pieces

Rim Support Plate

2 Pieces

Rim with Metal Net

2 Pieces

Control Wire

1 Piece

Basketball

4 Pieces

Front Horizontal Ramp

Support Tube

1 Piece

Short Horizontal

Cross Brace(1.21m)

1 Piece

Long Horizontal

Cross Brace(1.25m)

1 Piece

Electronic Scorer

1 Piece

Backboard

1 Piece

M6 Washer

64 Pieces

M6 x 20mm Bolt

16 Pieces

M6 x 45mm Bolt

4 Pieces

M6 x 50mm Bolt

4 Pieces

M6 x 58mm Bolt

4 Pieces

M6 x 75mm Bolt

4 Pieces

M6 Nut

32 Pieces

Inflation Pump

with Needle

1 Piece

Right Vertical

Support Tube

1 Piece

ASSEMBLY INSTRUCTIONS

FIG. 1 & 2

FIG. 3

1. Find a clean, level place to begin the assembly of your Basketball Game. We recommend that two adults work

together to assemble this basketball game.

2. Remove all the parts from the box and verify that you have all of the listed parts as shown on the Parts

Identifier below.Carefully cut or tear the four corners of the box so that the bottom of the box can be used

as your work surface.

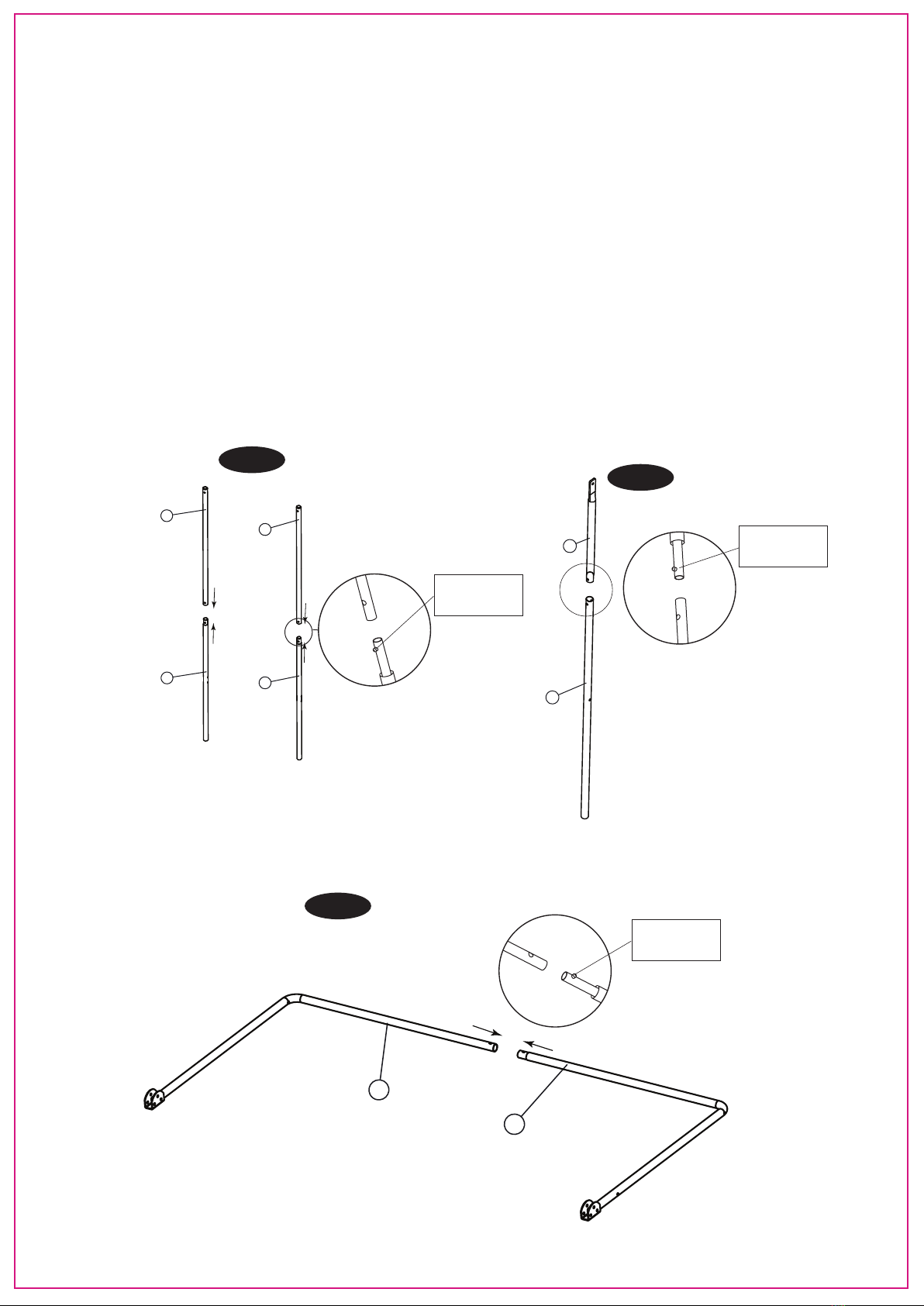

3．Attach the Vertical Board Support Mounting Tubes (#2) to the Left and Right Vertical Support Tubes (#3&#4)

using spring lock as shown in FIG.1.

4. Attach the Angle Top Frame Support Tubes (#7) to the Angle Bottom Frame Support Tubes (#8) using spring

lock as shown in FIG.2

5. Attach the Left and Right Horizontal Frame Brace Tubes (#5 and #6) together using spring lock as shown in FIG.3

FIG. 1

FIG. 2

FIG. 3

#36

Spring Lock

#36

Spring Lock

#36

Spring Lock

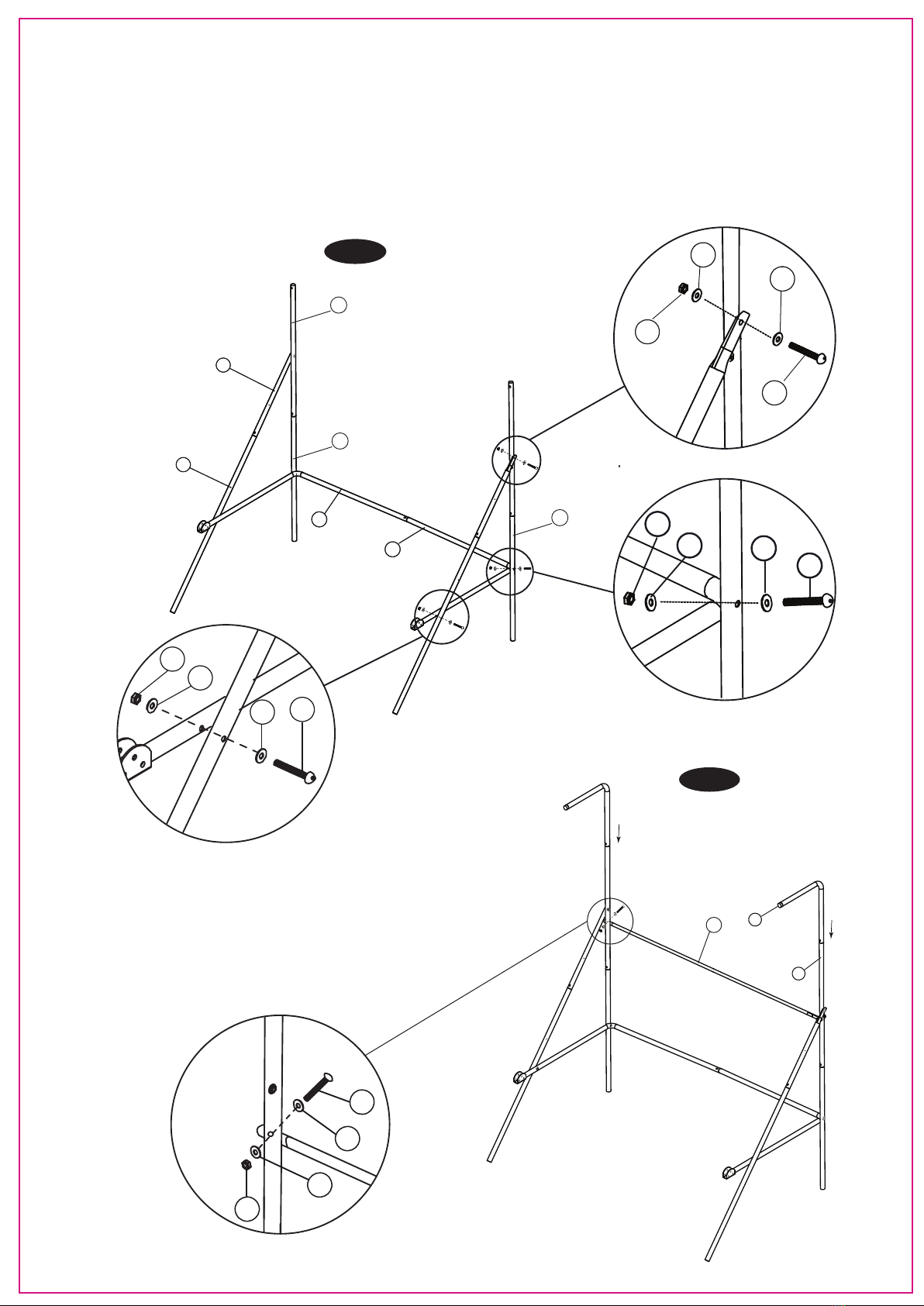

6. Attach the Horizontal Frame Brace Tube (#5 & #6) to Left and Right Support Tube(#3 & #4) using Bolts(#27),

Washers (#22) and Nuts(#28), and then attach the Horizontal Frame Brace Tubes(#5&#6) to the Angle Bottom

Support Tube (#8) using Bolts (#27), Washers (#22) and Nuts(#28) as shown in FIG4.

7. Attach the Angle Support Tubes (#7 & #8) to the Vertical Support Mounting Tube(#2) using Bolts(#24), Washers

(#22) and Nuts(#28) as shown in FIG4, repeat this step for other side. Note: Make sure the spring lock is face down.

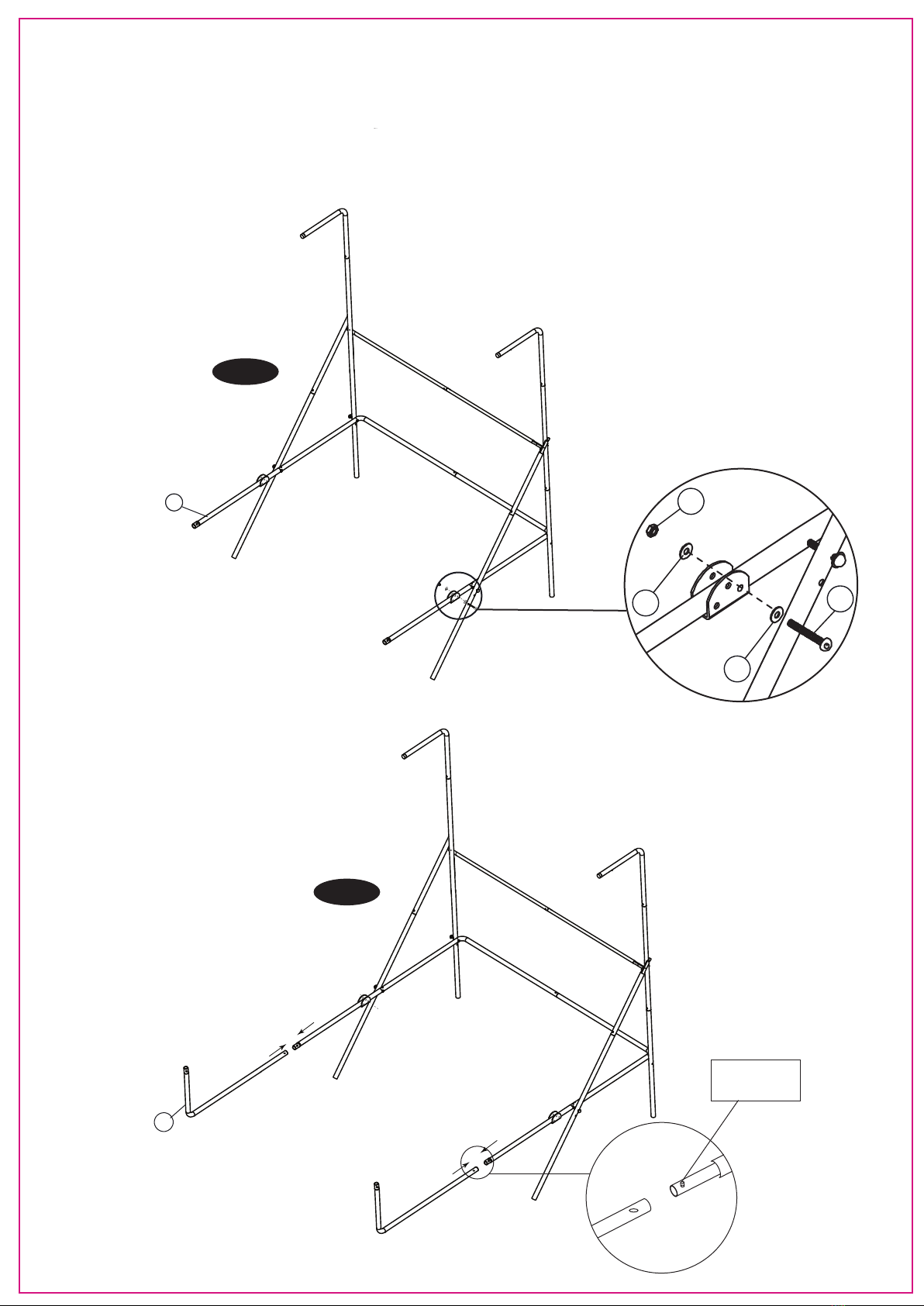

8. Attach the Short Horizontal Cross Brace(#12) to the Vertical

Board Support Mounting Tube using Bolts(#25), Washers(#22)

and Nuts(#28) as shown in FIG5. And then insert the Net

Hanger Tubes (#1) to the Vertical Board Support Maunting

Tubes (#2) as shown in FIG.5.

FIG. 4

FIG. 5

FIG. 4

FIG. 5

9. Attach the Middle Ramp Tubes(#9) to Horizontal Frame Brace Tubes(#5 & #6) using Bolts(#25 ), Washers(#22)

and Nuts(#28) as shown in FIG 6.

10. Attach the Front Ramp Tubes(#10) to the Middle Ramp Tubes(#9) using spring lock as shown in FIG 7.

FIG. 6 & 7

FIG. 7

FIG. 6

#36

Spring Lock

FIG. 8 & 9

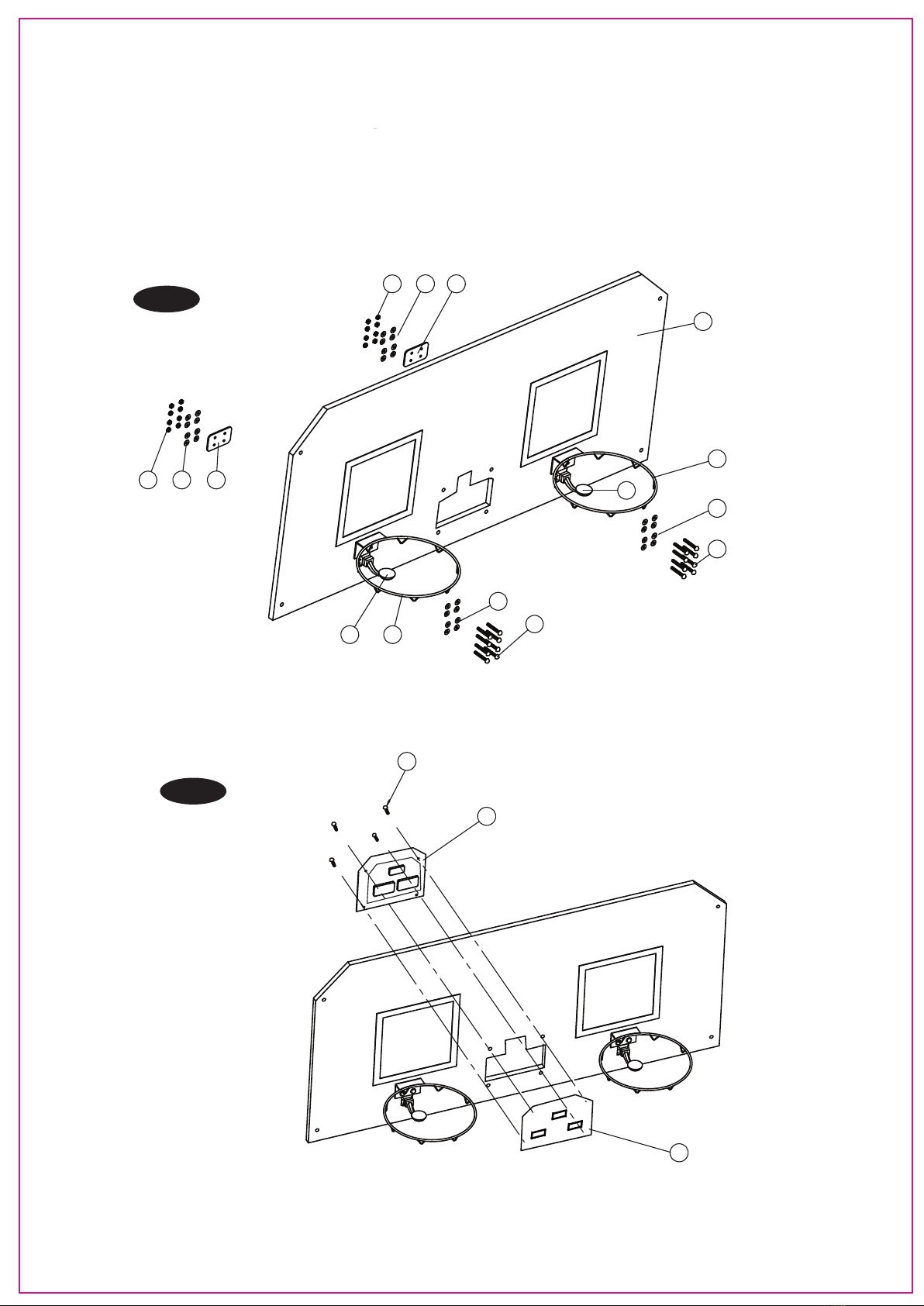

11. Attach the Rim Assemblies (#17) and Rim Support Plates (#18) to the Backboard (#21) using the Bolts (#23),

washers (#22) and Nuts (#28). And then attach the Switch and Paddle Assembly (#15) to the Backboard (#21)

using the Bolts (#23), washers (#22) and Nuts (#28). Make sure that you use washer on both sides of the

backboard as shown in FIG. 8.

12. Attach the Electronic Scorer Face Plate(#30) to the front of Backboard and connect with the Electronic Scorer(#14)

using Bolts(#29) as shown in FIG. 9.

FIG. 9

FIG. 8

51 71

28 22 81

TIME

VISITOR

HOME

FIG. 10

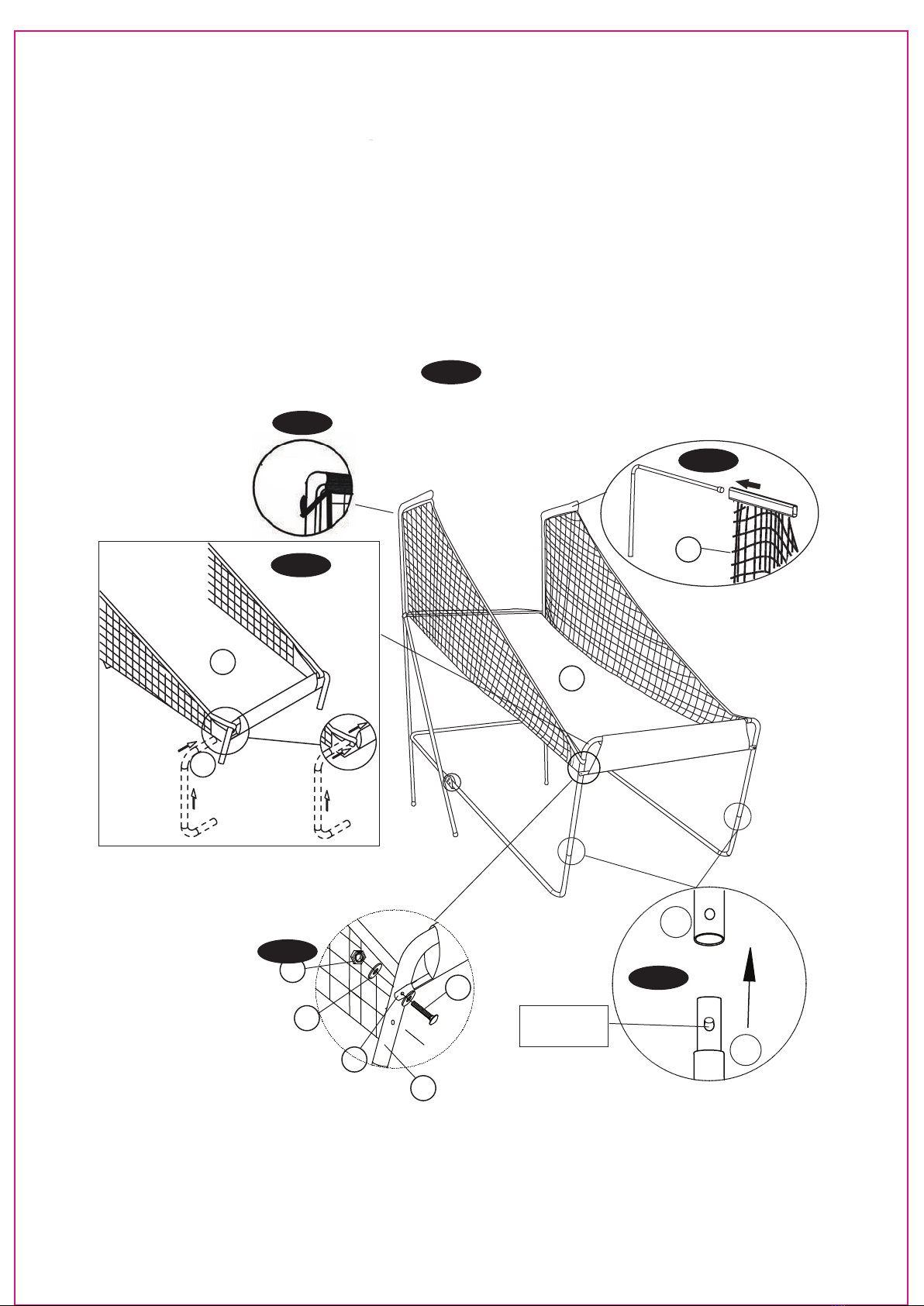

13. Slide elastic straps and sleeve of Ball Return with Side Netting (#35) onto Top Net Hanger Tubes as shown in

FIG. 10A & 10B.

14. Slide the Front Horizontal Ramp Support Tube(#11) into the sleeve of Ball Return with Side Netting(#35) as

shown in FIG. 10C.

15. Connect the Front Horizontal Ramp Support Tube(#11) to the Front Ramp Tube (#10) using spring lock as

shown in FIG. 10D.

16. Slide the Long Horizontal Cross Brace(#13) in front of the Ball Return with Side Netting(#35) and attach it

to the Front Horizontal Ramp Support Tube (#11) using Bolts(#24), Washers(#22) and Nuts(#28) as shown

in FIG.10E.

FIG.10

FIG.10D

FIG.10E

FIG.10C

FIG.10A

FIG.10B

35 35

#36

Spring Lock

FIG. 11

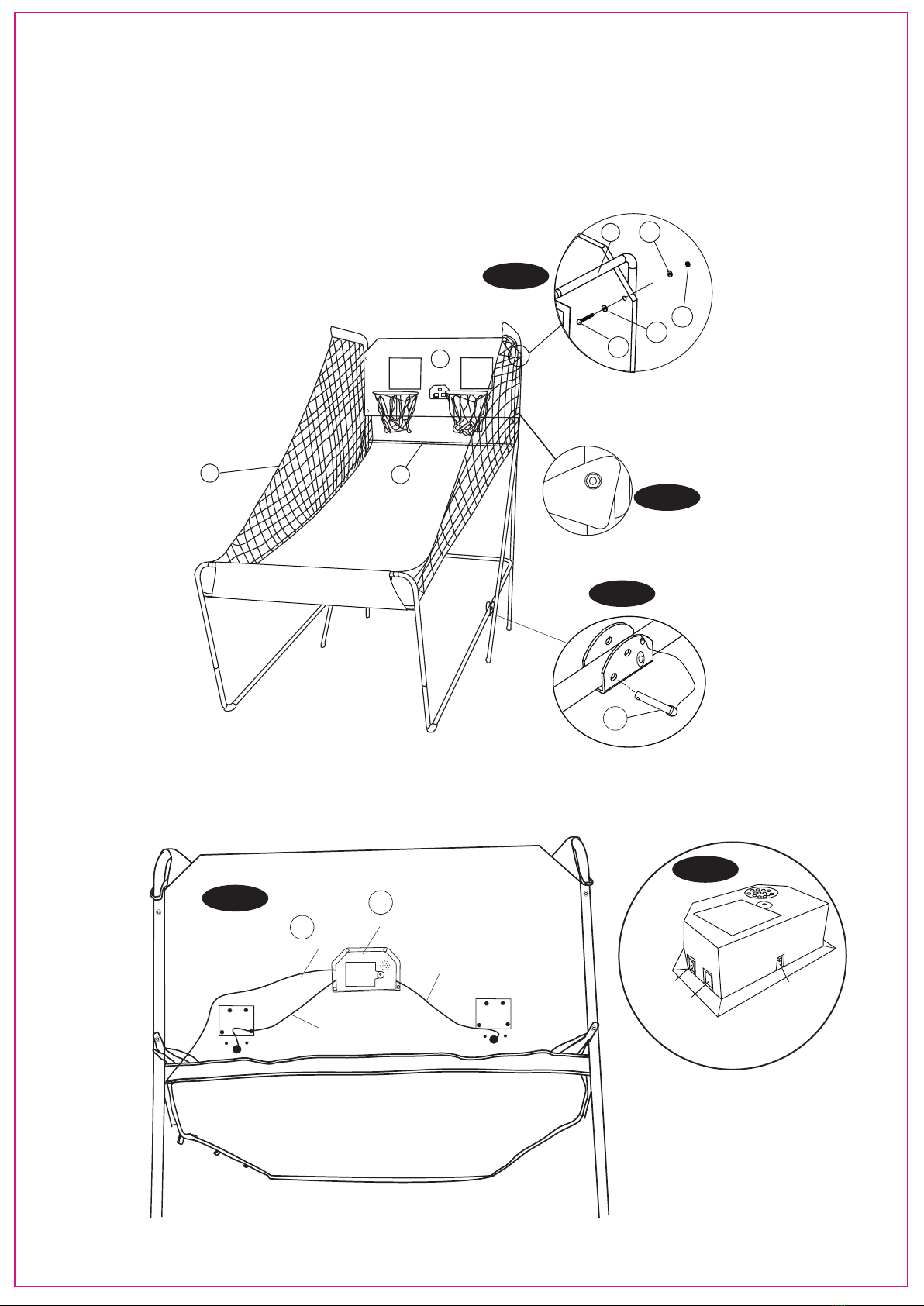

17. With the help of another adult, Attach the Backboard(#21) to the Top Net Hanger Tube(#1) using Bolts(#26),

Washers(#22) and Nuts(#28) as shown in FIG.11 A.

At each bottom hole of the backboard,attach the ramp tabs of Ball Return with Netting(#35) using Bolts(#26),

Washers(#22) and Nuts(#28) as shown in FIG.11 B .

18. Connect the Lock Pin (#31) to the Left & Right Frame Brace Tubes (#5 & #6) and insert it to the Left & Right

Frame Brace Tubes (#5 & #6) as shown in FIG. 11C.

Ramp Tab

Back View.

FIG. 11B

FIG. 11C

FIG. 11A

FIG. 12

FIG. 12A

Sensor wire

Electronic Scorer

Sensor wire

19. Connect the Sensor Wire from Switch and Paddle Assembly to the Electronic Scorer (#14) as shown in FIG12.

and 12A. Connect the Control Wire (#16) to the Electronic Scorer (#14) as shown in FIG.12 and 12A.

Control Wire

ON/OFF

CONTROL

WIRE

VISITOR
