McCulloch ROB S600 Manuel utilisateur

EN, English

Operator's manual

ROB S600, ROB S800

Read the operator's manual carefully and make sure that you

understand the instructions before you use the product.

Contents
Introduction
1 Introduction........................................................... 3
2 Product overview...................................................4
3 Symbols on the product........................................ 4
4 Symbols on the display......................................... 5
5 Symbols on the battery......................................... 5
6 General manual instructions................................. 5
7 Menu structure overview....................................... 6
8 Display.................................................................. 6
9 Keypad.................................................................. 7
Safety
1 Safety information................................................. 8
2 Safety definitions...................................................9
3 Safety instructions for operation............................9
Installation
1 Introduction - Installation..................................... 12
2 Main components for installation.........................12
3 General preparations.......................................... 12
4 Before the installation of the wires...................... 12
5 Installation of the product.................................... 17
6 To put the wire into position with stakes............. 19
7 To bury the boundary wire or the guide wire.......19
8 To extend the boundary wire or the guide wire... 19
9 After the installation of the product......................20
10 To do the product settings.................................20
Operation
1 The ON/OFF button............................................ 26
2 To start the product............................................. 26
3 Operating modes.................................................26
4 Park modes......................................................... 27
5 To stop the product............................................. 27
6 Switch off.............................................................27
7 To charge the battery.......................................... 28
8 Adjust the cutting height......................................28
Maintenance
1 Introduction - maintenance..................................29
2 Clean the product................................................29
3 Replace the blades............................................. 30
4 Firmware update................................................. 30
5 Battery.................................................................31
6 Winter service..................................................... 31
Troubleshooting
1 Introduction - troubleshooting..............................33
2 Fault messages...................................................33
3 Information messages.........................................38
4 Indicator lamp in the charging station................. 39
5 Symptoms........................................................... 40
6 Find breaks in the loop wire................................ 41
Transportation, storage and disposal
1 Transportation..................................................... 44
2 Storage................................................................44
3 Disposal.............................................................. 44
Technical data
1 Technical data.....................................................45
2 Registered trademarks........................................46
Warranty
1 Warranty terms....................................................47
EC Declaration of Conformity
1 EC Declaration of Conformity............................48
- 007 - 23.09.2020

1 Introduction

1.1 Introduction

Serial number:

PIN code:

Product registration key:

The serial number is on the product rating plate and on the product carton.

• Use the serial number to register your product on www.mcculloch.com.

1.1.1 Support

For support about the product, speak to your McCulloch

servicing dealer.

1.1.2 Product description

Note: McCulloch regularly updates the appearance

and function of the products. Refer to

Support on page

The product is a robotic lawn mower. The product has a

battery power source and cuts the grass automatically. It

continuously alternates between mowing and charging.

The movement pattern is random, which means that the

lawn is mowed evenly and with less wear. The boundary

wire and the guide wire controls the movement of the

product within the work area. Sensors in the product

senses when it is approaching the boundary wire. The

front of the product always passes the boundary wire by

a specific distance before the product turns around.

When the product hits an obstacle or approaches the

boundary wire the product selects a new direction.

The operator selects the operation settings with the keys

on the keypad. The display shows the selected and

possible operation settings, and the operation mode of

the product.

1.1.2.1 Mowing technique

The product is emission free, easy to use and saves

energy. The frequent cutting technique improves the

grass quality and decreases the use of fertilizers.

Collection of grass is not necessary.

1.1.2.2 Find the charging station

The product operates until the battery state of charge is

low. Then it follows the guide wire to the charging

station. The guide wire is laid from the charging station

towards, for instance, a remote part of the work area or

through a narrow passage. The guide wire is connected

with the boundary wire and makes it much easier and

faster for the product to find the charging station.

1411 - 007 - 23.09.2020 Introduction - 3

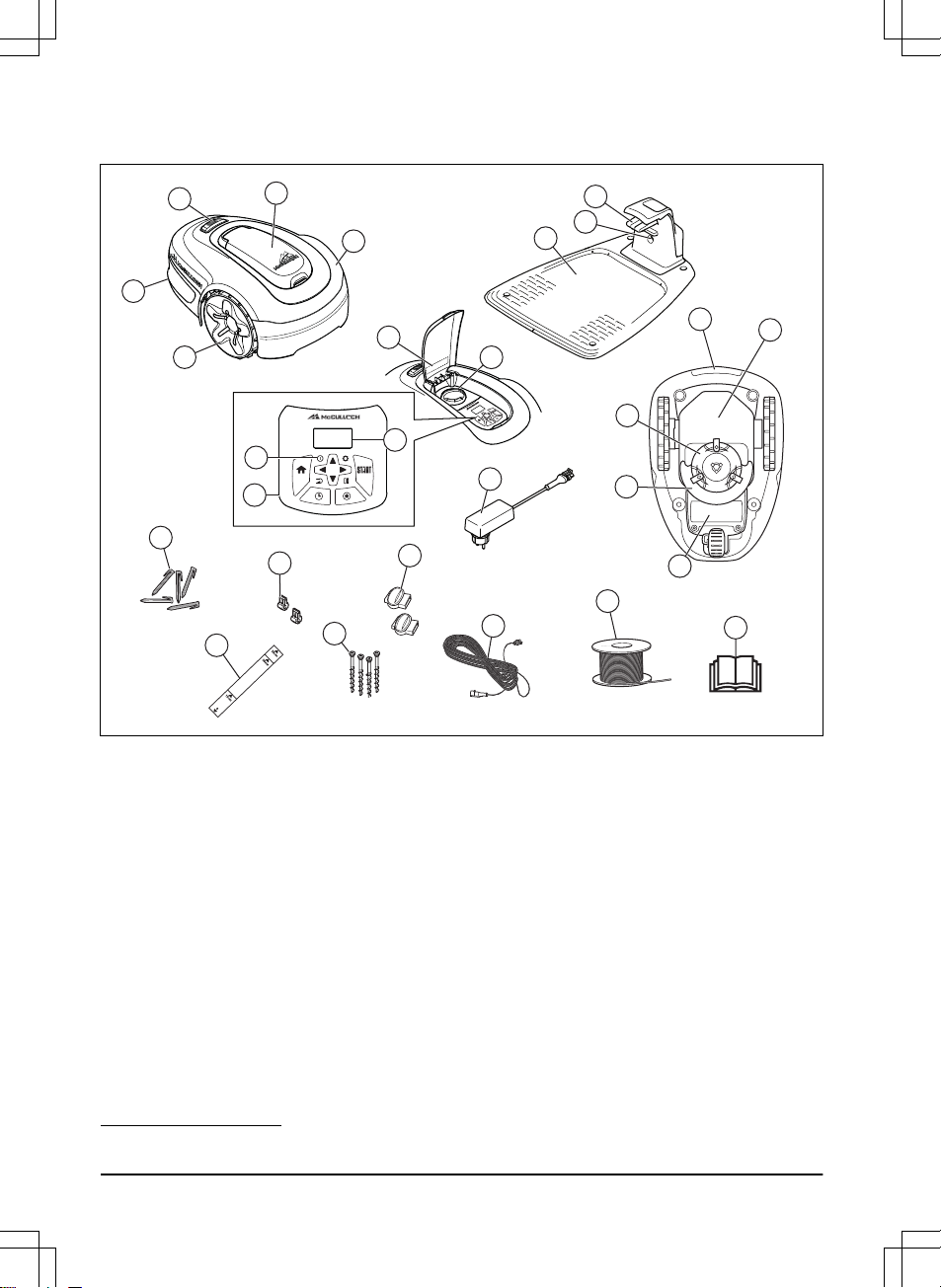

1.2 Product overview

16 17

25 27

The numbers in the figure represent:

1. Body

2. Hatch to display and keypad

3. Stop button

4. Rear wheel

5. Front wheels

6. Charging station

7. Contact plates

8. LED for operation check of the charging station,

boundary wire and guide wire

9. Cutting height adjustment

10. Rating plate (including product identification code)

11. Display

12. Keypad

13. ON/OFF button

14. Cutting system

15. Blade disc

16. Handle

17. Chassis box with electronics, battery and motors

18. Battery cover

19. Power supply1

20. Stakes

21. Measurement gauge for help when installing the

boundary wire (the measurement gauge is broken

loose from the box)

22. Couplers for loop wire

23. Screws for securing the charging station

24. Connector for the loop wire

25. Low voltage cable

26. Loop wire for boundary loop and guide wire

27. Operator’s Manual and Quick Guide

1.3 Symbols on the product

These symbols can be found on the product. Study them

carefully.

1The appearance may differ depending on market

4 - Introduction 1411 - 007 - 23.09.2020

WARNING: Read the user in-

structions before operating

the product.

WARNING: Disable the prod-

uct before working on or lift-

ing the product.

WARNING: Keep a safe dis-

tance from the product when

operating. Keep your hands

and feet away from the rotat-

ing blades.

WARNING: Do not ride on

the product. Never put your

hands or feet close to or un-

der the product.

Use a detachable power sup-

ply as defined on the rating

label next to the symbol.

This product conforms to the

applicable EC Directives.

It is not permitted to dispose this product

as normal household waste. Ensure that

the product is recycled in accordance with

local legal requirements.

The low voltage cable must not be

shortened, extended or spliced.

Do not use a trimmer nearby the low

voltage cable. Be careful when trimming

edges where the cables are placed.

1.4 Symbols on the display

The schedule menu is used to set when

the product cuts the lawn.

The settings menu is used to set the

general product settings.

The product will not cut the grass due to

the schedule function.

The product overrides the schedule

function.

The battery indicator shows the charge

level of the battery. When the product

charges the symbol flashes.

The product is in the charging station but

do not charge the battery.

The product is set in ECO-mode.

1.5 Symbols on the battery

Read the user instructions.

Do not discard the battery into fire and do

not expose the battery to a heat source.

Do not immerse the battery into water.

1.6 General manual instructions

The following system is used in the Operator’s Manual

to make it easier to use:

• Text written in

italics

is a text that is shown in the

display or is a reference to another section in the

Operator’s Manual.

• Text written in bold is one of the buttons on the

product.

• Text written in

UPPERCASE

and

italics

refer to the

different operating modes available in the product.

1411 - 007 - 23.09.2020 Introduction - 5

1.7 Menu structure overview

Settings

Time &

date

Set time Set date Time format Date format

Language Country Reset all

user setting

About

Lawn shield Security Installation General

Low/Mid/High

Use

Lawnshield

Cutting time

Starting

point

Drive past

wire

ECO

mode

Mower

house

Security Level Advanced

Low Medium High

Bluetooth

New

loop

signal

Change

code

New

pairing

Remove

paired

devices

Lawn

Coverage

Schedule

Overview/Week

Period 1 Period 2 Copy

Su Current

day

All week

SaFrThWeTuMoAll

days

Reset

Wizard AdvancedDay

mode

Night

mode

1.8 Display

The display on the product shows information and

settings of the product.

To access the display, push the STOP button and open

the hatch.

6 - Introduction 1411 - 007 - 23.09.2020

1.9 Keypad

The keypad on the product lets the operator navigate in

the menu. To access the keypad, push the STOP button

and open the hatch.

• The indicator lamp (A) on the keypad is an

important status indicator. Refer to

The indicator

lamp on page 26

• The ON/OFF button (B) is used to turn the product

ON/OFF.

• The Settings button (C) is used to go to the main

menu.

• The Home button (D) is used to choose the park

modes:

Home & Stay

and

Home & Wait

• The Start button (E) is used to start the operation

of the product.

• The BACK button (F) is used when moving back

up in the menu lists.

• The OK button (G) is used to confirm the chosen

settings in the menus.

• The arrow keys (H) are used to navigate in the

menu. The up/down arrow keys are also used to

enter digits, for example, PIN code, time and date

• The Schedule button (I) is used to go to the

schedule menu.

• The STAR button (J) is used to choose operating

modes:

Secondary area

Power Cut

and

Spot Cut

1411 - 007 - 23.09.2020 Introduction - 7

2 Safety

2.1 Safety information

2.1.1 IMPORTANT. READ CAREFULLY

BEFORE USE. KEEP FOR FUTURE

REFERENCE

The operator is responsible for accidents or hazards occurring to

other people or property.

This appliance is not intended for use by persons (including

children) with reduced physical, sensory or mental capabilities (that

could affect a safe handling of the product), or lack of experience

and knowledge, unless they have been given supervision or

instruction concerning use of the appliance by a person

responsible for their safety.

This appliance can be used by children aged from 8 years and

above and persons with reduced physical, sensory or mental

capabilities or lack of experience and knowledge if they have been

given supervision or instruction concerning use of the appliance in

a safe way and understand the hazards involved. Local regulations

may restrict the age of the operator. Cleaning and maintenance

shall not be made by children without supervision.

Never connect the power supply to an outlet if the plug or cord is

damaged. Worn or damaged cord increase the risk of electric

shock.

Only charge the battery in the included charging station. Incorrect

use may result in electric shock, overheating or leaking of

corrosive liquid from the battery. In the event of leakage of

electrolyte, flush with water/neutralizing agent. Seek medical help if

it comes in contact with the eyes.

Use only original batteries recommended by the manufacturer.

Product safety cannot be guaranteed with other than original

batteries. Do not use non-rechargeable batteries.

8 - Safety 1411 - 007 - 23.09.2020

The appliance must be disconnected from the supply mains when

removing the battery.

WARNING: The product

can be dangerous if used

incorrectly.

WARNING: Do not use

the product when

persons, especially

children, or animals are

in the work area.

WARNING: Keep your

hands and feet away

from the rotating blades.

Never put your hands or

feet close to or under the

product when it is

switched on.

WARNING: In the event

of an injury or accident

seek medical help.

2.2 Safety definitions

Warnings, cautions and notes are used to point out

specially important parts of the manual.

WARNING: Used if there is a risk of

injury or death for the operator or bystanders

if the instructions in the manual are not

obeyed.

CAUTION: Used if there is a risk of

damage to the product, other materials or

the adjacent area if the instructions in the

manual are not obeyed.

Note: Used to give more information that is necessary

in a given situation.

2.3 Safety instructions for operation

2.3.1 Use

• The product may only be used with the equipment

recommended by the manufacturer. All other types

of use are incorrect. The manufacturer’s

instructions with regard to operation/maintenance

must be followed precisely.

• Warning signs shall be placed around the work

area of the product if it is used in public areas. The

signs shall have the following text: Warning!

Automatic lawnmower! Keep away from the

machine! Supervise children!

Warning!

Automatic lawnmower!

Keep away from the machine!

Supervise children!

Warning!

Automatic lawnmower!

Keep away from the machine!

Supervise children!

• Use the park mode, refer to

Home & Stay on page

or switch off the product when persons,

especially children, or animals are in the work

area. It is recommended to program the product for

use during hours when the area is free from

activity, e.g. at night. Refer to

To set the schedule

on page 21

. Consider that certain animals, e.g.

hedgehogs, are active at night. They can

potentially be harmed by the product.

• The product may only be operated, maintained and

repaired by persons that are fully conversant with

its special characteristics and safety regulations.

Please read the Operator’s Manual carefully and

1411 - 007 - 23.09.2020 Safety - 9

make sure you understand the instructions before

using the product.

• It is not permitted to modify the original design of

the product. All modifications are made at your

own risk.

• Check that there are no foreign objects such as

stones, branches, tools or toys on the lawn. If the

blades hit foreign objects the blades can be

damaged. Always switch off the product with the

ON/OFF button before clearing a blockage. Inspect

the product for damage before staring the product

again.

• If the product starts to vibrate abnormally. Always

switch off the product with the main switch or

ON/OFF button and inspect for damage before

staring the product again.

• Start the product according to the instructions.

When the product is switched on, make sure to

keep your hands and feet away from the rotating

blades. Never put your hands and feet under the

product.

• Never touch moving hazardous parts, such as the

blade disc, before it has come to a complete stop.

• Never lift up the product or carry it around when it

is switched on.

• Do not let persons who do not know how the

product works and behaves use it.

• The product must never be allowed to collide with

persons or other living creatures. If a person or

other living creature comes in the product’s way it

shall be stopped immediately. Refer to

To stop the

product on page 27

• Do not put anything on top of the product or its

charging station.

• Do not allow the product to be used with a

defective guard, blade disc or body. Neither should

it be used with defective blades, screws, nuts or

cables. Never connect a damaged cable, or touch

a damaged cable before it is disconnected from

the supply.

• Do not use the product if the ON/OFF button and

STOP button does not work.

• Always switch off the product using the ON/OFF

button when the product is not in use. The product

can only start when the product has been switched

on with the ON/OFF button and the correct PIN

code has been entered.

• MCCULLOCH does not guarantee full compatibility

between the product and other types of wireless

systems such as remote controls, radio

transmitters, hearing loops, underground electric

animal fencing or similar.

• Metal objects in the ground (for example reinforced

concrete or anti-mole nets) can result in a

stoppage. The metal objects can cause

interference with the loop signal which then can

lead to a stoppage.

• Operation and storage temperature is 0-50 °C /

32-122 °F. Temperature range for charging is 0-45

°C / 32-113 °F. Too high temperatures might cause

damage to the product.

2.3.2 Battery safety

WARNING: Lithium-ion batteries can

explode or cause fire if disassembled, short-

circuited, exposed to water, fire, or high

temperatures. Handle carefully, do not

dismantle, open the battery or use any type

of electrical/mechanical abuse. Avoid

storage in direct sunlight.

For more information about the battery, refer to

Battery

on page 31

2.3.3 How to lift and move the product

WARNING: The product must be

switched off before lifting it. The product is

disabled when the indicator lamp on the

keypad is not lit.

CAUTION: Do not lift the product when

it is parked in the charging station. It can

damage the charging station and/or the

product. Push STOP and pull the product

out of the charging station before lifting it.

To safely move from or within the work area:

1. Push the STOP button to stop the product.

10 - Safety 1411 - 007 - 23.09.2020

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels McCulloch Tondeuse à gazon

McCulloch

McCulloch M145107HP Manuel utilisateur

McCulloch

McCulloch M4053CM Manuel utilisateur

McCulloch

McCulloch LT2213C Manuel utilisateur

McCulloch

McCulloch 96041009700 Manuel utilisateur

McCulloch

McCulloch MC20H42ST Manuel utilisateur

McCulloch

McCulloch M55T53HW Manuel utilisateur

McCulloch

McCulloch 532 43 86-30 Manuel utilisateur

McCulloch

McCulloch M175H38RB Manuel utilisateur

McCulloch

McCulloch EP175B107HRBK Manuel utilisateur

McCulloch

McCulloch 532 43 55-83 Rev. 1 Manuel utilisateur

McCulloch

McCulloch M105-77X Manuel utilisateur

McCulloch

McCulloch M105-97F Manuel utilisateur

McCulloch

McCulloch M51-150AWR CLASSIC Manuel utilisateur

McCulloch

McCulloch 532 43 37-14 Rev. 1 Manuel utilisateur

McCulloch

McCulloch MC20H42YT Manuel du propriétaire

McCulloch

McCulloch MC19538LT Manuel du propriétaire

McCulloch

McCulloch M125-97TC Manuel utilisateur

McCulloch

McCulloch ROB S400 Manuel utilisateur

McCulloch

McCulloch 960510061 Manuel utilisateur

McCulloch

McCulloch M53-190AFPX Manuel utilisateur

McCulloch

McCulloch BLISAR BE24 PRO Manuel utilisateur

McCulloch

McCulloch 532 43 67-90 Manuel utilisateur

McCulloch

McCulloch M51-140WF Manuel utilisateur

McCulloch

McCulloch M53-650CMDW Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

Craftsman

Craftsman 917.378461 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur
