REPAIR PARTS MANUAL
MODEL NO. M155B107HK (96011015400)
Lawn Tractor
532 40 25-78 11.10.05 TR
PRINTED IN U.S.A.
McCulloch
www.electrolux.com/mcculloch
2
HOW TO USE THIS MANUAL
This manual is designed to provide the customer with a means to identify the parts on his/her tractor
when ordering repair parts. The illustrations may or may not represent the actual assemblies; therefore,
it is not recommended to use this manual as a guide to assemble or disassemble the tractor. Some
hardware and parts are drawn larger in order to more readily identify them.
Each tractor has its own model number.
The model number for your tractor can be found on the fender under the seat.
When ordering parts, always give the following information:
• Product - “Lawn Tractor”
• Model Number - "M155B107HK" (96011015400)
• Part Number
• Part Description
TABLE OF CONTENTS
SCHEMATIC ...............................................................................................................3
ELECTRICAL...........................................................................................................4-5
CHASSIS AND ENCLOSURES...............................................................................6-7
DRIVE.......................................................................................................................8-9
STEERING ASSEMBLY.......................................................................................10-11
SEAT ASSEMBLY.....................................................................................................12
DECALS....................................................................................................................13
ENGINE................................................................................................................14-15
MOWER DECK ....................................................................................................16-17
LIFT .....................................................................................................................18-19
3
SERVICE NOTES
4
REPAIR PARTS
TRACTOR - MODEL NO. M155B107HK (96011015400), PRODUCT NO. 960 11 01-54

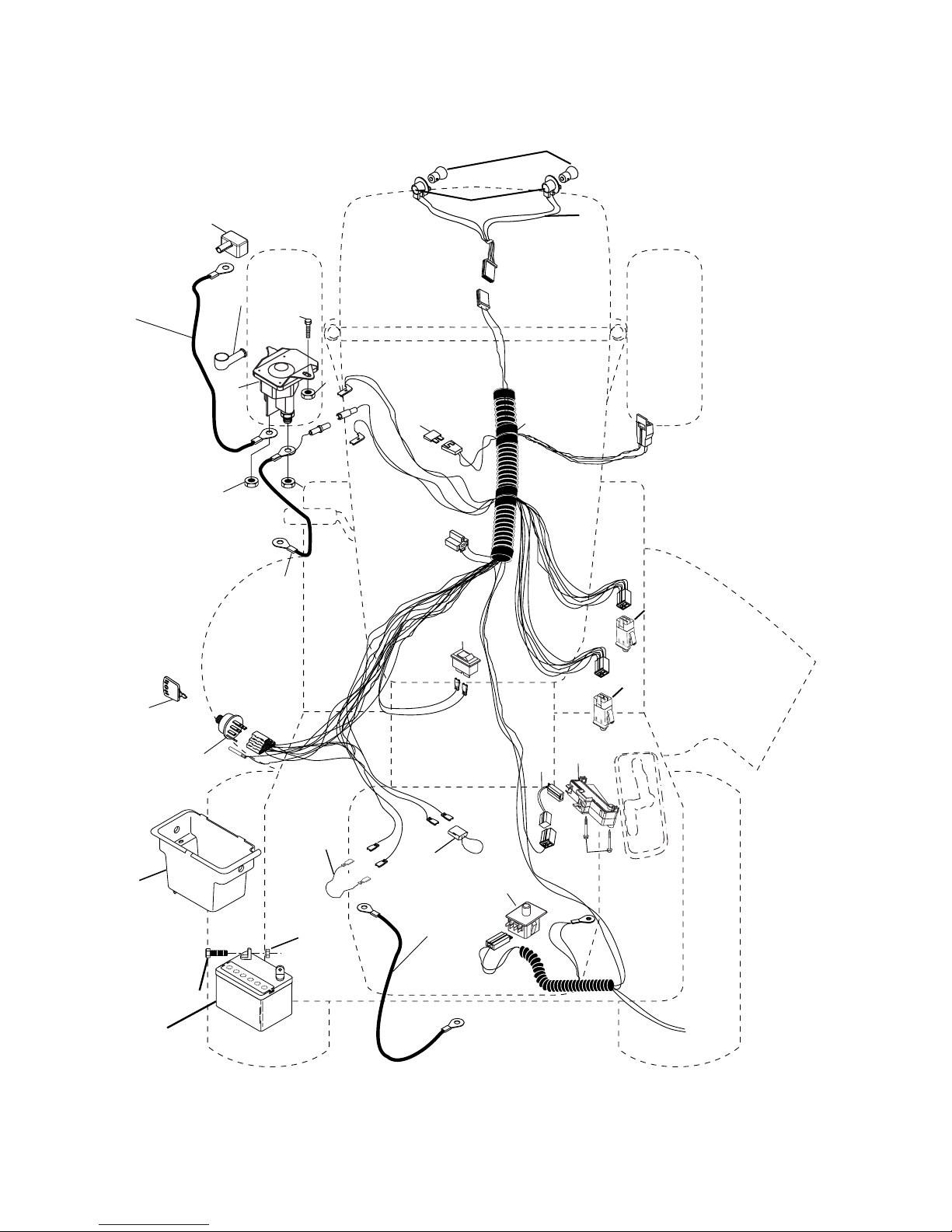

ELECTRICAL
197441
28
29
94
93
26
24
42
43 27
25
41
27
27
40
33
30 92
34
8
2
1
27
52
16
16
48
22
79 21
90
5
REPAIR PARTS
TRACTOR - MODEL NO. M155B107HK (96011015400), PRODUCT NO. 960 11 01-54
ELECTRICAL
KEY PART
NO. NO. DESCRIPTION
1 532 16 34-65 Battery
2 874 76 04-12 Bolt Hex Hd 1/4-20 unc x 3/4
8 532 17 66-89 Case Battery Mech Hinge
16 532 17 61-38 Switch Interlock
21 532 17 56-88 Harness Asm Light W/4152j
22 532 00 41-52 Bulb Light #1156
24 532 12 47-80 Cable Battery 6 Ga 11" red
25 532 14 61-47 Cable Battery 6 Ga 44" red w/16 wire
26 532 17 51-58 Fuse 20 AMP
27 873 51 04-00 Nut Keps Hex 1/4-20 unc
28 532 12 47-73 Cable Ground 6 Ga 12" black
29 532 19 27-49 Switch Seat
30 532 19 33-50 Switch Ign
33 532 14 04-01 Key Ign Molded Generic
34 532 11 07-12 Switch Lift/Reset B/B/Red
40 532 19 74-41 Harness Ign.
41 817 72 04-08 Screw 1/4-20 x 1/2
42 532 13 15-63 Cover Terminal Red
43 532 19 25-07 Solenoid
48 532 14 08-44 Adapter Ammeter Rectangular
52 532 14 19-40 Protection Wire Loop
79 532 17 52-42 Socket Asm. Bulb
90 532 18 04-49 Cover Terminal Battery
92 532 19 66-15 Harness Pigtail Console ROS
93 532 19 25-40 Screw Plastite 10-14 x 2.0
94 532 19 18-34 Module Reverse ROS
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm.
6
REPAIR PARTS
TRACTOR - MODEL NO. M155B107HK (96011015400), PRODUCT NO. 960 11 01-54

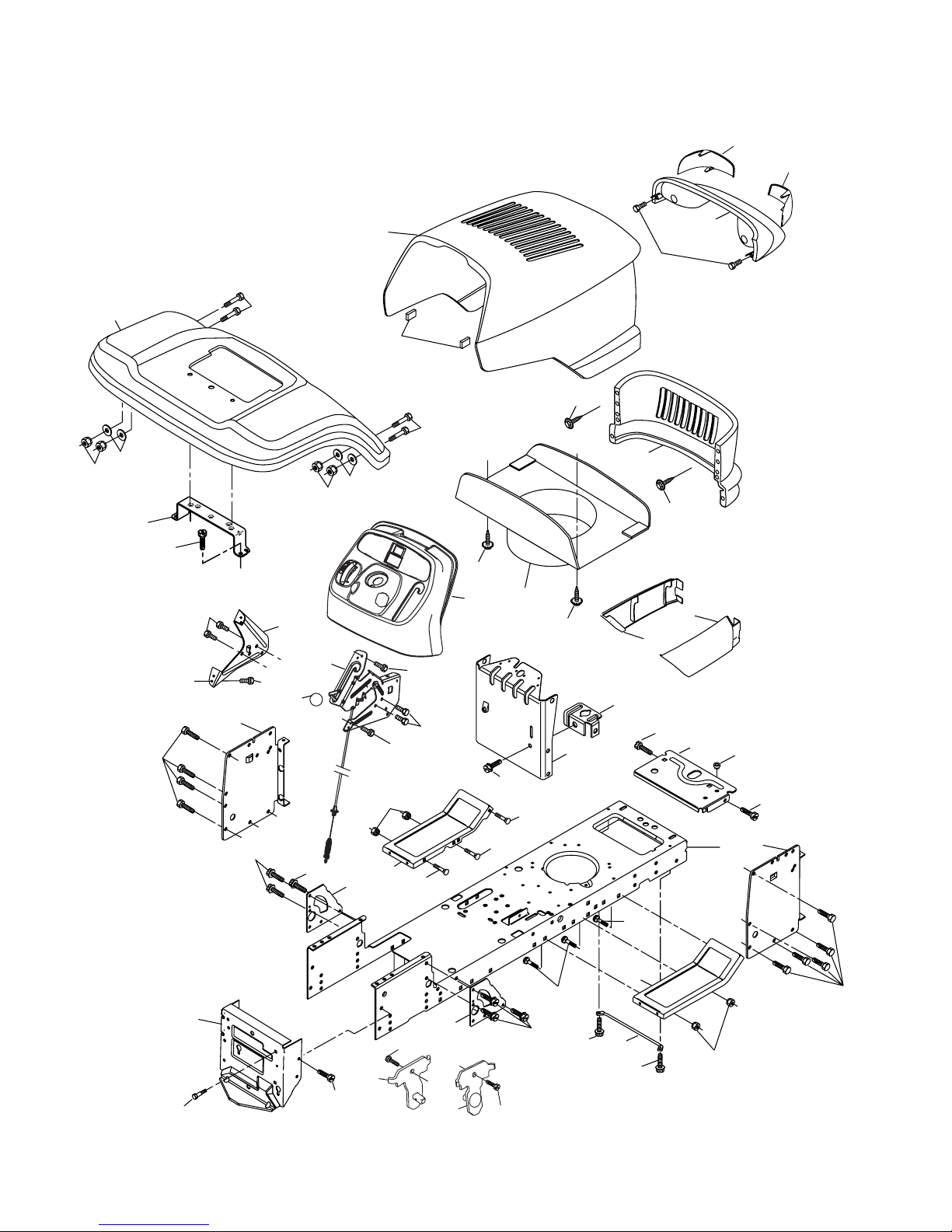

CHASSIS AND ENCLOSURES
209
13
1
209
209
142
209
142
17 29
145
161
278
37
37
209
11
209
209
20 59
28
278
278
64
209
158
155
278
209
54
58
54
14
14
38
38
213
214
209
2
209
31
chassis-stealth.stlt_42
259
258
9
154
209
278
278
67
209
35
26
33
10
35
209
26
34
26
25
24
26 25
24
30
206
7
REPAIR PARTS
TRACTOR - MODEL NO. M155B107HK (96011015400), PRODUCT NO. 960 11 01-54
CHASSIS AND ENCLOSURES
1 532 17 46-19 Chassis Stamping
2 532 17 65-54 Drawbar, 12 Ga.
9 532 19 56-46 Dash Slkscr
10 872 14 06-08 Bolt Carriage 3/8-16 x 1
11 532 16 72-03 Panel Dash Lh
13 532 19 49-76 Panel Dash Rh
14 817 49 06-08 Screw Thdrol 3/8-16 x 1/2
17 532 19 49-77 Hood
20 532 16 20-26 Plate Battery
24 874 78 06-16 Bolt Fin Hex 3/8-16unc x 1 Gr. 5
25 819 13 13-12 Washer 13/32 x 13/16 x 12 Ga.
26 873 80 06-00 Nut Lock Hex W/Ins 3/8-16 unc
28 532 18 71-14 Grille
29 532 17 97-63 Light Asm
30 532 19 41-98 Fender
31 532 13 66-19 Bracket Fender
33 532 18 25-07 Footrest Pnt Lh
34 532 18 25-08 Footrest Pnt Rh
35 872 11 06-06 Bolt Rdhd Sht Sqnk 3/8-16 x 3/4
37 817 49 05-08 Screw Thdrol 6/16-18 x 1/2 TYT
38 532 17 57-10 Bracket Asm Pivot Mower Rear
54 532 19 25-12 Screw Wshd Hex 10-32 x 5/8
58 532 19 03-08 Duct Air Engine
59 532 18 74-95 Bushing 1.375 OD
64 532 17 49-97 Dash Lower STLT
67 532 10 69-32 Knob
142 532 17 57-02 Plate Reinforcement STLT
145 532 15 65-24 Rod Pivot Chassis/Hood
154 532 19 24-13 Clutch Asm.
155 532 18 39-26 Bracket Dash LH
158 532 16 20-37 Bracket Parking Brake
161 532 16 46-55 Bumper Hood Extrusion
206 532 17 01-65 Bolt Shoulder 5/16-18 TT
209 817 00 06-12 Screw Hex Wsh Thdr. 3/8-16 x 3/4
213 532 18 71-12 Skirt Grille LH
214 532 18 71-11 Skirt Grille RH
258 532 16 18-42 Len RH
259 532 16 18-41 Lens LH
278 532 19 16-11 Screw 10 x 3/4 Single Lead-Hex
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
8
REPAIR PARTS
TRACTOR - MODEL NO. M155B107HK (96011015400), PRODUCT NO. 960 11 01-54

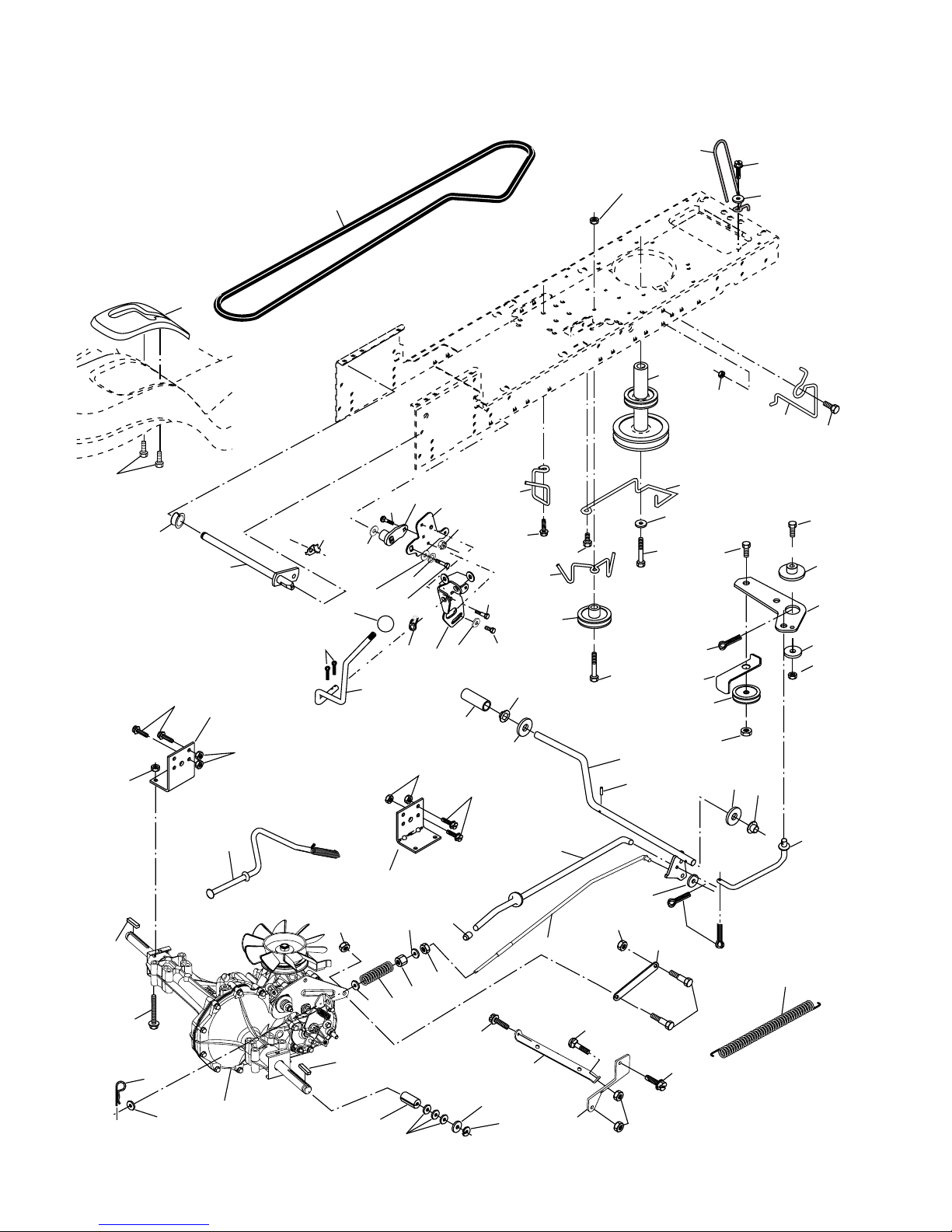

DRIVE
66
29
28
32
30
52
32
59
38
61
41
53
35
55
36
62
35
36
22
39
34
16
1
77
77
30
52
56 64
65
212
63
116
70
57
96
26
2519
24
26
26
76
78
75
74
27
26
15
37
120
89
69
27 51
48
151
202
49
47
50
120
81
156 166
165
82
168
163
14
112
21
8
10
83
159
161
198
158
162
169
150
84
16
199
16
263
71
200
73 16
263
197
95
263
275
269
drive-hydro.stlt_43
9
REPAIR PARTS
TRACTOR - MODEL NO. M155B107HK (96011015400), PRODUCT NO. 960 11 01-54
DRIVE
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions give in U.S. inches.
1 inch = 25.4 mm.
1 - - - - - - - - Transaxle Hydro Gr Model 314-
0510
(Order parts from transaxle mfg.)
8 532 19 27-06 Rod Shift Fender
10 876 02 04-16 Pin Cotter 1/8 x 1 CAD
14 810 04 04-00 Washer Lock Hvy Helical 1/4
15 874 49 05-44 Bolt Hex Flg Hd 5/16-18 X Gr.5
16 873 80 05-00 Nut Lock Hex W/Ins. 5/16-18 unc
19 873 80 06-00 Nut Lock Hex W/Wsh 3/8-16 unc
21 532 10 69-33 Knob, Deluxe
22 532 16 94-98 Rod, Brake Hydro
24 873 35 06-00 Nut
25 532 10 68-88 Spring, Brake Rod
26 819 13 13-16 Washer
27 876 02 04-12 Pin Cotter 1/8 x 3/4 CAD.
28 532 17 57-65 Rod, Parking Brake
29 532 07 16-73 Cap, Parking Brake
30 532 16 95-92 Bracket, Transaxle
32 874 76 05-12 Bolt Hex Hd 5/16-18 unc x 3/4
34 532 17 55-78 Shaft, Foot Pedal
35 532 12 01-83 Bearing, Nylon
36 819 21 16-16 Washer
37 532 12 49-63 Pin, Roll
38 532 17 91-14 Pulley, Composite
39 872 11 06-22 Bolt
41 532 17 55-56 Keeper, Belt Idler
47 532 12 77-83 Pulley, Idler, V-Groove
48 532 15 44-07 Bellcrank Clutch Grnd Drv Stl
49 532 12 32-05 Retainer, Belt
50 872 11 06-12 Bolt Carr. Sh 3/8-16 x 1-1/2 Gr. 5
51 873 68 06-00 Nut
52 873 68 05-00 Nut Crownlock 5/16-18
53 532 19 96-52 Link, Clutch
55 532 10 57-09 Spring, Return, Clutch
56 817 06 06-20 Screw 3/8-16 x 1-1/4
57 532 14 02-94 V-Belt, Ground Drive
59 532 16 96-91 Keeper, Center Span
61 817 12 06-14 Screw 3/8-16 x .875
62 532 12 48-72 Cover, Pedal
63 532 18 02-19 Pulley, Eng
64 532 17 39-37 Bolt Hex 7/16-20 x 4 Ga. 5
65 810 04 07-00 Washer
66 532 15 47-78 Keeper Belt Engine
69 532 14 24-32 Screw Hex Wsh Hi-Lo 1/4-1/2 unc
70 532 18 02-18 Guide Belt Mower Drive RH
71 532 16 91-83 Strap Torque Lh Hydro
73 532 16 91-82 Strap Torque Rh Hydro
74 532 13 70-57 Spacer, Axle
75 532 12 17-49 Washer 25/32 x 1-1/4 x 16 Ga.
76 812 00 00-01 E-Ring
77 532 12 35-83 Key, Square
78 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.
81 532 16 55-96 Shaft Asm. Cross Hydro
82 532 16 57-11 Spring Torsion T/A
83 819 17 12-16 Washer 17/32 x 3/4 x 16 Ga.
84 532 16 95-94 Link Transaxle
89 532 19 49-72 Console, Shift
95 532 17 02-01 Control Asm Bypass Hydro
96 532 12 47-88 Retainer Spring 1" Zinc/Cad
112 819 09 12-10 Washer 9/32 x 3/4 x 10 Ga.
116 872 14 06-08 Boulon 3/8-16 x 1
120 873 90 06-00 Nut Lock Flg 3/8-16
150 532 17 54-56 Spacer Retainer
151 819 13 32-10 Washer 13/32 x 2 x 10 Ga.
156 532 16 60-02 Washer Srrtd
5/16 ID x 1.0 x .125 Tk
158 532 16 55-89 Bracket Shift Mount
159 532 18 39-00 Hub Shift
161 872 14 04-06 Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr. 5
162 873 68 04-00 Nut Crownlock 1/4-20 unc
163 874 78 04-16 Bolt Hex Fin 1/4-20 unc x 1 Gr. 5
165 532 16 56-23 Bracket Pivot Lever
166 817 49 05-10 Screw 5/16-18 x 5/8 TT Yellow
168 532 16 54-92 Bolt Shoulder 5/16-18 x .561 TT
169 532 16 55-80 Plate Fastening Cross Shf.
STLT/CRD
197 532 16 96-13 Nyliner Snap-In 5/8" ID
198 532 16 95-93 Washer Nyl. 7/8 ID x .105"
199 532 16 96-12 Bolt Shoulder 5/16-18 Unc
200 872 14 05-08 Bolt RdHd Sq Neck
5/16-18 unc x 1
202 872 11 06-14 Bolt RdHd 3/8-16 x 1-3/4 Gr. 5
212 532 14 52-12 Nut Hex Flg Lock
263 817 00 06-12 Screw Hex Wsh Thdr. 3/8-16 x 3/4
269 532 18 24-02 Guard Muffler OHV B&S RH
275 819 13 16-14 Washer 13/32 x 1 x 14 Ga.
10
REPAIR PARTS
TRACTOR - MODEL NO. M155B107HK (96011015400), PRODUCT NO. 960 11 01-54

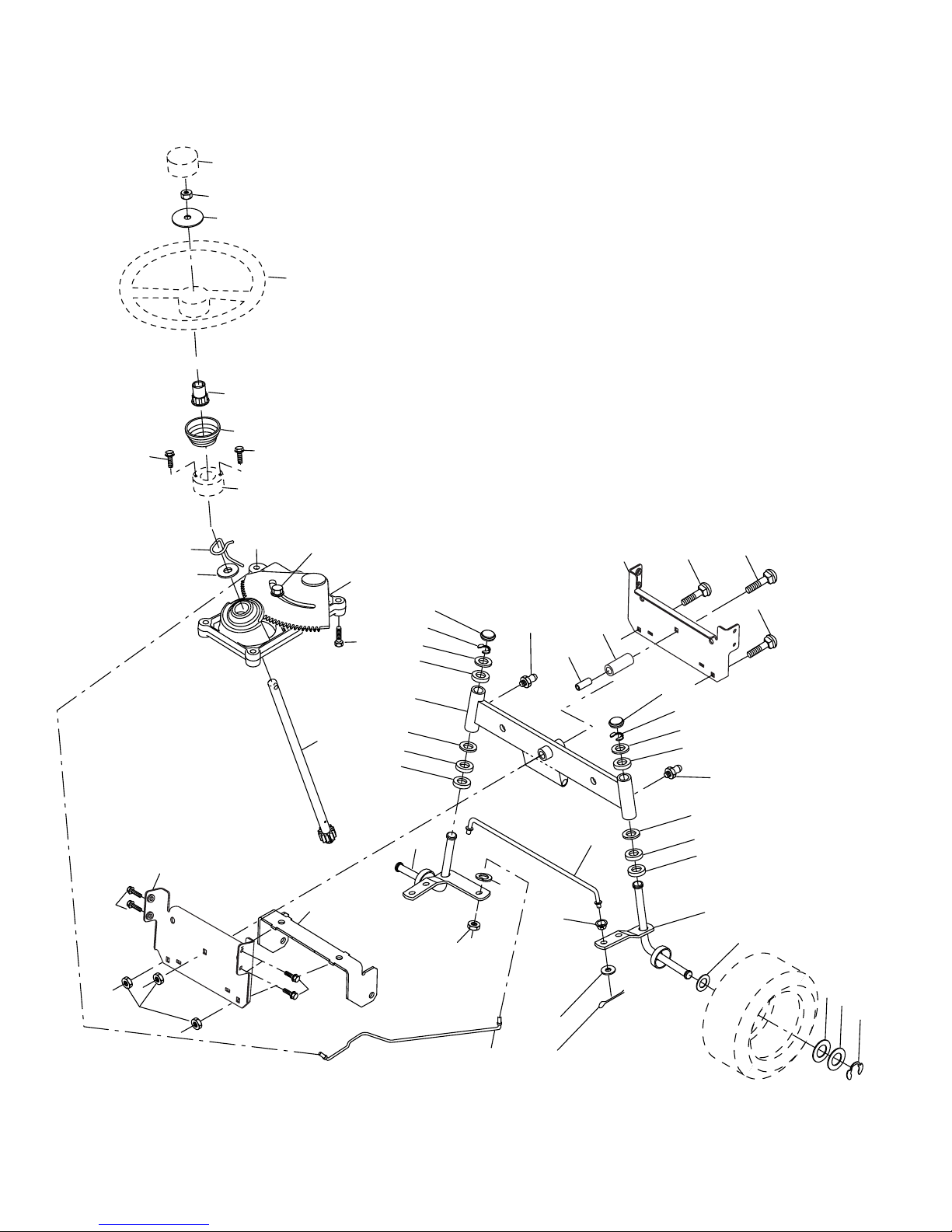

STEERING ASSEMBLY
38
12
39
1
37
36
37
5
9
5
7
7
9
4
3
43
6
43
8
10
40
11
8
6
9
46
46
8
6
9
2
47
47
68
15
29
29 82
68 67
67
67
13
65
88
71
17
29
43
91
41
42
32
26
30
28
steering_stealth_prem_14
Ce manuel convient aux modèles suivants
1
Table des matières
Autres manuels McCulloch Tondeuse à gazon
McCulloch
McCulloch M145-97T Manuel utilisateur
McCulloch
McCulloch M125-97TC Manuel utilisateur
McCulloch
McCulloch ROB R600 Manuel utilisateur
McCulloch
McCulloch MM51-500CMDW Manuel utilisateur
McCulloch
McCulloch P12592RB Manuel utilisateur
McCulloch
McCulloch M145107HP Manuel utilisateur
McCulloch
McCulloch 96141014103 Manuel utilisateur
McCulloch
McCulloch MC17542STA Manuel utilisateur
McCulloch
McCulloch MC1136 Manuel utilisateur
McCulloch
McCulloch 532 43 42-91 Rev. 1 Manuel utilisateur
McCulloch
McCulloch 532 43 37-12 Rev. 1 Manuel utilisateur
McCulloch
McCulloch 96041009700 Manuel utilisateur
McCulloch
McCulloch M65H53SD Manuel utilisateur
McCulloch
McCulloch MC1292RB Manuel du propriétaire
McCulloch
McCulloch 532 43 30-30 Manuel utilisateur
McCulloch
McCulloch M53-625D Manuel utilisateur
McCulloch
McCulloch M40-125 CLASSIC+ Manuel utilisateur
McCulloch
McCulloch M55T53HW Manuel utilisateur
McCulloch
McCulloch M13538 Manuel du propriétaire
McCulloch
McCulloch M12597H Manuel utilisateur
Manuels Tondeuse à gazon populaires d'autres marques
RHINO
RHINO 1958 Manuel utilisateur
Wolf Garten
Wolf Garten Compact plus 40 B Manuel utilisateur
Cub Cadet
Cub Cadet LTX 1045 Manuel utilisateur
Craftsman
Craftsman 917.378461 Manuel utilisateur
GGP ITALY SPA
GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur
Challenge
Challenge CH18V2 Instructions de fonctionnement
TALEN TOOLS
TALEN TOOLS AVR HGM30 Manuel utilisateur
DEWEZE
DEWEZE ATM-725 Manuel d'utilisation
Weed Eater
Weed Eater 180083 Manuel utilisateur
Husqvarna
Husqvarna Poulan Pro PP185A42 Manuel utilisateur
Better Outdoor Products
Better Outdoor Products Quick Series Manuel utilisateur
Cub Cadet
Cub Cadet 23HP Z-Force 60 Manuel d'utilisation
