McCulloch POWER MAC 6 Manuel utilisateur

A10-600085 POWER MAC 6 03/71 to 04/71 IPL 84237-R1 Page 1 of 15

Accessories

www.ktoutdoor.com

K&T Saw Shop 606-678-9623 or 606-561-4983

A10-600085 POWER MAC 6 03/71 to 04/71 IPL 84237-R1 Page 2 of 15

Accessories

Ref # Part Number DescriptionQty

83577 Owner's Manual

68648 Scrench

66924 Bar - 12 inch

67746M Chain - 12 inch bar

68301 Bar - 14 inch

67747M Chain - 14 inch bar

68302 Bar - 16 inch

67748M Chain - 16 inch bar

68349 Kit - Chain repair

67750 Pkg - File guide

67680 Pkg - File depth gauge (.025 - .030)

67688 Pkg - File depth gauge (.015 - .020)

68916 Kit - Pressure test

68915 Kit - Piston tool

69162 Baffle - Spark arrester (alternate)

83124 Guard - Bar

84338 Rope - 100 ft.

83323 Shop Manual

www.ktoutdoor.com

K&T Saw Shop 606-678-9623 or 606-561-4983

A10-600085 POWER MAC 6 03/71 to 04/71 IPL 84237-R1 Page 3 of 15

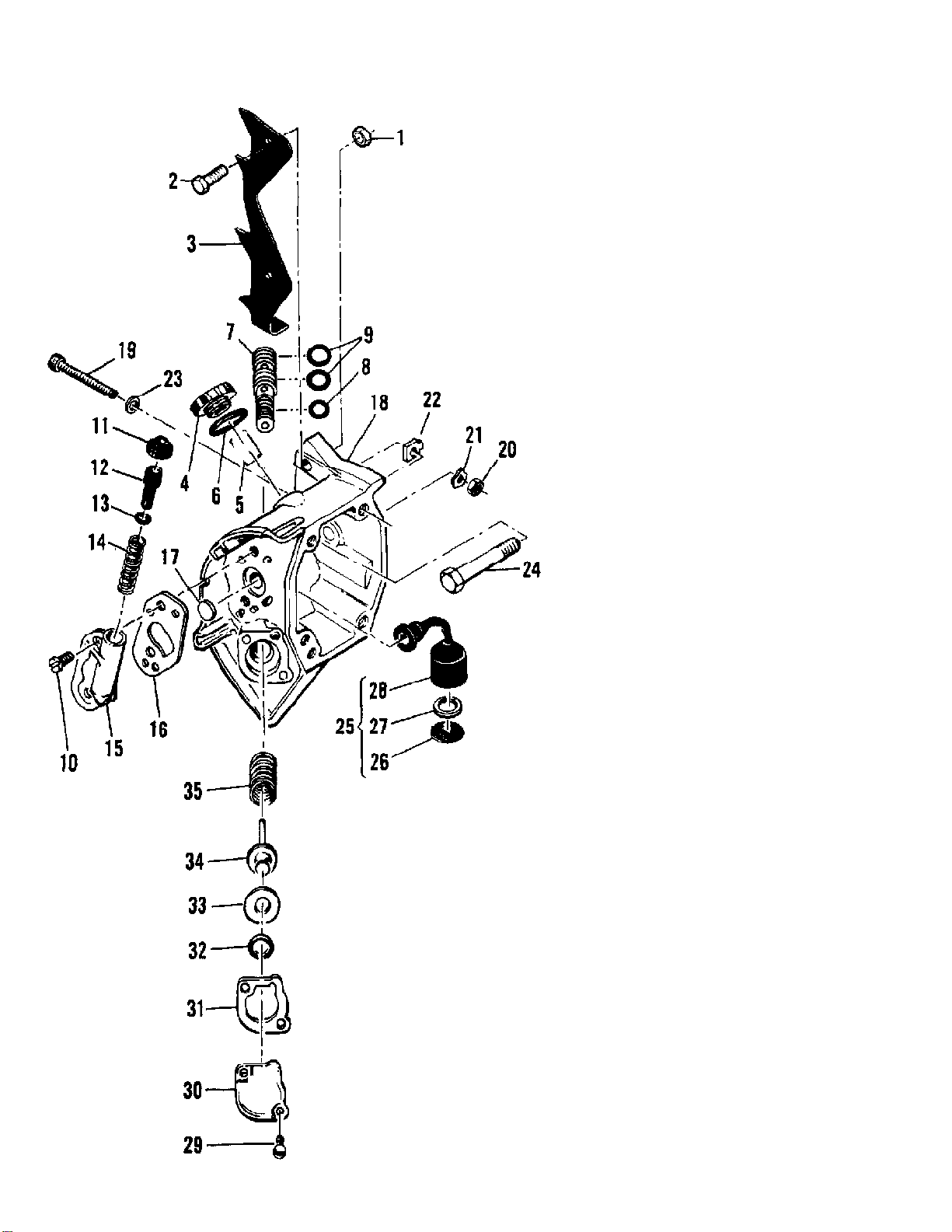

Automatic Oiler

www.ktoutdoor.com

K&T Saw Shop 606-678-9623 or 606-561-4983

A10-600085 POWER MAC 6 03/71 to 04/71 IPL 84237-R1 Page 4 of 15

Automatic Oiler

Ref # Part Number DescriptionQty

1 101191 Nut - Hex 10-242

2 104738 Screw - Hex hd 10-24 x 1/22

3 68412 Spike1

4 68809 Cap - Oil1

5 84953 Plug - Cap1

6 101148 "O" Ring1

7 83591 Cylinder Assy - Oil pump1

8 105603 "O" Ring1

9 105614 "O" Ring2

10 105248 Screw - Rd hd 8-32 x 5/8 (SEMS)2

11 62262 Cap - Oil pump1

12 68603 Plunger - Oil pump1

13 101056 "O" Ring1

14 66687 Spring - Plunger1

15 83189 Body - Oil pump1

16 83187 Gasket - Oil pump1

17 62909 Valve - Oiler1

18 83587 Tank Assy - Oil1

18 85467 Tank Assy - Oil1

19 110587 Screw - Fil hd 8-32 x 1-1/21

20 100955 Nut - Hex 8-321

21 110525 Washer - Wavey1

22 84929 Nut - Adjustment1

23 100080 Washer - #81

24 68687 Bolt - Bar1

25 68140 Pickup Assy - Oil1

26 67552 Screen1

27 67569 Weight1

28 67568 Hose1

29 105248 Screw - Rd hd 8-32 x 5/8 (SEMS)2

30 83186 Cover - Oil pump1

31 83185 Gasket - Cover1

32 105603 "O" Ring1

33 83184 Ring - Oiler piston1

34 83181 Piston Assy - Oiler1

35 83180 Spring - Oiler piston1

www.ktoutdoor.com

K&T Saw Shop 606-678-9623 or 606-561-4983

A10-600085 POWER MAC 6 03/71 to 04/71 IPL 84237-R1 Page 5 of 15

Carburetor

www.ktoutdoor.com

K&T Saw Shop 606-678-9623 or 606-561-4983

A10-600085 POWER MAC 6 03/71 to 04/71 IPL 84237-R1 Page 6 of 15

Carburetor

Ref # Part Number DescriptionQty

1 110554 Screw - Set 4-40 x 1/21

2 68659 Knob - Choke1

3 68814 Plate - Adjustment cover1

4 11086 Spring - Plate1

87238 Carburetor Assy1

5 68564 Screw Assy - Body4

6 68879 Cover Assy - Pump1

7 68570 Screen - Inlet1

8 68883 Retainer - Vent screen1

9 68571 Screen - Vent1

10 68563 Diaphragm - Pump1

11 68561 Gasket - Diaphragm1

12 68880 Body - Fuel pump1

13 68562 Diaphragm1

14 68881 Gasket - Diaphragm1

15 67500 Screw - Lever pin1

16 67508 Pin - Lever1

17 68572 Lever - Inlet control1

83756 Lever - Inlet control1

18 68567 Spring - Lever1

19 68557 Needle - Fuel inlet1

83753 Needle - Fuel inlet1

20 83751 Body Assy - Carburetor1

21 68560 Plug - 1/21

22 68559 Plug - 7/161

23 83758 Kit - Check valve1

24 68566 Screw - Idle speed1

25 86446 Needle - Idle1

26 86447 Needle - High speed1

27 67502 Spring - Needle2

28 83755 Screw - Plate2

29 68553 Plate - Throttle1

30 70798 Screw - Clip1

31 68554 Clip - Throttle shaft1

32 68552 Throttle Shaft Assy1

33 68556 Plate - Choke shaft1

34 68555 Choke Shaft1

35 100302 Ball - Choke friction1

36 67504 Spring - Choke friction1

68882 Gasket Set

86457 Repair Kit

www.ktoutdoor.com

K&T Saw Shop 606-678-9623 or 606-561-4983

A10-600085 POWER MAC 6 03/71 to 04/71 IPL 84237-R1 Page 7 of 15

Fan Housing And Starter Assembly

www.ktoutdoor.com

K&T Saw Shop 606-678-9623 or 606-561-4983

A10-600085 POWER MAC 6 03/71 to 04/71 IPL 84237-R1 Page 8 of 15

Fan Housing And Starter Assembly

Ref # Part Number DescriptionQty

1 68813 Cap Assy - Fuel1

2 101148 "O" Ring1

83167 Fan Housing & Starter Assy1

3 68810 Insert - Rope1

4 67158 Handle - Starter1

5 105248 Screw - Rd hd 8-32 x 5/8 (SEMS)1

6 68497 Washer - Tang1

7 83203 Rope1

8 83080 Drum - Starter1

9 83078 Spring - Rewind1

10 83201 Housing Assy1

11 67571 Guide - Rope1

12 67582 Felt - Fuel1

13 67581 Fitting - Fuel1

14 69013 Nameplate1

www.ktoutdoor.com

K&T Saw Shop 606-678-9623 or 606-561-4983

A10-600085 POWER MAC 6 03/71 to 04/71 IPL 84237-R1 Page 9 of 15

General

www.ktoutdoor.com

K&T Saw Shop 606-678-9623 or 606-561-4983

A10-600085 POWER MAC 6 03/71 to 04/71 IPL 84237-R1 Page 10 of 15

General

Ref # Part Number DescriptionQty

1 110597 Screw - Pan hd 8-32 x 1/25

2 68963 Nut - Square 8-326

3 68770 Retainer - Nut6

4Fan Housing & Starter Assy See "Fan Housing &

Starter Assembly" illustration and parts list.

5 110715 Nut - Hex 1/4-281

6 100311 Washer - 1/41

7 69696 Guard - Clutch1

8 110620 Screw - Fil hd 6-32 x 7/16 s/t1

67667 Set - Bar plate1

9 68673 Plate - Bar outer1

10 67588 Plate - Bar inner1

11 69006 Cover - Air cleaner1

12 105603 "O" Ring1

13 69202 Screw - Cover1

14 68616 Knob - Cover1

15 68685 Screen - Air cleaner1

16 100955 Nut - Hex 8-321

17 100080 Washer - #81

18 110670 Screw - Pan hd 8-32 x 5/81

19 110726 Screw - Pan hd 8-32 x 7/81

20 110585 Screw - Skt hd 10-24 x 3/42

21 110264 Washer - #102

22 85465 Frame & Grip Assy1

23 84061 Collar - Frame1

24 85577 Handle Assy1

25 85580 Grip - Handle1

26 105654 Pin - Trigger1

27 84063 Trigger1

28 84255 Spring - Trigger1

29 84239 Insulator - Forward1

30 84240 Insulator - Rear1

31 84256 Rod - Throttle1

69194 Rod - Throttle1

32 84228 Button & Rod Assy - Oiler1

69052 Button & Rod Assy - Oiler1

33 69232 Handle Assy1

34 67583 Grip - Lower1

83576 Grip - Lower1

35 69567 Grip - Side1

36 67584 Grip - Top1

83575 Grip - Top1

37 105654 Pin - Trigger1

38 68621 Trigger1

39 69201 Spring - Trigger1

40 68963 Nut - Square 8-321

41 68853 Strap - Handle1

42 110597 Screw - Pan hd 8-32 x 1/2 (SEMS)1

43 69344 Wire Assy - Stop switch1

44 110597 Screw - Pan hd 8-32 x 1/2 (SEMS)1

45 69879 Terminal - Stop switch wire1

46 62451 Contact - Switch1

47 62950A Base - Switch1

48 68846 Button - Switch1

49 69009 Shroud - Top1

www.ktoutdoor.com

K&T Saw Shop 606-678-9623 or 606-561-4983
