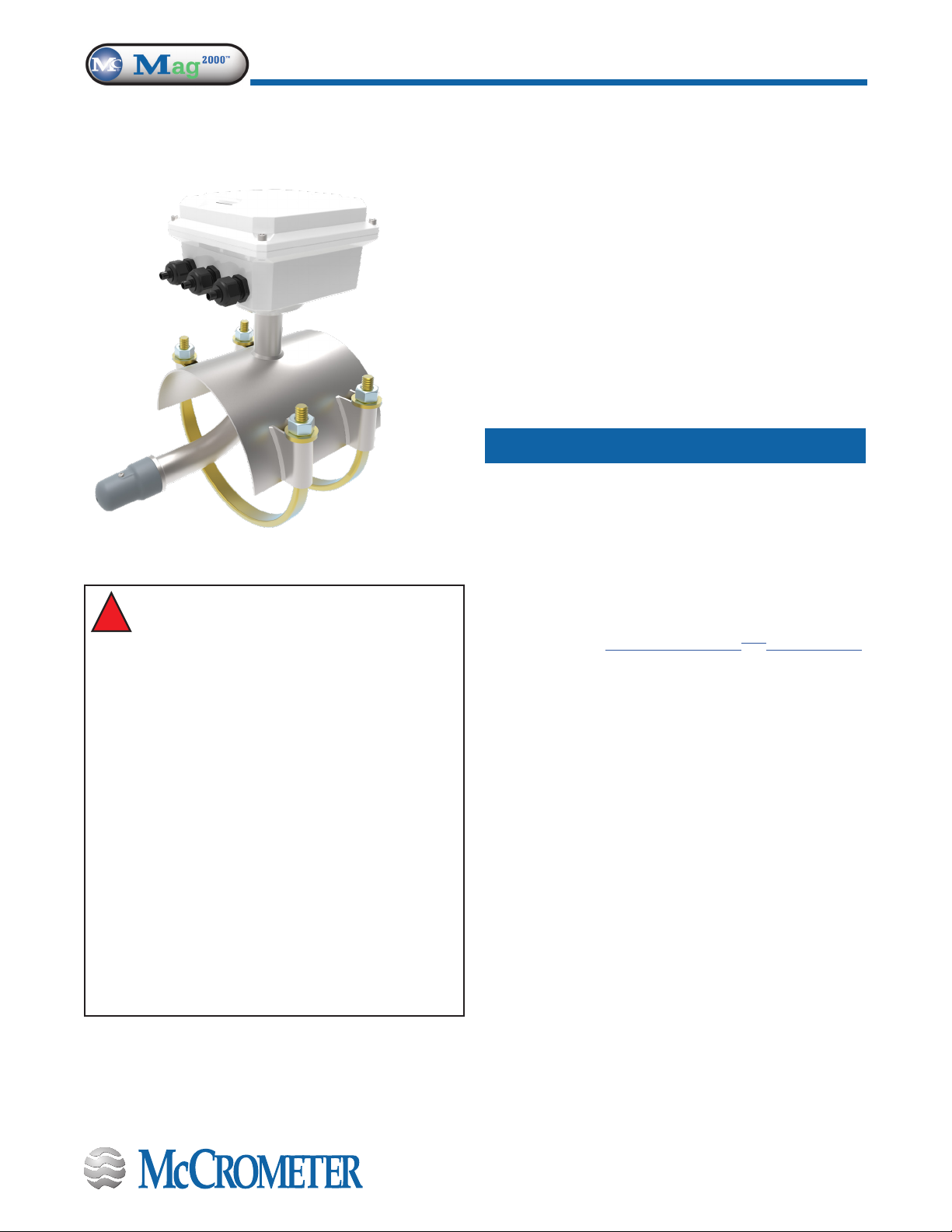

McCrometer McMag 2000 Mode d’emploi

30124-79 Rev. 1.9 | 15SEP2022

Page 1

Quick Start Installation Guide

30124-79 Rev. 1.9

September 15, 2022

This Quick Start Guide is a supplement to the

Installation, Operation and Maintenance manual

supplied with this meter. It is intended to be

a quick reference for the basic installation and

reading of the McMag2000. For more detailed

information concerning the external connections,

external power, or pulse output, please refer to the

meter manual (30124-77 McMag2000 IOM manual)

available at www.mccrometer.com).

Battery Powered

Electromagnetic Flow Meter

About This Quick Start Guide

About This Quick Start Guide ..............1

General Installation Considerations........2

Flow Direction ............................2

Pipe Run Requirements ...................2

Basic Installation Steps....................3

Replacing an Existing Saddle Meter........3

Installing a Flow Straightener or

Straightening Vanes ......................4

Mc Propeller-to-McMag2000 Conversion Kit..4

Retrotting an Existing Mc Propeller Flow

Meter ....................................4

Converter Wiring and Grounding ..........6

Operation ................................7

Converter Display.........................7

Converter Conguration ..................8

WARNING!

Insure that the line is depressurized

before beginning installation!

Incorrect installation or removal of meters

can result in serious injury or death. Read

the instructions in this guide on the proper

procedures carefully.

• Any person installing, inspecting, or

maintaining a McCrometer owmeter

should have a working understanding of

piping congurations and systems under

pressure.

• Before adjusting or removing any meter,

be certain the system has depressurized

completely.

• Be careful when lifting meters. Meters can

cause serious injury if lifted incorrectly or

dropped.

30124-79 Rev. 1.9 | 15SEP2022

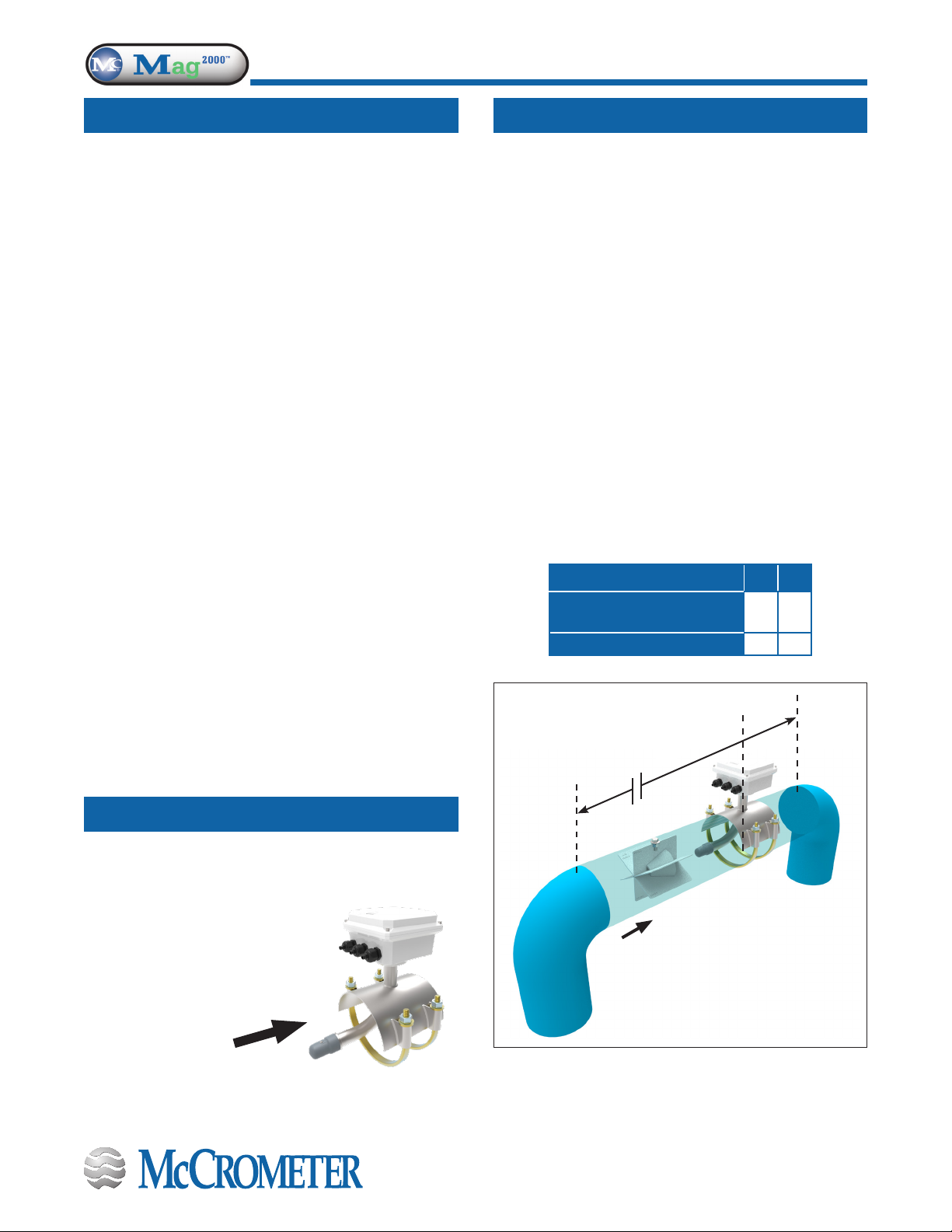

Page 2

Flow meters are velocity sensing devices and

are vulnerable to certain upstream disturbances.

Because of this, meters need certain lengths of

straight pipe before and after the meter. These

distances relate to the diameter of the pipe used.

Obstructions can include elbows, valves, pumps,

and changes in pipe diameter. The uneven ow

created by these obstructions can vary with each

system.

Both upstream and downstream distances are

measured from the center of the saddle as shown

below. In a typical installation to achieve ±2%

accuracy the McMag2000 ow meter should be

installed a minimum of ve diameters upstream

from most ow disturbers and two diameters

downstream of the meter, or when used with a

ow straightener, 1.5 diameters upstream and 1

diameter downstream. (Figure 2)

Figure 2. Pipe Run Requirements

Flow Direction

Figure 1. Flow Direction

It is very important to install the ow meter

relative to the ow of the water. The sensor

must face the ow direction

in order for it to make proper

measurements. (Figure 1)

Proper meter installation is the rst step to

ensure excellent meter performance. Follow

these instructions closely. Consult an authorized

service representative or the Factory for any

circumstances encountered which are not

covered in this guide.

All McCrometer products are tested and

inspected during manufacture and prior to

shipping. An inspection should be performed

at the time of unpacking to detect any damage

that might have occurred during shipment.

• All magnetic ow meters are calibrated for a

full pipeline only; if less, the owmeter will

over-measure the ow.

• Although a minimum line pressure is not

necessary for an accurate measurement, a

full pipe is necessary.

• With the meter installed, check the rate-of-

ow indicator. It should be stable to the point

that it can be easily read. Some indicator

movement is normal due to variations in ow.

Erratic movement of the indicator is normally

caused by ow variations and the system

should be checked. Drastic variations in ow

can decrease meter accuracy. If you suspect a

problem with the meter, please contact your

local McCrometer representative.

General Installation Considerations

Flow Direction

Pipe Run Requirements

Conguration A B

With or without

straightening vanes 5 2

With ow straightener 1.5 1

Flow Direction

30124-79 Rev. 1.9 | 15SEP2022

Page 3

The McMag2000 has been designed for easy replacement in the eld for Mc Propeller ow meters. When

the existing saddle meter has been removed, follow the basic installation instructions above. The

replacement ow meter will be fully assembled and ready to install.

The McMag2000 is a saddle type meter. It may be

installed directly onto an existing pipe. Follow

these steps for a new ow meter installation.

1. Cut or hole-saw a round hole minimum 3” in

diameter in the pipe and remove all burrs,

slag, and rough edges from the inside and

outside of the cutout section.

2. Loosen and remove the nuts and washers

from the straps. Remove the straps from the

saddle.

3. Apply lubrication to the gasket and inner

diameter of U-bolts with MolyKote lubricant

or equivalent.

4. Place saddle with gasket in place over the cut

out.

5. Place U-bolts underneath the pipe and

through the saddle clips.

6. Place the provided washers and nuts on the

U-bolts that have been installed through the

saddle clips.

Replacing an Existing Saddle Meter

Basic Installation Steps

7. Start tightening down the nuts evenly in a

gure 8 pattern.

7a. Tighten the nuts to 40 ft. lbs. evenly

using a gure 8 pattern.

7b. Tighten the nuts to 60 ft. lbs. evenly

using a gure 8 pattern.

7c. Tighten the nuts to 80 ft. lbs. evenly

using a gure 8 pattern.

8. Go back around and loosen all of the nuts.

Do not back the nuts completely o of the

U-bolts. The goal is to release force and

tension o of the saddle and the gasket.

9. Repeat steps 7a through 7c exactly as

described. Any step that is skipped may

result in an improper seal.

10. Apply pressure/turn on pump.

11. Verify the saddle is not leaking water. If it is,

repeat steps 5 through 7 until the saddle has

sealed.

The McMag2000 should not be connected to any earth ground. Connecting to an earth ground

may adversely aect meter performance.

NOTE

The McMag2000 can be used to replace existing 4”to 16”Mc Propeller saddle meters. The meter

CANNOT be used to replace a Water Specialties bolt on saddle meter.

NOTE

30124-79 Rev. 1.9 | 15SEP2022

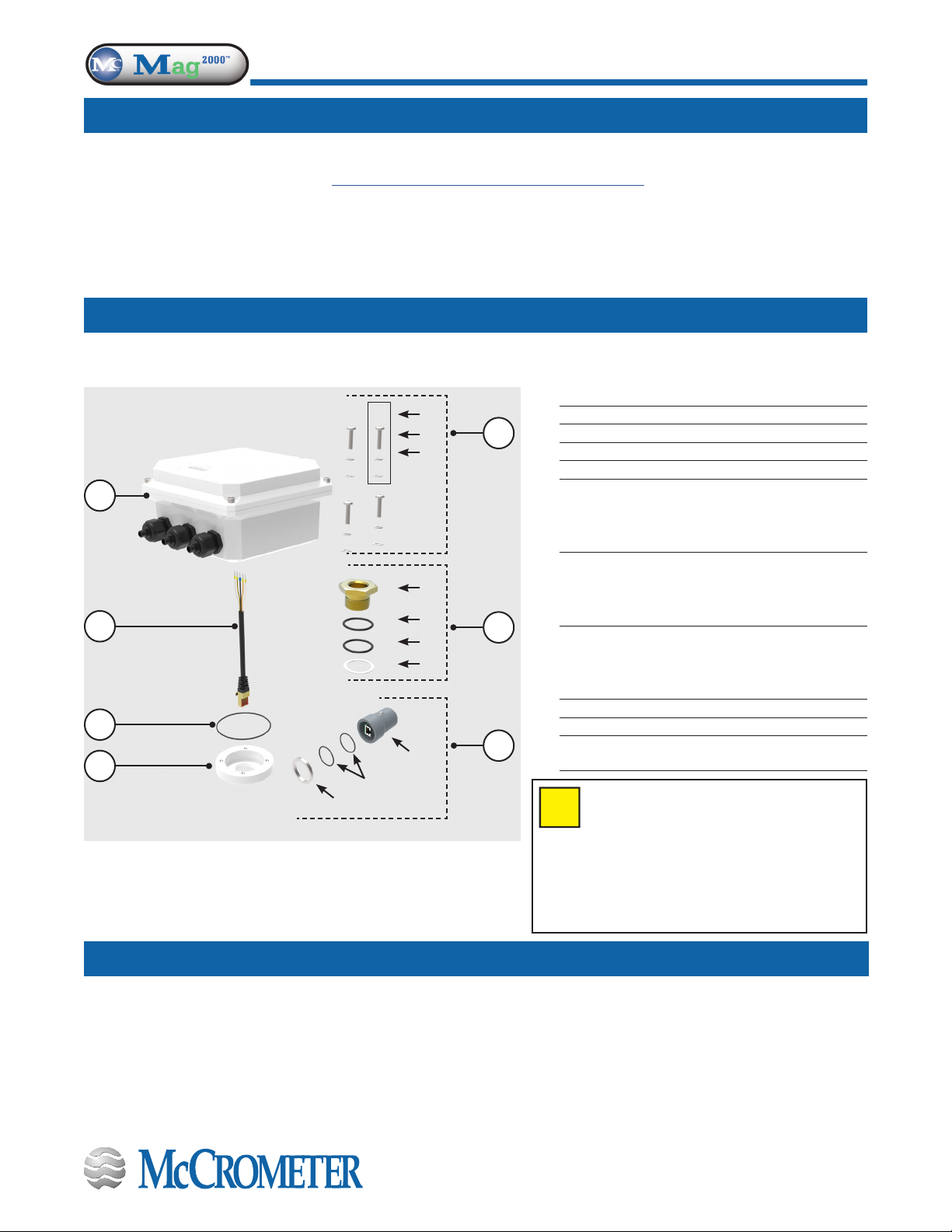

Page 4

Mc Propeller-to-McMag2000 Conversion Kit

Check the parts received against the parts list at right and Figure 3. Contact the factory to report any

discrepancies.

Figure 3. Conversion Kit

Mc Propeller 4” to 16” saddle ow meters can be retrot to a McMag2000 ow meter. When the existing

saddle meter has been removed, follow the instructions below for converting and reinstalling the ow

meter.

The McMag2000 ow meter reuses the saddle and U bolts from an existing ow meter. The converter,

canopy,base plate,propeller, andbearinghousingarenotused.Youmaywishtokeepthese components

as replacement parts for other propeller ow meters you have.

Retrotting an Existing Mc Propeller Flow Meter

Installing a Flow Straightener or Straightening Vanes

McMag2000 can be used with a ow straightener or straightening. Installation instructions can be

found in a separate document, 30125-39, Flow Straightener Installation, which can be found on the

McCrometer Web site.

After installation, the converter must be congured for use with one of three types of ow straighteners.

See "Converter Conguration" for conguration.

Item # Description Part #

1 Converter Unit G2-PCGO

2 Ethernet cable 1-1709-01-22

3 O-Ring (039 Buna) 1-1551-29

4 Adapter plate R0161-00

5Screws and washers

5.1 Screw 10784

5.2 Lock washer 10774

5.3 Flat washer 10780

6Bushing and O-Ring Assembly

6.1 Bushing R0155-00

6.2 O-Ring (021 Buna) 10273

6.3 O-Ring (121 Buna) 10274

7Sensor Assembly

7.1 Sensor EA540-10

7.2 O-Ring (024 Buna) 10110-10

7.3 Sensor collar ring 10903

-- IOM Manual 30124-77

-- Quick Start Guide 30124-79

-- Labels: 1 converter,

1 saddle --

6.1

5.1

7.1

6.2

5.2

6.3

5.3

6.4

7.3

7.2

IMPORTANT

During the retrot procedure, make sure

you insert all four screws when attaching

the converter unit to the base plate. The converter

will not be grounded if the grounding jumper is

not connected with both screws. (See exploded

view in Figure 3 and Figure 4.)

30124-79 Rev. 1.9 | 15SEP2022

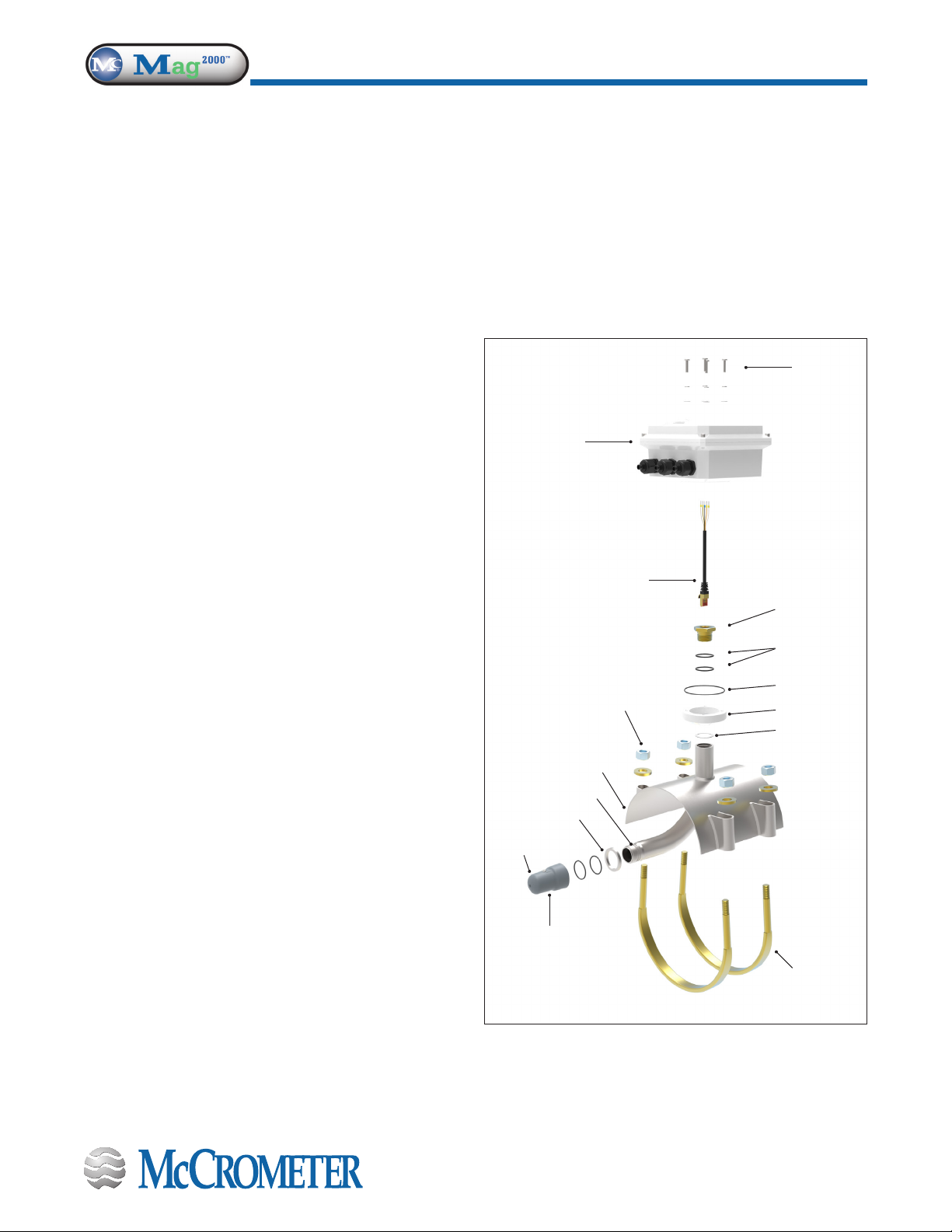

Page 5

Figure 4. McMag2000 assembly

5. Install the sensor collar ring (#7.3) onto the

threaded end of the ell.

Replacing the converter on the ow meter

6. Remove the ProCommGo converter lid by

loosening the four captive screws at each

corner until the lid can be lifted from the

converter enclosure base.

7. Loosen the two captive screws that secure the

unhinged end of the internal bracket from

the lower converter housing. The internal

bracket (which holds the main circuit board

and battery pack) should now swing freely

over to one side, thus exposing the bottom

of the converter enclosure base, large pass

through and four mounting holes.

8. Place the lubricated O-ring (#3) into the

groove on top of the adapter plate (#4) and

mount the base plate of the ProCommGo

converter onto the adapter plate with the

four mounting screws (#5.1), lock washers

(#5.2), and at washers (#5.3).

9. Insert Ethernet cable assembly (#2) down

through the bushing (#6.1) and ell until the

Ethernet plug end extends 2-3 inches beyond

the threaded portion of the saddle elbow.

10. Plug the cable into the sensor (#7.1).

11. Push the sensor onto the elbow (threaded

end) until the skirt of the sensor has extended

past the rst O-ring. The sensor should stop

against the threads.

12. Screw the sensor onto the ell. Hand tighten

only. Do not cross thread when attaching

sensor.

Refer to Figure 3 and Figure 4 for the conversion procedure.

Removing the ow meter

1. Remove the ow meter that will be converted to an McMag2000.

2. Remove all parts from the saddle. Keep the saddle, U-bolts and U-Bolt nuts/washers. All other parts

will not be used.

3. Connect the adapter plate (#4) to the saddle with the bushing (#6.1), two O-rings (#6.2 & 6.3), and

gasket (#6.4). Ensure to adequately tighten the bushing (>50ft-lbf) to avoid loosening over time.

4. Replace and lubricate the two O-rings (#7.2) on the threaded end of the ell.

Sensor

collar ring

ProComm GO

Screws /

Washers

Ethernet cable

and connector

Saddle

Nut and

washer set x4 Adapter plate

Gasket

O-ring

Bushing

O-rings

Ell

Top and

bottom

electrodes U bolts

Sensor

collar ring

30124-79 Rev. 1.9 | 15SEP2022

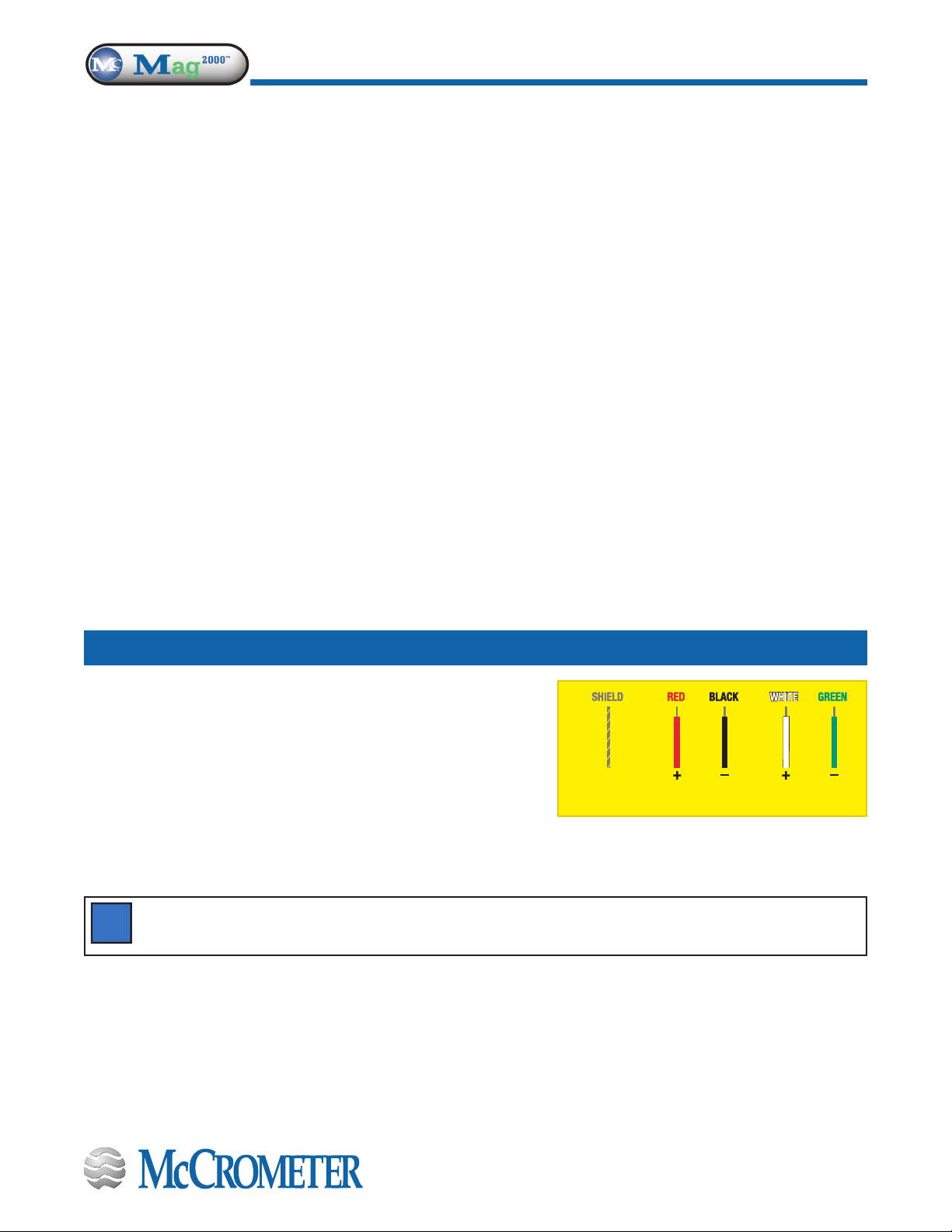

Page 6

Converter Wiring and Grounding

Refer to the wiring diagram at right (Figure 5) for proper

connection.

This is required for installations with DC power input and

pulse output, and applies to both new installations and

retrots.

Converters with optional DC power input and/or pulse

output will have an open-ended cable ready for connection

to your system.

Figure 5. Wiring diagram

PN# 10613-10

DC POWER

12-30VDC

PULSE OUTPUT

MAX 50VDC 50 mA

EARTH GROUND

(Not DC Ground)

13. Reconnect unhinged end of internal bracket to converter base using captured screws. Ensure the

green reference wire lug is held securely under screw.

Re-inserting the ow meter

14. Loosen and remove the nuts and washers from the straps. Remove the straps from the saddle.

15. Apply lubrication to the gasket and inner diameter of U-bolts with MolyKote lubricant or equivalent.

16. Place saddle with gasket in place over the cut out.

17. Place U-bolts underneath the pipe and through the saddle clips.

18. Place the provided washers and nuts on the U-bolts that have been installed through the saddle

clips.

19. Start tightening down the nuts evenly in a gure 8 pattern.

19a. Tighten the nuts to 40 ft. lbs. evenly using a gure 8 pattern.

19b. Tighten the nuts to 60 ft. lbs. evenly using a gure 8 pattern.

19c. Tighten the nuts to 80 ft. lbs. evenly using a gure 8 pattern.

20. Go back around and loosen all of the nuts. Do not back the nuts completely o of the U-bolts. The

goal is to release force and tension o of the saddle and the gasket.

21. Repeat steps 19a through 19c exactly as described. Any step that is skipped may result in an

improper seal.

22. Apply pressure/turn on pump.

23. Verify the saddle is not leaking water. If it is, repeat steps 20 through 22 until the saddle has sealed.

The bare shield wire on the cable should always be connected to earth ground.

The converter housing should NOT be connected to an earth ground.

NOTE

30124-79 Rev. 1.9 | 15SEP2022

Page 7

12345

123456789

GAL

GPM

x1000

12345

123456798

123456789

POS

NEG

GAL

GPM

x1000

Rate

Totals

Total

Total unit

Multiplier

Rate unit

Alarms

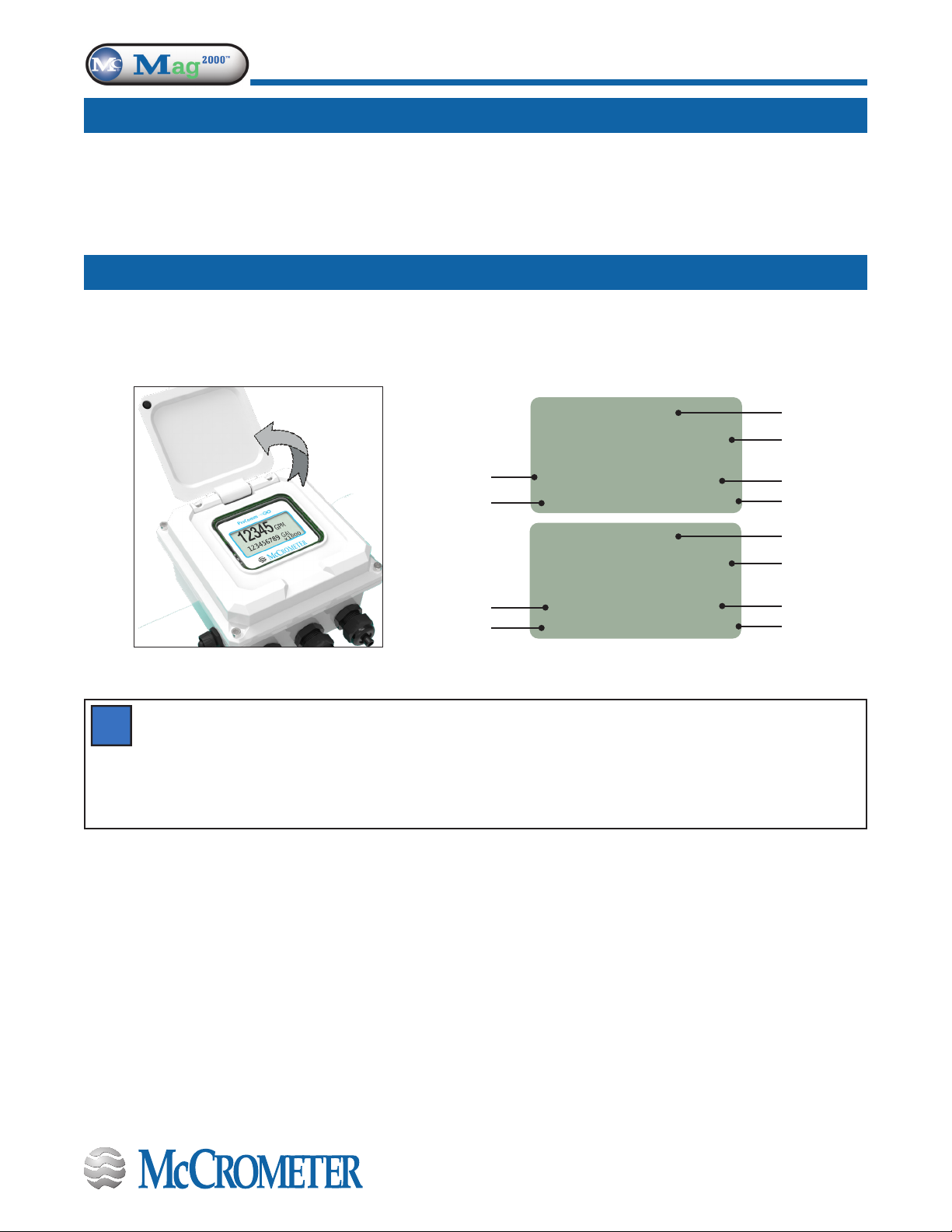

The display is activated when the lid is opened. (Figure 6) The display will remain active for 30 seconds.

The screen will automatically deactivate after 60 seconds. See Figure 7 below for display descriptions

and symbols.

Figure 6. Lift lid to activate the display Figure 7. Interface screen, bidirectional and

single direction ow

Converter Display

The McMag2000 comes pre-congured from the Factory based on the installation parameters provided

to McCrometer at the time of order. Other than activating the display, there is nothing required of the

user for the basic operation of the ow meter.

Operation

The converter display is light activated and requires a minimum amount of light to appear.

Environments where light is low, such as in dimly lit buildings or outdoors after sundown may

prevent the display from appearing when the lid is raised.

There is an optical sensor embedded in the display located under the McCrometer“swirl”logo at the

lower left. If the display does not appear, a ashlight will provide sucient light to bring it up.

NOTE

30124-79 Rev. 1.9 | 15SEP2022

Page 8

3255 WEST STETSON AVENUE • HEMET, CALIFORNIA 92545 USA

TEL: 951-652-6811 • 800-220-2279 • FAX: 951-652-3078

www.mccrometer.com

data, and instructions are subject to change without notice. Contact your McCrometer representative for current pricing, technical data, and instructions.

Page 8

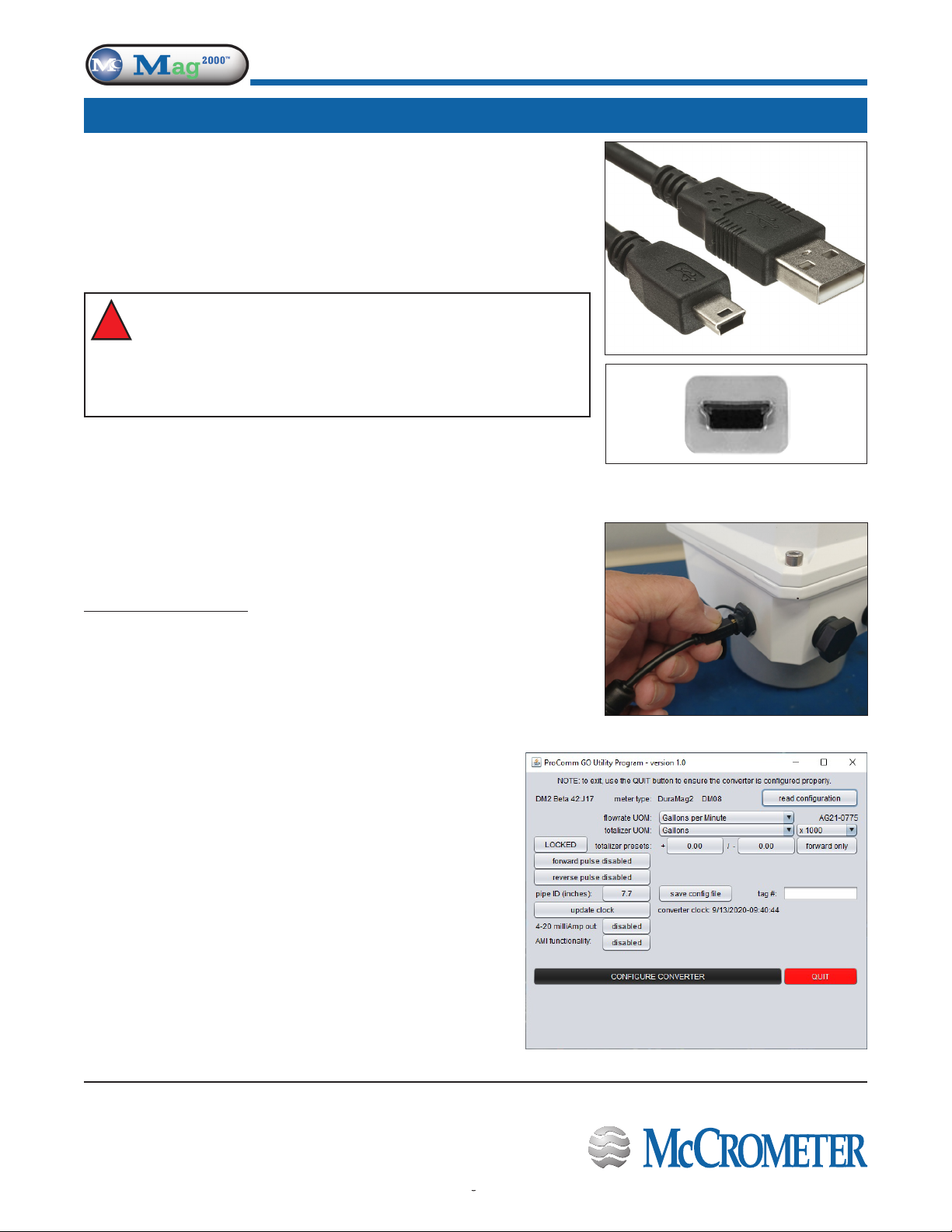

Converter Conguration

Figure 10. Conguration tool interface

You must have your ow meter’s serial number before you begin.

There are no installation les. The program and support les can

be copied or unzipped into a folder and run from there.

This is only a summary of the conguration tool’s functionality.

The software has complete set-up and operation instructions

included. The software can be downloaded from the McCrometer

Web site.

Software Operation

1. Remove the cap that protects the USB port and plug in a mini

USB type B cable. (Figure 9) Connect the other end to a laptop

computer.

2. Start the software. Follow the instructions shown before

setting up your customized conguration. (Figure 10)

3. When you have set up your conguration le, you

can change the settings listed below. Using the

conguration tool is mostly self-explanatory.

• Flow rate unit of measure

• Totalizer unit of measure

• Multiplier

• Totalizer presets

• Forward/reverse pulse enable: 1 pulse per x per unit of

measure

• Pipe ID

• Clock time and date

• Pulse output

• Automated meter reading

When conguration is complete, remove the USB

connector and replace the protective cap.

Figure 8. Mini USB type B

connector

Figure 9. Plug in mini-USB cable

The converter can be programmed to customize how the data is

measured and stored.The conguration tool runs only onWindows

7, 8, or 10 and requires a computer with a USB port.

To access the converter’s USB port, unscrew the cap at the left

side of the converter. You will need a cable with a mini USB type B

connector. (Figure 8)

WARNING

EXPLOSION HAZARD. DO NOT CONNECT/DISCONNECT

CONNECTORS OR WIRING OR REMOVE ENCLOSURE

LID WHILE WITHIN AN ELECTRICALLY CLASSIFIED

HAZARDOUS AREA.

Table des matières

Autres manuels McCrometer Instrument de mesure

McCrometer

McCrometer FPI Mag 394L Manuel utilisateur

McCrometer

McCrometer McMag2000 Manuel utilisateur

McCrometer

McCrometer DURA MAG McMag 3000 Mode d’emploi

McCrometer

McCrometer UltraMag Standard Mode d’emploi

McCrometer

McCrometer McMAG 2000 Mode d’emploi

McCrometer

McCrometer SPI Mag 282L Manuel utilisateur

McCrometer

McCrometer Mc Propeller Manuel utilisateur

McCrometer

McCrometer McMag2000 Manuel utilisateur

McCrometer

McCrometer FlowConnect FC500 Manuel utilisateur

McCrometer

McCrometer Dura Mag Manuel utilisateur

McCrometer

McCrometer ULTRA MAG 4 Manuel utilisateur

McCrometer

McCrometer Dura Mag Manuel utilisateur

McCrometer

McCrometer FPI Mag 394 Manuel utilisateur

McCrometer

McCrometer FPI Mag 394L Manuel utilisateur

McCrometer

McCrometer Ultra Mag Manuel utilisateur

McCrometer

McCrometer Dura Mag Mode d’emploi

McCrometer

McCrometer FPI Mag 394E Manuel utilisateur

McCrometer

McCrometer SPI Mag 282L Manuel utilisateur

McCrometer

McCrometer ULTRA MAG UM06 Manuel utilisateur

McCrometer

McCrometer Ultra Mag Manuel utilisateur

McCrometer

McCrometer Mc Mag3000 Manuel utilisateur

McCrometer

McCrometer Mc Mag3000 Manuel utilisateur

McCrometer

McCrometer Water Specialties VF28D Manuel utilisateur

McCrometer

McCrometer Water Specialties ML04 Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
