HOME AUDIO 08

The origin of MB Quart’s actual name shows our deep rooted com-

mitment to the precise reproduction of music. Feeling the music,

experiencing the music, recreating the music, MB Quart is setting

new standards for the premium performance sector loudspeakers in both

design and performance. MB Quart’s loudspeaker technology has grown

from being a past design leader in a category where the recorded music starts,

e.g. the studio microphone. By mastering the recorded music’s delicate beginning

via our professional microphone expertise enables our German engineers to easi-

ly understand the criteria needed to design and engineer top performance speaker

models for both audio and home theatre applications. This very same microphone

engineering prowess has resulted in some of the finest performing MB Quart head-

phones. Headphones simply put, are just microphones in reverse. MB Quart is one of few

manufacturers who can claim to have mastered the precise reproduction of music on

such a grand scale.

MB Quart Loudspeaker models are available in a choice of real wood and vinyl veneers.

Those with contemporary tastes can have speaker choices of black or white piano

grade finishes. Should your needs for accurate music be foremost and style second,

MB Quart offers you loudspeaker choices with standard black wood grain vinyl

finishes.

Your MB Quart loudspeaker choices start with the classic tower floor-standing model

loudspeakers followed by the stand-mount and bookshelf models. For the home thea-

ter, the same accuracy of music reproduction is offered in MB Quart’s tiered family of

in-wall and in-ceiling line-up.

It’s MB Quart’s attention to detail that makes our loudspeakers stand out from the

crowded field. Our impressive portfolio of technologies, in both driver and cabinet

design genuinely improve your listening experience with accuracy of tonal character,

resolution of fine detail and our presentation of a realistic sound stage between the

speakers. We actually suggest auditioning every loudspeaker model in the MB Quart

home audio line-up. After just one listening session of any MB Quart loudspeaker, the

conclusion will be obvious. Somewhere in your home, you will be enjoying and feeling the

music with MB Quart.

Absolute Perfection!

High-End personified

High End Personiﬁed

MB Quart utilizes the ﬁnest components and latest technology to develop outstanding loudspeakers.

Our expertise in internal cabinet design coupled with drivers which painstakingly reproduce the music

as it was recorded provide the listener with life like accuracy and precision. Tonal balance is acquired

through timbre matched speakers for true theater sound. All can be complemented with our outstanding

subwoofers and rear surround speaker designs.

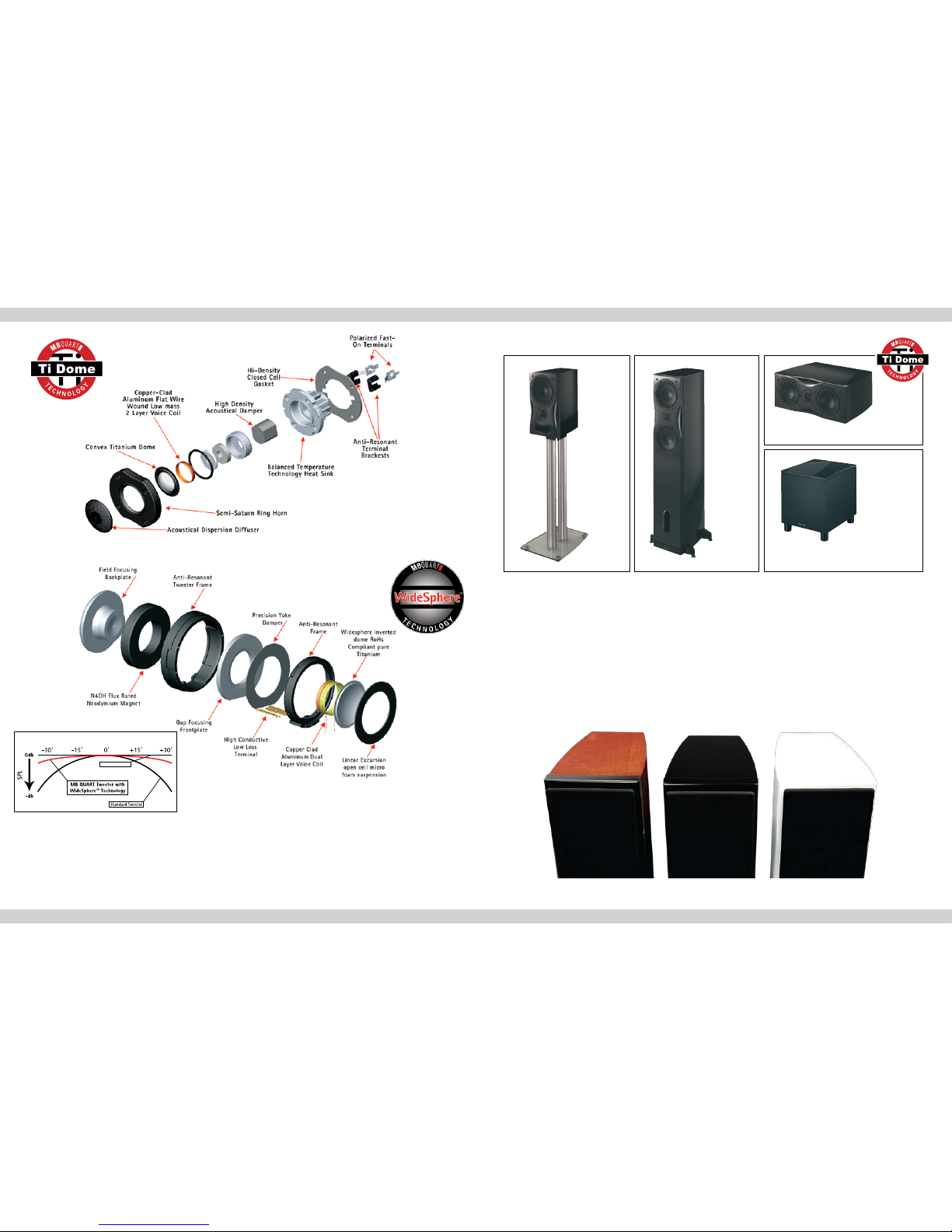

Our Newest Innovation - WideSphere™

The heart of the WideSphere™ system is the new and unique tweeter QTF 40, used in the Milan and Veneto series, with its inverted titanium

dome and high performance neodymium ring magnet. An extraordinarily wide radiation angle, an extremely low resonance frequency and

tremendous power handling combined with outstanding linearity are the result of intensive research, computer simulations and decade-

long experience with ultra light titanium as source material for tweeter domes. The use of new materials coupled with exhaustive engineer-

ing and tuning time leads to a specially deﬁned connection of cap and surround calculated to the closest tolerances and a result far ahead

of our competition. The spaciousness, precision and power handling all contribute to the new tweeter’s superb tonal balance in both on-axis

and off-axis installations. Simply put, this is the most versatile high performance tweeter ever built.

Ti-Dome

MB Quart utilizes its exclusive “Ti-Dome” titanium dome tweeter in the Alexxa and Heidelberg series. MB Quart established this tweeter

over the last ten years as the ultimate “hand crafted” dome conﬁguration.

Revolutionary Tweeter Designs

Listening Angle

Ideal Response

Piano White LacquerPiano Black LacquerCherry Veneer

ALEXXA

AS-B1PB

AS-S1PB

AS - C1PB

AS - SW12PB

Alexxa 2008

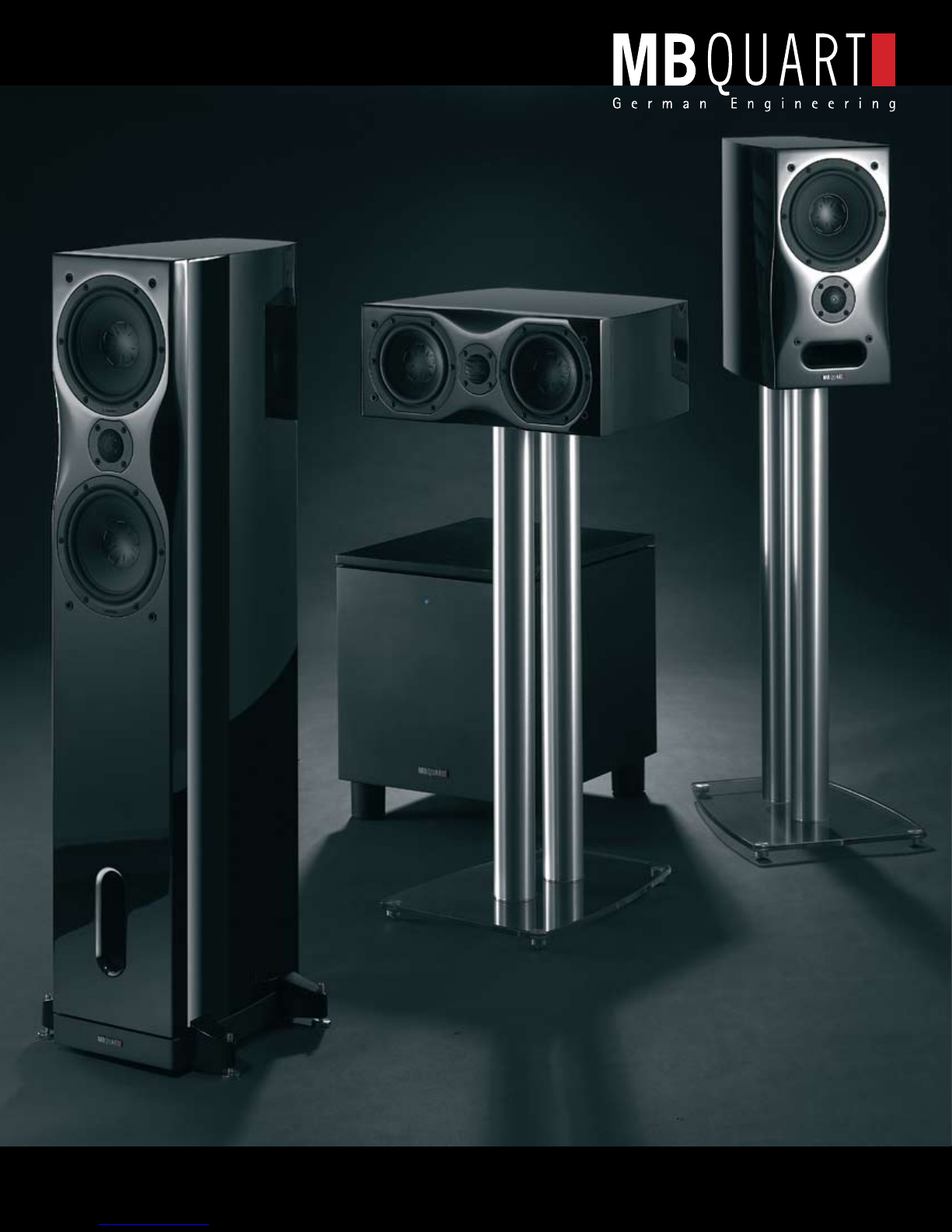

The premium-grade Alexxa Series loudspeakers are the cornerstone of MB Quart’s loudspeaker line-up. All Alexxa Series loudspeakers

feature MB Quart’s exclusive “Ti Dome” titanium dome tweeters. MB Quart established this tweeter over the last ten years as the ultimate

dome conﬁguration. Leading the line-up are ﬂoor standing Alexxa speakers featuring D’ Appolito type driver conﬁgurations, all are offered

in a three different cabinet ﬁnishes; Cherry, Piano Black, and Piano-White ﬁnishes.

The Alexxa is available in a ﬂoor standing, center and bookshelf design.

Alexxa Subwoofers

The SW-12, a BASHTM powered subwoofer incorporates a 12-inch woofer and generates 300-Wrms power and 650 watts of dynamic power,

the SW-10, also BASH powered, employs a 10-inch driver and delivers 250-Wrms power and 600 watts of dynamic power. Alexxa SW sub-

woofers have acoustical suspension type MDF enclosures with a precise acoustical alignment that offers accurate bass response with very

low distortion. Isolation feet secure the down-ﬁring subwoofer system at an optimum height, ensuring consistent performance regardless

of ﬂoor-covering type.

BASH ® is registered a trademark of Indigo Manufacturing Inc. Ontario, Canada, www.bashaudio.com

Handcrafted Audiophile Elegance

STAND SOLD SEPARATELY

TELEVISION MIRRORS

A television with a disappearing act?

A TV Mirror is a mirror with an LCD TV conveniently built into it. What appears to be a ﬁnely crafted, distortion free mirror

becomes your window to entertainment & morning news broadcasts. The MB Quart TV Mirror, crafted in the “German En-

gineering” style,can be easily accommodated for even the most challenging installations. The ease of installation makes the

TV Mirror ideal for hotel rooms, bars, restaurants, bathrooms, living rooms, lobbies, salons, spas and even elevators.

Revolutionary Technology

MB Quart TV Mirrors exhibit true “plug and play” technology, and are ready for

use on the day of purchase. All of our products come guaranteed with a one year

warranty, backed by MB Quart’s international accreditation. Featuring break-

through mirror technology, our premier one-way glass and high-index mirror

provide a natural reﬂection of color, matching a traditional mirror’s reﬂection

capabilities. As the brightest mirror/television combination on the market today,

MB Quart’s TV Mirror offers the clearest and most vivid color with glass tech-

nology that permits increased light transmission from the LCD HD television

through the mirror; the

perfect platform for

viewing high-resolu-

tion programming.

Advantages or the 1-inch LCD HDTV

MB Quart Entertainment has revolutionized the industry with its

introduction of the 1-inch LCD television, making the TV Mirror

truly a “plug and play” unit. We have learned, with our experience

with consumers, that the most cost-effective installation of a TV

mirror product is a surface mount installation.

Surface Mount vs Recessed Mount

Past TV Mirror products used a standard LCD television, produced

by leading television manufacturers, resulting in units with an

overall depth of 4 to 5 inches. When installed, these units gave off

a medicine cabinet appearance, leaving your guest no mystery as

to where the television was located. When using a standard televi-

sion in a TV Mirror unit, a recessed mount has been the most popular installation. Using the 1 inch television, you need only

to remove the ¾ inch dry wall, mount the bracket and plug in your TV Mirror product.

Custom and Integration Capabilities

MB Quart Entertainment’s TV Mirrors are available in all standard mir-

ror sizes and are able to be cut to any speciﬁc design requirement.

Your designers will be able to ﬁnd the perfect ﬁt with our LCD screens

ranging in size from 7 to 65 inches. You design the space and we will

incorporate the most discreet television application that is possible.

The TV Mirror can be fully integrated with cable, DVD players, gaming

systems, external sound systems and AV players. The TV Mirror comes

with all of the standard A/V inputs and outputs you will ﬁnd on any

high-end LCD television, enabling use with a variety of external sys-

tems. Our TV Mirror also comes equipped with high-quality internal

MB Quart speakers; external sound is optional and easily adaptable.

HEIDELBERG

Heidelberg 2008

Want to start out with MB Quart for your ﬁrst system. Get hooked on the Titanium tweeter sound with our new Heidelberg series. This

complete 5.1 system provides great sound at a great price.

Featuring a powered 10” subwoofer for outstanding bass, the ﬂoor standing offers a side ﬁring 8” woofer and our signature D’ Appolito

conﬁgured 20mm Titanium tweeter and two 4” midrange drivers. Complementing the system is the rear surround and, for dialogues, a

micro-center channel speaker.

HS-S1PB

HS-C1PB

HS-B1PB

HS-SW10PB

A Complete 5.1 Solution

ALEXXA

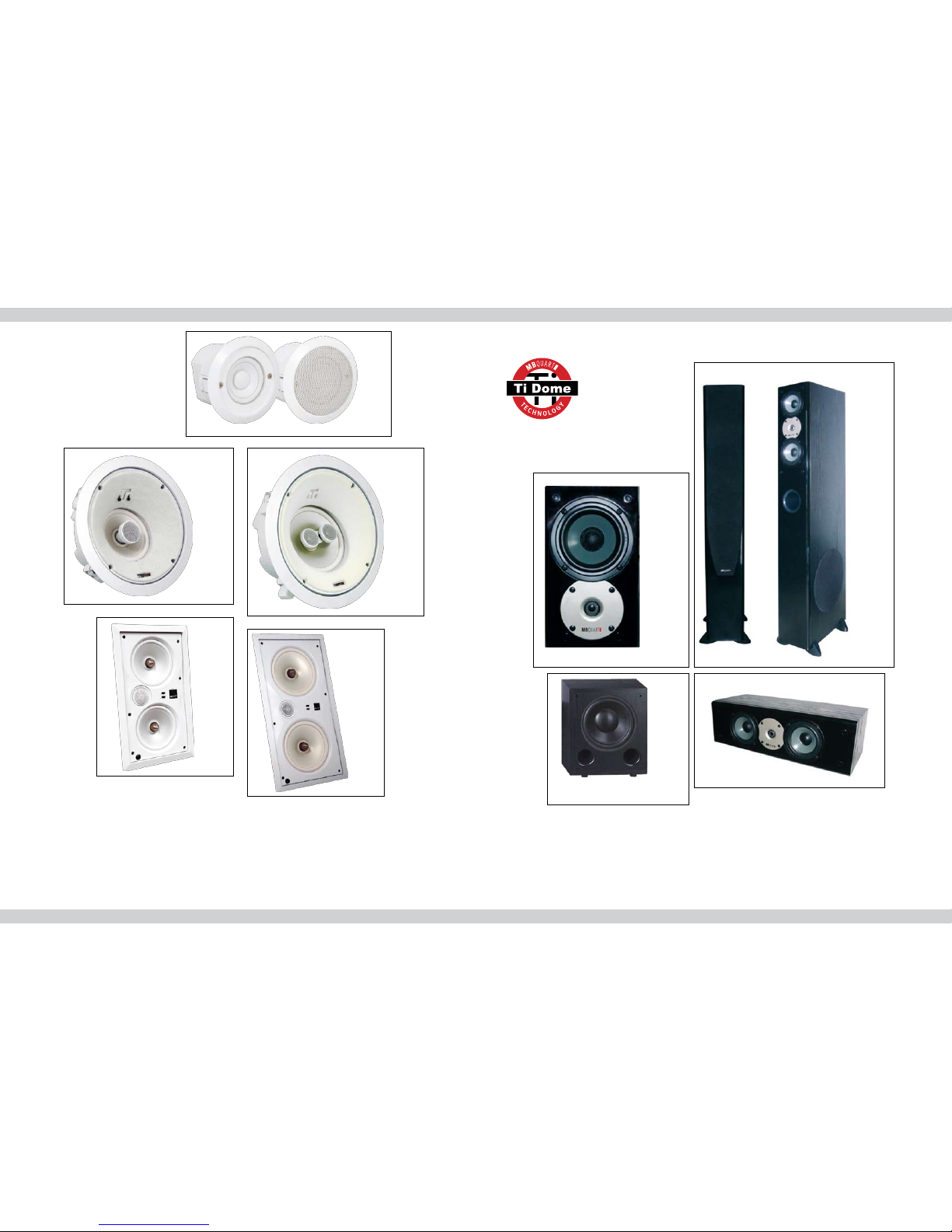

Alexxa In-Wall and In-Ceiling

Among the MB Quart Alexxa Series loudspeaker products offered are top-line premium performance In-Wall and In-Ceiling speaker sys-

tems. Alexxa Series In-Wall and In-Ceiling speakers incorporate the legendary MB Quart titanium dome tweeter technology in an aiming

assembly. Both feature sealed hi-density metal back-box enclosures. The 5-1/4” thru the 8-inch Alexxa in-ceiling speakers feature 30-

degree angled bafﬂes and dual controls for boundary compensation behind the grilles. Special problem solving 2” and 3-inch Point Source

in-ceiling speakers round-out the MB Quart Alexxa Series in-ceiling speaker line-up.

The Alexxa In-Wall features a D’ Appolito speaker design for perfect dispersion effects. The design utilizes pearl-white poly drivers behind

the paint-able grille / frame assemblies. Available in in-wall dual 5-¼”, dual 6-½ and dual 8-inch designs, the new in-wall speakers also

feature dual boundary compensation controls behind the grilles.

ALX3PS

ALX5.25IC

ALX6.5IC DM

ALX5.25IW

ALX8.0IW

Invisible Staging and Imaging

Technical Data

Zurich In-Wall and In-Ceiling Loudspeakers

MB Quart Zurich Series products are top-performing yet value driven two-way in-wall and in-ceiling speaker systems featuring paint-able

grille and frame assemblies and unique removable back, depth-reducing enclosures. The new Zurich Series swivel mounted tweeters offer

upgrade sound-quality, high-efﬁciency, ultimate installation ﬂexibility and considerable value. Custom installers have the unique problem

solving ﬂexibility of being able to actually reduce the Zurich Series in-wall and in-ceiling speakers mounting depths whenever obstructions

are discovered during installation.

ZURICH

ZUR5.25IC

ZUR6.5IC-DM

ZUR6.5IW

Solution Driven Design

Power Handling Frequency Res. Tweeter Type Woofer Unique Feature Unique Feature Unique Feature Unique Feature

Alexxa Loudspeaker System

B-1 Bookshelf 70 W min. 130 RMS 41 Hz -32kHz Titanium Dome 1- 6.5" WPC woofer Vibration Decoupling Magnetically BTT Crossover FlexxConnect

S-1 Floorstanding 110 W min. 180 RMS 33 Hz -32kHz Titanium Dome 2- 5.25" WPC woofer Spikes shielded 5-way bi-wire

C-1 Center

120 W min. 150 RMS

36 Hz -32kHz Titanium Dome 2- 6.5" WPC woofer terminals

Heidelberg Loudspeaker Systems

B-1 Bookshelf 20 W min. 80 RMS 41 Hz -32kHz Titanium Dome 1- 4" WPC woofer Magnetically Complete

S-1 Floorstanding 20 W min. 150 RMS 33 Hz -32kHz Titanium Dome 2- 4" WPC woofer 8" Side Firing Woofer shielded Vibration Spikes 5.1 System

C-1 Center 20 W min. 100 RMS 36 Hz -32kHz Titanium Dome 2-4" WPC woofer Price

Alexxa IC and IW Systems Power Handling Frequency Res. Tweeter Type Design Unique Feature Unique Feature Unique Feature Unique Feature

ALX2SP 5 W min. 20 RMS 70 Hz -21kHz Poly Driver 2" Point Source Acousti-seal Full Range Fits in Soffets Swing out

ALX3SP 5 W min. 30 RMS 65 Hz -22kHz Poly Driver 3" Point Source Acousti-seal Full Range Fits in Soffets Mounting Clips

ALX5.25IC 20 W min. 100 RMS 55 Hz -22kHz Neo- Titanium Dome 5.25" 2-Way Metal Acousti-seal Swivel Tweeter Angled Baffel HP and LP

ALX6.5IC 20 W min. 110 RMS 45 Hz -23kHz Neo- Titanium Dome 6.5" 2-Way enclosure Swivel Tweeter Angled Baffel level controls

ALX8.0IC 20 W min. 120 RMS 40 Hz -23kHz Neo- Titanium Dome 8" 2- Way Swivel Tweeter Angled Baffel

ALX 6.5IC-DM 20 W min. 110 RMS 45 Hz -23kHz Neo- Titanium Dome 6.5" Mono Stereo Swivel Tweeter Angled Baffel

ALX5.25IW 20 W min. 80 RMS 55 Hz -22kHz Neo- Titanium Dome 5.25" D-Appolito Metal Acousti-seal Pointable Tweeter Assymetrical WPC Balanced Q X-

ALX6.5IW 20 W min. 100 RMS 45 Hz -23kHz Neo- Titanium Dome 6.5" D-Appolito enclousre Pointable Tweeter woofers for overs with HP and

ALX8.0IW 20 W min. 120 RMS 40 Hz -23kHz Neo- Titanium Dome 8" D-Appolito Pointable Tweeter ease of mounting level controls

Zurich IC and IW Systems Power Handling Frequency Res. Tweeter Type Design Unique Feature Unique Feature Unique Feature Unique Feature

ZUR5.25IC 20 W min. 80 RMS 60 Hz -21kHz Neo-T Impregnated 5.25" 2-Way Fiber Acousti-seal Swivel Tweeter Titanium Tint Swing out

ZUR6.5IC 20 W min. 100 RMS 50 Hz -22kHz Neo-T Impregnated 6.5" 2-Way enclousre Swivel Tweeter Woofer cones Mounting Clips

ZUR6.5IC-DM 20 W min. 100 RMS 51 Hz -22kHz Neo-T Impregnated 6.5" Mono Stereo Swivel Tweeter

ZUR5.25IW 20 W min. 80 RMS 60 Hz -21kHz Neo-T Impregnated 5.25" 2-Way Fiber Acousti-seal Pointable Tweeter

ZUR6.5IW 20 W min. 100 RMS 50 Hz -22kHz Neo-T Impregnated 6.5" 2-Way enclousre Pointable Tweeter

Subwoofer Systems Power Output Frequency Res. Woofer Design Unique Feature Unique Feature Unique Feature Unique Feature

SW-10 250 Watt RMS 22Hz to 200 Hz 10" Down Fire High and Low Variable Phase 16HZ subsonic Bash Powered

SW-12 300 Watt RMS 20Hz to 150 Hz 12" Down Fire level inputs Audio Signal Sensing filter

S-One 200 Watt RMS 27Hz to 200 Hz 10" Front Fire A/B Powered

MAXXSONICS USA, INC.

1290 Ensell Road

Lake Zurich, Illinois 60047 USA

Phone +1 847-540-7700

FAXX +1 847-540-9776

E-Mail [email protected]

Website www.maxxsonics.com

Your authorized MB QUART dealer:

Ce manuel convient aux modèles suivants

Autres manuels MB QUART Intervenants

MB QUART

MB QUART JC1-108 Manuel utilisateur

MB QUART

MB QUART REFERENCE Series RTC 25 RTC25 RTC25 Manuel utilisateur

MB QUART

MB QUART DISCUS Series RKC 110 RKC110 RKC110 Manuel utilisateur

MB QUART

MB QUART QUBTwo Manuel utilisateur

MB QUART

MB QUART REFERENCE Series RKC 116 RKC116 RKC116 Manuel utilisateur

MB QUART

MB QUART Polaris Sound Bar 8 Manuel utilisateur

MB QUART

MB QUART NAUTIC NF1-116SB Mode d’emploi

MB QUART

MB QUART ALX2PS Manuel utilisateur

MB QUART

MB QUART NAUTIC NHT2-120 Mode d’emploi

MB QUART

MB QUART QS75 Manuel utilisateur

MB QUART

MB QUART ZUR5.25IC Manuel utilisateur

MB QUART

MB QUART REFERENCE Series RCE 210 RCE210 RCE210 Manuel utilisateur

MB QUART

MB QUART REFERENCE Series RCE 268 RCE268 RCE268 Manuel utilisateur

MB QUART

MB QUART NAUTIC NH1-116W Mode d’emploi

MB QUART

MB QUART QSE-216 Manuel utilisateur

MB QUART

MB QUART DISCUS Series DKE 168 DKE168 DKE168 Manuel utilisateur

MB QUART

MB QUART NAUTIC NWD 254 NWD254 NWD254 Manuel utilisateur

MB QUART

MB QUART NK1-116B Mode d’emploi

MB QUART

MB QUART MB QUART Stage 3 MBQR-STG3-2 Manuel utilisateur

MB QUART

MB QUART NKA116 Manuel du propriétaire

MB QUART

MB QUART NAUTIC NKA 116 NKA116 NKA116 Manuel utilisateur

MB QUART

MB QUART FORMULA Manuel utilisateur

MB QUART

MB QUART RLP204 Manuel utilisateur

MB QUART

MB QUART DISCUS Series DWE 254 DWE254 DWE254 Manuel utilisateur

Manuels Intervenants populaires d'autres marques

argon audio

argon audio IE20 Manuel utilisateur

Denon

Denon SC-N7 Manuel utilisateur

Gemline

Gemline Ace 3952 Manuel utilisateur

Focal

Focal ON WALL 300 Mode d’emploi

HEADRUSH

HEADRUSH Maximus HRSP 5024 Manuel utilisateur

SoundLogic

SoundLogic BCCS-6/6395 Manuel utilisateur

Peavey

Peavey DTH 218 Manuel utilisateur

Avantree

Avantree Pluto Air Manuel utilisateur

Morel

Morel Integra Series INTEGRA OVATION 4 Manuel utilisateur

Oppo

Oppo SONICA Manuel utilisateur

Bose

Bose SoundLink Wireless Music System Manuel utilisateur

Rocksteady

Rocksteady Stadium Manuel utilisateur

Bowers & Wilkins

Bowers & Wilkins 4 Manuel utilisateur

Sonance

Sonance SONOS OUTDOOR Series Manuel utilisateur

Electro-Voice

Electro-Voice EVID FM4.2 Manuel utilisateur

Pioneer

Pioneer XW-HTD630 Manuel utilisateur

Onn

Onn BWA16AA002 Manuel utilisateur

HP GL313AA - USB Speakers PC Multimedia Manuel utilisateur
