MB QUART NK1-116 Mode d’emploi

If you are replacing an older or inferior speaker, the

location is chosen for you. Make sure the speaker ﬁts

properly in the hole for the old speaker.

If you are creating your own new location, you must be

careful to verify that there is sufﬁcient depth to mount the

speaker.

Choose a suitable

mounting location

Speaker Mounting Location

Speaker Dimensions

CAUTION

Always consider consulting a professional audio installer

before installing new speakers. Many manufacturers locate

speakers behind interior panels that require special tools to

remove. Be careful and take your time.

If you are using the speaker wire supplied with your new

speakers make sure that you run the speaker wires only

through safe areas. Do not let speaker wire make contact with

metal edges or hot engine components.

Congratulations on your choice of a MBQuart speaker.

This “Quick Start” Installation guide is meant to help

you complete a basic installation. For more detailed

information on system setting, speaker and subwoofer

conﬁguration, and full speciﬁcations by model, visit our

website at mbquart.com

It’s a good idea to conﬁrm that you have purchased the

correct size speakers to ﬁt your application. If you have any

reservations about being able to complete the installation

yourself, we recommend contacting a professional.

ABCDE

NK1-116 / NK1-116L 6.58”(174) 3.02”(77) 1.14”(29) 3.58”(91) 5.59”(142)

NK1-120 / NK1-120L 8.46”(215) 3.58”(91) 1.26”(32) 5.20”(132) 7.09”(180)

NK1-169 / NK1-169L 9.69”/6.86”

(246/174) 3.50”(89) 1.20”(30) 3.87”(99) 8.58”/5.74”

(218/147)

Before you start

Once you are sure the speaker ﬁts and has

adequate clearance, connect the positive and

negative wires to the proper terminals. Securely

screw the speaker into place.

Carefully select a route for the speaker wires. If

using existing speaker wires, conﬁrm that the wire

is in good shape and not shorted. In the case of an

illuminated model, route a positive and negative wire

from a switched +12V source.

Conﬁrm ﬁt and

mount speaker

Route signal and

illumination wires

Speaker installation

Wiring

Illumination

Negative Illumination

Positive

Audio Signal

Negative Audio Signal

Positive

Quick Start

Installation Guide

WARRANTY

Maxxsonics USA Inc. warrants this product, to the original consumer purchaser, to be free from

defects in material and workmanship for a period of one (1) year from the date of purchase.

Maxxsonics USA Inc. will, at it’s discretion, repair or replace defective products during the warranty

period.Componentsthatprovetobedefectiveinmaterialsandworkmanshipunderproperinstallation

and use must be returned to the original authorized Maxxsonics USA Inc. retailer from where it was

purchased. A photocopy of the original receipt must accompany the product being returned. The

costs associated with removal, re-installation and freight are not the responsibility of Maxxsonics

USA Inc. This warranty is limited to defective parts and speciﬁcally excludes any incidental or

consequential damages connected therewith. To view the full warranty, please visit the website.

Hifonics products are designed and engineered in the USA by

847-540-7700

www.maxxsonics.com

NK1-116

NK1-120

NK1-169

NK1-116L

NK1-120L

NK1-169L

NAUTIC

MBQ NK skr QSG 01 - rev1

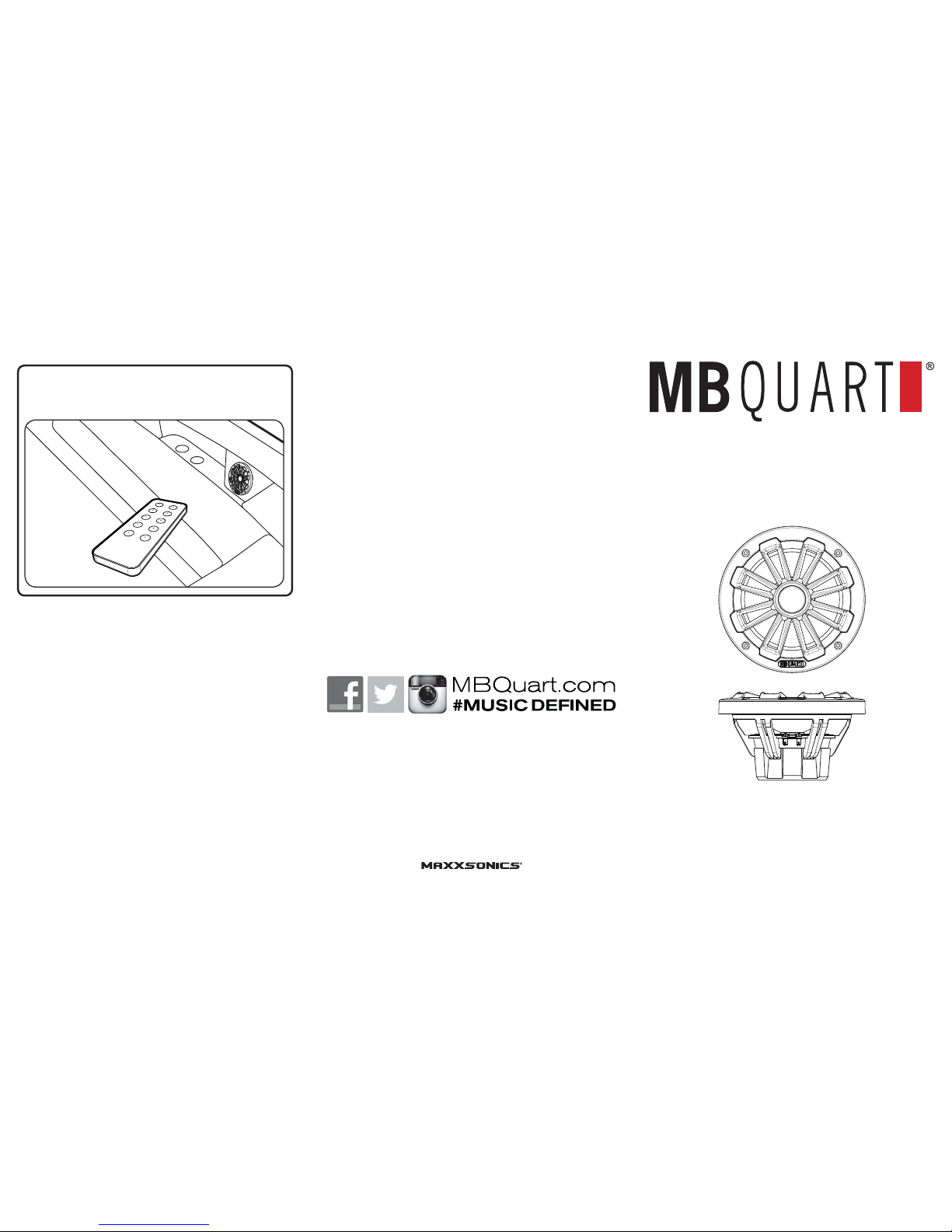

Illumination control

If you have purchased an illuminated version, consider getting an N1-RC remote

control. The remote allows you to adjust color, speed and brightness of the

illumination. Check with an authorized MBQuart retailer or check our website

www.mbquart.com for further details.
