EN Operating Instructions
Dolphin WAVE 50 Pool Cleaner
Dolphin WAVE 50 Pool Cleaner | Operating Instructions
2
Contents
1. INTRODUCTION ................................................................................. 3
2. SPECIFICATIONS ................................................................................ 3
3. WARNINGS AND CAUTIONS............................................................ 3
3.1. Warnings .................................................................................... 3
3.2. Cautions ..................................................................................... 3
4. POOL CLEANER PARTS...................................................................... 4
5. USING THE POOL CLEANER............................................................. 5
5.1. Set up ......................................................................................... 5
5.2. Putting the Pool Cleaner into the pool ................................... 6
5.3. Removing the Pool Cleaner from the pool ............................. 6
5.4. Maintenance .............................................................................. 7
5.5. Off-season storage.................................................................... 8
6. POWER SUPPLY................................................................................... 9
CADDY ASSEMBLY ................................................................................. 10
Dolphin WAVE 50 Robotic Pool Cleaner
Operating Instructions
EN
Dolphin WAVE 50 Pool Cleaner | Operating Instructions
3
Dolphin WAVE 50 Pool Cleaner
Operating Instructions
1. INTRODUCTION
Thank you for purchasing a Maytronics Robotic Pool Cleaner.
We are sure that your Maytronics Robotic Pool Cleaner will provide you with reliable, convenient and
cost effective pool cleaning. Its reliable filtration in all pool conditions and all-surface climbing brush
enhance maximum pool hygiene.
The Robotic Pool Cleaners by Maytronics deliver advanced cleaning technology, long lasting
performance and easy maintenance.
2. SPECIFICATIONS
Motor protection: IP 68
Minimum depth: 0.4 m (1.33 ft)
Maximum depth: 5 m (16.4 ft)
3. WARNINGS AND CAUTIONS
3.1. Warnings
• Use the originally supplied power supply only
• Ensure the electrical outlet is protected by a ground fault interrupter (GFI) or an earth
leakage interrupter (ELI)
• Keep the power supply out of standing water
• Position the power supply at least 3.5 m (12 ft) away from the edge of the pool
• Do not enter the pool while the pool cleaner is working
• Unplug the power supply before servicing
• Keep the Robotic Pool Cleaner out of the reach of children or persons with reduced
physical, sensory, or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction.
3.2. Cautions
When not in use store the Pool Cleaner on the Caddy in a shaded area.
Use the Pool Cleaner in the following water conditions only:
Chlorine 4 ppm max.
pH 7.0 - 7.8
Temperature 6°C - 35°C (43°F - 95°F)
NaCl 5000 ppm max.
CAUTION
Dolphin WAVE 50 Pool Cleaner | Operating Instructions
4
Caddy
Unit
Power Supply
Combined Brush
All surface climbing
brush ideal for most
pool surfaces
Wonder Brush
For smooth ceramics
(optional)
Dolphin
WAVE 50
Bottom lid and filter Bag
Filter bag options:
Fine - factory default
Ultra fine - extra

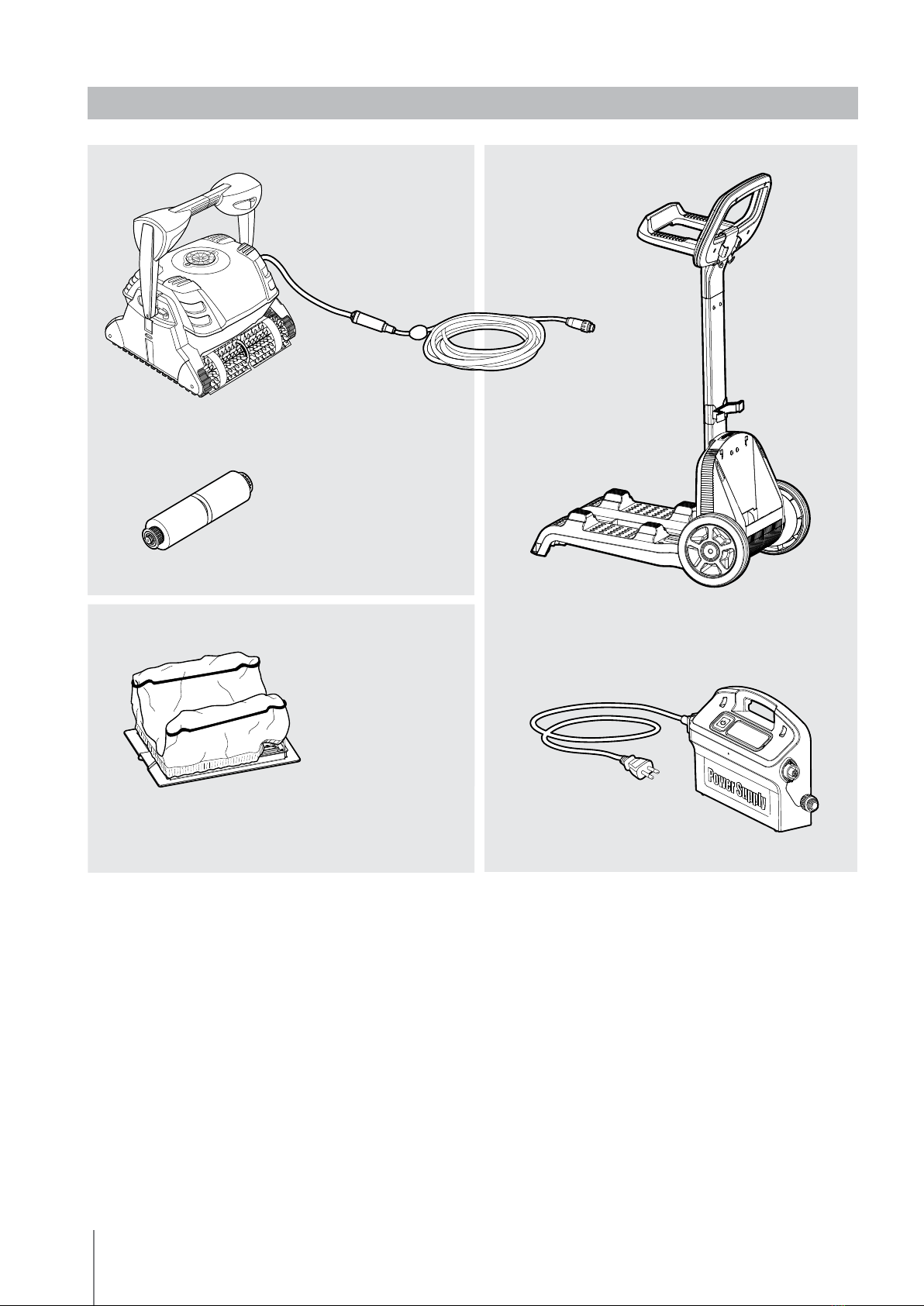

4. POOL CLEANER PARTS
Dolphin WAVE 50 Pool Cleaner | Operating Instructions
5
Change diagonal handle position
for water line sideway movement.
To adjust the handle angle:
A. Press the latch down and hold
it in position.
B. Move the handle to the desired
position and release the latch
to hold the handle in place.
Attach the floating cable to the
power supply by inserting it with the
notch on the connector (1) lined up
with the groove in the socket on the
power supply and turning clockwise (2).

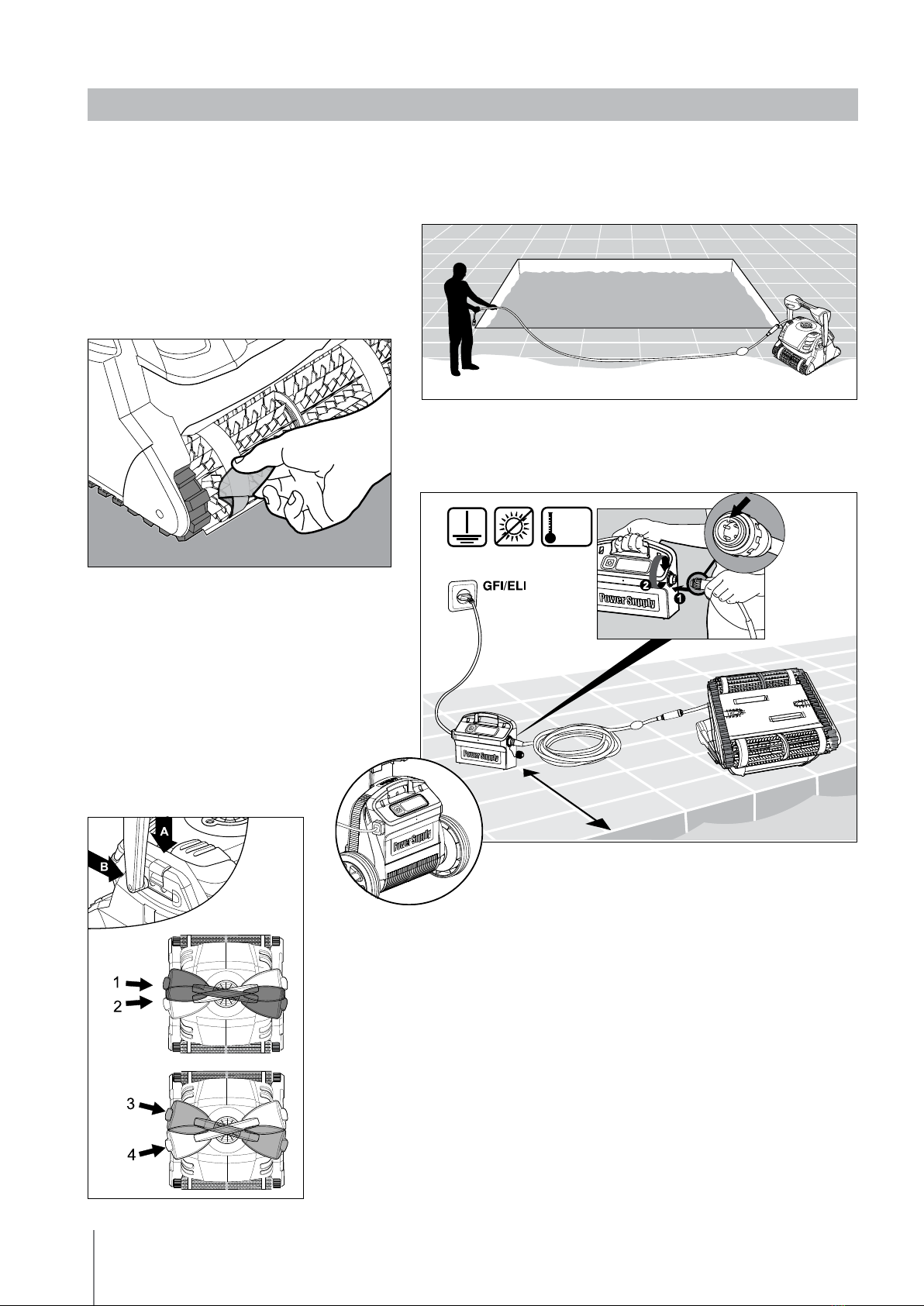

5. USING THE POOL CLEANER
5.1. Set Up
1,2: Normal advance
More efficient cleaning
action on water-line.
3,4: Fast advance
Fast speed – for faster
but less efficient cleaning
action on water-line.
GFI/ELI
3.5 m (12 ft)
40°C Max
104°F Max
Unwind the cable and stretch it out
completely so that it has no kinks.
Remove the plastic coverings before use.
Before using the Pool Cleaner for the first time perform the following steps.
Dolphin WAVE 50 Pool Cleaner | Operating Instructions
6

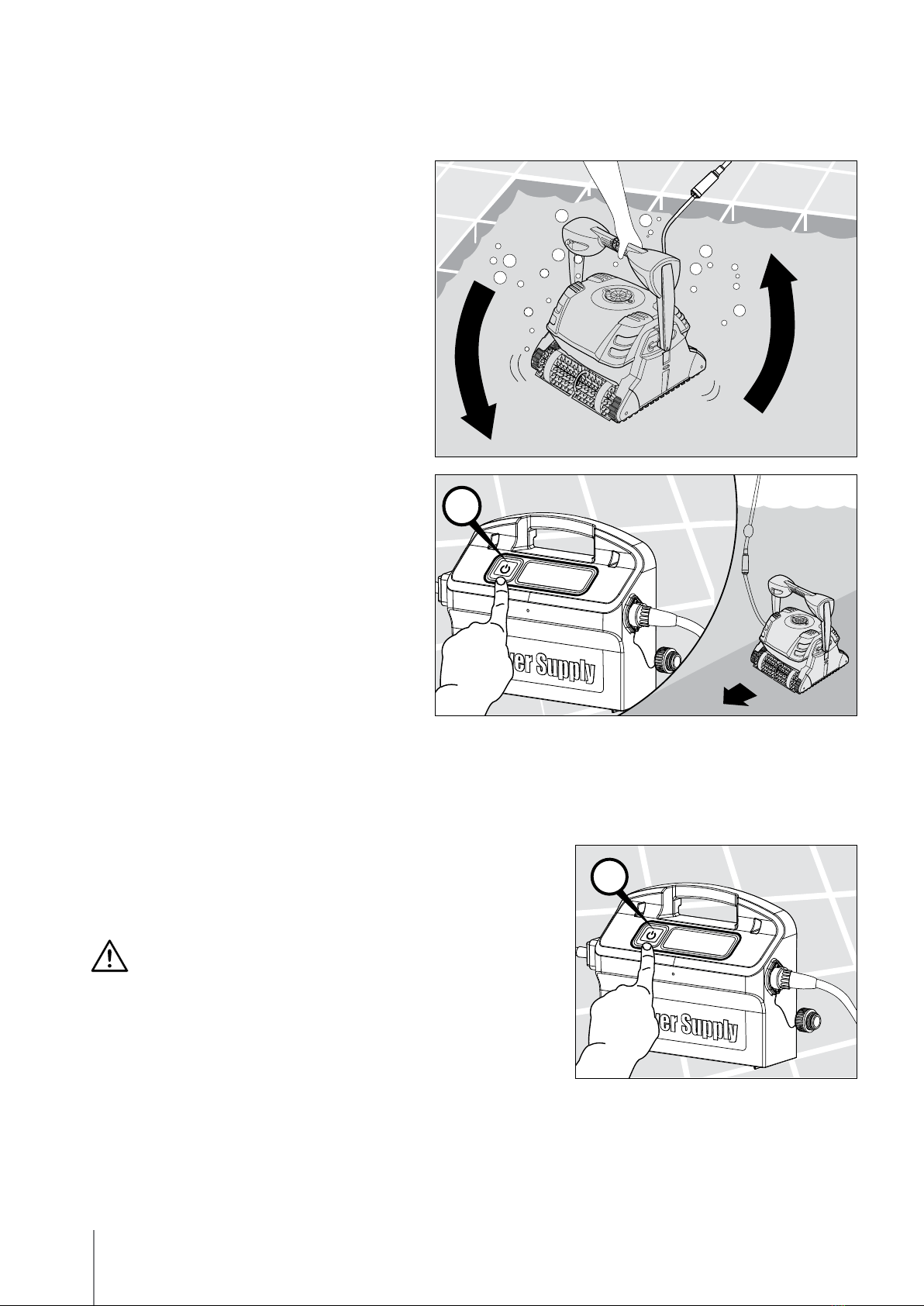

Turn the power supply ON.
ON
5.2. Putting the Pool Cleaner into the pool
5.3. Removing the Pool Cleaner from the pool
CAUTION
Turn OFF and unplug the power supply.
Shake the robot from side to side or turn
it upside down to release trapped air.
Let it sink to the pool floor.
If the foam climbing rings on the brushes are dry soak them in water until soft.
The robot will perform automatic shut-off at the end of the cleaning cycle.
OFF
Dolphin WAVE 50 Pool Cleaner | Operating Instructions
7

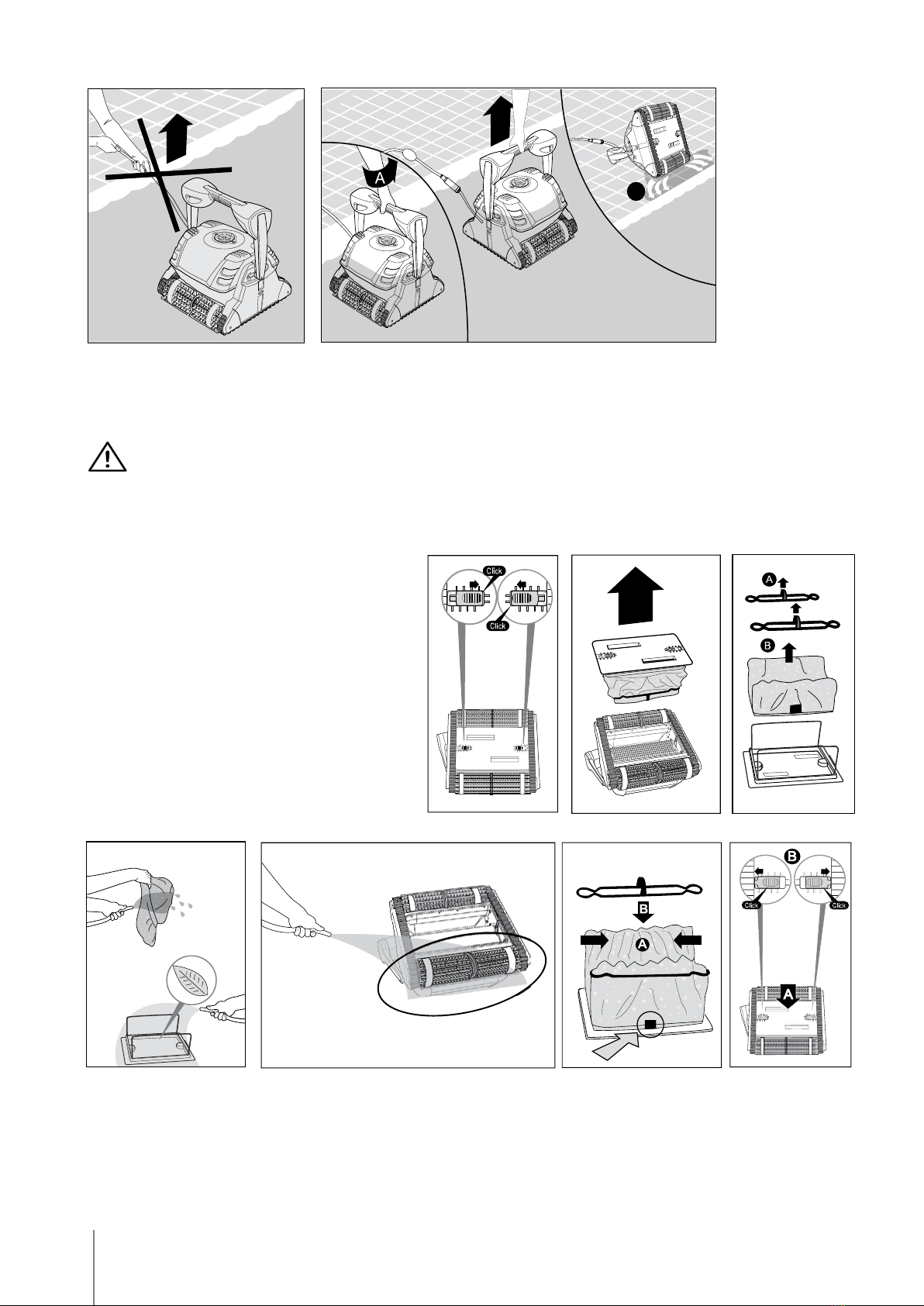

Using the floating cable, bring the Pool Cleaner to the pool’s edge.
Clean the filter bag with a hose.
Periodically clean the brushes with a hose.
It is recommended to periodically wash
the filter bag in a washing machine.
Use gentle cycle program.
5.4. Maintenance
CAUTION
DO NOT PULL THE POOL CLEANER FROM THE POOL USING THE CABLE.
B
C
Dolphin WAVE 50 Pool Cleaner | Operating Instructions
8

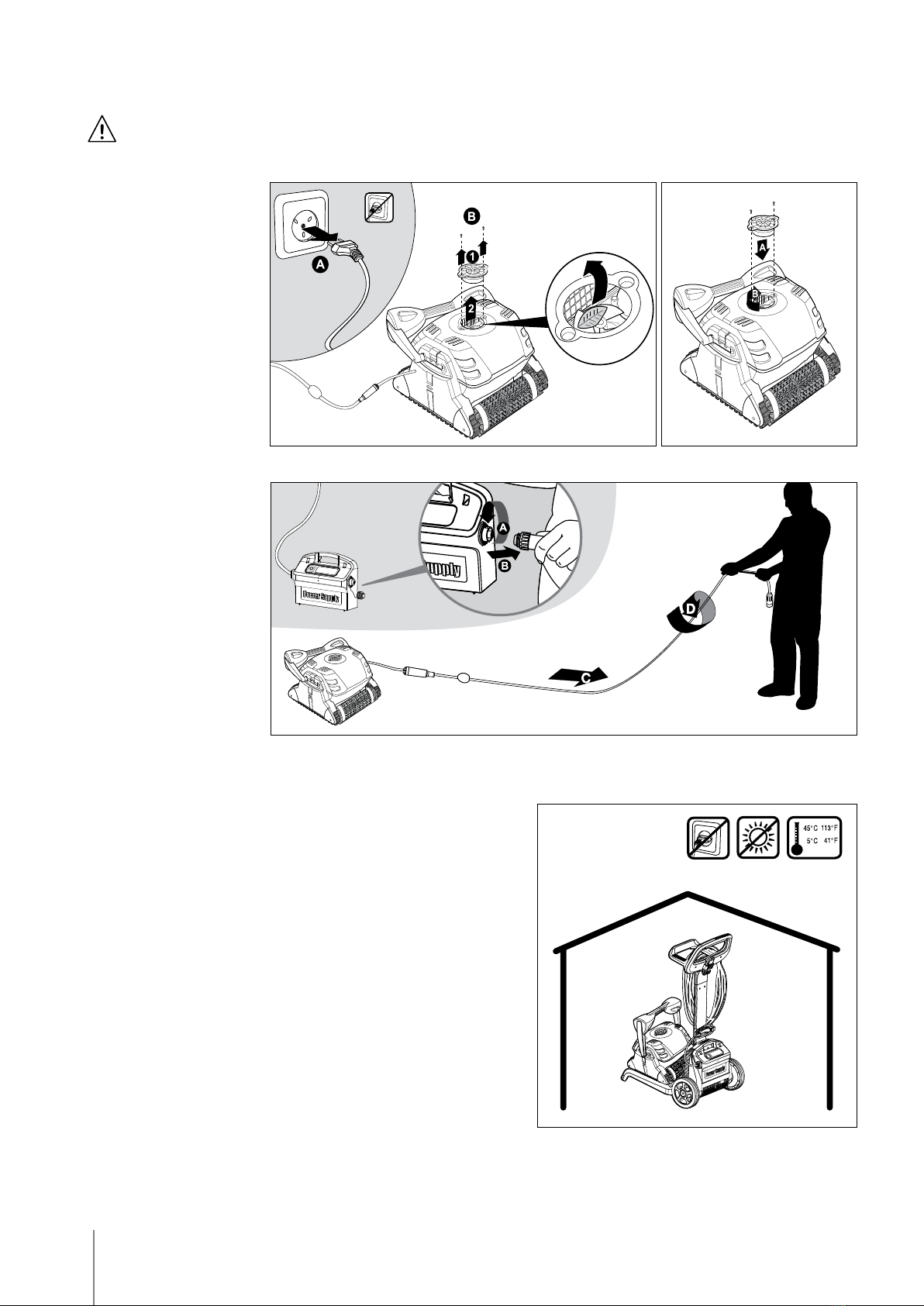

If you notice debris
trapped in the
impeller, open
the impeller and
remove the debris.
If the pool cleaner will not be in use for an extended
period, perform the following storage steps:
• Make sure that no water is left in the pool cleaner
• Thoroughly clean the filter bag and insert in place
• Roll up the cable so that it has no kinks and place
on the Caddy
• Store the pool cleaner upright on the Caddy in
a protected area out of direct sun/rain/frost at a
temperature of between 5°C - 45°C (41°F - 113°F)
5.5. Off-season storage
Cleaning the impeller
Unplug the power supply.
To remove the
kinks, stretch
the cable out
completely and let
it sit for at least a
day in the sun.
Cable
Dolphin WAVE 50 Pool Cleaner | Operating Instructions
9

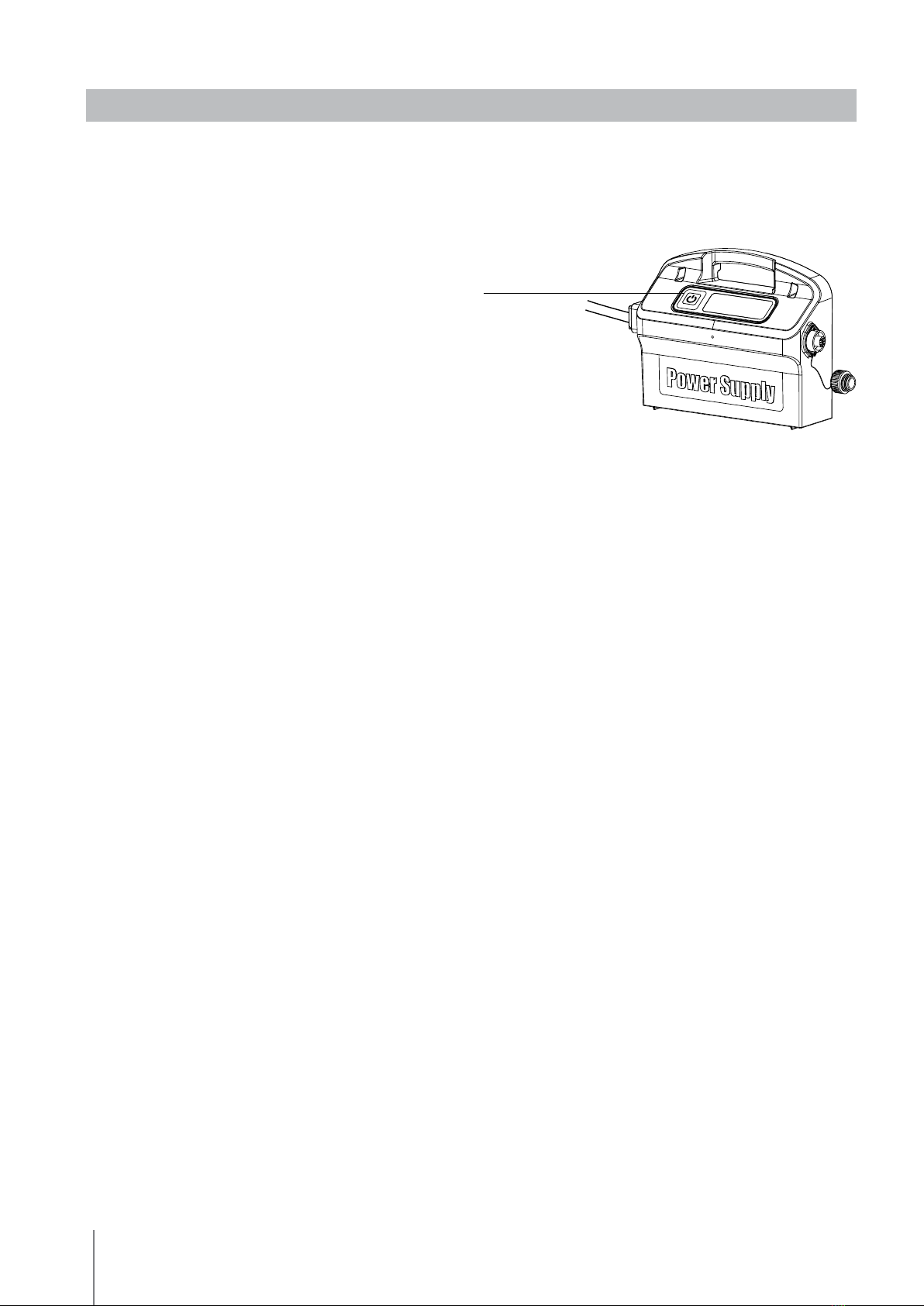

• Input - 100 VAC - 250 VAC
• 50 Hz - 60 Hz
• 180 W
• Output - <30 VDC
• IP 54
Digital “Switch-Mode” Power Supply.
6. POWER SUPPLY
ON/OFF switch
Dolphin WAVE 50 Pool Cleaner | Operating Instructions
10

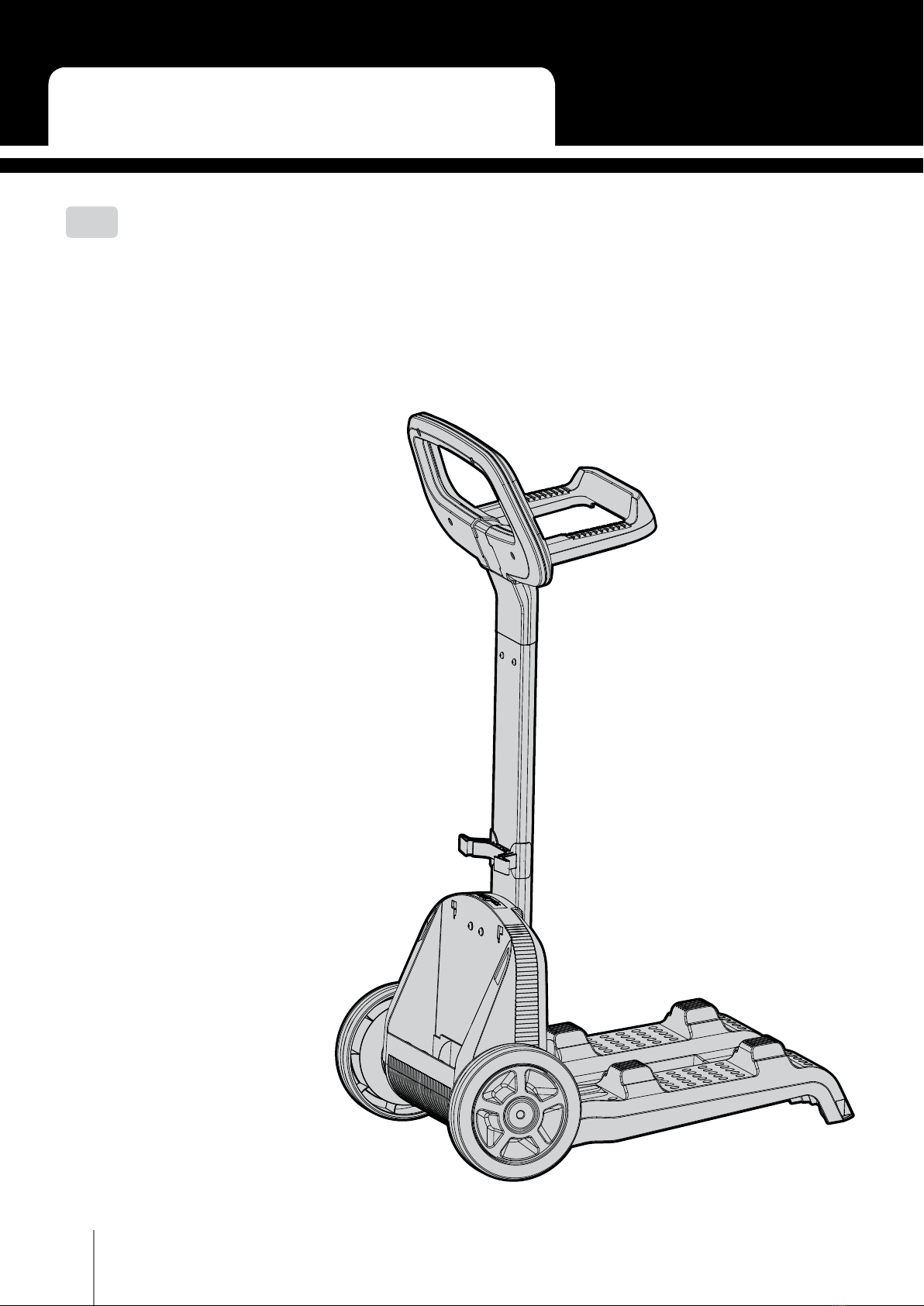

EN Caddy assembly
Dolphin WAVE 50 Pool Cleaner
