Maytag MES5875BAN - 30" Electric Range Manuel
Repair
Parts
List
MODEL NUMBER
MES5875BAN
When requesting service or ordering parts, always
provide the following information:
- Product Type - Part Number
- Model Number - Part Description
RANGE
©2005 Maytag Services
Section: CONTROL PANEL/TOP ASY
C10-684
Model: MES5875BAN
1
CONTROL PANEL/TOP ASY
No. Part No. Description
Section:
Series Qty
1 74011077 PANEL, CONTROL (BSQ) 10 1
2 7403P238-60 SWITCH, INFINITE (SML ELEMENT) Note: (LR) 10 1
3 74010824 SWITCH, ELEMENT (LRG) Note: (LF) 10 1
4 74007845 SUPPORT, ELEMENT 10 12
5 74004153 LIGHT, INDICATOR 10 2
6 7730P011-60 LENS, INDICATOR LIGHT 10 2
7 74010826 SUPPORT, CONTROL PANEL 10 1
8 74005085 CAP, END (BSQ-RT) 10 1
8 74005086 CAP, END (BSQ-LT) 10 1
9 74010665 TOP ASSEMBLY (BSQ) 10 1
10 74010680 CLOCK/OVERLAY (BSQ) 10 1
11 74010846 SHIELD, CONTROL 10 1
12 74008897 ELEMENT, DUAL (2400W) Note: (RF) 10 1
13 74008568 ELEMENT (1200W) Note: (LR/RR) 10 2
14 74008949 KNOB (BSQ/CHR) 10 6
15 74003357 SCREW (6ABX.25-ZN) 10 24
16 74005759 TUBE, VENT (UPR) 10 1
17 74011799 LIGHT, INDICATOR 10 1
18 74010825 SWITCH, ELEMENT (WARM ZONE) Note: (CTR) 10 1
19 74008898 ELEMENT, WARMING Note: (CTR) 10 1
20 74002929 SWITCH, SELECTOR 10 1
21 74008940 SWITCH, INFINITE (FLEX) Note: (RR) 10 1
22 74011070 SWITCH, INFINITE Note: (RF) 10 1
23 74011093 ELEMENT (TRIPLE) Note: (RF) 10 1
2
*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available
Section: BODY
C14-916
Model: MES5875BAN
3
BODY
No. Part No. Description
Section:
Series Qty
1 74010949 BACK, MAIN 10 1
2 74010813 INSULATION, WRAPPER 10 1
3 74010815 EXTENSION, MAIN BACK 10 1
4 74005725 HINGE, DOOR 10 2
5 74010816 TUBE, VENT 10 1
- 74010817 HOLDER, VENT TUBE 10 1
6 74010818 SWITCH, HI-LIMIT 10 1
7 74008263 SWITCH, DOOR LOCK 10 1
8 74001632 BRACKET, SWITCH ACTUATOR 10 1
9 22002368 SCREW----NA 10 2
10 74001629 SPRING, DOOR SWITCH 10 1
11 74003562 ROD, DOOR LIGHT SWITCH 10 1
12 74001631 BUMPER, ROD 10 1
13 74008264 INSULATOR 10 1
14 74010819 LATCH ASY 10 1
15 74010820 EXTENSION, HEAT SHEILD 10 2
16 74010821 PANEL, SHIELD (LT) 10 1
16 74010822 PANEL, SHIELD (RT) 10 1
17 74010823 FAN, COOLING 10 1
18 74010845 COVER, DOOR LATCH 10 1
19 74004180 BRACKET, POWER SUPPLY 10 1
20 74006364 INSULATOR, POWER CORD 10 1
21 74010833 TRIM, SIDE (BSQ) 10 2
22 74006096 COVER, WIRE (REAR) 10 1
23 74005264 COVER, TERMINAL BLOCK 10 1
24 7101P112-60 SCREW 10 4
25 74003976 SCREW, SHOULDER 10 4
26 7401P039-60 BLOCK, TERMINAL 10 1
4
*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available
Section: OVEN/BASE
C12-541
Model: MES5875BAN
5
OVEN/BASE
No. Part No. Description
Section:
Series Qty
1 74010805 SCREW, LEVELING LEG 10 4
2 74010899 BOTTOM, PEDESTAL 10 2
3 74010882 PEDESTAL, FRONT 10 2
4 74006591 SHIELD, WARMING DRAWER 10 1
5 74007129 SUPPORT, VALVE REGULATOR 10 1
6 74003565 RUNNER, DRAWER 10 2
7 74004078 ROLLER, DRAWER 10 2
8 74005231 SHAFT, STORAGE DRAWER ROLLER 10 2
9 74005230 NUT, LOCK (8-32) 10 2
10 74010806 PAN, BAKE 10 1
11 74010808 TUBE, VENT (LWR) 10 1
- 74010809 PLATE, VENT COVER 10 1
12 74010810 BAFFLE, BROIL 10 1
13 74011479 ELEMENT, BROIL 10 1
14 74003563 SUPPORT, BROIL ELEMENT 10 1
15 74010811 ELEMENT, BAKE 10 1
16 74004943 SENSOR, OVEN (LONG) 10 1
17 74010885 LAMP ASSEMBLY 10 1
18 74003976 SCREW, SHOULDER 10 2
19 74010812 SUPPORT, OVEN BOTTOM 10 2
20 74010853 BOTTOM, OVEN 10 1
21 74001757 RACK, OVEN 10 2
22 74009589 RACK, CREATE A SPACE HALF 30" 10 1
23 74005564 BRACKET, ANTI-TIP 10 1
- 7101P352-60 SCREW 10 2
24 74010505 SCREW, 3/4" HEX HEAD 10 6
25 74010807 COVER, FRONT 10 1
26 74009587 INSERT, HALF RACK 30" 10 1
27 74011094 FAN ASSEMBLY, CONVECTION 10 1
28 74008315 COVER, CONVECT FAN 10 1
29 74010814 RETAINER, CONV INSULATION 10 1
30 7101P124-60 SCREW W/WASHER 10 6
6
*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

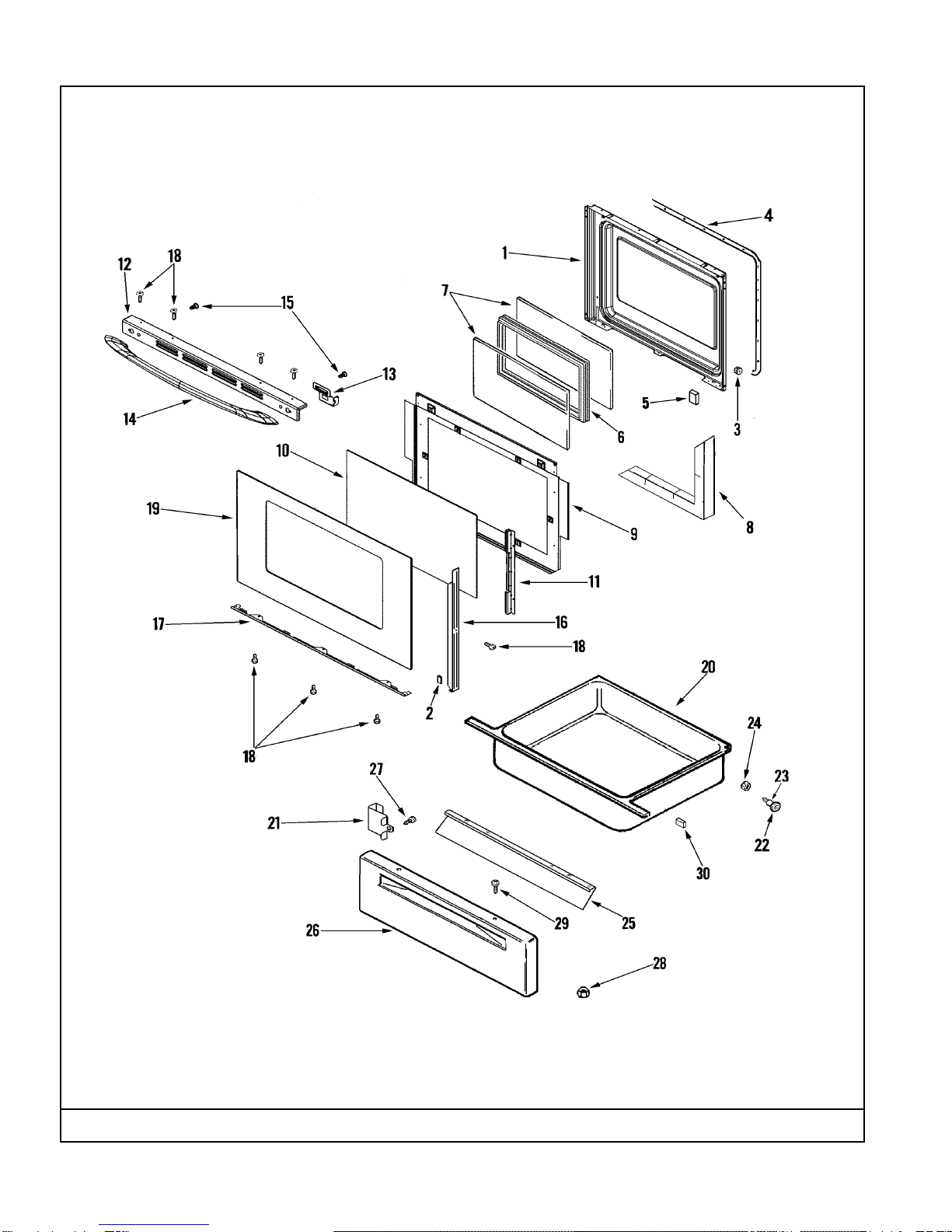

Section: DOOR/DRAWER
C11-871
Model: MES5875BAN
7
DOOR/DRAWER
No. Part No. Description
Section:
Series Qty
1 74003642 LINING, DOOR 10 1
2 74004224 TAPE, SINGLE SIDED (WHT) 10 2
3 74001574 NUT, SNAP (ROUND-BLK) 10 4
4 7201P046-60 GASKET, DOOR 10 1
5 74005546 SPACER, RUBBER 10 2
6 74003644 FRAME, GLASS 10 1
7 74003645 GLASS, INNER 10 2
8 74003647 INSULATION, OVEN DOOR 10 2
9 74009502 BAFFLE, OVEN DOOR 10 1
10 74004857 GLASS W/TAPE ASSY 10 1
11 74003650 RETAINER, GLASS 10 2
12 74009691 TRIM, DOOR TOP (BSQ) 10 1
13 74009698 BRACKET, DOOR HANDLE (RT) 10 1
13 74009699 BRACKET, DOOR HANDLE (LT) 10 1
14 74011110 HANDLE, DOOR (BSQ) 10 1
15 74006635 SCREW W/WASHER (HANDLE MTG) 10 2
16 12002360 KIT, DOOR TRIM (BSQ) 10 1
17 74009688 SUPPORT, GLASS (BSQ) 10 1
18 74009541 SCREW (BSQ) 10 9
19 12002397 KIT, DOOR GLASS (BSQ) 10 1
20 74008333 DRAWER, STORAGE 10 1
21 74010896 BRACKET, DRAWER 10 2
22 74004078 ROLLER, DRAWER 10 2
23 74005231 SHAFT, STORAGE DRAWER ROLLER 10 2
24 7103P082-60 NUT 10 2
25 2404F030-51 LINING, DRAWER PANEL 10 1
26 74004966 PANEL, DRAWER (BSQ) 10 1
27 74004310 SCREW, PANEL 10 2
28 74005230 NUT, LOCK (8-32) 10 2
29 74009541 SCREW (BSQ) 10 2
30 74005546 SPACER, RUBBER 10 2
8
*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available
SUPPLEMENTAL INFORMATION
No. Part No. Description
Section:
Series Qty
- 8113P561-60 MANUAL, USE & CARE 11 1
- 8113P500-60 MANUAL, USE & CARE 10 1
- 74011084 HARNESS, MAIN 10 1
- 74011090 HARNESS, SWITCH (RT) 10 1
- 74010849 HARNESS, SENSOR/LATCH 10 1
- 74010851 HARNESS, SWITCH (LT) 10 1
- 74011092 HARNESS, TOP 10 1
- 20000001 COOKTOP CLEANING CREME 10 1
- 74006500 SCRAPER, RAZOR (METAL) 10 1
- K71FILLQ KIT, EXTRUSION FILLER (BSQ) 10 1
- W10124350 NOT REQUIRED PART OR SEE NOTE Note: ACCESSORY FILLER KITS 10 0
- W10124350 NOT REQUIRED PART OR SEE NOTE Note: ACCESSORY SIDE PANEL KITS 10 0
- UXA1100AAQ KIT, SIDE PANEL (BSQ) 10 1
- W10124350 NOT REQUIRED PART OR SEE NOTE Note: ACCESSORY SIDE TRIM PLUGS 10 0
- 74011436 PLUG, SIDE TRIM (BSQ) 10 8
9
*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available
