COOKTOP PARTS

For Models: MER8875WW1, MER8875WB1, MER8875WS1

(White) (Black) (Stainless)

30" FREE STANDING

ELECTRIC RANGE

CONVECTION

4−10 Litho in U.S.A. (ll) (psw) Part No. W10307329 Rev. B

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10239459

Use & Care Guide

W10239465

Wiring Diagram

W10258095

Installation

Instructions

9762761 Brochure, Safe Tip

2 Cooktop

W10106413

White

W10106414

Black

8010P149−60

Spacer Snap−In (4)

4 8285848 Element, Bridge

5 9762851 Element, Warm

7803P087−60

Spring, Element

7 3196165 Screw

W10170717

Bottom, Burner Box

W10162041

Triple (RF)

10 8273994 Element (RR)

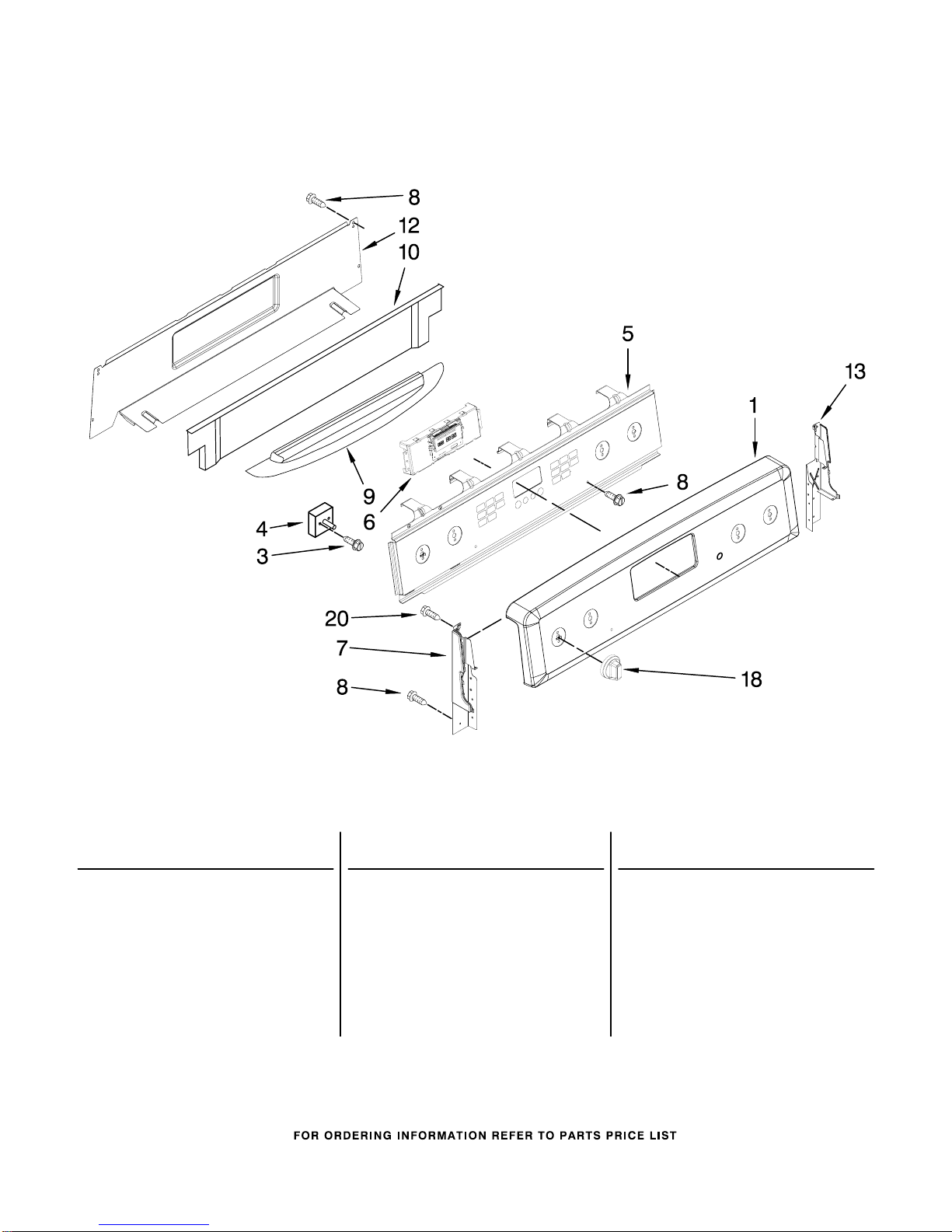

CONTROL PANEL PARTS

For Models: MER8875WW1, MER8875WB1, MER8875WS1

(White) (Black) (Stainless)

W10307329

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Panel, Backguard

W10097280

Black

W10097270

White

W10097310

Stainless Steel

3 3400882 Screw, Switch

4 Switch, Infinte

W10169580

Triple (RF)

3148951 (RR)

W10149355

Dual (LF)

3148953 (LR)

W10207494

Active Overlay

W10157249

Control

7 End Cap, Left

W10163969

Black

W10163967

White

8 3196168 Screw

9 Shield, Heat Visor

3604F382−09

Black

3604F382−81

White

3604F381−19

Shield, Vent

W10243038

Cover, Rear Wire

13 End Cap, Right

W10163970

Black

W10163968

White

18 Knob (4)

W10211372

Black/Chrome

W10291145

Stainless Steel

W10211371

White/Chrome

7101P663−60

Screw

CHASSIS PARTS

For Models: MER8875WW1, MER8875WB1, MER8875WS1

(White) (Black) (Stainless)

W10307329

CHASSIS PARTS

For Models: MER8875WW1, MER8875WB1, MER8875WS1

(White) (Black) (Stainless)

W10307329

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Panel, Side

2618F172−58

White

2618F172−69

Black

2 3196560 Screw

3601F380−51

Retainer, Side

8002P104−60

Latch Assembly

W10243046

Main Back

W10205618

Cover, Main Wire

8 3196178 Screw

7003P145−60

Insulator, Cord

W10243045

Cover, Wire (LWR)

4005P704−51

Panel, Access

7103P082−60

Nut, Term.Block

7401P039−60

Block, Terminal

3605P146−51

Plate, Conduit

3401F084−45

Pan, Bake

16 3196160 Screw

W10260573

Screen, Access

7101P507−60

Leg, Leveling

3801F656−51

Bracket, Anti−Tip

7101P485−60

Screw, Anti−Tip

3604F371−51

Shield, Heat

24 3196173 Screw, 8AB 1/2

7406P493−60

Element, Broil

W10181986

Sensor, Oven

8026P081−60

Vent, Oven

7101P282−60

Screw (4)

7101P618−60

Screw, Shoulder(6)

W10162385

Gasket

8010P148−60

Spacer, Side Pnl.

7106P125−60

Receiver, Hinge

34 3196701 Light Assembly

3801P798−51

Bracket, Oven

7101P375−60

Screw (Black) (2)

38 311255 Bulb, Oven

7101P618−60

Screw, Shoulder

3801P822−45

Support, Ov BTM

7406P451−60

Element, Bake

3807P680−45

Support, Oven

w10211367

Bottom, Oven

7427P105−60

Fan Assy, Convect

45 3196154 Screw

3605F305−19

Plate, Convection

3804F300−51

Insulation

7403P857−60

Switch, Thermal

7101P336−60

Screw (2)

INSULATION

7002P362−60

Insulation, Wrap

W10243056

Insulation, Back

7002P361−60

Insulation, Bottom

W10182346

Insulation, Side

3804F316−51

Retainer,

Insulation

4820F014−59

Strap, Insulation

DOOR PARTS

For Models: MER8875WW1, MER8875WB1, MER8875WS1

(White) (Black) (Stainless)

W10307329

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

3823F017−45

Spacer, Handle

W10181725

Door, Glass Oven

7106P124−60

Hinge, Door (2)

3601F380−51

Baffel, Retainer

5 3196178 Screw 8AB 1/2

7902P436−60

Glass, Inner

3801F886−51

Frame, Glass Inner

3801P918−51

Bracket, Glass

W10241367

Screw, Mounting

2402W297−19

Lining, Door

3801F886−51

Bracket, Glass (2)

7002P246−60

Insulation, Door

13 3196178 Screw

7101P282−60

Screw 10−24x5/16

15 Glass, Door

W10172590

White

W10097300

Stainless Steel

W10214541

Black

16 Handle, Door

W10171747

White

W10171748

Black

W10161708

Stainless Steel

W10290904

Gasket, Door

DRAWER AND RACK PARTS

For Models: MER8875WW1, MER8875WB1, MER8875WS1

(White) (Black) (Stainless)

W10307329

Illus. Part

No. No. DESCRIPTION

3605P337−51

Plate, Panel MTG.

2 3196165 Screw (2)

3405F037−80

Drawer, Storage

7103P082−60

Nut, Lock

W10268578

Rack, Oven

7118P032−60

Shaft, Roller

7 3196165 Screw

7103P082−60

Nut

9 Panel, Drawer

W10181695

White

W10181696

Black

W10181698

Stainless Steel

3406P034−51

Runner, Drawer

7103P190−60

Nut, Lock

W10272883

Roller, Drawer

7118P032−60

Shaft, Roller

8038P037−60

Stop, Drawer

OPTIONAL PARTS (NOT INCLUDED)

For Models: MER8875WW1, MER8875WB1, MER8875WS1

(White) (Black) (Stainless)

W10307329

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

REFINISHING MATERIAL

242756 Touch−Up

Self−Clean(1/2 Pt)

INSULATION

261514 Insulation,

Fiberglass (1−1/2"

x 24" x 120")

240132 Insulation,

Fiberglass (2−1/2"

x 22" x 120")

PAINT, TOUCH−UP (1/2oz.)

72017 White

4392899 Biscuit

(2 Oz.)

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

4392901 Biscuit

285006 Superior Black

206922 Primer (White)

PAINT, BULK (1 qt.)

799344 White (Uncut)

4392900 Biscuit(Uncut)

ACCESSORY PARTS

241430 Foil, Aluminum

Oven (18" x 25’)

3191048 Cleaner, Glass

WIRING HARNESS PARTS

W10237593

Harness, Wire

(Cooktop Right)

W10237594

Harness, Wire

(Cooktop Left)

W10237592

Harness, Wire

(Main)

W10237595

Harness, Wire

(Bridge)

8019P013−60

Clip, Wire

7101P027−60

Screw, Ground

7401P157−60

Block, Wire

Adapter (3)
