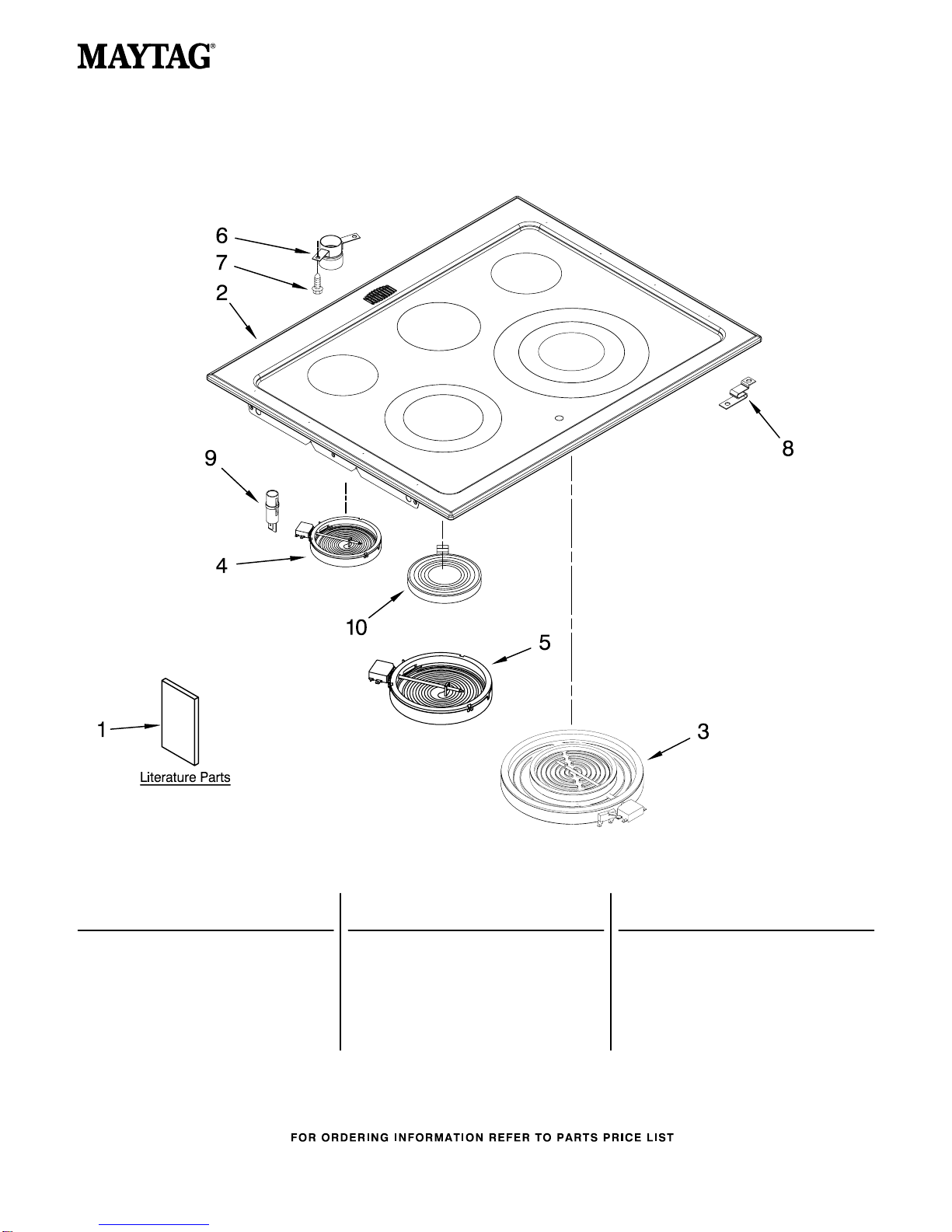

COOKTOP PARTS

For Models: MES5775BAB19, MES5775BAF19, MES5775BAS19

(Black) (Frost White) (Stainless)

5−10 Litho in U.S.A. (LANK) (psw) Part No. W10298327 Rev. B

30" Slide−In

Electric Range

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8113P771−60

Use & Care Guide

8101P716−60

Installation,

Instructions

8119P148−60

Wiring Diagram

2 Cooktop

5706M538−09

Black

5706M538−81

White

5706M538−50

Stainless

7406P410−60

Element (RF)

7406P403−60

Element (LF)

5 8523698 Element (LR/RR)

W10233479

Tube, Vent Upper

7101P426−60

Screw

8004P093−60

Support,Element

7407P193−60

Light, Indicator

10 9762851 Element, Warm Zone

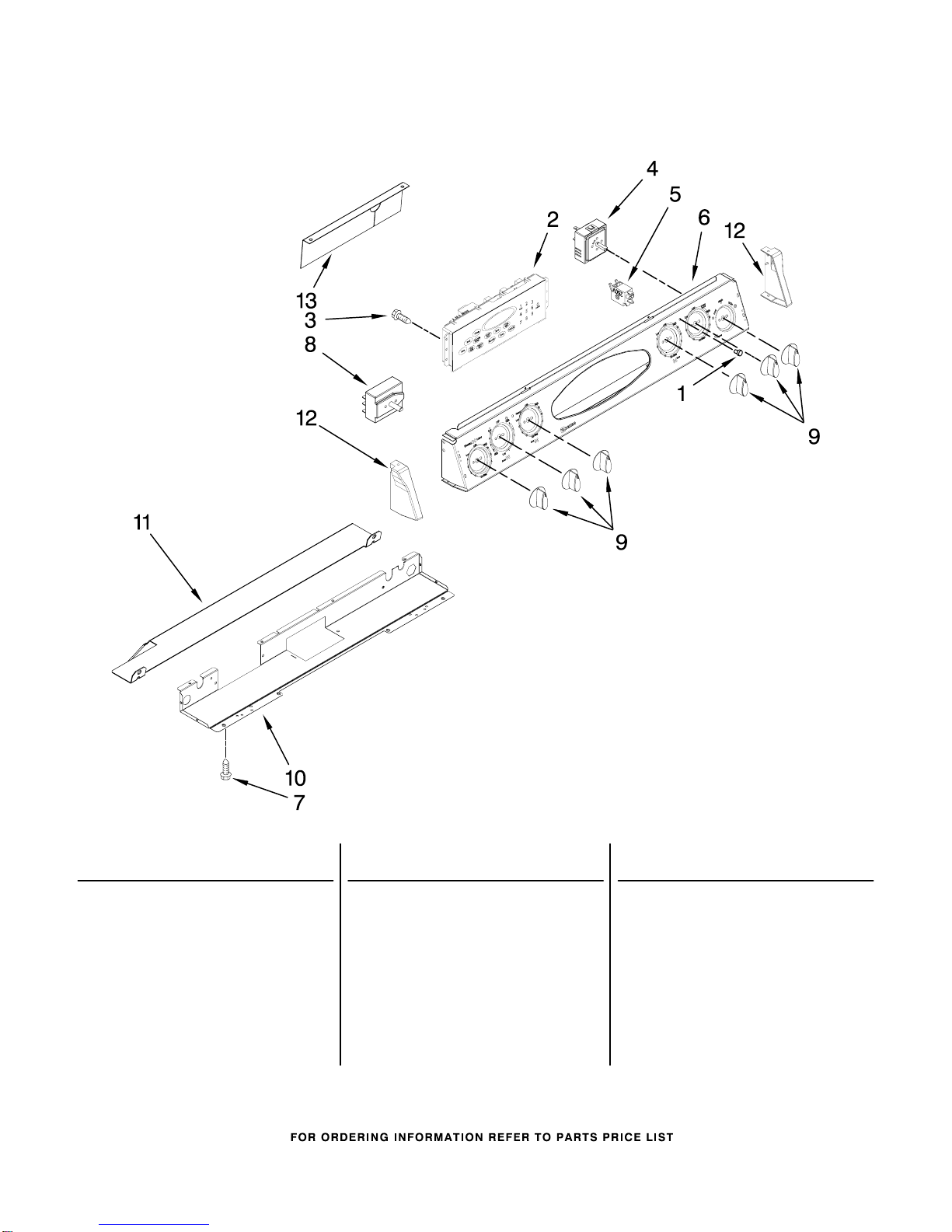

CONTROL PANEL PARTS

For Models: MES5775BAB19, MES5775BAF19, MES5775BAS19

(Black) (Frost White) (Stainless)

W10298327

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

7730P011−60

Lens

2 Control W/Overlay

5701M881−60

Black

5701M882−60

White

7101P077−60

Screw

4 Switch, Infinte

7450P011−60

7403P373−60

7403P992−60

7403P877−60

7450P024−60

Center

7407P136−60

Light, Indicator

6 Panel, Control

2614D131−09

Black

2614D131−81

White

2614N147−50

Stainless

7101P426−60

Screw

7403P255−60

Switch, Selector

9 Knob (6)

7737P235−60

Black

7737P238−60

White

3807F729−51

Support,

Control Panel

3604F421−51

Shield, Control

12 Trim, End Cap

7726P400−60

Black, Right

7726P401−60

Black, Left

7726P332−60

White, Right

7726P333−60

White, Left

7003P150−60

Shield, Insulator

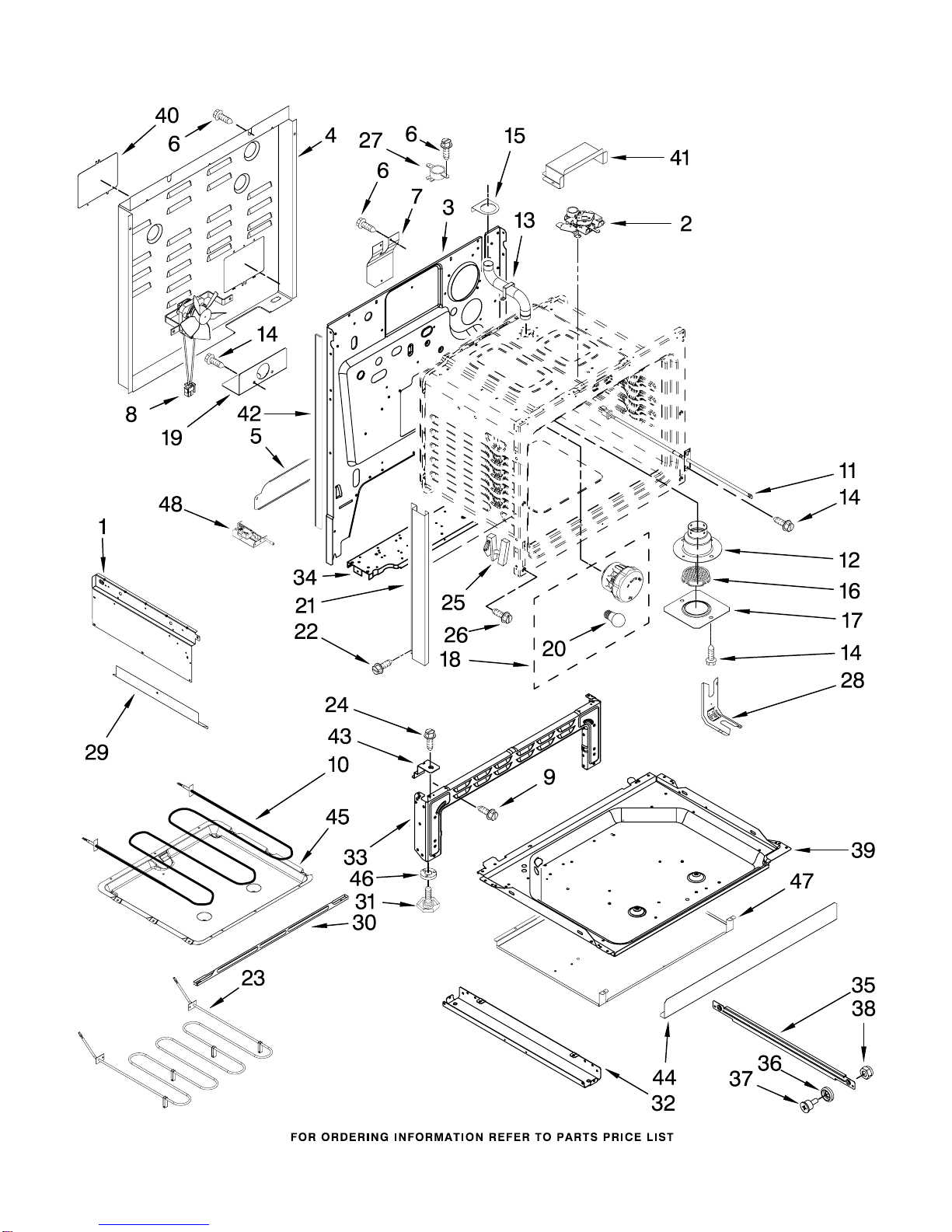

CHASSIS PARTS

For Models: MES5775BAB19, MES5775BAF19, MES5775BAS19

(Black) (Frost White) (Stainless)

W10298327

CHASSIS PARTS

For Models: MES5775BAB19, MES5775BAF19, MES5775BAS19

(Black) (Frost White) (Stainless)

W10298327

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Panel, Shield

2618F201−51

Left

2618F206−51

Right

8002P089−60

Latch Assembly

3804F313−51

Main Back

4005F810−51

Cover, Main Wire

3826F066−51

Extension, Back

7101P426−60

Screw

7003P101−60

Insulator, Cord

7427P094−60

Fan, Cooling

7101P434−60

Screw

7406P218−60

Element, Broil

7430P042−60

Sensor, Oven

8026P096−60

Tube, Vent Lower

8026P084−60

Tube, Vent Middle

7101P426−60

Screw

3605F345−51

Holder, Vent Tube

8034P008−60

Smoke Eliminator

3605F354−45

Plate, Smoke Elm.

7407P182−60

Light Assembly

W10190166

Bracket,Pwr Supply

7407P103−60

Bulb, Oven

21 Trim, Side

3608F138−70

Black

3608F138−71

White

7101P434−60

Screw

7406P411−60

Element, Bake

7101P434−60

Screw

7106P141−60

Hinge (2)

7101P336−60

Screw, Hinge (4)

7450P034−60

Switch, Hi−Limit

3801F656−51

Bracket,Anti−Tip

3826F064−51

Extention, Shield

3807F494−45

Support, Element

7101P660−60

Leg, Leveling

4020W035−80

Pedestal, Bottom

W10271711

Pedestal, Front

3807F640−51

Support

W10182835

Runner, Drawer (2)

W10272883

Roller, Drawer (2)

7118P032−60

Shaft, Roller (2)

7103P190−60

Nut, Lock (2)

3804F231−51

Retainer, Bottom

4005F612−51

Cover, Terminal

4005F750−51

Cover, Door Latch

2205F060−19

Bottom, Oven

3807F727−45

Support, Oven Btm

4005F749−45

Cover, Front

3401F092−45

Pan, Bake

7103P212−60

Nut, Leveling Leg

3604F326−45

Shield, Warm Dwr

7450P109−60

Assembly,

Light Switch

INSULATION

7002P471−60

Insulation, Wrap

7002P445−60

Insulation, Back

7002P448−60

Insulation,

Hidden Bake Cover

7002P443−60

Insulation,

Oven Bottom

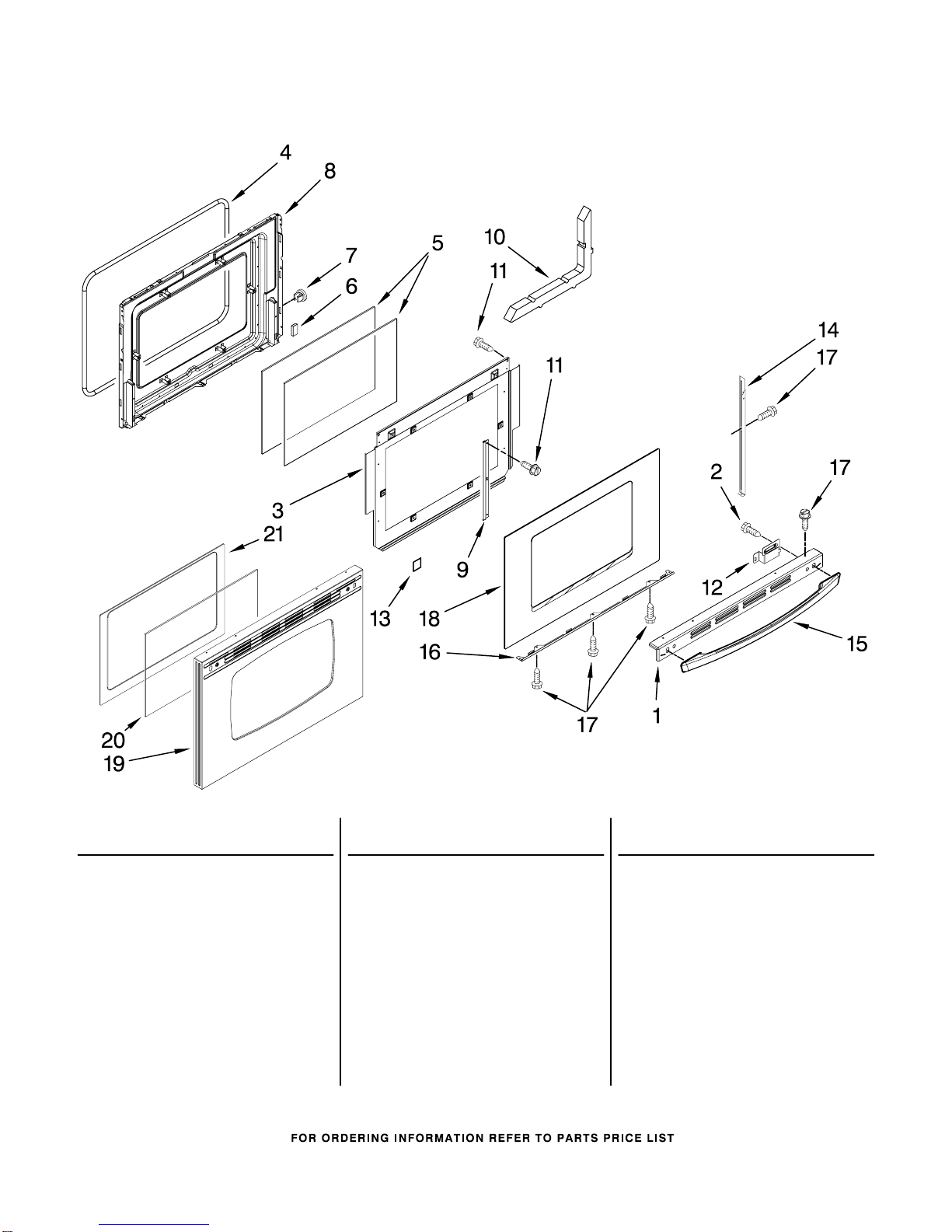

DOOR PARTS

For Models: MES5775BAB19, MES5775BAF19, MES5775BAS19

(Black) (Frost White) (Stainless)

W10298327

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Trim, Door Top

3608F141−70

Black

3608F141−71

White

7101P681−60

Screw, Handle (2)

3601F373−51

Baffle, Retainer

W10162384

Seal, Door

7902P436−60

Glass, Inner (2)

8010P130−60

Spacer, Rubber

7103P141−60

Nut, Snap (4)

2402W312−19

Lining, Door

3801F886−51

Bracket, Glass (2)

7002P246−60

Insulation, Door

7101P426−60

Screw

12 Bracket, Handle

3801F832−45

Left

3801F831−45

Right

8010P152−60

Spacer, Rubber

14 Trim, Door Side

3608F117−70

Black, Left

3608F116−70

Black, Right

3608F117−71

White, Left

3608F116−71

White, Right

15 Handle, Door

7701P516−60

Black

7701P517−60

White

7701P526−60

Stainless

16 Trim, Door Bottom

3807F708−70

Black

3807F708−71

White

7101P633−60

Screw, Trim

18 Panel, Outer

Door

7902P797−60

Black

7902P736−60

White

7760P186−60

Panel, Door

(Stainless Only)

7902P768−60

Glass, Door Inner

(Stainless Only)

7902P752−60

Glass, Outer

(Stainless Only)

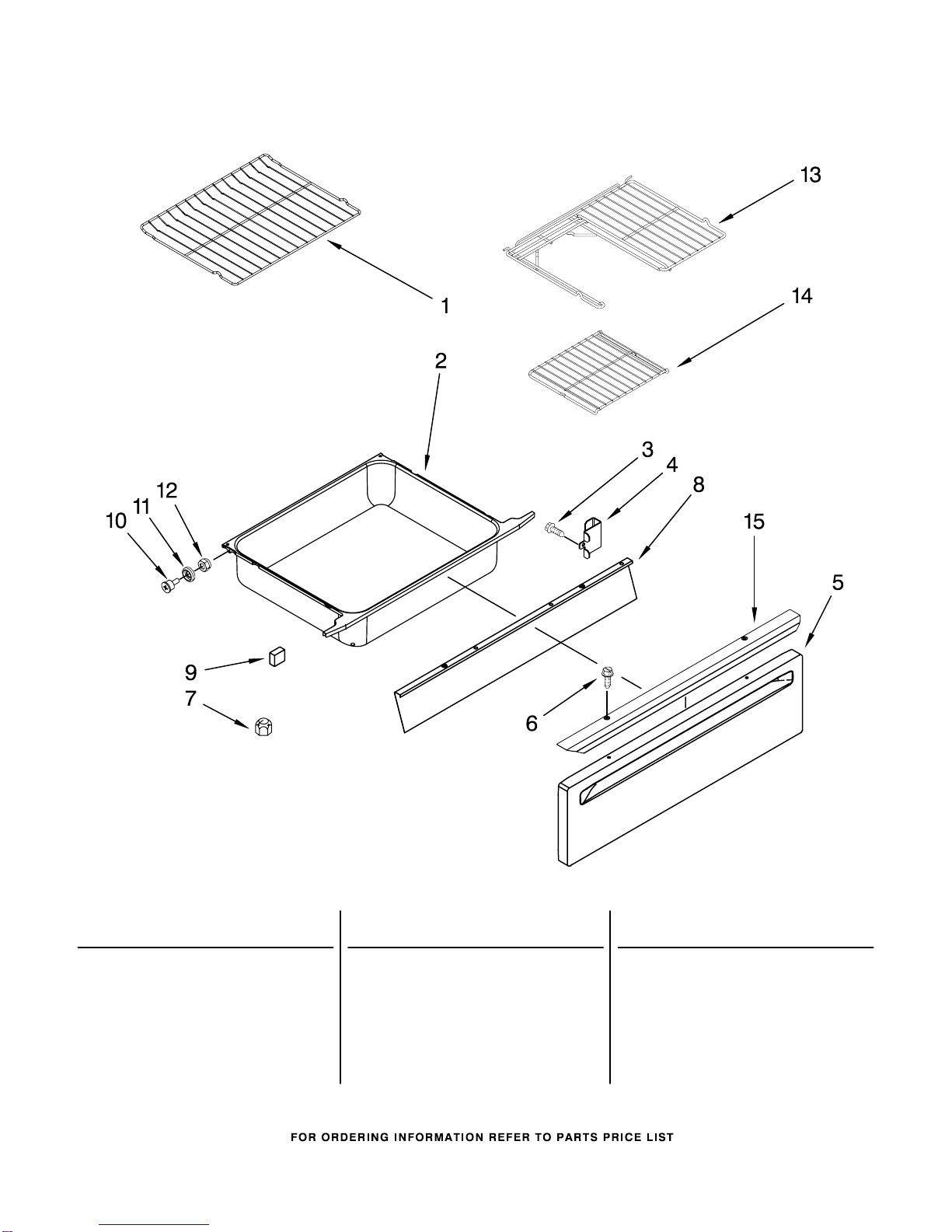

DRAWER AND RACK PARTS

For Models: MES5775BAB19, MES5775BAF19, MES5775BAS19

(Black) (Frost White) (Stainless)

W10298327

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

7801P173−60

Rack, Oven (2)

3405F033−80

Drawer, Storage

7101P072−60

Screw, Panel

3801F887−51

Bracket, Drawer

5 Panel, Drawer

2416F059−70

Black

2416F059−71

White

W10253205

Stainless

7101P072−60

Screw, Panel

7103P139−60

Nut, Lock

2404F030−51

Lining, Drawer

8010P130−60

Spacer, Rubber

W10272883

Roller, Drawer (2)

7118P032−60

Shaft, Roller (2)

7103P082−60

Nut

W10273862

Rack, Oven Half

W10275560

Rack,

Oven Half Insert

W10180296

Handle, Drawer

(Stainless Model)

OPTIONAL PARTS (NOT INCLUDED)

For Models: MES5775BAB19, MES5775BAF19, MES5775BAS19

(Black) (Frost White) (Stainless)

W10298327

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Parts Not Illustrated and

Optional Parts (Not Included)

REFINISHING MATERIAL

242756 Touch−Up

Self−Clean(1/2 Pt)

INSULATION

261514 Insulation,

Fiberglass (1−1/2"

x 24" x 120")

240132 Insulation,

Fiberglass (2−1/2"

x 22" x 120")

PAINT, TOUCH−UP (1/2oz.)

72017 White

4392899 Biscuit

511873 White Porcelain

(2 Oz.)

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

4392901 Biscuit

285006 Superior Black

206922 Primer (White)

PAINT, BULK (1 qt.)

799344 White (Uncut)

4392900 Biscuit(Uncut)

ACCESSORY PARTS

241430 Foil, Aluminum

Oven (18" x 25’)

3191048 Cleaner, Glass

WIRING HARNESS PARTS

5171P560−60

Harness, Sensor

5171P845−60

Harness, Top

5171P555−60

Harness,

Unity (Right)

5171P564−60

Harness,

Unity (Left)

5171P508−60

Harness, Main
