Maytag MDE2600AYW Manuel utilisateur

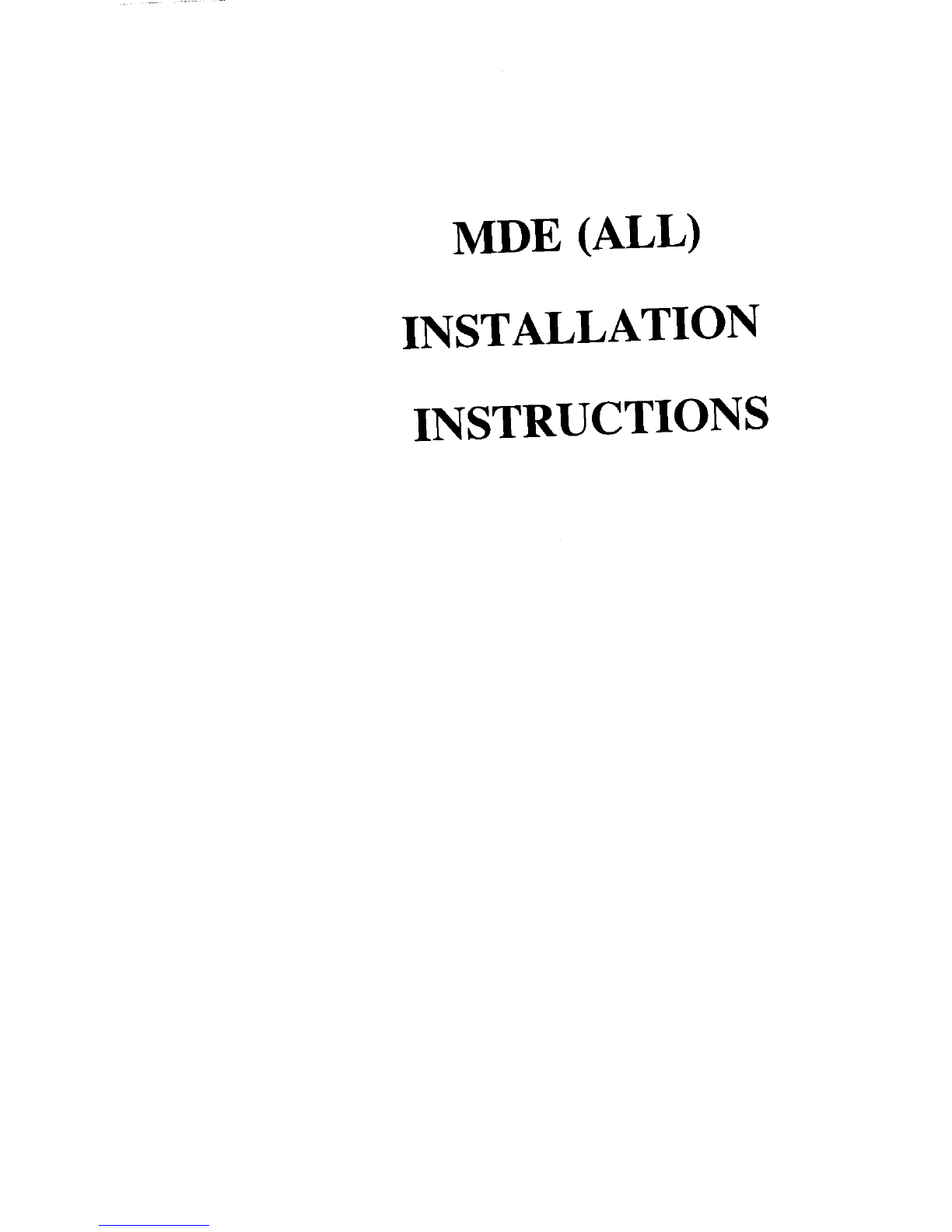

MDE (ALL)

INSTALLATION

INSTRUCTIONS

PLEASE READ ALL INSTALLATION

INSTRUCTIONS AND REQUIREMENTS

BEFORE INSTALLING.

ELECTRIC

FOR YOUR SAFETY

Do not store or use gasoline or

other flammable vapors or liq-

uids in the vicinity of this or

any other appliance.

oooo

¾"DEEPWELL DRIVER CHANNELLOCKPLIERSSCREWDRIVER PUFFY KNIFE DUCT TAPE

'/,"DRIVER ORADJUSTABLE WRENCH

BACKGUARD

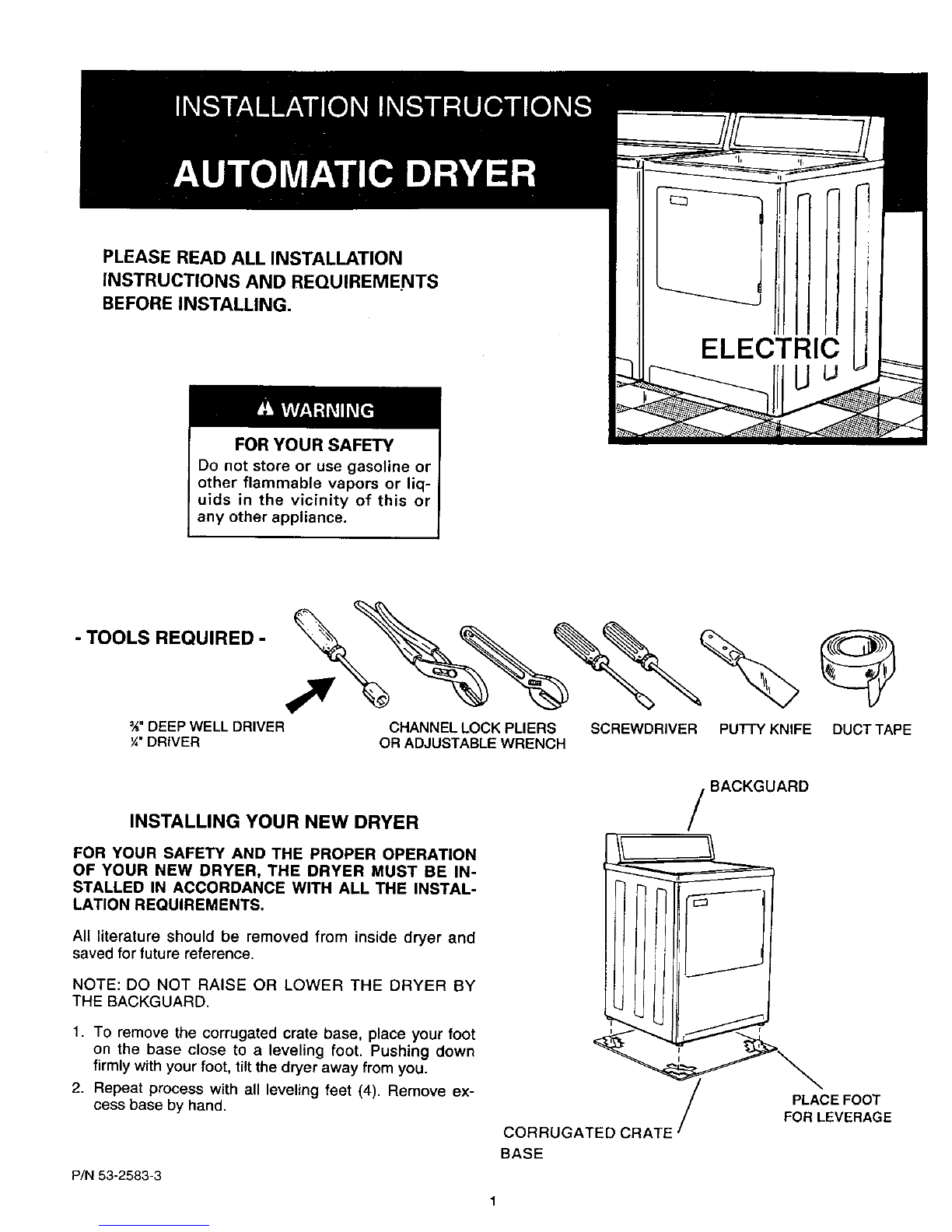

INSTALLING YOUR NEW DRYER /

FOR YOUR SAFETY AND THE PROPER OPERATION

OF YOUR NEW DRYER, THE DRYER MUST BE IN-

STALLED IN ACCORDANCE WITH ALL THE INSTAL-

LATION REQUIREMENTS._/

All literature should be removed from inside dryer and

saved for future reference.

NOTE: DO NOT RAISE OR LOWER THE DRYER BY

THE BACKGUARD.

1. To remove the corrugated crate base, place your foot

on the base close to a leveling foot. Pushing down

firmly with your foot, tilt the dryer away from you.

2. Repeat process with all leveling feet (4). Remove ex-

cess base by hand. E FOOT

CORRUGATED CRATE _ FOR LEVERAGE

BASE

P/N 53-2583-3

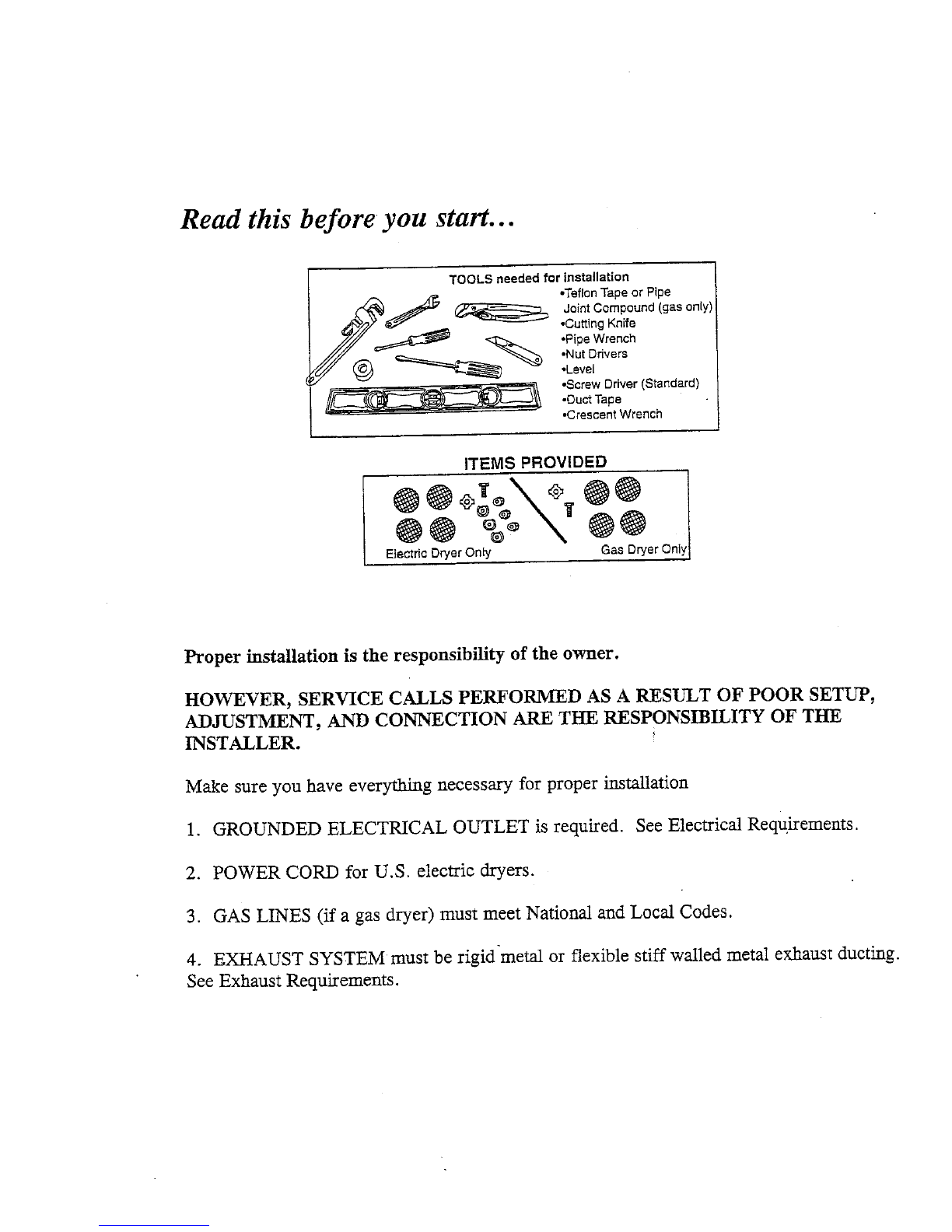

Read this before you start...

TOOLS needed for installation

•TeflonTape or Pipe

•CuttingKnife

•PipeWrench

•NutDrivers

.Level

_!/ -OuctTape.ScrewDriver(Standard)

•CrescentWrench

ITEMSPROVIDED

@@ @@

Electric DryerOnly GasDryerOnly

Proper installation is the responsibility of the owner.

HOWEVER, SERVICE CALLS PERFORMED AS A RESULT OF POOR SETUP,

ADJUSTMENT, AND CONNECTION ARE THE RESPONSIBILITY OF THE

INSTALLER.

Make sure you have everything necessary for proper installation

1. GROUNDED ELECTRICAL OUTLET is required. See Electrical Requirements.

2. POWER CORD for U.S. electric dryers.

3. GAS LINES (if a gas dryer) must meet National and Local Codes.

4. EXHAUST SYSTEM must be rigidmetal or flexible stiff walled metal exJaaustducting.

See Exhaust Requirements.

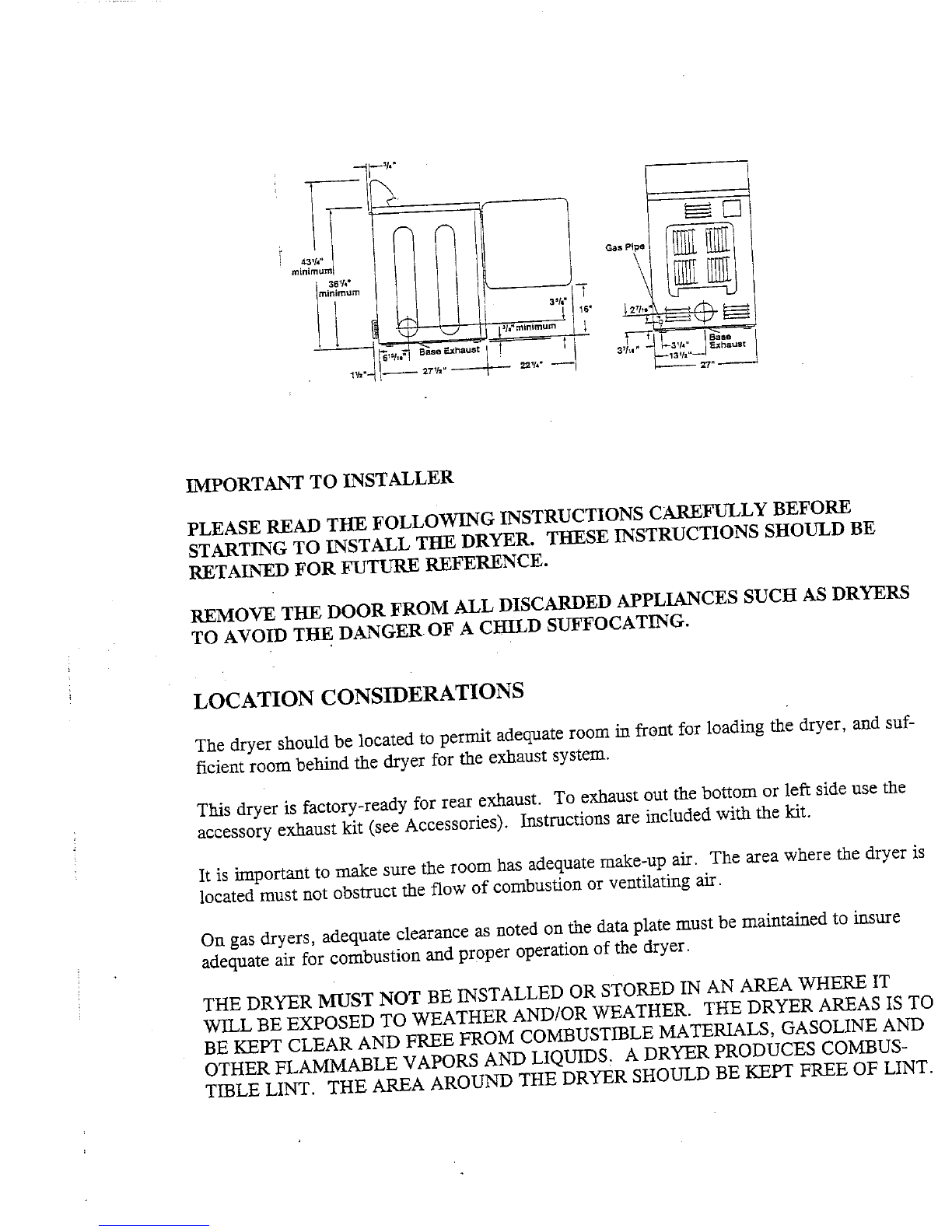

IMPORTANTTO INSTALLER

PLEASEREAD THE FOLLOWING INSTRUCTIONS CAREFULLY BEFORE

STARTING TO INSTALL THE DRYER. THESEINSTRUCTIONS SHOULD BE

RETAINED FOR FUTURE REFERENCE.

REMOVETHE DOOR FROMALL DISCARDED APPLIANCES SUCH AS DRYERS

TO AVOID THEDANGER OF A CHILD SUFFOCATING.

LOCATION CONSIDERATIONS

The dryer should be located to permit adequate room in front for loading the dryer, and suf-

ficient room behind the dryer for the exhaust system.

This dryer is factory-ready for rear exhaust. To exhaust out the bottom or left side use the

accessory exhaust kit (see Accessories). Instructions are included with the kit.

It is important to make sure theroom has adequate make-up air. The area where the dryer is

located must not obstruct the flow of combustion or ventilating air.

On gas dryers,adequate clearance as noted on the data plate must be maintained to insure

adequate air for combustion and proper operation of the dryer.

THE DRYER MUST NOT BE INSTALLED OR STORED IN ANAREA WHERE IT

WILL BE EXPOSED TO WEATHER AND/OR WEATHER. THE DRYER AREAS IS TO

BE KEPT CLEAR AND FREE FROM COMBUSTIBLE MATERIALS, GASOLINE AND

OTHER FLAMMABLE VAPORS AND LIQUIDS, A DRYER PRODUCES COMBUS-

TIBLE LINT. THE AREA AROUND THE DRYER SHOULD BE KEPT FREE OF LINT.

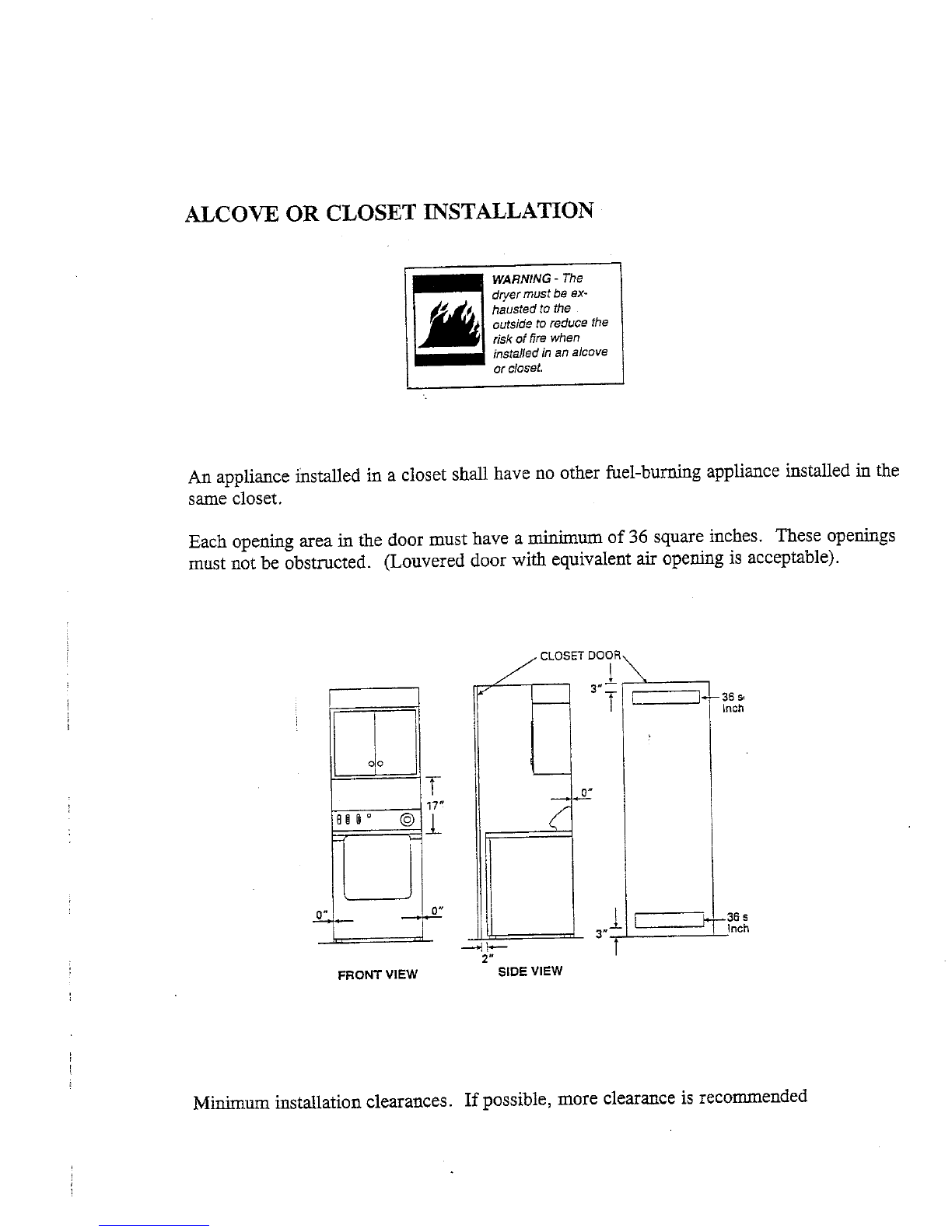

ALCOVE ORCLOSET INSTALLATION

WARNING-The

dryer must be ex-

hausted to the

outside to reduce the

risk of fire when

installed in an alcove

OrCloset.

An appliance installed in acloset shall have no other fuel-burning appliance installed in the

same closet.

Each opening area in the door must have a minimum of 36 square inches. These openings

must not be obstructed. (Louvered door with equivalent air opening is acceptable).

CLOSETDOOR

,_ _.---

FRONTVIEWSIDE VIEW

Minimum installation clearances. If possible, more clearance is recommended

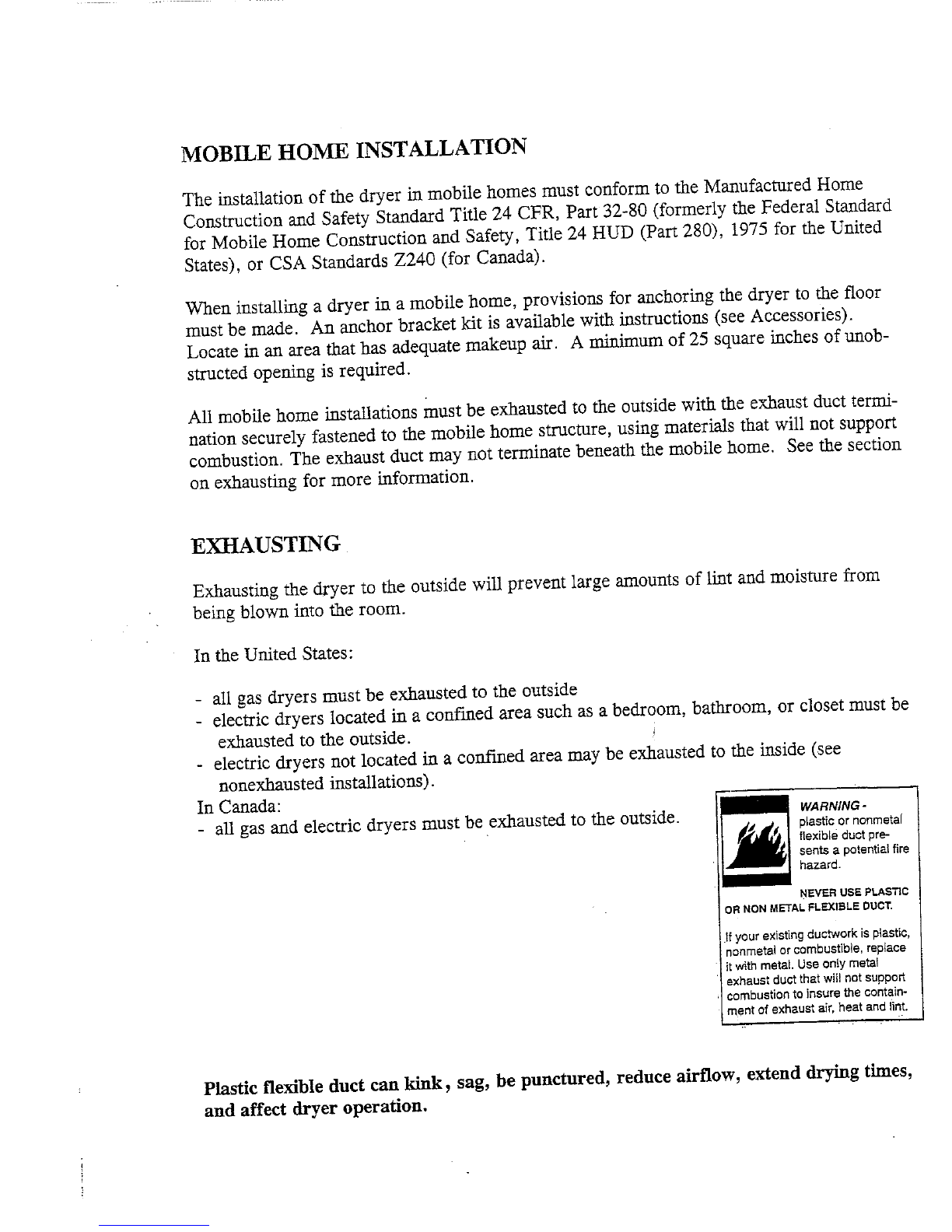

MOBILEHOME INSTALLATION

The installationofthedryerinmobilehomes mustconformtotheManufacturedHome

ConstructionandSafetyStandardTitle24 CFR, Part32-80(formerlytheFederalStandard

forMobileHome ConstructionandSafety,Title24HLrlD(Part280),1975fortheUnked

States),orCSA StandardsZ240 (forCanada).

When installingadryerinamobilehome,provisionsforanchoringthedryertothefloor

mustbe made. An anchor bracket kit is available with instructions (see Accessories).

Locate in an area that has adequate makeup air. Aminimum of 25 square inches of unob-

structed opening is required.

All mobile home installations must be exhausted to the outside with the exhaust duct termi-

nation securely fastened to the mobile home structure, using materials that will not support

combustion. The exhaust duct may not terminate beneath the mobile home, See the section

on exhausting for more information.

EXHAUSTING

Exhausting the dryer to the outside will prevent large mounts of lint and moisture from

being blown into the room.

In the United States:

- all gas dryers must be exhausted to the outside

- electric dryers located in a confined area such as a bedroom,bathroom, or closet must be

exhausted to the outside.

- electric dryers not located in a confined area may be exhausted to the inside (see

nonexhausted installations).

In Canada:

- all gas and electric dryers must be exhausted to the outside. W_RNmG-

p_astic or nonmetal

flexible ductpre-

sents a potential fire

hazard.

NEVERUSEPLASTIC

NMETALFLEXIBLEDDCT.

If your existing ductwork is p_astic,

nonmetalor combustible, replace

it with metal.Use only metal

exhaust duct thatwill not support

combustion toinsure the contain-

ment of exhaust air heat and lint.

Plastic flexible ductcan klnk,sag,be punctured, reduce airflow, extend drying times,

and affect dryer operation.

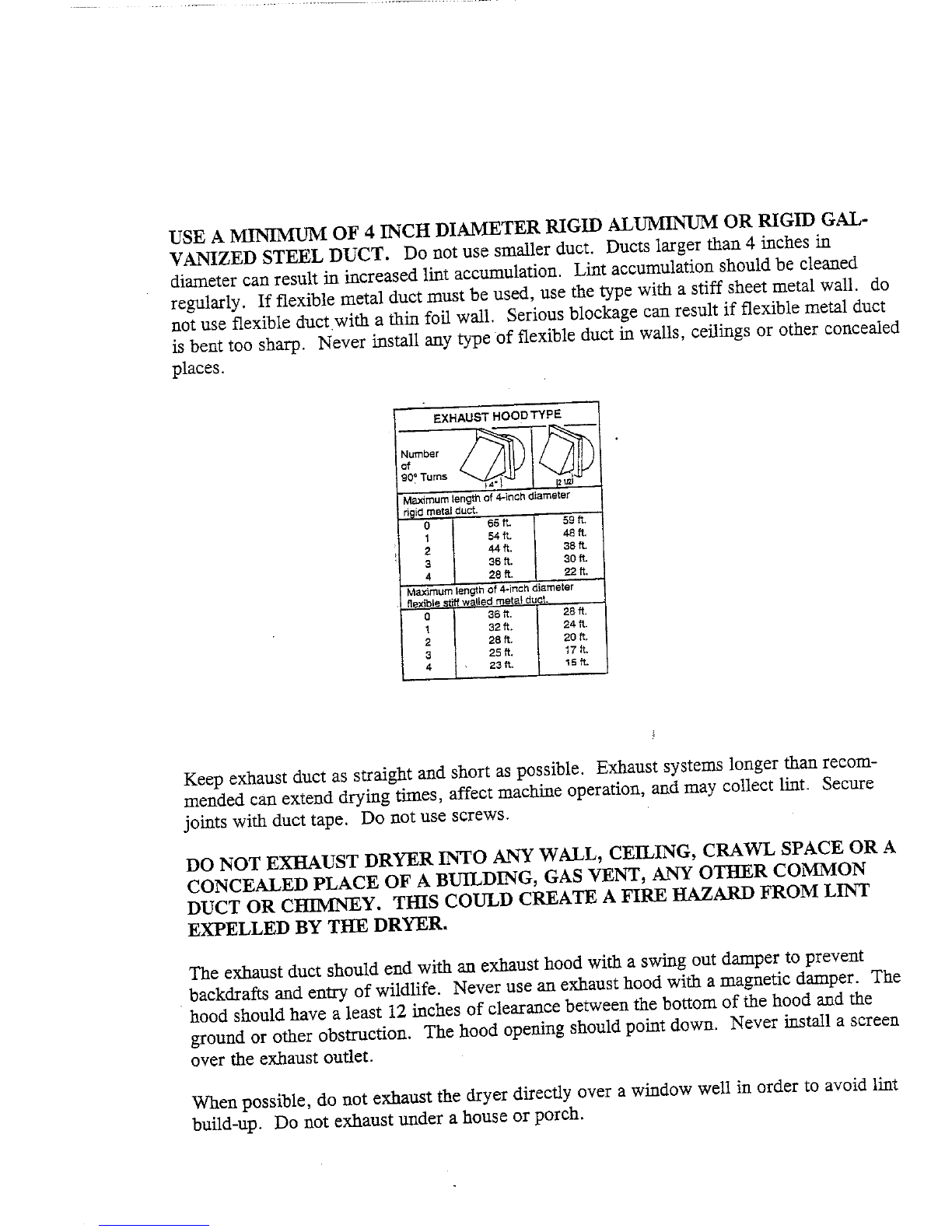

USE A MINIML_OF 4 INCH DIAMETERRIGID ALUMIh_J'M OR RIGID GAL-

VANIZED STEEL DUCT. Do not usesmaller duct. Ductslargerthan 4 inches in

diameter can resultin increased lint accumulation. Lintaccumulation should be cleaned

regularly. If flexiblemetal ductmust beused, use thetype with a stiff sheet metal wall. do

not use flexible duct with a thin foil wall. Serious blockage can result if flexiblemetal duct

is bent too sharp. Never install allytype of flexible duct in walls, ceilings or other concealed

places.

EXHAUSTHOOD TYPE

90!Turns

Maximumlengthof4-inchdiameter

rigidmetalduct.

0 65fL 59f_

154ft.48ft.

2 44ft. 38ft.

3 38ft. 30ft.

4 28ft. 22ft.

Maximumlengthof 4-inchdiameter

flz?xiblestiffwailedme,at duel

O 36ft.28ft.

13Zft.24f_.

226ft. 20_t,

325ff.17;l.

423ff. 1Eft.

Keep exhaust duct as straight and short as possible.Exhaust systems longer than recom-

mended can extend drying times, affect machine operation, and may collect lint. Secure

joints with duct tape. Do not use screws.

DO NOT EXHAUST DRYER INTOANY WALL, CEILING, CRAWL SPACE ORA

CONCEALED PLACE OFA BUILDING, GAS VENT, ANY OTHERCOMMON

DUCT OR CHIMNEY. THIS COULD CREATE AFIRE HAZARD FROM LINT

EXPELLED BY THE DRYER.

The exhaust duct should end with an exhaust hood with a swing out damper to prevent

backdrafts and entry of wiIdIife. Never use an exhaust hood with a magnetic damper. The

hood should have a least 12 inches of clearance between the bottom of the hood and the

ground orother obstruction. The hood opening should point down. Never install a screen

over the exhaust outlet.

When possible, do not exhaust the dryer directlyover a window well in order to avoid lint

build-up. Do not exhaust under a houseor porch.

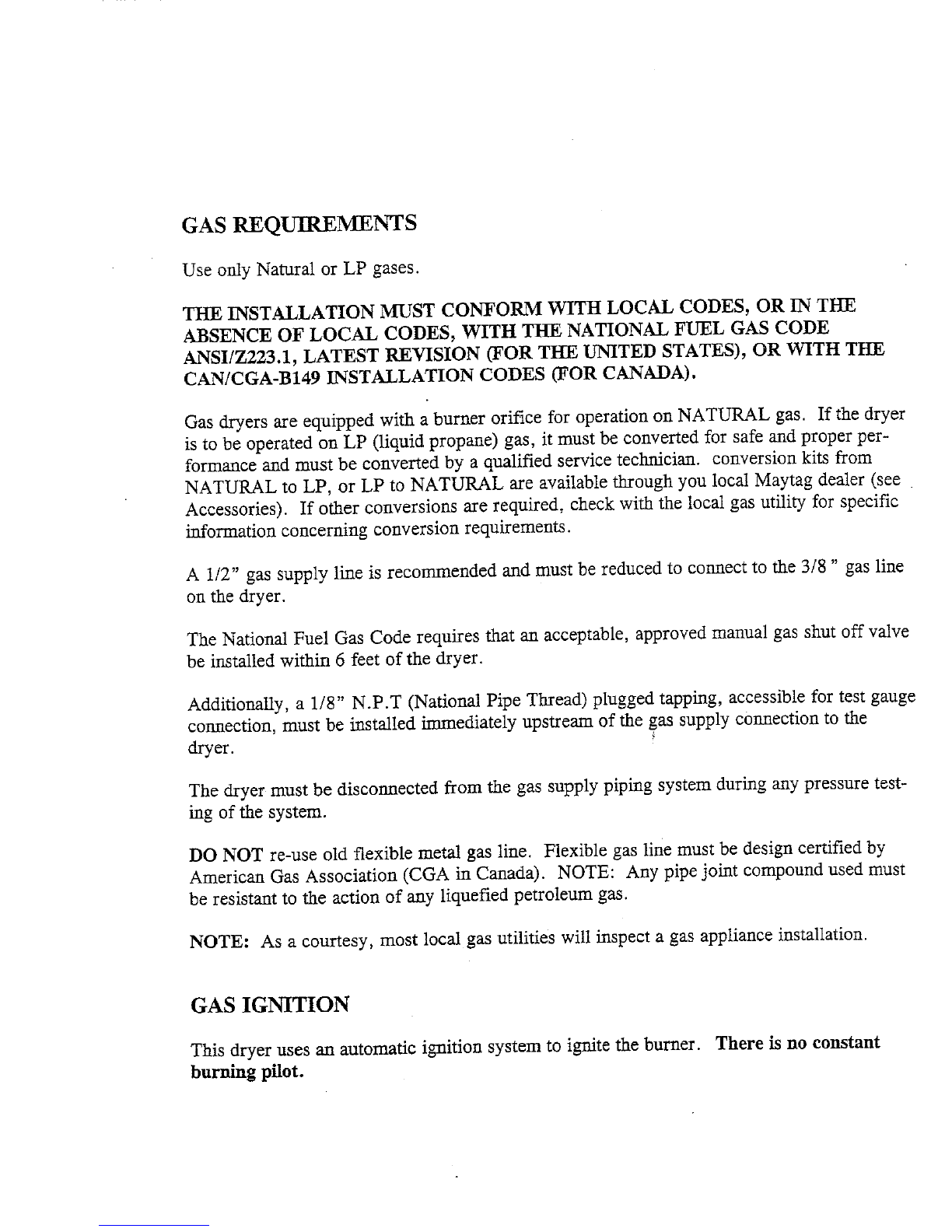

GAS REQUIREM-ENTS

Use only Natural or LP gases.

THE INSTALLATION MUST CONFORM WITH LOCALCODES, OR IN THE

ABSENCE OF LOCAL CODES, WITH THENATIONAL FUELGAS CODE

ANSIIZ223.1,LATESTREVISION (FORTHE UNITEDSTATES),OR WITH THE

CAN/CGA-B149 INSTALLATION CODES (FOR CANADA).

Gas dryers are equipped with a burner orifice for operation on NATURAL gas. If the dryer

is tobe operated on LP (liquid propane) gas, it must be converted for safe and proper per-

formance and must be converted by a qualified service technician, conversion kits from

NATURAL to LP, or LP to NATURAL are available through you local Maytag dealer (see

Accessories). If other conversions are required, check with the local gasutility for specific

information concerning conversion requirements.

A 1/2" gas supplylineis recommended and must be reduced to connect to tile 3/8" gas line

on the dryer.

The National Fuel Gas Code requires that an acceptable, approved manual gas shut off valve

be installed within 6 feet of the dryer.

Additionally, a 1/8" N.P.T (National Pipe Thread) plugged tapping, accessible for test gauge

connection, must be installed immediately upstream of the gas supplyconnection to the

dryer,i

The dryer must be disconnected from the gas supply piping system during any pressure test-

ing of the system.

DO NOT re-use old flexible metal gas line. Flexible gas line must be design certified by

American Gas Association (CGA in Canada). NOTE: Any pipe joint compound used must

be resistant to the action of any liquefied petroleum gas.

NOTE: Asa courtesy, most local gas utilities will inspect a gas appliance installation.

GAS IGNITION

This dryerusesan automatic ignition system toignite theburner.There is no constant

burning pilot.

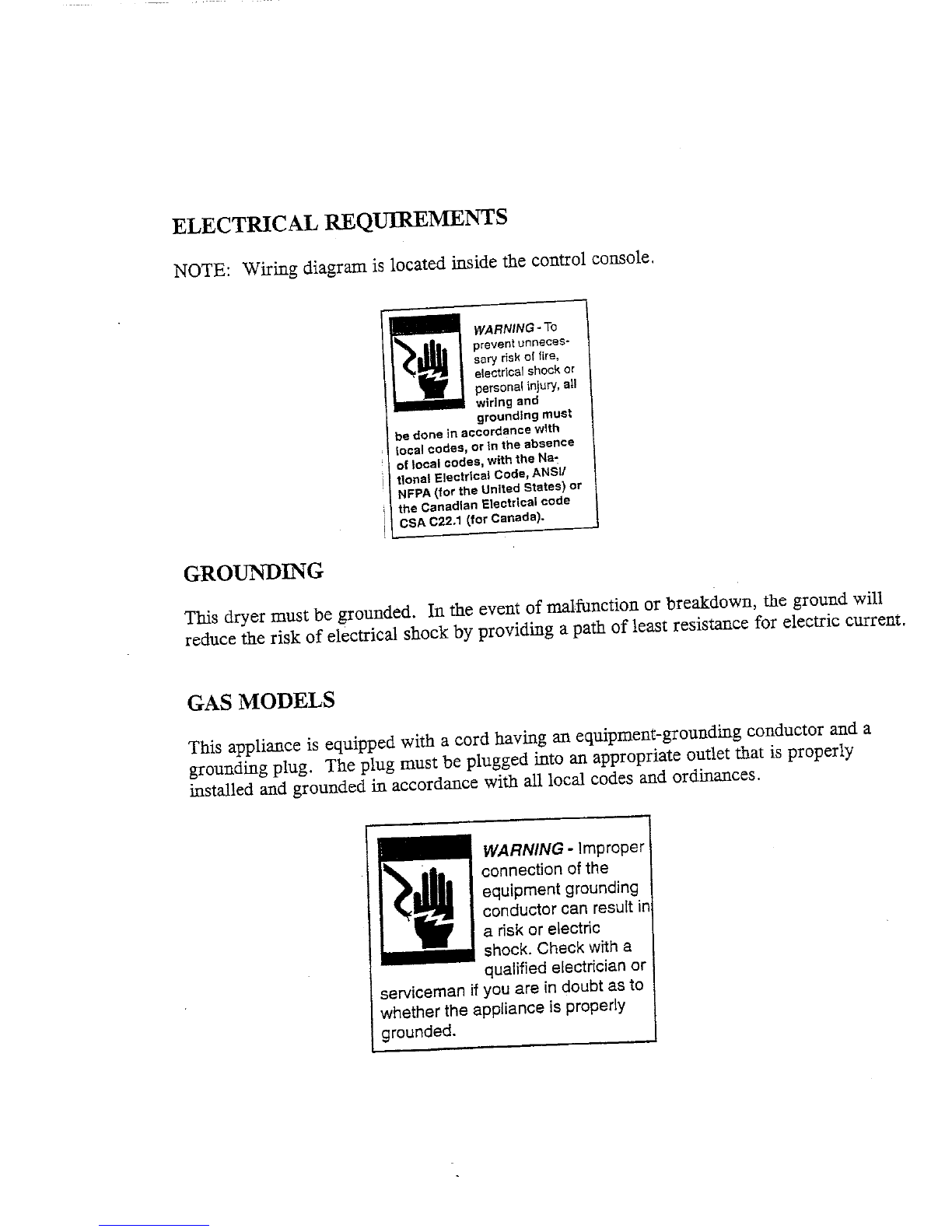

ELECTRICAL REQUIREMENTS

NOTE: Wiring diagram is located inside the control console.

I _ WARNING-To

preventunneces-

sary riskof fire,

electricetshockor

personalinjury,all

wiring and

groundingmust

bedone Jneccordence with

local codes,or In the absence

ofIooal codes, withtheNa_

tlonal ElectricalCede,ANSI/

NFPA(for the UnitedStates)or

the CanadianElectricalcode

CSA C22,1 (forCanada),

GROUNDING

This dryer must begrounded. In the event of malfunctionor breakdown, the ground will

reduce the risk of electrical shock by providing a path of least resistance for electric current.

GASMODELS

This appliance is equipped with a cord having an equipment-groundingconductor and a

groundingplug. The plug must be plugged into an appropriate outlet that is properly

installed and grounded in accordance with all local codes and ordinances.

WARNING-Improper

connection of the

equipment grounding

Iconductor can result in

[ a risk or electric

shock. Check with a

qualified electrician or

serviceman ifyouare in doubt asto

whether the appliance ]sproperly

grounded.

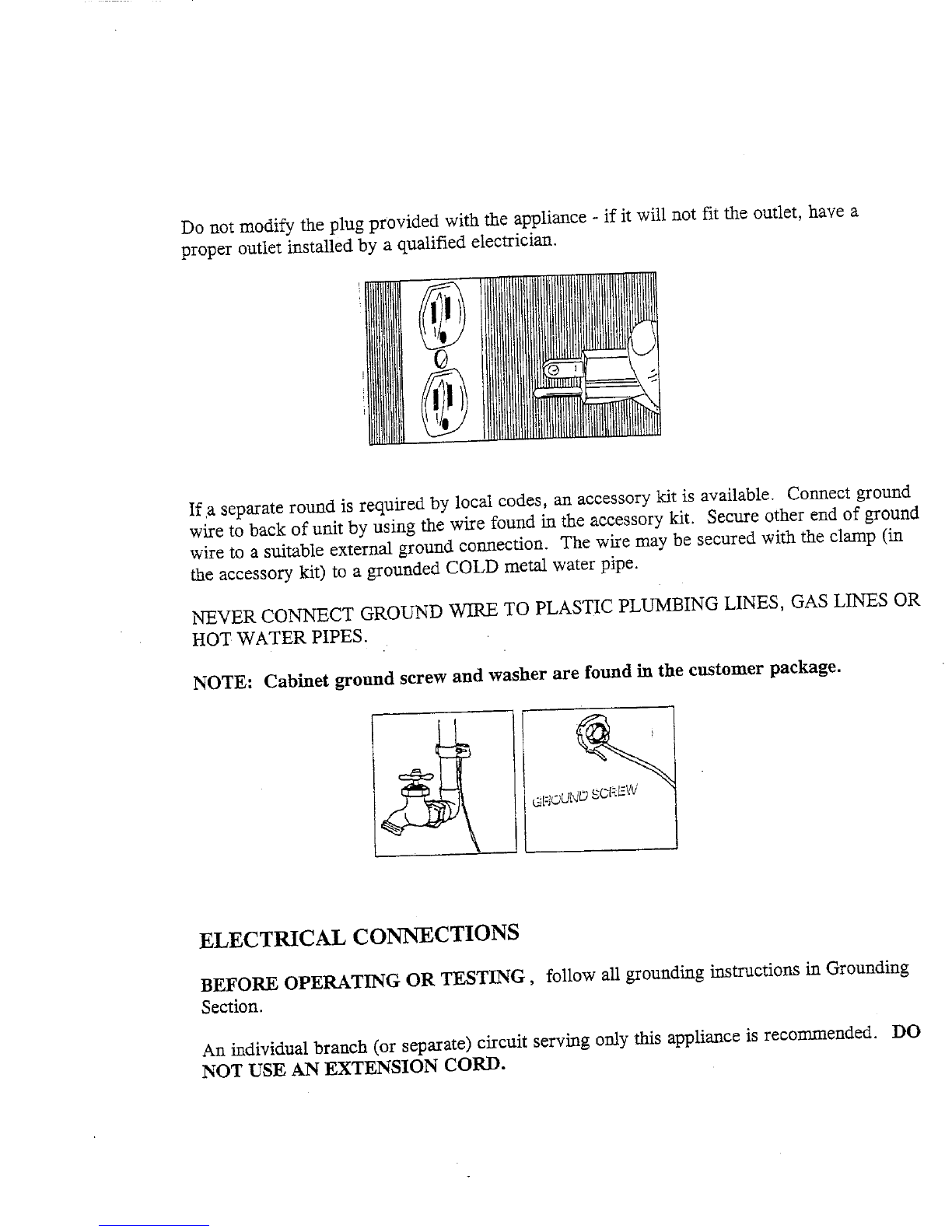

Do not modify the plug provided with the appliance - if k will not fit the outlet, have a

proper outlet installed by a qualified electrician.

If a separate round is required by local codes, an accessory kit is available. Connect ground

wire to back of unit by using the wire found in the accessory kit. Secure other end of ground

wire to a suitable external ground connection. The wire may be secured with the clamp (in

the accessory kit) to a grounded COLD metal water pipe.

NEVER CONNECT GROUND WIRE TO PLASTIC PLUMBING LINES,GAS LINES OR

HOT WATER PIPES.

NOTE: Cabinet ground screwand washerare found in the customer package.

GJ-'IOUgD SO(_W

ELECTRICAL CONNECTIONS

BEFORE OPERATING ORTESTING, follow all groundinginstructions in Grounding

Section.

An individual branch (or separate) circuit serving only this appliance is recommended. DO

NOTUSEANEXTENSION CORD.

Autres manuels pour MDE2600AYW

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Maytag Séchoir

Maytag

Maytag MED5707TQ0 Manuel utilisateur

Maytag

Maytag MEDZ600TB2 Manuel utilisateur

Maytag

Maytag Bravos W10201175A Manuel utilisateur

Maytag

Maytag MLG24PDAXW1 Manuel utilisateur

Maytag

Maytag YMEDX700AG0 Manuel utilisateur

Maytag

Maytag MDE22PD Manuel utilisateur

Maytag

Maytag GBMDC 709T Manuel utilisateur

Maytag

Maytag MEDZ400TQ1 Manuel utilisateur

Maytag

Maytag Performa IntelliDry PYE4500AYW Manuel utilisateur

Maytag

Maytag MGDB850WL - 29" Gas Dryer Manuel utilisateur

Maytag

Maytag 29" Manuel utilisateur

Maytag

Maytag W10099070 Manuel utilisateur

Maytag

Maytag CD-3 Manuel utilisateur

Maytag

Maytag W10267633A Manuel utilisateur

Maytag

Maytag W10557651B Manuel utilisateur

Maytag

Maytag MCE8000AYW Manuel utilisateur

Maytag

Maytag MDE18PR Manuel utilisateur

Maytag

Maytag MEDC400VW - Centennial Electric Dryer Manuel utilisateur

Maytag

Maytag MLE24PDAGW Manuel utilisateur

Maytag

Maytag MLE24PDAYW Manuel utilisateur

Maytag

Maytag Bravos Quiet 300 Series Manuel utilisateur

Maytag

Maytag MEDE900VJ1 Manuel utilisateur

Maytag

Maytag MED6400T Manuel de la liste des pièces

Maytag

Maytag Neptune MDE7500 Manuel utilisateur

Manuels Séchoir populaires d'autres marques

Bosch

Bosch WTA79200GB Manuel utilisateur

Amana

Amana W10233410A Manuel utilisateur

Miele

Miele TWH 780 WP Manuel utilisateur

Asko

Asko T760 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuel utilisateur

Bosch

Bosch Logixx 10 WTB76556GB Fiche technique

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Mode d’emploi

Electrolux

Electrolux EW2H328R2 Manuel utilisateur

Beko

Beko DS8433RX1M Manuel utilisateur

Dawlance

Dawlance Spinner DS 6000 C Manuel utilisateur

Electrolux

Electrolux TP5080TW Manuel utilisateur

AEG

AEG TR838P4OB Manuel utilisateur

Indesit

Indesit IDV 75 Manuel utilisateur

Infiniton

Infiniton SD-DG85C Manuel utilisateur

BOMANN

BOMANN WT 5019 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuel utilisateur

Asko

Asko T793C Manuel utilisateur

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuel utilisateur
