Maxell MP-EU5002 Manuel utilisateur

1QM00062-1

LCD Projector

MP-EU5002

User's Manual (detailed)

Operating Guide – Technical

Supported signals for COMPUTER IN

Resolution (H x V) Signal mode H. frequency

(kHz)

V. frequency

(Hz)

Rating

720 x 400 TEXT 37.9 85 VESA

640 x 480 VGA (60Hz) 31.5 59.9 VESA

VGA (72Hz) 37.9 72.8 VESA

VGA (75Hz) 37.5 75 VESA

VGA (85Hz) 43.3 85 VESA

800 x 600 SVGA (56Hz) 35.2 56.3 VESA

SVGA (60Hz) 37.9 60.3 VESA

SVGA (72Hz) 48.1 72.2 VESA

SVGA (75Hz) 46.9 75 VESA

SVGA (85Hz) 53.7 85.1 VESA

832 x 624 Mac 16” mode 49.7 74.5

1024 x 768 XGA (60Hz) 48.4 60 VESA

XGA (70Hz) 56.5 70.1 VESA

XGA (75Hz) 60 75 VESA

XGA (85Hz) 68.7 85 VESA

1152 x 864 1152 x 864 (75Hz) 67.5 75 VESA

1280 x 768 W-XGA (60Hz) 47.7 60 VESA

1280 x 800 1280 x 800 (60Hz) 49.7 60 VESA

1280 x 1024 SXGA (60Hz) 64 60 VESA

SXGA (75Hz) 80 75 VESA

SXGA (85Hz) 91.1 85 VESA

1366 x 768 WXGA (60Hz) 47.7 59.8 VESA

1440 x 900 WXGA+ (60Hz) 55.9 59.9 VESA

1600 x 900 WXGA++ (60Hz) 60 60 VESA

1680 x 1050 WSXGA+ (60Hz) 65.3 60 VESA

1600 x 1200 UXGA (60Hz) 75 60 VESA

1920 x 1080 Full HD (60Hz) 67.5 60 VESA

1920 x 1200 W-UXGA (60Hz)

Reduced Blanking

74 60 VESA

2QM00062-1

Supported signals for HDMI

Resolution (H x V) Signal mode H. frequency

(kHz)

V. frequency

(Hz)

Rating

720 x 400 TEXT 37.9 85 VESA

640 x 480 VGA (60Hz) 31.5 59.9 VESA

VGA (72Hz) 37.9 72.8 VESA

VGA (75Hz) 37.5 75 VESA

VGA (85Hz) 43.3 85 VESA

800 x 600 SVGA (56Hz) 35.2 56.3 VESA

SVGA (60Hz) 37.9 60.3 VESA

SVGA (72Hz) 48.1 72.2 VESA

SVGA (75Hz) 46.9 75 VESA

SVGA (85Hz) 53.7 85.1 VESA

832 x 624 Mac 16” mode 49.7 74.5

1024 x 768 XGA (60Hz) 48.4 60 VESA

XGA (70Hz) 56.5 70.1 VESA

XGA (75Hz) 60 75 VESA

XGA (85Hz) 68.7 85 VESA

1152 x 864 1152 x 864 (75Hz) 67.5 75 VESA

1280 x 768 W-XGA (60Hz) 47.7 60 VESA

1280 x 800 1280 x 800 (60Hz) 49.7 60 VESA

1280 x 1024 SXGA (60Hz) 64 60 VESA

SXGA (75Hz) 80 75 VESA

SXGA (85Hz) 91.1 85 VESA

1366 x 768 WXGA (60Hz) 47.7 59.8 VESA

1440 x 900 WXGA+ (60Hz) 55.9 59.9 VESA

1600 x 900 WXGA++ (60Hz) 60 60 VESA

1680 x 1050 WSXGA+ (60Hz) 65.3 60 VESA

1600 x 1200 UXGA (60Hz) 75 60 VESA

1920 x 1200 W-UXGA (60Hz)

Reduced Blanking

74 60 VESA

720(1440) x 480i 480i 15.7 60 CEA

720(1440) x 576i 576i 15.6 50 CEA

720 x 480p 480p 31.5 60 CEA

720 x 576p 576p 31.3 50 CEA

1280 x 720p 720p (50Hz) 37.5 50 CEA

720p (60Hz) 45 60 CEA

1920 x 1080i 1080i (50Hz) 28.1 50 CEA

1080i (60Hz) 33.8 60 CEA

1920 x 1080p 1080p (50Hz) 56.3 50 CEA

1080p (60Hz) 67.5 60 CEA

Supported signals

3QM00062-1

Supported signals

NOTE • Be sure to check jack type, signal level, timing and resolution

before connecting this projector to a PC.

• Some PCs may have multiple display screen modes. Use of some of these

modes will not be possible with this projector.

• Depending on the input signal, full-size display may not be possible in some

cases. Refer to the number of display pixels above.

• The signal will be converted to the projector’s panel resolution before being

displayed. The best display performance will be achieved if the resolutions of

the input signal and projector panel are identical.

• Automatic adjustment may not function correctly with some input signals.

• The image may not be displayed correctly when the input sync signal is a

composite sync or a sync on G.

• The illustrations in this manual are for illustrative purposes. They may differ

slightly from your projector.

Supported signals for MHL

Resolution (H x V) Signal mode H. frequency

(kHz)

V. frequency

(Hz)

Rating

640 x 480 VGA (60Hz) 31.5 59.9 VESA

720(1440) x 480i 480i 15.7 60 CEA

720(1440) x 576i 576i 15.6 50 CEA

720 x 480p 480p 31.5 60 CEA

720 x 576p 576p 31.3 50 CEA

1280 x 720p 720p (50Hz) 37.5 50 CEA

720p (60Hz) 45 60 CEA

1920 x 1080i 1080i (50Hz) 28.1 50 CEA

1080i (60Hz) 33.8 60 CEA

1920 x 1080p 1080p (50Hz) 56.3 50 CEA

1080p (60Hz) 67.5 60 CEA

4QM00062-1

Connection to the ports

NOTICE Ź8VHWKHFDEOHVZLWKVWUDLJKWSOXJVQRW/VKDSHGRQHVDVWKH

input ports of the projector are recessed.

Ź2QO\WKHVLJQDOWKDWLVLQSXWIURPWKHCOMPUTER IN1 can be output from

the COMPUTER IN2/MONITOR OUT port. The way is available only when

the MONITOR OUT is selected for the COMPUTER IN2. (INPUT menu -

COMPUTER IN in the Operating Guide)

ACOMPUTER IN1, BCOMPUTER IN2/MONITOR OUT

D-sub 15pin mini shrink jack

(1) for PC signal

9LGHRVLJQDO5*%VHSDUDWH$QDORJ9SSȍWHUPLQDWHGSRVLWLYH

• H/V. sync. Signal: TTL level (positive/negative)

• Composite sync. Signal: TTL level

Pin Signal Pin Signal

1Video Red 10 Ground

2 Video Green 11 (No connection)

3 Video Blue 12 A

: SDA (DDC data)

: (No connection)

4 (No connection)

5 Ground 13 H. sync / Composite sync.

6 Ground Red 14 V. sync.

7 Ground Green 15 A

: SCL (DDC clock)

: (No connection)

8 Ground Blue

9 (No connection) - -





   

(2) for Component signal

<&RPSRQHQWYLGHR<ZLWKFRPSRVLWHV\QF9SSWHUPLQDWRU

&U3U&RPSRQHQWYLGHR&U3U9SSWHUPLQDWRU

&E3E&RPSRQHQWYLGHR&E3E9SSWHUPLQDWRU

System:480i@60,480p@60,576i@50,576p@50,720p@50/60,1080i@50/60,1080p@50/60

Pin Signal Pin Signal

1Cr/Pr 9 (No connection)

2 Y 10 Ground

3 Cb/Pb 11 (No connection)

4 (No connection) 12 (No connection)

5 Ground 13 (No connection)

6 Ground Cr/Pr 14 (No connection)

7 Ground Y 15 (No connection)

8 Ground Cb/Pb - -

5QM00062-1

Connection to the ports (continued)

CVIDEO

RCA jack

• System: NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43, PAL(60Hz)

9SSȍWHUPLQDWRU

6QM00062-1

Connection to the ports (continued)

GAUDIO IN1

AUDIO IN2

Ø3.5 stereo mini jack

NWHUPLQDWRU

AUDIO IN3

RCA jack x2

NWHUPLQDWRU

AUDIO OUT

Ø3.5 stereo mini jack

NRXWSXWLPSHGDQFH

DHDMI1 EHDMI2 / MHL FHDMI3

• Type :Digital audio/video connector

• Audio signal : Linear PCM (Sampling rate; 32/44.1/48 kHz)

Pin Signal Pin Signal Pin Signal

1T.M.D.S. Data2

+N.C. 8T.M.D.S. Data0 Shield

MHL_Shield 15 SCL

CD_PULLUP

2T.M.D.S. Data2 Shield

CD_SENSE 9T.M.D.S. Data0 -

MHL- 16 SDA

N.C.

3T.M.D.S. Data2 -

N.C. 10 T.M.D.S. Clock +

N.C. 17 DDC/CEC Ground

VBUS_CBUS_GND

4T.M.D.S. Data1 +

N.C. 11 T.M.D.S. Clock Shield

TMDS_GND

+5V Power

VBUS

5T.M.D.S. Data1 Shield

TMDS_GND 12 T.M.D.S. Clock -

N.C. 19 Hot Plug Detect

CBUS

6T.M.D.S. Data1 -

N.C. 13 CEC

N.C.

7T.M.D.S. Data0 +

MHL+ 14 Reserved(N.C. on device)

N.C.

10 12 14 16 182468

911131517191357

7QM00062-1

Connection to the ports (continued)

USB

TYPE B

USB B type jack

Pin Signal

1+5V

2 - Data

3 + Data

4Ground

CONTROL

D-sub 9pin plug

• About the details of RS-232C communication,

please refer to the section "RS-232C Communication".

Pin Signal Pin Signal Pin Signal

1 (No connection) 4 (No connection) 7 RTS

2 RD 5 Ground 8 CTS

3 TD 6 (No connection) 9 (No connection)

LAN

RJ-45 jack 87654

Pin Signal Pin Signal Pin Signal

1TX+ 4- 7-

2TX- 5- 8-

3RX+ 6RX-

LUSB TYPE A

USB A type jack 432 1

Pin Signal

1+5V

2 - Data

3 + Data

4 Ground

54321

L M

8QM00062-1

Connection to the ports (continued)

To input component video signal to COMPUTER IN ports

ex.

To input component video signal to the COMPUTER IN1 or IN2 port of the

projector, use a RCA to D-sub cable or adapter.

For about the pin description of the required cable or adapter, refer to the

descriptions about COMPUTER IN1 and IN2 port (4).

Y CB/PBCR/PR

COMPONENT VIDEO OUT

RCA plugs

D-sub plug

VCR/DVD/Blu-ray

Disc player

RCA

connectors

9QM00062-1

RS-232C Communication

When the projector connects to the computer by RS-232C communication, the

projector can be controlled with RS-232C commands from the computer.

For details of RS-232C commands, refer to RS-232C Communication / Network

command table (18).

Connection

1. Turn off the projector and the computer.

2. Connect the projector's CONTROL port and the computer's RS-232C port

ZLWKD56&FDEOHFURVV8VHWKHFDEOHWKDWIXO¿OOVWKHVSHFL¿FDWLRQ

VKRZQLQ¿JXUH

3. Turn the computer on, and after the computer has started up turn the projector

on.

4. Set the COMMUNICATION TYPE to OFF. (OPTION menu - SERVICE -

COMMUNICATION in the Operating Guide)

(cross)

RS-232C Cable

RS-232C CONTROL

CD (1) (1) ٕ

RD(2) (2) RD

TD (3) (3) TD

DTR (4) (4)

GND (5) (5) GND

DSR (6) (6)

RTS (7) (7) RTS

CTS (8) (8) CTS

RI (9) (9)

CONTROL port

of the projector

RS-232C port

of the computer

54321

10 QM00062-1

RS-232C Communication (continued)

Communication settings

1. Protocol

19200bps,8N1

2. Command format ("h" shows hexadecimal)

Byte Number 01 2 3456

789101112

Command

Action

Header Data

Header

code

Packet

Data

size

CRC

ÀDJ Action Type Setting

code

LH LHLHLHLHLH

<SET>

Change setting to

desired value [(cL)(cH)]

by [(bL)(bH)].

BEh EFh 03h 06h 00h

(aL) (aH) 01h 00h (bL) (bH) (cL) (cH)

<GET>

Read projector

internal setup value [(bL)

(bH)] .

(aL) (aH) 02h 00h (bL) (bH) 00h 00h

Increment setup value

[(bL)(bH)] by 1.

(aL) (aH) 04h 00h (bL) (bH) 00h 00h

Decrement setup value

[(bL)(bH)] by 1.

(aL) (aH) 05h 00h (bL) (bH) 00h 00h

<EXECUTE> Run a

command [(bL)(bH)].

(aL) (aH) 06h 00h (bL) (bH) 00h 00h

[Header code] [Packet] [Data size]

Set [BEh, EFh, 03h, 06h, 00h] to byte number 0

>&5&ÀDJ@

For byte number

5, 6,

refer to

RS-232C Communication / Network command

table

(18).

[Action]

Set functional code to byte number 7, 8.

<SET> = [01h, 00h], <GET> = [02h, 00h], <INCREMENT> = [04h, 00h]

<DECREMENT> = [05h, 00h], <EXECUTE> = [06h, 00h]

Refer to the Communication command table (above).

[Type] [Setting code]

For byte number

9~12

, refer to

RS-232C Communication / Network command

table

(18).

Autres manuels pour MP-EU5002

Table des matières

Autres manuels Maxell Projecteur

Maxell

Maxell MP-AW3001 Manuel utilisateur

Maxell

Maxell MP-JW351E Manuel utilisateur

Maxell

Maxell MP-WU5603 Manuel utilisateur

Maxell

Maxell PJLink MC-WU8460 Document technique

Maxell

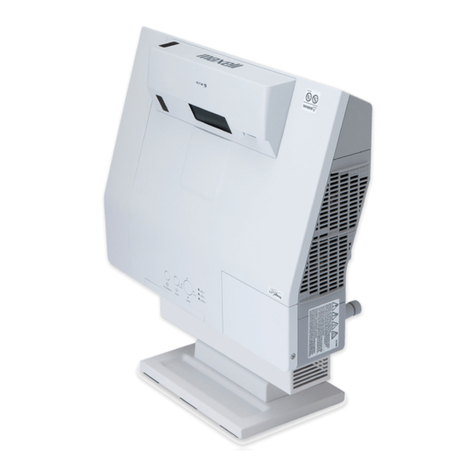

Maxell MC-TW3506 Manuel utilisateur

Maxell

Maxell MC-AW3506 Document technique

Maxell

Maxell MP-EX5002 Document technique

Maxell

Maxell MC-EX353E Manuel utilisateur

Maxell

Maxell MC-WU5505 Manuel utilisateur

Maxell

Maxell MC-EX3551 Manuel utilisateur

Maxell

Maxell MP-EU5002 Manuel utilisateur

Maxell

Maxell MP-AW4001 Manuel utilisateur

Maxell

Maxell MC-AW3506 Manuel utilisateur

Maxell

Maxell MP-TW3001 Manuel utilisateur

Maxell

Maxell MP-EX5002 Manuel utilisateur

Maxell

Maxell MP-WU8801W Manuel utilisateur

Maxell

Maxell MC-WX5506M Manuel utilisateur

Maxell

Maxell MP-JU4001 Manuel utilisateur

Maxell

Maxell MC-EX303E Manuel utilisateur

Maxell

Maxell MC-WU8461 Manuel utilisateur

Maxell

Maxell MC-AW3506 Manuel utilisateur

Maxell

Maxell MP-TW4001 Document technique

Maxell

Maxell MC-WU8701W Manuel utilisateur

Maxell

Maxell LP-EU5002 Manuel utilisateur

Manuels Projecteur populaires d'autres marques

iEmmet

iEmmet MP-312 Manuel utilisateur

Epson

Epson VS400 Manuel utilisateur

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony VPL-HW65ES Manuel de service

Toshiba

Toshiba TLP-791U Manuel utilisateur

Philips

Philips LC1341 Guide de référence

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuel utilisateur

NEC

NEC NP600S EDU Manuel utilisateur

BenQ

BenQ SH753P Manuel utilisateur

Eiki

Eiki EK-623U series Manuel utilisateur

Epson

Epson PowerLite Pro Cinema 6020UB Manuel utilisateur

Epson

Epson PowerLite Home Cinema 705HD Manuel utilisateur

Christie

Christie LHD700 Manuel utilisateur

Navitar

Navitar FX Manuel utilisateur

InFocus

InFocus LitePro 560 Manuel utilisateur

Sony

Sony SRX-R815P Manuel utilisateur

Vivitar

Vivitar DP1500 X Manuel utilisateur

Acer

Acer C20 Series Manuel utilisateur
