Matco Tools MWLCR4 Manuel utilisateur

INSTRUCTION MANUAL

S3460, Rev A

LED 800

40W COB

Worklight with Cable Reel

4000 lumens powerful

worklight with an in-built

cable reel.

Sturdy Construction

a. IP 54 Rated

Protected against dust

and eects of moisture

b. IK 07 Rated

Corrosion resistant

aluminium die

cast housing and

polycarbonate lens

makes it impact

resistant

c. Light comes with a

5m (16ft) cable with

a socket that is useful

when using other power

tools or even to connect

multiple lights in series

for higher illumination

d. In-built handle with

comfortable grip makes

it easy to carry

Versatile Use

Can be used as:

a. Free standing worklight

with swivel stand that

can be adjusted to

various angles

b. Directly attached to

any metallic surface

using the 4 super strong

magnets

Available in 2 variants:

1. 110V AC

2. 220V AC

Easy to carry: Ergonomic

handle for comfortable grip

90° Rotating COB light

90°

Additional Socket (Max Power 3000W) on one end ensures the

light to be connected in series enabling it to cover wider distances

4 Super strong

magnets on the

back

ON/OFF

button

IK07

RoHS

4000

MAX. LUMEN

IP54

WATER & DUST

PROOF RATING

Swivel stand

40W

COB LED

5m (16ft)

long cable

on reel

Ergonomic

handle

SAFETY INFORMATION

• Follow workshop health & safety rules,

regulations and conditions when using

worklight.

• When not in use, worklight should be stored

in a dry location to inhibit rust.

• During their period of use, accessories

must be checked for wear, cracks and other

damage, replace any damaged or worn parts.

• Use genuine parts only. Unauthorized parts

may be dangerous and will void the warranty.

• Keep the worklight clean and in good working

order for best and safest performance.

• DO NOT use the lamp in the immediate

vicinity of inﬂammable materials or gases.

• DO NOT point the light directly in your own or

any other person’s or animal’s eyes.

• DO NOT drop, throw or abuse the worklight.

• Eyes protection: Wear a protective mask or

protective eyewear.

• Check that the product has not suered any

damage during transport or storage. Clean

and remove any dust or residual packing

material.

• Read the instructions carefully before using

worklight and keep them for further reference.

WARNING!

• DO NOT immerse worklight in water.

• DO NOT place worklight near a ﬁre or any

other source of intense heat.

• DO NOT attempt to open, disassemble,

modify or service the worklight.

• DO NOT expose worklight to temperatures

above 50°C (122° F).

• DO NOT use worklight if you suspect that the

casing is damaged

• DO NOT exceed the total load above 3000W.

PACKAGING CONTENT

DESCRIPTION QTY.

Worklight 1

O.I.P.M. 1

OPERATING INSTRUCTION

1. To use the worklight, plug in the worklight to

an AC power source.

2. Switch ON / OFF the worklight using the

switch provided on the front of the worklight.

3. To use the worklight in series, make sure that

all the lights are disconnected from the AC

power source to avoid any accidents.

4. Open the protective cap of the socket of

the ﬁrst worklight and insert the plug of the

second worklight in it. Similarly, more lights

can be connected in series.

5. Connect the plug of the ﬁrst worklight in an

AC power source and switch ON the power

source.

6. Ensure that the combined load of all the

devices connected in series is within the

3000W limit

MAINTENANCE

• Clean any dirt from the housing or the lens

immediately, since it could cause overheating.

• If required, clean with a dry or slightly moist

clean cloth. Do not use cleaners that contain

abrasives or solvents.

• When not in use, worklight should be stored

in a dry location.

PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION

If the worklight doesn't work Loose connection or power source not

working

Check for loose connections and check power

source

If the worklight still doesn't work Contact nearest authorized service dealer

DISPOSAL

The components or the used products must be given to companies that specialize in the disposal and

recycling of industrial waste.

TROUBLE SHOOTING

Autres manuels Matco Tools Lampe de travail

Matco Tools

Matco Tools MPVL8 Manuel utilisateur

Matco Tools

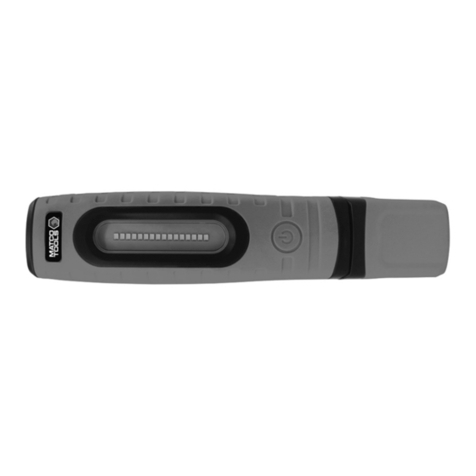

Matco Tools SL360MDLX Manuel utilisateur

Matco Tools

Matco Tools UTL10A Manuel utilisateur

Matco Tools

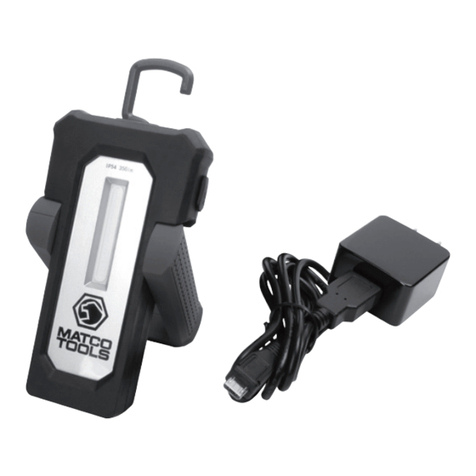

Matco Tools MFLCOB25 Manuel utilisateur

Matco Tools

Matco Tools MWLALUM Manuel utilisateur

Matco Tools

Matco Tools M24LED Manuel du produit

Matco Tools

Matco Tools M26LED Manuel utilisateur

Matco Tools

Matco Tools MWLFL2800 Manuel utilisateur

Matco Tools

Matco Tools MWL40SMD Manuel utilisateur

Matco Tools

Matco Tools MCL1828LED Manuel utilisateur

Matco Tools

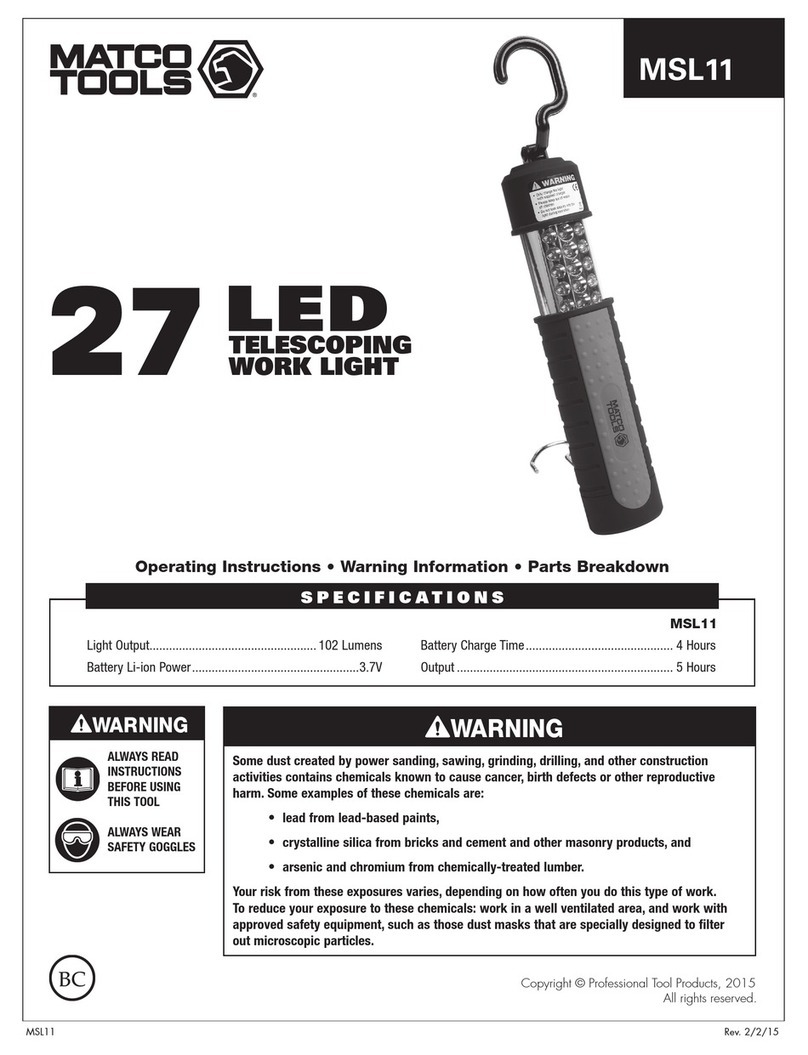

Matco Tools MSL11 Manuel utilisateur
