Massive Audio 18HD Manuel utilisateur
--
()
18HD18HD
SPECIFICATIONS
18 Farad HEXAGON Hybrid Super Capacitor
With Blue Digital Voltage Display, Blue Flash LED, Blue Neon Tube
Capacitance .................................……......18,000,000 micro farad
Working Voltage ........................... ....…….….. 16DC
Surge Voltage .......................................……… 18DC
E.S.R. (Equivalent Series Resistance)------
0.0015 ohm @120hz/ 25°C
Capacitance Tolerance ------------------------
± 10%
DETAILEDFEATURES:
3 digits hi-end blue light display DC voltage meter that can measure 0.1 DCV range.
Reverse pole connecting PCB buzz warning function. If
the capacitor is connected incorrectly by reversing the positive and
negative wires during the installation process
the PCB will issue a 45 second noise to warn you.
Hi-end platinum plated 100% brass solid parts and chrome plated metal cover
Over voltage limit and low battery voltage limit warning. When the system voltage peeks over 17.5 DCV or LESS
than 10 DCV. The buzzer on the PCB will issue an audible noise warning
.
Multiple small capacitance capacitors linked to provide the lowest inner E.S.R. and
largest moment discharge power.

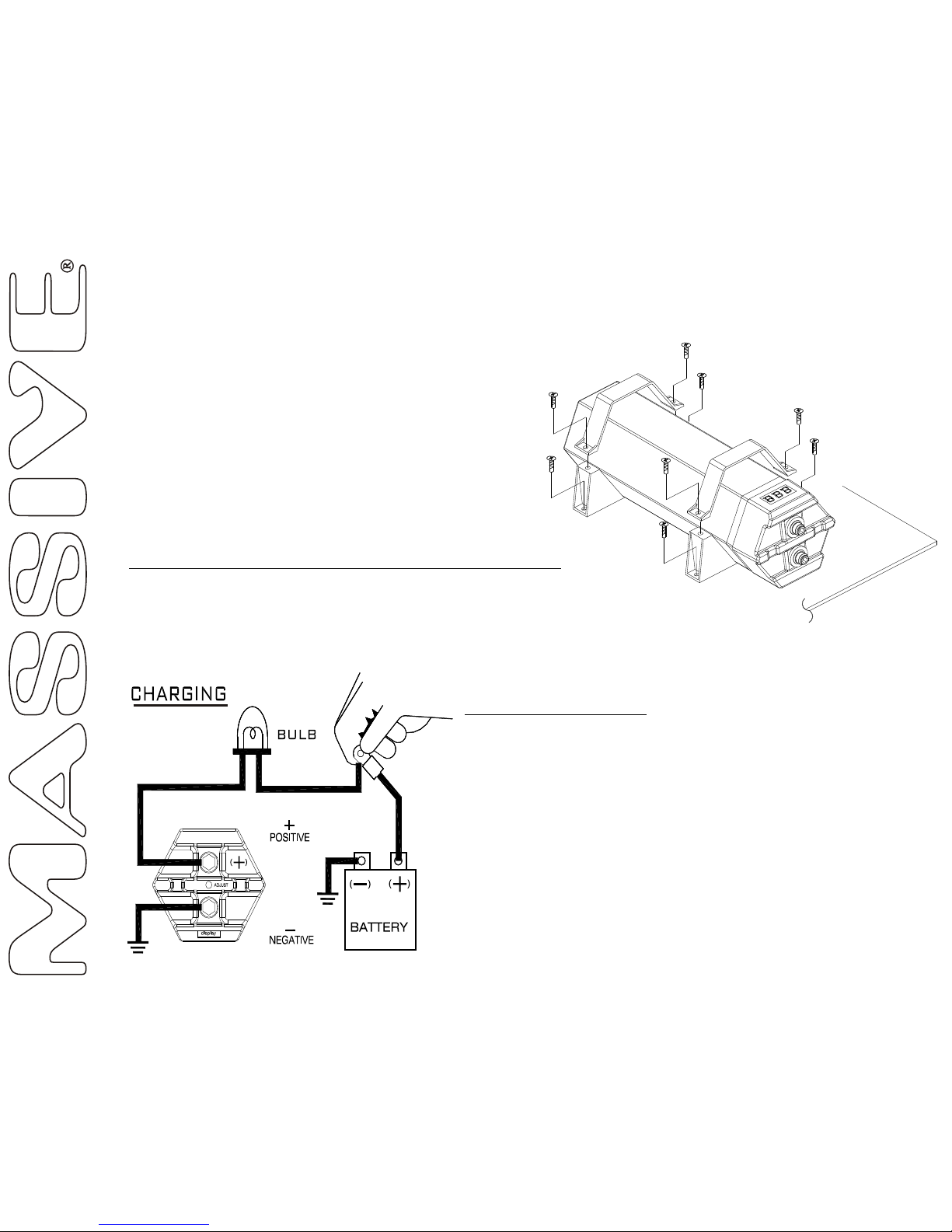

INSTALLATION AND MOUNTING:
You must first attach the mounting tabs to the capacitor before mounting it. Use the
supplied hardware shown in the picture below. Notice the small mounting screw hole in
the capacitor chassis.
CHARGING THE CAPACITOR AND WIRING:
The capacitor must be charged before connecting the Power and Ground cables to the
capacitor. Failure to charge the capacitor will result in a large spark generated from the
rapid inflow of current.
To Charge the capacitor:
1. Make the Capacitors
positive terminal connectwith the amplifier
then tighten the bolt. Do
not over-tighten the bolts!
Caution: Stripped terminals are
not covered under the capacitor’s warranty.
2. Connect the ground cablewith the battery, amplifier, then refer to the attacheddrawing.
3. Place the supplied charging bulb between the positive terminal of the capacitor and the
battery’s positive terminal. Do this for 2 ~ 3 minutes or until the charging bulb goes out.
Caution:The charging bulb will get hot!
4. Immediately take out the charging bulb from the connecting wire after the charging process.
Connect the positive cable of the battery directly to the positive terminal on the capacitor.
18HD18HD
(-)
-
MASSIVEMASSIVE
Massive Audio, Inc. 2261S. Atlantic Blvd City of Commerce, Ca 90040 Phone: (323) 262-6202 Fax (323) 262-6202......www.massiveaudio.com
display
display
display
(-)
-
To Discharge the capacitor: With battery power disconnected, place the light bulb or
resistor across the capacitor’s positive and negative terminals until light goes out or for
three minutes if using a resistor.
Multiple Capacitor Wiring Diagram:
DISCHARGING THE CAPACITOR :
When you want to take out the capacitor after you finish the installation process from
original car audio system,
you must follow this
discharge process. It will
then be safe to
release the power of the capacitor.
18HD18HD
Limited warranty
One Year Warranty if purchased from Authorized Massive Audio dealer.
-day Warranty if purchased over the counter. Warranty only applies to products sold in the
United States Of America or it’s Possessions. If purchased outside of the country then that
countries distributor covers all warranties.
Warranty Not Covered if Damaged by accident, water, fire, theft, abuse or improper operations.
Warranty also void if this unit is altered or repaired or tampered by an
unauthorized repair center.
Please see the enclosed warranty statement
30
THIS POWER CAPACITOR MAY EXPLODE AND CAUSE SERIOUS INJURY IF ABUSED OR CONNECTED IMPROPERLY. PLEASE REFER
TO THE INSTRUCTIONS CONTAINED IN THIS MANUAL FOR CORRECT MOUNTING, CHARGING/DISCHARGING AND WIRING
CONNECTION FOR THIS CAPAPCITOR PRIOR TO INSTALLATION.
