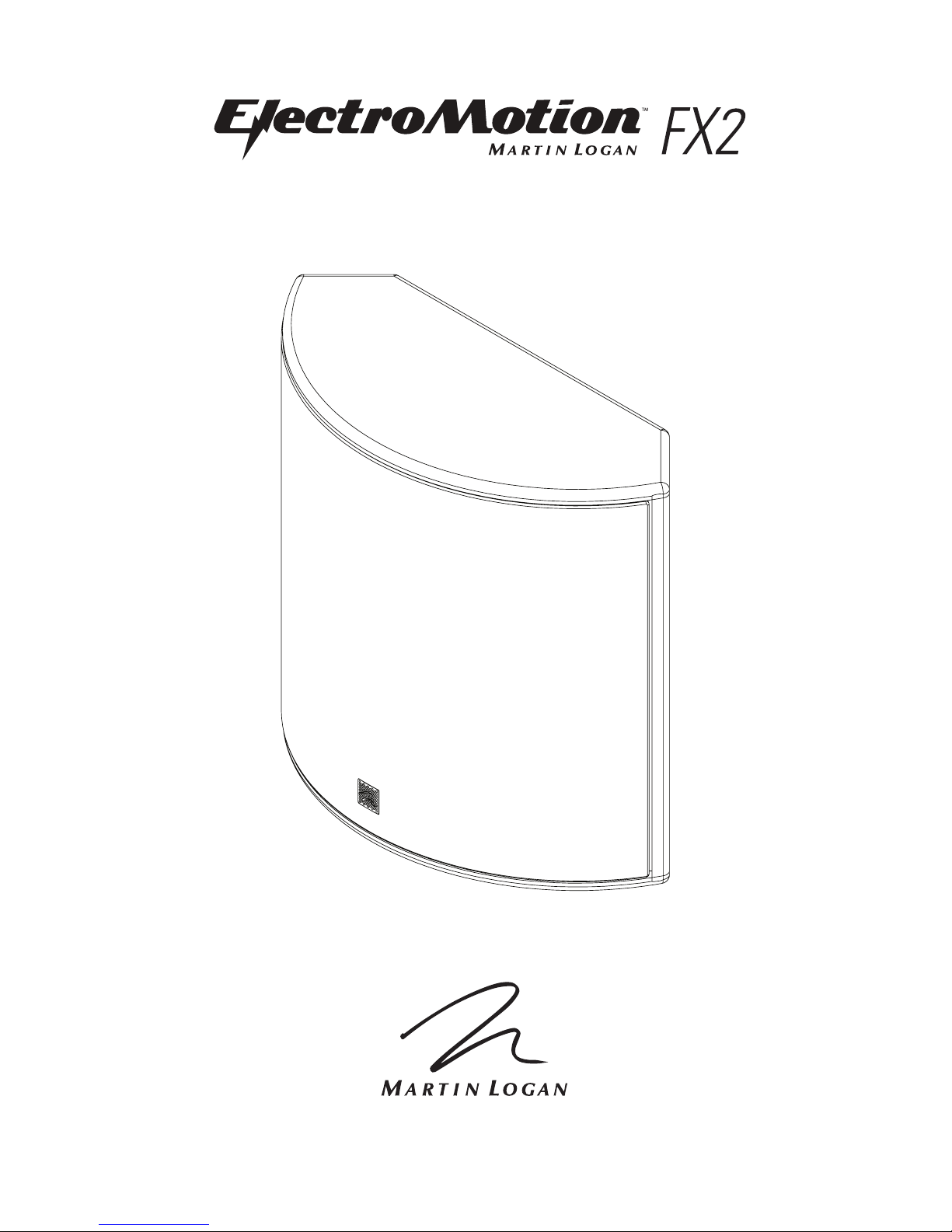

MartinLogan ELECTROMOTION FX2 Manuel utilisateur

The Great American Speaker Company

user’s manual

The lightning bolt flash with arrowhead

symbol, within an equilateral triangle,

is intended to alert the user to the pres-

ence of potentially “dangerous voltage” within the

product’s enclosure that may be sufficient to consti-

tute a risk of electric shock.

In accordance with the European Union

WEEE (Waste Electrical and Electronic

Equipment) directive effective August 13,

2005, we would like to notify you that this

product may contain regulated materials which upon

disposal, according to the WEEE directive, require

special reuse and recycling processing. For this rea-

son Martin Logan has arranged with our distributors in

European Union member nations to collect and recycle

this product at no cost to you.

To find your local distributor please contact the dealer

from whom you purchased this product, email info@

martinlogan.com or visit the distributor locator at www.

martinlogan.com.

Please note, only this product itself falls under the

WEEE directive. When disposing of packaging and

other related shipping materials we encourage you to

recycle these items through the normal channels.

The exclamation point within an equi-

lateral triangle is intended to alert the

user to the presence of important oper-

ating and maintenance (servicing) instructions in the

literature accompanying the appliance.

WARNING!

• Refer servicing to a qualified

technician.

• To prevent fire or shock hazard,

do not expose this module to moisture.

• Turn amplifier off should any abnormal

conditions occur.

• Do not drive speaker beyond its rated power.

Connection. 4

Installation. 5

Break In ..........................5

Installing On A Wall . . . . . . . . . . . . . . . . . .5

Frequently.Asked.Questions.               7

Troubleshooting. 7

Contacting.Customer.Service .             7

General.Information.                     8

Warranty Information . . . . . . . . . . . . . . . . .8

Serial Number ......................8

Service ..........................8

Specifications. 9

Dimensional.Drawings.                 10

Serial Number:_____________________________

Record your serial number here for easy reference.

You will need this information when filling out your

warranty registration. The serial number is located

near the binding posts and on the product carton.

ConneCtion

WARNING! Turn your amplifier

off before making or breaking any

signal connections!

These speakers are designed with easy-to-use

push-style binding posts that accept bare wire or

pins (fig. 2). Additionally, by removing the rubber

inserts, they will accept banana plugs (fig. 3)

Assign the same color to the (+) and (–) terminals

on both the speaker and the amplifier. Make certain

that all connections are tight.

Fig. 1

Fig. 2

Fig. 3

installation

WARNING! Installation other

than that described in the body

of this document requires specif- ic

documentation from MartinLogan.

BREAK IN

Allow approximately 72 hours of break-in at 90

dB (moderate levels) before any critical listening.

Note:.This speaker is not magnetically shielded

and therefore should not be placed directly beside

or atop a CRT television.

INSTALLING ON A WALL

Note: These instructions assume the mounting

surface is standard wood frame and sheet rock

construction. If you wish to mount to another type

of surface, consult a bonded contractor.

Required.hardware.(included):

• (1) Installation template

• (1) Wall bracket

• (1) Shoulder bolt

• (2) Rubber bumpers

Fig. 5A Fig. 5CFig. 5B

Fig. 4

Required.hardware.(not.supplied):

• (2) 1.5-inch Phillips sheet metal screws

• (2) Sheet rock anchors

Required.tools.(not.supplied):

• Ruler

• Level

• Electric drill and 1/4” and 1/8” drill bits

• Phillips screwdriver

1 Screw the shoulder bolt into the back and

install the rubber bumpers in the location shown

(fig. 4).

2 Locate mounting location using a level and the

installation template (fig. 5A–5C).

3 Mark the pilot hole locations.

4 Drill the pilot holes using a 1/8-inch drill bit. If

a pilot hole DOES NOT hit a stud, widen that

pilot hole using a 1/4-inch drill bit and install

a wall anchor at that location (fig. 6A & 6B).

5 Using the 1.5-inch Phillips screws, mount the

wall brackets as shown (fig. 6A & 6B).

6 Hang the speaker, guiding the wall mount bolt

into the wall bracket’s keyhole.

Fig. 6A

Fig. 6B

How do I clean my speakers?

Use a dust free cloth (such as a micro fiber cloth)

or a soft brush to remove dust from your speakers..

Do.not.spray.any.kind.of.cleaning.agent.on.or.in.

close.proximity.to.the.drivers

Could you suggest a list of suitable elec-

tronics and cables ideal for MartinLogan

speakers?

We have no favorites and use electronics and

cables quite interchangeably. We would suggest

listening to a number of brands—and above all

else—trust your ears. Dealers are always the best

source for information when purchasing additional

audio equipment.

Is there likely to be any interaction

between my speakers and the television

in my A/V system?

Yes. These speakers are not shielded and should

be kept at least 2 feet away from a CRT television.

Will exposure to sunlight affect the life

or performance of my speakers?

We recommend against placing any loudspeaker

in direct sunlight. Ultraviolet (UV) rays from the sun

can cause deterioration of cabinet, speaker cones,

etc. Small exposures to UV will not cause a prob-

lem. Filtering of UV rays through glass will greatly

reduce the negative effects.

Frequently asked questions

No Output

• Check that all system components are turned

on and source material is playing.

• Check speaker wires and connections.

• Check all interconnecting cables.

• If you are unable to resolve your problem,

please contact your dealer or MartinLogan cus-

tomer service (see below).

troubleshooting

MartinLogan customer service is available

Monday–Friday between the hours of 8am–5pm

(central time) by calling (785) 749-0133 or by

emailing [email protected].

ContaCting Customer serviCe

WARRANTY INFORMATION

Your speakers are provided with an automatic

Limited 90 Day Warranty coverage. You have

the option, at no additional charge, to receive a

Limited 5 Year Warranty coverage. To obtain the

Limited 5 Year Warranty coverage you need to

complete and return the Certificate of Registration

to MartinLogan within 30 days of purchase. For

your convenience MartinLogan also offers online

warranty registration at www.martinlogan.com.

MartinLogan may not honor warranty service

claims unless we have a completed Warranty

Registration card on file! If you did not receive a

Certificate of Registration with your new speakers

you cannot be assured of having received new

units. If this is the case, please contact your

authorized MartinLogan dealer.

SERIAL NUMBER

Serial number is located on back of the speaker,

directly beneath the binding posts. The serial

number may also be found on the product carton.

SERVICE

Should you use your MartinLogan product in a

country other than the one in which it was originally

purchased, we ask that you note the following:

1 The appointed MartinLogan distributor for

any given country is responsible for warranty

servicing only on units distributed by or

through it in that country in accordance with

its applicable warranty.

2 Should a MartinLogan product require

servicing in a country other than the one in

which it was originally purchased, the end

user may seek to have repairs performed

by the nearest MartinLogan distributor,

subject to that distributor’s local servicing

policies, but all cost of repairs (parts, labor,

transportation) must be borne by the owner

of the MartinLogan product.

3 If, after owning your speaker for six months,

you relocate to a country other than the one

in which you purchased your speaker, your

warranty may be transferable. Contact

MartinLogan for details.

general inFormation

speCiFiCations*

Frequency.Response                     

Dispersion.

Sensitivity

Impedance

Crossover.Frequency                    

High.Frequency.Driver.                   

Low.Frequency.Driver                    

Cabinet.

Components

Recommended.Amplifier.Power            

Binding.Post.Inputs                      

Weight

Dimensions.(HxWxD).                   

MARTINLOGAN.ELECTRO.MOTION.FX2

55–25,000 Hz ± 3 dB

160° (horizontal) x 30° (vertical)

93 dB @ 2.83 volts/ meter

5 Ohms. Compatible with 4, 6 or 8 Ohm rated

amplifiers.

2,300 Hz

Two 1.25” x 2.4” (3.16cm x 6.1cm) Folded

Motion Transducers with 4.5” x 2.75” (11.4 x

6.98cm) diaphragm.

6.5” (16.51cm) paper cone with cast-aluminum

basket. Non-resonant asymmetrical chamber

format.

Two bass-reflex ports

Custom air core coil inductors. Polyester film

capacitors in series and low DF electrolytic

capacitors in parallel. Tweeter thermal/current

protection.

20–200 watts

Push style with banana jacks

16 lbs. (7.3 kg)

14.9” x 14” x 6.8”

(37.9cm x 35.5cm x 17.2cm)

*Specifications are subject to change without notice.

14.0” (35.5cm)

14,0 po (35,5cm)

14.9” (37.9cm)

14,9 po (37,9cm)

6.8” (17.2cm)

6,8 po (17,2cm)

dimensional drawings

MARTINLOGAN ELECTROMOTION.FX2

The Great American Speaker Company

Lawrence, Kansas, USA tel 785.749.0133 fax 785.749.5320 www.martinlogan.com

P/N: 9500067

Table des matières

Langues :

Autres manuels MartinLogan Intervenants

MartinLogan

MartinLogan Source Speakers Manuel utilisateur

MartinLogan

MartinLogan Helos 12 Manuel utilisateur

MartinLogan

MartinLogan Motion Helos 10 Manuel utilisateur

MartinLogan

MartinLogan Vantage Manuel utilisateur

MartinLogan

MartinLogan Motion 60 XTi Manuel utilisateur

MartinLogan

MartinLogan bravado Manuel utilisateur

MartinLogan

MartinLogan Monument 7XW Manuel utilisateur

MartinLogan

MartinLogan Quest z Manuel utilisateur

MartinLogan

MartinLogan Motion MC4 Manuel utilisateur

MartinLogan

MartinLogan Grotto I Manuel utilisateur

MartinLogan

MartinLogan Vista Manuel utilisateur

MartinLogan

MartinLogan bravado Manuel utilisateur

MartinLogan

MartinLogan motion AFX Manuel utilisateur

MartinLogan

MartinLogan ESL Voyage Manuel utilisateur

MartinLogan

MartinLogan Crescendo Xm Manuel utilisateur

MartinLogan

MartinLogan classic ESL 9 Manuel utilisateur

MartinLogan

MartinLogan ML-65R Manuel utilisateur

MartinLogan

MartinLogan Statement 40XW Manuel utilisateur

MartinLogan

MartinLogan classic ESL 9 Manuel utilisateur

MartinLogan

MartinLogan i Manuel utilisateur

MartinLogan

MartinLogan Woofer Vista Vantage Manuel utilisateur

MartinLogan

MartinLogan STAGECenter Channel Speaker Manuel utilisateur

MartinLogan

MartinLogan MOTION 6 Manuel utilisateur

MartinLogan

MartinLogan Preface Manuel utilisateur

Manuels Intervenants populaires d'autres marques

argon audio

argon audio IE20 Manuel utilisateur

Denon

Denon SC-N7 Manuel utilisateur

Gemline

Gemline Ace 3952 Manuel utilisateur

Focal

Focal ON WALL 300 Mode d’emploi

HEADRUSH

HEADRUSH Maximus HRSP 5024 Manuel utilisateur

SoundLogic

SoundLogic BCCS-6/6395 Manuel utilisateur

Peavey

Peavey DTH 218 Manuel utilisateur

Avantree

Avantree Pluto Air Manuel utilisateur

Morel

Morel Integra Series INTEGRA OVATION 4 Manuel utilisateur

Oppo

Oppo SONICA Manuel utilisateur

Bose

Bose SoundLink Wireless Music System Manuel utilisateur

Rocksteady

Rocksteady Stadium Manuel utilisateur

Bowers & Wilkins

Bowers & Wilkins 4 Manuel utilisateur

Sonance

Sonance SONOS OUTDOOR Series Manuel utilisateur

Electro-Voice

Electro-Voice EVID FM4.2 Manuel utilisateur

Pioneer

Pioneer XW-HTD630 Manuel utilisateur

Onn

Onn BWA16AA002 Manuel utilisateur

HP GL313AA - USB Speakers PC Multimedia Manuel utilisateur
