MartinLogan Statement 40XW Manuel utilisateur

Driver Assembly Manual

WARNING!

• Refer servicing to a qualified technician.

• To prevent fire or shock hazard, do not

expose this module to moisture.

• Turn the amplifier off should any abnormal

conditions occur.

• Do not drive speaker beyond its rated power.

Content Check List............................ 3

Connection................................. 4

Protect Your Investment........................ 4

Break-In................................... 4

Speaker Placement ........................... 4

Achieving Superior Imaging . . . . . . . . . . . . . . . . . . . .4

Balancing Hard vs. Soft Surfaces Improves

High- and Mid-Frequency Performance ............4

Painting the Speaker Grille ..................... 5

Pre-Installation Checklist ....................... 6

Part Identification ............................ 7

Installation ..............................8 - 14

Driver Assembly Installation Preparation ...........8

Attach Trim Pieces ...........................9

Mounting The Driver Assembly .................10

Securing The Driver Assembly..................11

Attach The Front Baffle Trim ...................12

(Optional) Apply The Logo Badge...............13

(Optional) Apply The Speaker Grille . . . . . . . . . . . . .14

Dimension Drawing. ......................... 15

Specifications .............................. 16

Per the European Union WEEE (Waste Electrical and

Electronic Equipment) directive effective August 13,

2005, we would like to notify you that this product

may contain regulated materials which upon disposal,

according to the WEEE directive, requires special reuse

and recycling processing. For this reason, Martin Logan

has arranged with our distributors in European Union

member nations to collect and recycle this product at

no cost to you.

To find your local distributor, please contact the dealer

from whom you purchased this product, email

[email protected] or visit the distributor locator at

www.martinlogan.com.

Please note, only this product itself falls under the

WEEE directive. When disposing of the packaging and

other related shipping materials, we encourage you to

recycle these items through the usual channels.

The lightning bolt flash with arrowhead symbol

within an equilateral triangle is intended to

alert the user to the presence of uninsulated

“dangerous voltage” within the product’s

enclosure that may be of sufficient magnitude to

constitute a risk of electric shock.

The exclamation point within an equilateral

triangle is intended to alert the user to the

presence of important operating and maintenance

(servicing) instructions in the literature

accompanying the appliance.

The fire within an equilateral triangle is intended

to alert the user to the potential of creating a fire

hazard if they do not follow the instructions.

The dollar sign within an equilateral triangle is

intended to alert the user that they run the risk

of causing damage that could be potentially

expensive to repair if they don’t follow the

instructions.

Content Check List

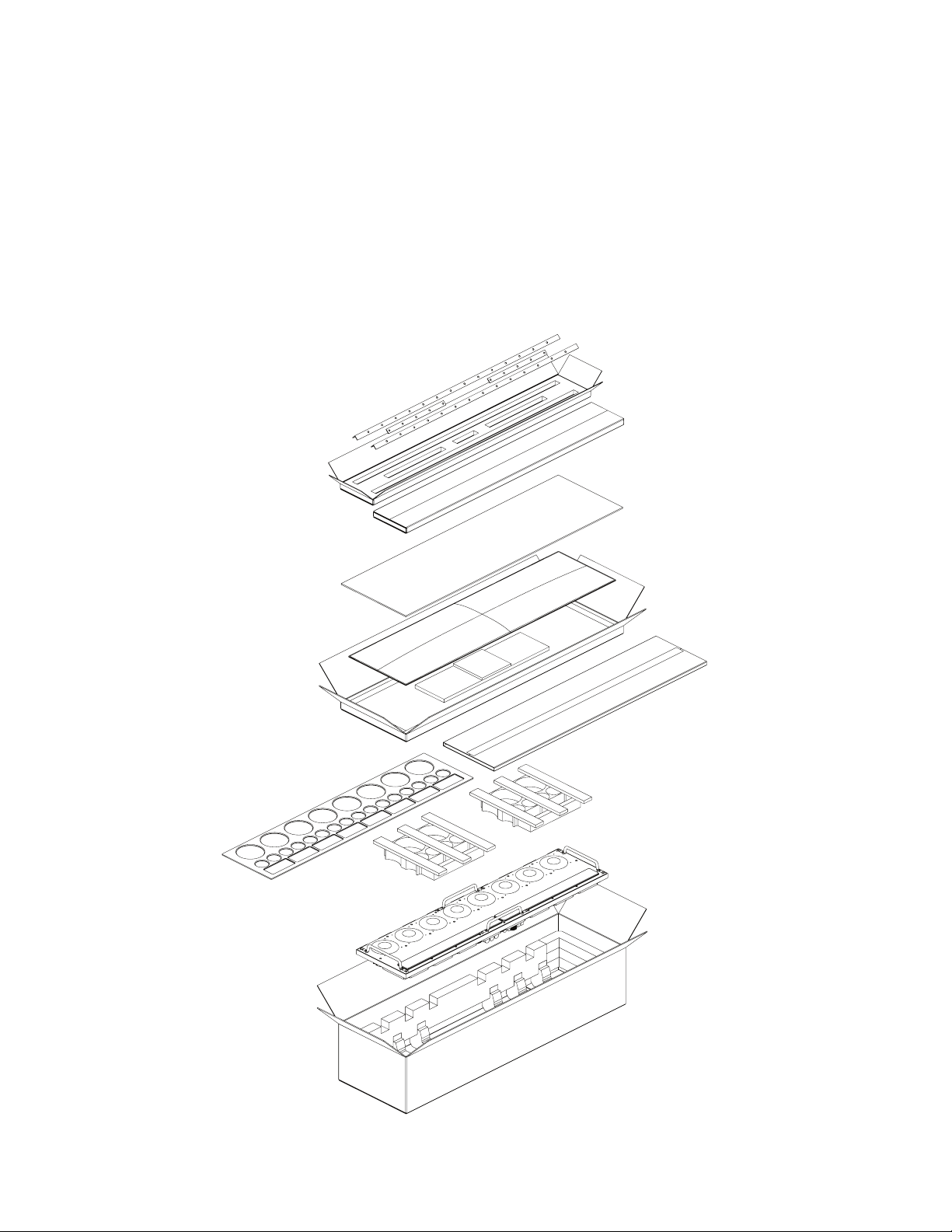

A complete Statement 40XW is shipped in 3 boxes. This manual refers to box 3 of 3 which is the Driver Assembly. The

Statement 40XW Driver Assembly contains the following items.

Should you require assistance, please call our service department at (785) 749-0133.

40XW Driver Assembly • Front Baffle Trim • Speaker Grille Cover • Extra Grille Scrim • Trim Pieces • Machine Screws

4x Brass Screws • MartinLogan Logo Badge and Template

The amplifier is connected to the Statement 40XW through the

binding posts located on the top or bottom of the in wall back

box.

4 brass screws on the front of the speaker baffle are used to

establish the connection with the amplifier.

See pg. 11 for additional details on making this connection.

ConneCtion

• Use an amp that approximately matches the speaker’s

specified power handling.

• To avoid damage, turn down the volume of the

speaker is distorting, sounds harsh, or the bass begins

to break up.

• Tone controls and equalizers may increase the

likelihood of distortion, especially at high volumes. Use

these setting sparingly.

When you first begin to play your speakers, they may sound

a bit bass shy, due to the high quality, long-life components

used in the drivers. Allow approximately 72 hours of break-in at

90 dB (moderate listening levels) before any critical listening.

Break-in

ProteCt Your investment

Achieving Superior Imaging

For best performance and imaging, place the speakers

equidistant to the primary listening position. It is

recommended that the primary listening position be 1x -2x

the distance between the speakers for optimal imaging. For

example, if your speakers are 10 feet apart, then the optimal

listening distance is between 10 and 20 feet away. Guidance

for speaker height can be found on page 6 in the “Pre-

Installation Checklist” section.

Balancing Hard vs. Soft Surfaces Improves High- and

Mid-Frequency Performance

Rooms that are “overdamped” with carpeting, drapes, and

other sound absorbers can cause your system to be dull

and lifeless. On the other hand, rooms can have so many

hard surfaces that the system sounds like a gymnasium.

Experiment by adding or removing soft surfaces until you find

a mix that is right for you.

sPeaker PlaCement

Fig. 1

WARNING! Turn your amplifier off before

making or breaking any signal connections!

Painting the sPeaker grille

IMPORTANT!

Before painting, remove the grille from speakers

and remove the cloth scrim attached inside the grille. The

speaker includes an extra scrim.

1. Remove the grille from the speaker. A protective cloth

scrim is attached to the back of the grille with a low-tack

adhesive. Remove this scrim by gently pulling it away

from the grille and discard it.

2. Paint the grille, being careful not to plug the holes.

Allow the paint to dry completely before proceeding.

IMPORTANT! For best results use a spray rather than a

brush or roller.

3. Gently press the new scrim into place before reinstalling

the speaker grille.

Pre-installation CheCklist

NOTE: This is the second part of the Installation process.

Do not proceed until all steps in the “In-wall Back Box

Manual” have been completed.

If using the Statement On-Wall Enclosure you may pro-

ceed from Step 17.

Required Tools:

-3/32 Hex Bit (Not Included)

-5/32 Hex Bit (Not Included)

-Power Drill

-#2 Philips Bit

-#2 Hand Screwdriver

-Medium Grit Sanding Sponge

PLEASE NOTE: INSTALLATION IS A 2 PERSON JOB.

Part identifiCation

1Driver Assembly

2Baffle Protector

3Handles

4Trim Baffle

5End Trim

6Side Trim

7Grille

sPeaker installation

STEP 16: DRIVER ASSEMBLY INSTALLATION PREPARATION

16a To prepare the back box for the driver assembly

installation, first remove the positioning brackets, 2

corner brackets, and 4 side brackets using a Phillips

screwdriver. These brackets are held in place with 2

screws each.

16b Remove the 10 screws securing the positioning board

and then carefully remove it from the back box.

STEP 17: ATTACH TRIM PIECES

17a Before applying the trim pieces, check the interior metal

edge of the install board opening. Sand away any

sheet rock mud buildup so the trim will sit flush with the

surface.

17b Using #2 Phillips screwdriver. apply the top and bottom

trim pieces first, using the supplied machine screws.

(These screws will be in the trim packaging.)

17c Apply the side trim pieces the same way as the top and

bottom pieces.

NOTE: If using the optional on-wall enclosure instead of the

in-wall installation method, please ignore any references to

sheet rock or sheet rock mud, as they only apply to the

in-wall method of installation. All other steps apply to both

methods of installation.

STEP 18: MOUNTING THE DRIVER ASSEMBLY

THIS STEP REQUIRES 2 PEOPLE TO COMPLETE SAFELY

18a With 2 people, lift the driver assembly from its

packaging using the attached handles.

18b With 2 people, carefully seat the driver assembly into

the back box by guiding the driver assembly alignment

pins into the mating holes on the back box. Be careful

not to damage the wall surface during this step.

18c While 1 person continues to hold the driver assembly

securely in place, the other should install the included

8-32 screws through the driver assembly into the back

box. These specific locations are marked as “through”

holes in the attached plastic baffle protector. (3/32 hex

driver bit required for machine screws. Not included)

18d Once all 8-32 screws have been tightened, the driver

assembly is now securely attached to the back box.

The person holding the driver assembly in place can

now let go.

18e You may now safely remove the handles and plastic

baffle protector from the driver assembly. (Handle

removal will require the 5/32 hex driver bit. Not

included.)

NOTE: Left channel orientation shown here. Right channel

will be mirrored.

x 4 x 4
