Martin EFX500 Manuel utilisateur

Mania EFX Series

user manual

EFX500 EFX600

EFX700 EFX800

TM TM

500

410

180

230

500

410

180

230

500

400

140

Dimensions

Measurements are expressed in millimeters.

EFX500

EFX600

EFX700 & EFX800

A/S and all affiliated companies disclaim liability for any injury, damage, direct or indirect loss,

consequential or economic loss or any other loss occasioned by the use of, inability to use or reliance on

the information contained in this manual. The Martin logo, the Martin name and all other trademarks in this

document pertaining to services or productsby Martin Professional A/S or its affiliates and subsidiaries are

trademarks owned or licensed by Martin Professional A/S or its affiliates or subsidiaries.

P/N 35000178 Rev. E

Contents

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

AC power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Physical installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Creating a data link for DMX and synchronized operation . . . . . 13

Gobo wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Getting started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Music trig, auto trig and DMX modes . . . . . . . . . . . . . . . . . . . . . 17

Synchronized music trig and auto trig operation . . . . . . . . . . . . 18

DMX controller operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Changing personality settings . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Inverting effects movement . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Error messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Restriking the discharge lamp . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Adjusting focus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Service and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Lamp replacement and adjustment . . . . . . . . . . . . . . . . . . . . . . 28

Replacing the main fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Firmware and hard boot uploads . . . . . . . . . . . . . . . . . . . . . . . . 32

Circuit board layouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Control panel overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Mania EFX500 DMX protocol . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Mania EFX600 DMX protocol . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Mania EFX700 DMX protocol . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Mania EFX800 DMX protocol . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Mania EFX Series specifications . . . . . . . . . . . . . . . . . . . . . . . 49

4 Mania EFX user manual

Overview

A: Power inlet

B: Voltage selector switch (EFX600, EFX700 &

EFX800: fitted to EU models only)

C: DMX in

D: DMX out

E: Display and control buttons

F: Safety cable attachment point

G: Power on/off switch

Introduction 5

Introduction

Thank you for selecting a dynamic lighting fixture from the Martin Mania

EFX™ Series. This series consists of DJ lighting fixtures with a motorized

rotating parabolic mirror dish and a motorized rotating gobo wheel (gobos

are outlines or masks placed in a light beam). The fixtures project

complex moving colored flower effects.

The EFX500™ and EFX600™ feature an additional mirror drum with

motorized pan (swivel) and tilt (rotation) that further enhances beam

dynamics. The EFX800™ features an additional motorized tilting

(rotating) color paddlewheel that further enhances beam dynamics and

color.

All Mania EFX fixtures offer the following features:

• Stand-alone single fixture and synchronized (master/slave) operation in

auto and music triggering modes

• Adjustable music triggering sensitivity

• DMX control with two DMX modes: DMX mode 2 gives extended

functionality on additional channels

• Adjustable focus

The EFX500 uses a long-life 250 watt halogen lamp. All other Mania

EFX fixtures use a long-life 150 watt discharge lamp.

Safety information

Warning! This product is not for household use. It presents risks of

lethal or severe injury due to fire and heat, electric shock,

ultraviolet radiation, lamp explosion and falls.

This product presents risks of lethal or severe injury due to fire and heat,

electric shock, ultraviolet radiation, lamp explosion, and falls. Read this

manual before installing or powering the fixture, follow the safety

precautions listed below and observe all warnings in this manual and on

the fixture. If you have any questions about how to operate the fixture

safely, please contact your Martin dealer or call the Martin 24-hour service

hotline.

6 Mania EFX user manual

Protecting yourself and others from electric shock

• Ensure that the fixture is electrically connected to ground (earth).

• Check the fixture’s voltage setting switch (if fitted) and serial number

label before applying power. Only use the fixture if the fixture’s voltage

setting matches your local AC power voltage.

• Disconnect the fixture from AC power before removing or installing the

lamp, fuse, or any part, and when not in use.

• Use only a source of AC power that complies with local building and

electrical codes and has both overload and ground-fault (earth leakage)

protection.

• Refer all service not described in this manual to a Martin service

technician.

• Do not expose the fixture to rain or moisture.

• Do not operate the fixture if any covers or components are missing,

damaged or deformed.

• Do not use the product if the power cable is damaged. Replace the

cable with a Martin item only (available from your Martin dealer).

Protecting yourself and others from burns and fire

Warning! Hot lamp. The exterior of the fixture can become hot. Allow to

cool for at least 10 minutes before handling or opening.

• Surface temperature under steady state condition = 100°C (212° F).

• Do not operate the fixture if the ambient temperature (Ta) exceeds 40° C

(104° F).

• Never attempt to bypass the thermostatic switch or fuses. Always

replace defective fuses with ones of the specified type and rating.

• See serial label for replacement fuse size and lamp type.

• Keep all combustible materials (for example fabric, wood, paper) at

least 0.3 meters (4 inches) away from the fixture. Keep flammable

materials well away from the fixture.

• Do not illuminate surfaces within 1 meter (3.3 feet) of the fixture.

• Provide a minimum clearance of 0.1 meters (4 inches) around fans and

air vents and ensure that air flow through and around vents is free and

unobstructed.

• Never place filters or other materials over the lens or in the optical path.

• Do not look directly into the light.

• Change the lamp immediately if it becomes damaged or thermally

deformed.

• Do not operate the fixture if any optical components or shields are

missing, damaged or deformed: an unshielded discharge lamp emits

dangerous UV radiation that can cause burns and eye injuries.

Introduction 7

• Do not modify the fixture or install other than genuine Martin parts.

Preventing injuries due to falls

• When suspending the fixture above ground level, verify that the

structure can hold at least 10 times the weight of all installed devices.

• Ensure that all external covers and rigging hardware are securely

fastened and use an approved means of secondary attachment such as

a safety cable.

• Block access below the work area and work from a stable platform

whenever installing or removing the fixture.

Discharge lamp safety

• EFX600™, EFX700™ and EFX800™ fixtures use a discharge lamp. If

the quartz envelope of a discharge lamp is broken, the lamp releases a

small quantity of mercury and other toxic gases. If a discharge lamp

explodes in a confined area, ventilate thoroughly and evacuate if

necessary. Wear non-porous safety gloves when handling a broken

discharge lamp. Treat broken or used discharge lamps and used safety

gloves as hazardous waste and send to a specialist for disposal.

Unpacking

Important! Do not lift or carry a fixture by holding the motor housing (if

fitted) on the front of the fixture. It is not designed for this

purpose. You could injure yourself or others, and you could

cause damage that is not covered by the product guarantee.

The packing material is carefully designed to protect the fixture during

shipment - always use it to transport the fixture.

Mania EFX™ fixtures are supplied with the following items:

• 3-wire power cable(s) with IEC power input connector.

• 5m (16.4 ft.) DMX cable.

• Mounting plate (installed).

•EFX500 only: 250 watt halogen lamp (installed).

•EFX600, EFX700 and EFX800: 150 watt discharge lamp (this is

supplied separately to avoid damage during shipping and must be

installed before use – see “Installing a discharge lamp” on page 30).

•EFX800 only: paddlewheel shield for use during transport (installed).

8 Mania EFX user manual

Removing protective packaging

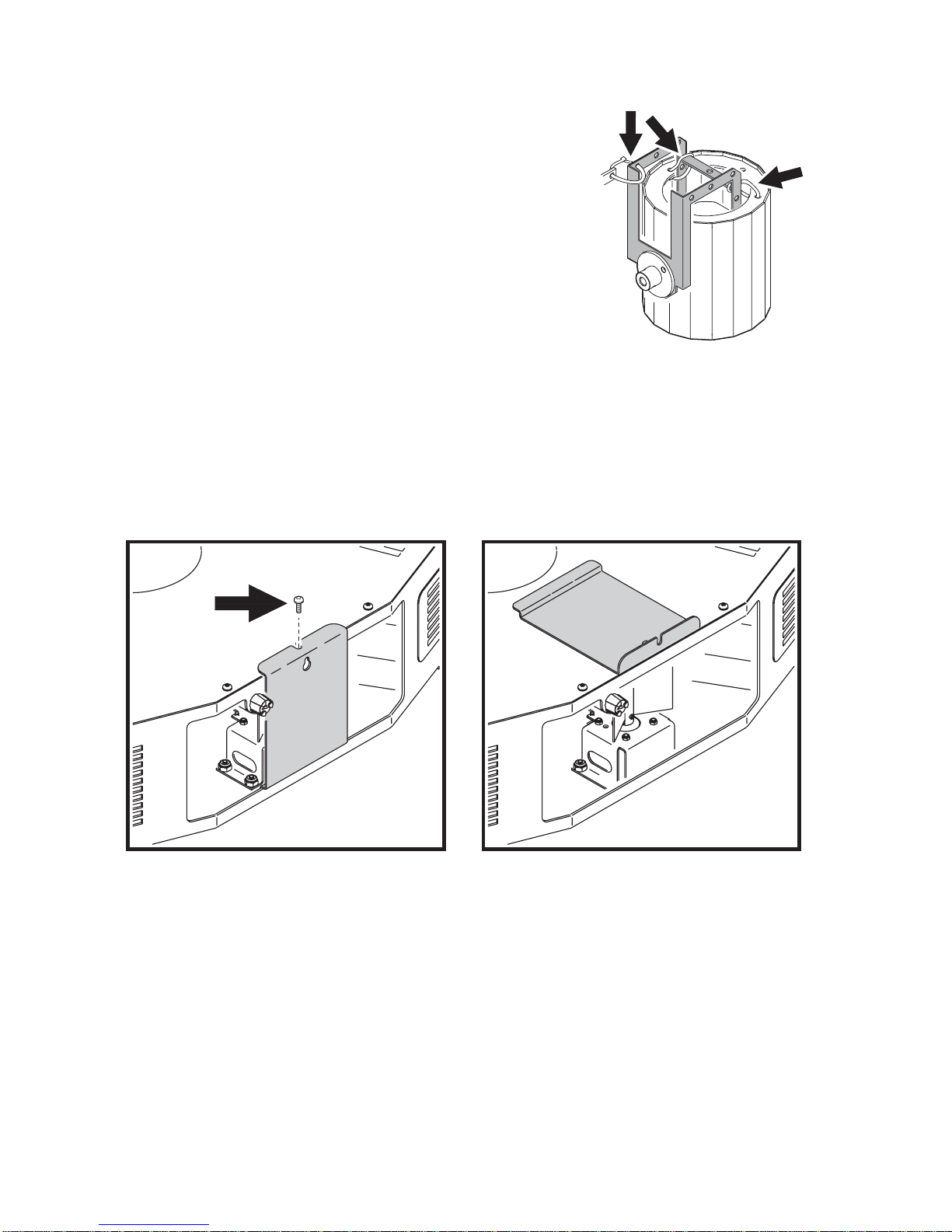

Important! The EFX500 and EFX600 mirror drum

is secured with packaging and white

plastic ties for shipment. Wearing

gloves to avoid cutting yourself on the

mirrors, cut and remove the plastic

ties. Check that the drum can be

swivelled through 180° and rotated

through 360° before operating the

fixture. If it cannot, you may have

missed one of the plastic ties.

Remove the clear protective film from

the mirror drum before operating the fixture.

The EFX800 is supplied with a protective shield installed over

the paddlewheel for use when transporting the fixture. The

shield is secured with one screw (arrowed in illustration). Before

your operate the fixture, remove the screw, lift out the shield and

store both items for future use.

Reinstall the protective shield each time the fixture is

transported.

Installation 9

Installation

AC power

Warning! Ensure that the fixture’s voltage setting matches your local AC

power voltage before applying power.

For protection from fire and electric shock, the fixture must be grounded

(earthed). The power supply must have both overload and ground-fault

(earth fault) protection.

Check that power cables are undamaged and rated for the current

requirements of all connected devices before use.

Important! Do not connect the fixture to a dimmer system, as this may

cause damage that is not covered by the product guarantee.

Mania EFX500 power settings

All Mania EFX500 models must be set to 115 V, 60 Hz or 230 V, 50 Hz AC

power using the red voltage selector switch on the connections panel.

• Set the switch so that 115 V is visible if you have110-120 V, 60 Hz AC

power.

• Set the switch so that 230 V is visible if you have 220-240 V, 50 Hz AC

power.

Mania EFX600, EFX700 & EFX800 power settings

• Mania EFX600, EFX700 and EFX800 EU models can be set to 230 or

240 V, 50 Hz AC power using the switch on the connections panel. Use

the 230 V setting if you have 220-230 V power, and use the 240 V

setting if you have 230-240 V.

• Mania EFX600, EFX700 and EFX800 US models do not have a

voltage selector switch and are supplied set up for 110-120 V, 60 Hz AC

power.

Warning! Do not operate the fixture if local AC power voltage is outside

the range specified for the fixture.

10 Mania EFX user manual

Power plugs

Mania EFX fixtures are supplied with power cables to match most local

power outlet sockets (see “Included items” on page 51), but if there is no

power plug that matches your socket type, install a suitable grounding-

type (earthed) power plug on the power cable. Consult a qualified

electrician if you have any doubts about proper installation.

Follow the power plug manufacturer’s instructions, connecting the

appropriate wires to ground (earth), live, and neutral. The table below

shows some common wire identification schemes.

Physical installation

Each Mania EFX fixture must be either:

• fastened to an overhead structure by means of its mounting plate and a

Martin rigging clamp (available from your Martin dealer), or

• fastened to a surface by means of its mounting plate and suitable bolts.

Do not install the fixture by any other means, as this can cause the fixture

to overheat.

Ensure that the mounting structure or surface and all fasteners used can

support at least 10 times the weight of all installed fixtures, clamps,

cables, auxiliary equipment, etc.

Ensure that the fixture is located:

• at least 1 meter (3.3 ft.) away from the surface to be illuminated,

• at least 0.1 meters (4 in.) from any combustible materials (wood, fabric,

paper, etc.) and

• well away from any flammable materials.

Ensure that the clearance around the fan and air vents is at least 0.1

meters (4 in.) and that airflow is free and unobstructed.

Warning! Block access below the work area and work from a stable

platform when installing or servicing the fixture.

Function Wire (EU) Wire (US) Marking Screw color

live brown black “L” yellow or brass

neutral blue white “N” silver

ground (earth) yellow/green green green

Table 1: Cord cap wiring

Autres manuels pour EFX500

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Martin Luminaire

Martin

Martin MH 1 Profile Manuel utilisateur

Martin

Martin RoboColor Pro 400 Manuel utilisateur

Martin

Martin MAC Viper Wash Manuel utilisateur

Martin

Martin JEM ZR series Manuel utilisateur

Martin

Martin MAC 250 Krypton Manuel utilisateur

Martin

Martin MAC 250 Krypton Manuel utilisateur

Martin

Martin Cyclo 03 Directional Manuel utilisateur

Martin

Martin MAC Quantum Wash Guide de configuration

Martin

Martin CYCLO 04 DMX Manuel utilisateur

Martin

Martin Tripix Manuel utilisateur

Martin

Martin MAC 301 Manuel utilisateur

Martin

Martin MAC 2000 Wash XB Manuel utilisateur

Martin

Martin Raptor Manuel utilisateur

Martin

Martin MAC 2000 Wash XB Manuel utilisateur

Martin

Martin Exterior 1200 Wash Manuel utilisateur

Martin

Martin MAC 550 Profile Manuel utilisateur

Martin

Martin MAC Viper AirFX Manuel utilisateur

Martin

Martin MAC III PERFORMANCE Manuel utilisateur

Martin

Martin MAC Viper Wash Manuel utilisateur

Martin

Martin RUSH MH-2 Wash Manuel utilisateur

Martin

Martin MAC 250 Beam Manuel utilisateur

Martin

Martin MAC Aura XB Manuel utilisateur

Martin

Martin MAC Encore Performance Manuel utilisateur

Martin

Martin Easypix Manuel utilisateur

Manuels Luminaire populaires d'autres marques

Emos

Emos CLASSIC ZY1431T Manuel utilisateur

Westinghouse

Westinghouse Outdoor Lighting Fixture Manuel utilisateur

Hedler

Hedler C 12 silent Manuel utilisateur

Blizzard Lighting

Blizzard Lighting Puck: CSI Manuel utilisateur

Energetic Lighting

Energetic Lighting ELYSL-5004 Series Manuel utilisateur

Lightmaxx

Lightmaxx Shaft 5R Manuel utilisateur

Triarch

Triarch 31083 Manuel utilisateur

Philips

Philips 32614 Series Manuel utilisateur

IKEA

IKEA TIVED Manuel utilisateur

Lightolier

Lightolier LP200 Manuel utilisateur

Chauvet Professional

Chauvet Professional ROGUE R1 BEAM WASH Manuel utilisateur

Cooper Lighting

Cooper Lighting Halo L3232E Manuel utilisateur

Stageline

Stageline ODW-2410RGBW Manuel utilisateur

Light Sky

Light Sky Tornado Series Manuel utilisateur

Lightolier

Lightolier Paralyte 2424 PLA2G9LS26U Manuel utilisateur

Lightolier

Lightolier Lytespan 83ED17S Manuel utilisateur

Lightolier

Lightolier Calculite CS8226 Manuel utilisateur

ArtFox

ArtFox Beam 15R extreme Manuel utilisateur
