Marshalltown MIX3 Manuel utilisateur
WHEELBARROW MIXER
Part# MIX3, MIX3-UK | EDI# 27275, 27276
Go to Discount-Equipment.com to order your parts
We sell worldwide for the brands: Genie, Terex, JLG, MultiQuip, Mikasa, Essick, Whiteman,
Mayco, Toro Stone, Diamond Products, Generac Magnum, Airman, Haulotte, Barreto, Power
Blanket, Nifty Lift, Atlas Copco, Chicago Pneumatic, Allmand, Miller Curber, Skyjack, Lull,
Skytrak, Tsurumi, Husquvarna Target, Stow, Wacker, Sakai, Mi-T-M, Sullair, Basic, Dynapac,
MBW, Weber, Bartell, Bennar Newman, Haulotte, Ditch Runner, Menegotti, Morrison, Contec,
Buddy, Crown, Edco, Wyco, Bomag, Laymor, EZ Trench, Bil-Jax, F.S. Curtis, Gehl Pavers, Heli,
Honda, ICS/PowerGrit, IHI, Partner, Imer, Clipper, MMD, Koshin, Rice, CH&E, General Equip-
ment ,Amida, Coleman, NAC, Gradall, Square Shooter, Kent, Stanley, Tamco, Toku, Hatz,
Kohler, Robin, Wisconsin, Northrock, Oztec, Toker TK, Rol-Air, APT, Wylie, Ingersoll Rand /
Doosan, Innovatech, Con X, Ammann, Mecalac, Makinex, Smith Surface Prep,Small Line,
Wanco, Yanmar
Discount-Equipment.com is your online resource for
commercial and industrial quality parts and equipment sales.
561-964-4949
visit us on line @ www.discount-equipment.com
TO PURCHASE THIS PRODUCT PLEASE CONTACT US
Select an option below to find your Equipment
Equipment Financing and
Extended Warranties Available
2 of 18
WS1213
TABLE OF CONTENTS
Introduction..................................................................................................................................................................................2
Safety Precautions......................................................................................................................................................................3
Warranty........................................................................................................................................................................................4
Assembly Guide
Parts .........................................................................................................................................................................................5
Hardware .................................................................................................................................................................................6
Frame........................................................................................................................................................................................7
Handle ......................................................................................................................................................................................8
Wheels......................................................................................................................................................................................9
Attach Motor.........................................................................................................................................................................10
Drum Blades.......................................................................................................................................................................... 11
Attach Drum..........................................................................................................................................................................12
Motor Hood ...........................................................................................................................................................................13
Pedestal.................................................................................................................................................................................14
Attach Mixer to Pedestal....................................................................................................................................................15
Operation ....................................................................................................................................................................................16
Concrete Mixing Guide.............................................................................................................................................................16
Issues & Resolution................................................................................................................................................................... 17
Parts & Service Information .................................................................................................................................................... 17
The Marshalltown Wheelbarrow mixer is great for the do-it-yourself home project. It allows you to work almost anywhere.
The mixer will clear a 30" door and easily fits into an elevator. A sturdy 110-volt or 230-volt electric motor allows you to work
indoors without emissions.
An included pedestal allows the mix to be discharged into wheelbarrows, buckets or between forms easily.
Used in the mixing of concrete, adhesives, chemicals, seed, and grain - there are many options.
• Mixes 3 Cu. Ft. of cement, mortar mix, or 7 bags of 60 lbs. concrete mix.
• High torque 1⁄2 HP single phase 110 volt/60 Hz (North America configuration) or 230 Volt/50 Hz (Europe/Asia/
Africa/Australia configuration) electric motor with “On/Off” Switch
• Rugged steel drum
• Direct drive gearbox – easy to assemble, no belts or pulleys
• Fast mixing and easy clean up
• Lightweight – 110 lbs. (49.89 kg) – Can ship UPS
• Clears a 30 inch (76.20cm) door opening
• Spins at 28 RPM
• Drum diameter: 24" (61cm)
• Discharge outlet height: 18" (45.72cm)
• Wheel dimensions: 14" x 3.5" (35.50cm x 8.90cm)
• Storage dimensions: 45" x 29" x 35.5” (1.14m x 0.75m x 0.90m)
INTRODUCTION
Go to Discount-Equipment.com to order your parts
3 of 18
WS#1213
DANGER!
DANGER or
WARNING!
WARNING safety signs are located near specific hazards.
General precautions are listed on CAUTION safety signs.
SAFETY PRECAUTIONS
This operator’s manual has been prepared to provide the information you need to correctly operate and maintain your unit.
Read it carefully and keep it for future reference.
The replacement of any part on this product by other than the manufacturer’s authorized replacement part may adversely
affect the performance, durability or safety of this product. Should you ever require repair parts or service, contact your
authorized parts and service dealer.
The manufacturer reserves the right to make changes or add improvements to its product at any time without prior notice.
The manufacturer also reserves the right to decide, upon its discretion at any time, to discontinue a product.
Read and follow all safety precautions and operating instructions in this manual.
The following precautions are suggested to help prevent accidents. Before operating this equipment read all precautions.
Only trained individuals should operate equipment. If the safety instructions and warnings are not read and carefully
followed, personal injury could occur.
• Do not operate this mixer until all the warnings and safety instructions have been read and understood by the operator.
Keep all unauthorized and untrained people away from the mixer at all times.
• Wear safety glasses when mixer is in use.
Clear the work area around the machine to prevent tripping or falling onto the mixer.
• Operate on level ground to prevent the mixer from tipping over.
• Make sure that the mixing drum is clear of obstructions and stand clear of the mixer while making power cord
connections.
• Properly grounded electric circuit is required to protect the operator from possible electric shock.
• Do not start the motor if the drum is fully loaded.
• DO NOT OPERATE this mixer under the influence of alcohol or while taking medication that impairs your reactions.
• Keep all people excluding the operator at least 5 feet away from the mixer during operation.
• NEVER run the mixer unattended, turn off the motor when you leave the machine.
Keep hands and clothing away from any moving parts while the mixer is running.
NEVER attempt to move the mixer while the motor is on.
NEVER plug or unplug the motor while standing in or around damp or wet ground.
Do not pull the cord to disconnect it. Keep the cord away from heat, oil, and sharp edges and in locations where it would
not be easily tripped over.
• Keep the mixer clean and free of debris and aggregate build-up.
• Lightly grease wheel axles and the swivel bracket.
• Periodically examine the mixer for significant or abnormal damage/wear.
• Use factory authorized parts for replacement.
IMPORTANT—READ THIS MANUAL BEFORE ASSEMBLING OR OPERATING
After referring to the operation manual, if you still require assistance, please contact our customer service department.
! !
Go to Discount-Equipment.com to order your parts
4 of 18
WS1213
WARRANTY
This product is warranted to the original purchaser only, to be free of defects in material and workmanship under normal
use, for one year from purchase date. Marshalltown Company shall, without charge for parts and labor, repair or replace such
parts which are found to be defective. All transportation charges for replacement parts must be borne by the purchaser.
For warranty service, the product must be delivered, with proof of purchase date, to the dealer of original purchase, or any
factory authorized service dealer. The delivery of the unit must be made no later than 30 days after the expiration of the
warranty period.
If difficulty is encountered in having warranty work performed, contact the Customer Service Department at (800)888-0127.
All implied warranties, including those of merchantability and fitness for a particular purpose, are limited to one year from
date of purchase by the original retail customer and to the extent permitted by law any and all implied warranties are
excluded and disclaimed after the expiration of such period.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitations of incidental or
consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal
rights, and you may also have other rights, which vary from state to state.
Exclusion from this warranty:
1. The following items are not covered under the Marshalltown Company one year warranty and are warranted by
their respective manufacturer.
a) Motors
b) Enclosed gear transmissions
NOTE: A copy of the warranty and service contact information for the above items is furnished
with the individual product.
2. All consequential damages, including pickup and delivery of the unit, communication, mileage charges and/or
rental of a replacement unit during repairs are not covered under this warranty, nor are any loss of income and/or
other loss resulting from the failure of the product to function due to a warranty defect.
3. This warranty will not apply when the product becomes inoperative due to misuse, normal wear, neglect,
improper maintenance, accident or freight damage; has not been operated and maintained in accordance
with the instructions furnished in the Operator’s Manual; or has been altered or modified without approval
from the factory Service Department.
4. No parts or products are to be returned to the factory without prior written approval from the factory.
Go to Discount-Equipment.com to order your parts
5 of 18
WS#1213
ASSEMBLY GUIDE - PARTS
Chassis
Draw Bar
Handles (x2)
Wheels (x2)
Direct-Drive Motor
Drum
G
B
B
IC
C
D
D
H
F
A
A
E
E
Paddles (x2)
Motor Hood
Pedestal Assembly
F
G
H
I
1. Lay out the mixer parts.
PARTS AVAILABLE FOR REPLACEMENT
NAME PART#
E Motor Assembly 27278
E Motor Assembly UK 27279
E Motor Assembly France 27280
F Drum 27281
* On/Off Switch 27282
I Pedestal 27283
D Wheel (single) 27284
* Gearbox 27285
G Paddle (single) 27286
* Component of E
Refer to page 17 for instructions on reordering parts and mixer maintenance.
Go to Discount-Equipment.com to order your parts
6 of 18
WS1213

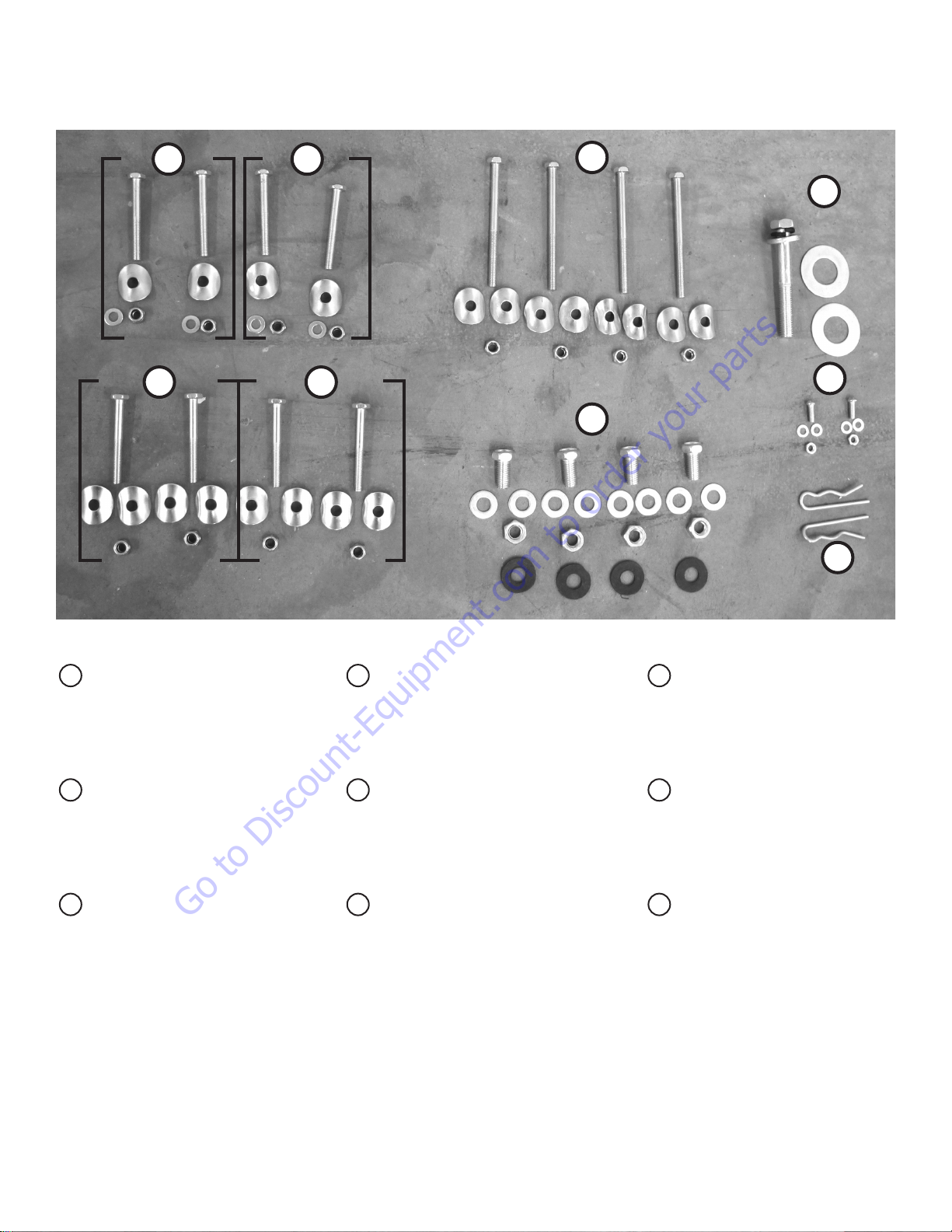

ASSEMBLY GUIDE - HARDWARE
1A
M8 x 70mm Hex Bolts (x2)
M8 Curved Washers (x2)
M8 Lock Nuts (x2)
M8 Washers (x2)
1A
1B
2A
M8 x 70mm Hex Bolts (x2)
M8 Curved Washers (x2)
M8 Lock Nuts (x2)
M8 Washers (x2)
2A
2B
M8 x 70mm Hex Bolts (x2)
M8 Curved Washers (x4)
M8 Lock Nuts (x2)
2B
4
7
M8 x 105mm Hex Bolts (x4)
M8 Curved Washers (x8)
M8 Lock Nuts (x4)
7
5
M14 x 108mm Hex Bolt
M14 Lock Washer
M14 Washer
14mm Washers (x2)
5
6
M6 x 40mm Machine Bolts (x2)
M6 Washers (x4)
M6 Lock Nuts (x2)
6
3
Cotter Pins (x2)
3
M8 x 70mm Hex Bolts (x2)
M8 Curved Washers (x4)
M8 Lock Nuts (x2)
1B
M12 x 25mm Hex Bolts (x4)
M12 Rubber Washers (x4)
M12 Washers (x8)
M12 Nuts (x4)
4
2. Lay out all hardware
Refer to page 17 for instructions on reordering parts and mixer maintenance.
Go to Discount-Equipment.com to order your parts
7 of 18
WS#1213
ASSEMBLY GUIDE - FRAME (PARTS A & B)
Use hardware 1A on top, use 1B on bottom.
3. Connect draw bar to the back of the drum frame. Hardware required: SETS 1A & 1B
Finished frame.
Fasten using a 14mm wrench and 14mm socket.
Go to Discount-Equipment.com to order your parts
8 of 18
WS1213
ASSEMBLY GUIDE - HANDLES (PARTS C)
4. Connect the handles to the drum frame. Hardware required: SETS 2A & 2B
Use hardware 2B on top, 2A on bottom. Fasten using a 14mm wrench and 14mm socket.
Fasten using a 14mm wrench and 14mm socket.
Finished frame with handles.
Use hardware 2B on top, 2A on bottom.
Go to Discount-Equipment.com to order your parts
9 of 18
WS#1213
ASSEMBLY GUIDE - WHEELS (PARTS D)
Insert wheel and fasten with cotter pin. (Hardware 3)Repeat step for other side.
Finished frame with wheels.
5. Connect wheels to the drum frame assembly. Hardware required: SET 3
Go to Discount-Equipment.com to order your parts
