Marshall Amplification VDA-104-3GS-2 Manuel utilisateur

Broadcast A/V Division

VDA-104-3GS-2

1x4 3G/HD/SD-SDI Re-clocking

Distribution Ampliﬁer

User Manual

All manuals and user guides at all-guides.com

VDA-104-3GS-2 Manual

www.marshall-usa.com2 1

Table of Contents Safety Instructions

The VDA-104-3GS-2 1x4 3G/HD/SD-SDI Re-clocking Distribution Ampliﬁer has been tested

for conformance to safety regulations and requirements and has been certiﬁed for international

use. However, like all electronic equipment, the VDA-104-3GS-2 should be used with care. Please

read and follow the safety instructions to protect yourself from possible injury and to minimize the

risk of damage to the unit.

• Follow all instructions and warnings marked on this unit.

• Do not attempt to service this unit, except where explained in this manual.

• Provide proper ventilation and air circulation and do not use near water.

• Keep objects that might damage the device and assure that the placement of this unit is on a

stable surface.

• Use only the power adapter and power cords and connection cables designed for this unit.

• Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device

before cleaning.

1. Introduction

2. Features

3. Package Contents

4. Speciﬁcations

5. Panel Descriptions

6. Hardware Installation

7. Connection Diagram

Safety Instructions

All manuals and user guides at all-guides.com

VDA-104-3GS-2 Manual

www.marshall-usa.com2 3

1. Introduction

2. Features

The VDA-104-3GS-2 receives one SDI input, perfectly duplicates it, and re-transmits four SDI

outputs for real time multi-viewing. It is a reliable video device splitting a SDI, HD-SDI, or 3G-SDI

video source to four SDI compliant displays at the same time. Besides, built-in re-clocking &

equalization features provide the best performance for SDI distribution ampliﬁer.

• 3G/HD/SD triple-rate distribution

• Four separately buffered and re-clocked outputs

• Supported SDI format

»3G-SDI (SMPTE 424M, 425M level A,B up to 2.97 Gbps)

»HD-SDI (SMPTE 292M, 296M up to 1.485 Gbps)

»SD-SDI (SMPTE 259M, up to 270 Mbps)

• Cable equalization (Belden 1694A) and signal retiming

• Video bandwidth: 2.97Gbps, 2.97/1.001Gbps

• Automatic detection of 3G/HD/SD-SDI signals

• Dual color LED indication of input lock and rate

• Passes all ancillary data

• Provides automatic cable equalization

»[3G-SDI]* >120m (394ft)

»[HD-SDI] >200m (656ft)

»[SD-SDI] >300m (984ft)

• Re-clocks SDI signals for cascading and thus longer transmission

• Inter-locked power supply for better ﬁxedness

Note: The cable length depends on the characteristics and quality of the cables.

3. Package Contents

• 1x VDA-104-3GS-2

• 1x 5V power adapter

• 1x Marshall Thank you Card

4. Speciﬁcations

Model Name VDA-104-3GS-2

Technical

SDI standards SD/HD/3G-SDI

Auto 3G/HD/SD detection Yes

Supported protocols SMPTE 259M, SMPTE 292M, SMPTE 424M, SMPTE425M

Video bandwidth [2.97Gpbs & 2.97/1.001Gbps]

Data rates 270 / 1483 / 1485 / 2970 Mbps

Output impedance 75

Re-clocking function Yes

Cable equalization [3G-SDI] >120m (394ft) / [HD-SDI] >200m (656ft) / [SD-SDI] >300m (984ft)

Audio support Yes

RP-198 pathological

patterns Immune

PCB stack-up 4-layer board [impedance control — differential 100 ; single 50 ]

Input 1x BNC [SDI]

Output 4x BNC [SDI]

BNC connector 75 inter-locked socket

Eye pattern characteristics

[HD]

Amplitude: Within 800mV ±3% (<10%) Long time jitter: 0.195 UI (<1.0 UI)

Rise overshoot: Less than 2% (<10%) Timing jitter: 0.195 UI (<1.0 UI)

Fall overshoot: Less than 2% (<10%) Alignment jitter: 0.127 UI (<0.2 UI)

Mechanincal

Housing Metal enclosure

Dimensions

[L x W x H]

Model 80.5 x 41.4 x 24.2mm [3.2” x 1.6” x 1”]

Package 175 x 128 x 134mm [6.9" x5" x5.3"]

Carton 662 x 366 x 290mm [2'2" x 1'2" x 1']

Weight

Model 174g [0.4 lbs]

Package 440g [0.9 lbs]

Fixedness Inter-locked power supply

Power supply 5V 2A DC

Power consumption 0.85 Watts [max]

Operation temperature 0~40°C [32~104°F]

Storage temperature -20~60°C [-4~140°F]

Relative humidity 20~90% RH [no condensation]

Note: The measurement results are from Tektronix WFM-7120 with SDI through 1m (3.3ft) long

Belden 1694A

All manuals and user guides at all-guides.com

VDA-104-3GS-2 Manual

www.marshall-usa.com4 5

5. Panel Descriptions

5 6 7 8 9 10

1. 3G/HD/SD-SDI Output

2. 3G/HD/SD-SDI Output

3. 5V DC power jack

Front Panel

Rear Panel

4. Power LED indicator

5. 3G/HD/SD-SDI Input

6. 3G Signal LED indicator

7. HD Signal LED indicator

8. SD Signal LED indicator

9. 3G/HD/SD-SDI Output

10. 3G/HD/SD-SDI Output

7. Connection Diagram

Camera

Display with COAXIAL input

6. Hardware Installation

1. Connect a camera or other devices equipped with 3G/HD/SD-SDI outputs to VDA-104-3GS-2

3G/HD/SD-SDI input.

2. Connect devices equipped with 3G/HD/SD-SDI inputs (e.g. monitors or video processors) to

VDA-104-3GS-2 3G/HD/SD-SDI outputs.

3. Plug power adapter cable into 5V DC power jack.

All manuals and user guides at all-guides.com

20608 Madrona Avenue, Torrance, CA 90503

Tel: (800) 800-6608 / (310) 333-0606 • Fax: 310-333-0688

www.marshall-usa.com

support@marshall-usa.com

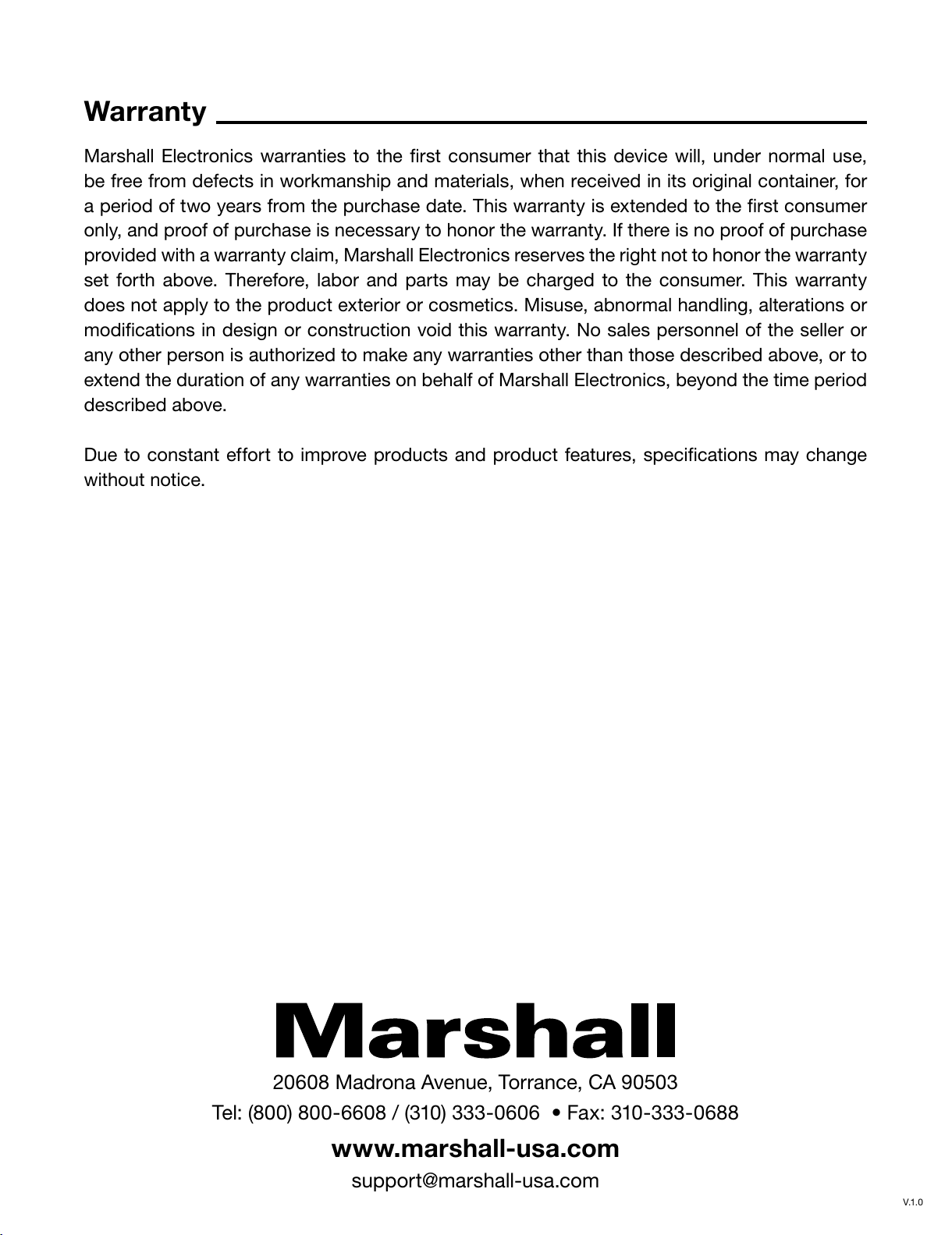

Marshall Electronics warranties to the ﬁrst consumer that this device will, under normal use,

be free from defects in workmanship and materials, when received in its original container, for

a period of two years from the purchase date. This warranty is extended to the ﬁrst consumer

only, and proof of purchase is necessary to honor the warranty. If there is no proof of purchase

provided with a warranty claim, Marshall Electronics reserves the right not to honor the warranty

set forth above. Therefore, labor and parts may be charged to the consumer. This warranty

does not apply to the product exterior or cosmetics. Misuse, abnormal handling, alterations or

modiﬁcations in design or construction void this warranty. No sales personnel of the seller or

any other person is authorized to make any warranties other than those described above, or to

extend the duration of any warranties on behalf of Marshall Electronics, beyond the time period

described above.

Due to constant effort to improve products and product features, speciﬁcations may change

without notice.

Warranty

V.1.0
