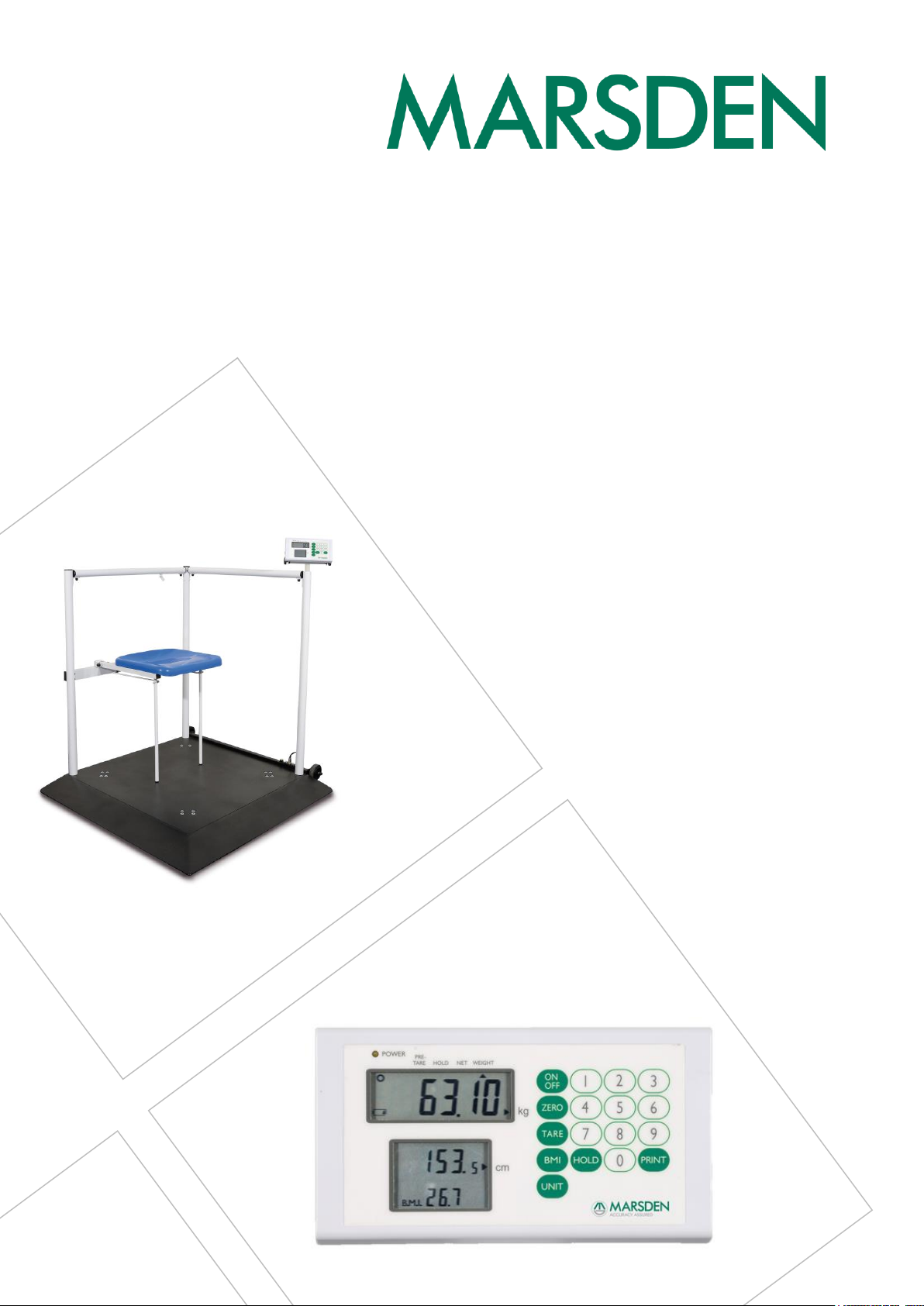

Marsden M-640 Manuel utilisateur

USER MANUAL

M-640

Please take time to read these

instructions before starting

to use the scale

Version 1.0 07/06

Contents

Introduction 3

Product Specification 3

Safety Instructions 4

Explanation of Graphic Symbols 5

Power Supply and Low Battery 6

Operation: Basic Functions 7

Operation: Advanced Functions 9

Using the Scale with a Printer 13

Using the Scale with Bluetooth 14

EMC Guidance and Manufacturer’s Declaration 15

Recommended Separation Distance 17

Error Messages 18

Manufacturer’s Declaration of Conformity 19

Page 2

Thank you for purchasing a Marsden professional medical scale. This is a

precision Class III Weighing Instrument and considerate use will result in

many years of accurate weighing.

The scale has a maximum load capacity of 300kg/500kg which must not be

exceeded.

Product Specification

Model

M-640

Accuracy Class

Class III

Capacity/Division

300kg x 100g; 500kg x 100g<300kg>200g

Weight of Scale

Approximately 46kg

Units of Measure

Function Keys

ON/OFF, HOLD, TARE, BMI, UNIT, 0-9

Stabilization Time

1-2 Seconds

Operating Temperature

0 to 40˚C

Power Supply

Rechargeable battery pack

6 x AA batteries*

12V 1A AC Adaptor

Indicator Display

2.5cm LCD display with 5 active digits

*contact Marsden for details

Page 3

Safety Instructions

Before putting the device into use, please read with care the information given in this user manual,

which contains important instructions for proper installation, use and maintenance of the device.

Marsden/the manufacturer shall not be liable for damages arising from failure to heed the following

instructions:

When using electrical components under increased safety requirements, always comply with

appropriate regulations.

Inappropriate installation/use will render the warranty null and void.

Ensure the voltage marked on the power supply unit matches your mains supply.

This device is designed for use indoors.

Observe the permissible ambient temperatures for use.

The device meets the requirements for electromagnetic capability. Do not exceed the

maximum values specified in the applicable standards.

Batteries should be kept away from small children. If swallowed, promptly seek medical

assistance.

If you have any problems, contact Marsden/your local dealer/your service partner.

Cleaning

We recommend using alcohol-based wipes or similar when cleaning the scale.

Please do not use corrosive liquids, large amounts of water or high pressure washers.

Always disconnect the scale from the mains power supply before cleaning.

Maintenance

The scale does not require any routine maintenance. However, we recommend checking the

scale’s accuracy at regular intervals. If any inaccuracies occur, please contact your local dealer

or service partner.

Disposing of the Scale

This product should not be treated as regular household waste, but should be handed in to an

electrical/electronic equipment recycling centre.

You can obtain further details from your local council, your municipal waste disposal company

or from where you purchased the product.

Page 4

Explanation of Graphic Symbols

SN-21300100

Designation of the serial number of

every device.

(Number as an example)

“Please note the accompanying

documents” or “Observe operating

instructions”

Charder Electronic Co. Ltd

No.103 Guozhong Rd, Dali Dist,

Taichung City 412, Taiwan (R.O.C)

Identification of manufacturer of

medical product including address.

“Electro-medical appliance” with

attachment of type B.

Dispose of old appliances separately

from your household waste.

This product must be disposed of at a

communal collection point.

Carefully read this operation manual

before setup and commissioning, even if

you are already familiar with Marsden

scales.

Transport and storage temperature limit

indicating the upper and lower limit

(transport and storage temperature on

packaging).

Page 5

Power Supply & Low Battery

The indicator uses a rechargeable battery pack, or can be powered from the mains via the AC adaptor.

Make sure the battery pack is installed in the battery box of the indicator. Alternatively, plug the AC

adaptor (12V 2A) into the port on the side of the indicator.

Installing & Replacing the Battery Pack

1. Take out the battery housing.

2. The rechargeable battery pack will slide into, or out of, the housing.

3. Check that the housing pin is connecting to the right point inside the indicator.

4. Place the housing back in the back of the indicator, and close the battery housing cover.

Optional battery

holder (to fit AA sized

batteries –contact

your dealer)

Page 6

Operation: Basic Functions

Switching on the Scale

Press the ON/OFF button firmly.

The scale will first test all of the display

segments.

The scale will now show its current

software version number.

The scale will now go into weighing mode

and should show 0.0kg on the display.

Page 7

Switching off the Scale

Press the ON/OFF button when the scale is

turned on. The scale will now power down.

Setting the Scale to Zero

If for any reason the scale shows a reading

other than 0.0kg it can be reset to zero.

Press the ZERO key once.

The scale will return to 0.0kg.

Page 8

Operation: Advanced Functions

Hold Function

Press the HOLD button once.

Allow the patient to get onto the scale.

After a few seconds the scale will lock on

the person’s weight. When the patient

leaves the scale, the weight will remain on

the display.

Press HOLD again to disable the Hold

function and return the scale to 0.0kg.

Page 9

Body Mass Index (BMI) Function

In normal mode, press the BMI key to

enter into BMI mode.

The display will show the last height

entered and the extreme left digit will

flash. Enter the height by using the

numeric keys. Press the ZERO key to

confirm the height. (NB: There will always

be an active flashing digit in the height

display, unless HOLD is pressed).

Weigh the patient as normal. The display

will show the weight, height and BMI

value. At this time, the weight and height

can be freely changed, and the BMI value

will be automatically calculated according

to the changed weight and height.

Press the BMI key to return to normal

weighing mode.

Page 10
