Marcy GS 99 Manuel utilisateur

Marcy Platinum

Corner Gym

GS 99

NOTE:

Please read all instructions

carefully before using this

product

Table of Contents

Safety Notice

Hardware Pack

Assembly Instruction

Parts List

Resistance Chart

Warranty

Ordering Parts

Model

GS 99

Retain This

Manual for

Reference

Jan-14-05

OWNER'S

MANUAL

IBL

Escalade International Limited

Pleasant Road, Penllegaer, Swansea. SA4 9GE

Tel: 00 44 1792 222 550 Fax 00 44 1792 895 781

www.escaladesports.co.uk

[email protected]

TABLE OF CONTENTS

BEFORE YOU BEGIN...................................................................................... 1

IMPORTANT SAFETY PRECAUTIONS........................................................... 2

HARDWARE PACK……….....…....................................................................... 3

ASSEMBLY INSTRUCTIONS...............................................................…..........6

PARTS LIST…………………………………………………………….……….…… 25

RESISTANCE CHART………………………………………………………………. 26

WARRANTY.................................................................................................…. 27

ORDERING PARTS.......................................................................................... 27

CARE AND MAINTENANCE………………………………………………………. 28

BEFORE YOU BEGIN

Thank you for selecting the MARCY PLATINUM CORNER GYM by IMPEX FITNESS

PRODUCTS. For your safety and benefit, read this manual carefully before using the

machine. As the distributor, we are committed to provide you complete customer

satisfaction. If you have any questions, or find there are missing or damaged parts or you

require assistance assembling this product, we guarantee you complete satisfaction

through direct assistance. To avoid unnecessary delays, please call our customer service

department. Monday to Friday 9am to 5pm.

Tel: 0044 (0) 1792 222562

E mail: [email protected]

Supplied by

Escalade International Ltd

Pleasant Road

Penllegaer

Swansea

SA4 9GE

Tel: 0044 (0) 1792 222550

Fax: 0044 (0) 1792 895781

www.escaladesports.co.uk

E mail: [email protected]

IMPORTANT SAFETY PRECAUTIONS

This gym built for optimum safety. However, certain precautions apply whenever you operate

a piece of exercise equipment. Be sure to read the entire manual before you assemble or use

your gym. In particular, note the following safety precautions:

1. Keep children and pets away from the gym at all times. Do not leave children unattended in the

same room with the gym. The gym is not a toy and therefore parents and guardians should be

aware of the natural tendency for children to play, leading to situations and behaviour for which

the gym is not intended.

2. If children are allowed to use the gym their physical/mental development and above all,

temperament should be taken into account. Constant supervision is therefore needed.

3. If the user experiences dizziness, nausea, chest pain or any other abnormal symptoms, STOP the

workout at once. Consult a physician immediately. Injuries may occur due to incorrect or

excessive exercise.

4. Position the gym on a clear levelled surface which is clear of all obstacles as not to restrict

movement whilst exercising. DO NOT use the gym near water or outdoors.

5. Keep hands away from all moving parts

6. Always wear appropriate clothing when exercising. DO NOT wear robes or other clothing that

could become caught in the gym. Running or aerobic shoes are also required when using the

gym.

7. Use the gym only for its intended use as described in this manual. DO NOT use attachments not

recommended by the manufacturer.

8. Do not place any sharp objects around the gym.

9. Disabled persons should not use the machine without a qualified person or physician in

attendance.

10. Before using the gym to exercise, always do stretching exercises to properly warm up.

11. Never use the gym if it is not functioning properly.

12. This product is intended for H=Domestic use only.

WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR

PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE OF 35

OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL INSTRUCTIONS

BEFORE USING ANY FITNESS EQUIPMENT. MARCY ASSUMES NO RESPONSIBILITY FOR

PERSONAL INJURY OR PROPERTY DAMAGE SUSTAINED BY OR THROUGH THE USE OF

THIS PRODUCT.

SAVE THESE INSTRUCTIONS.

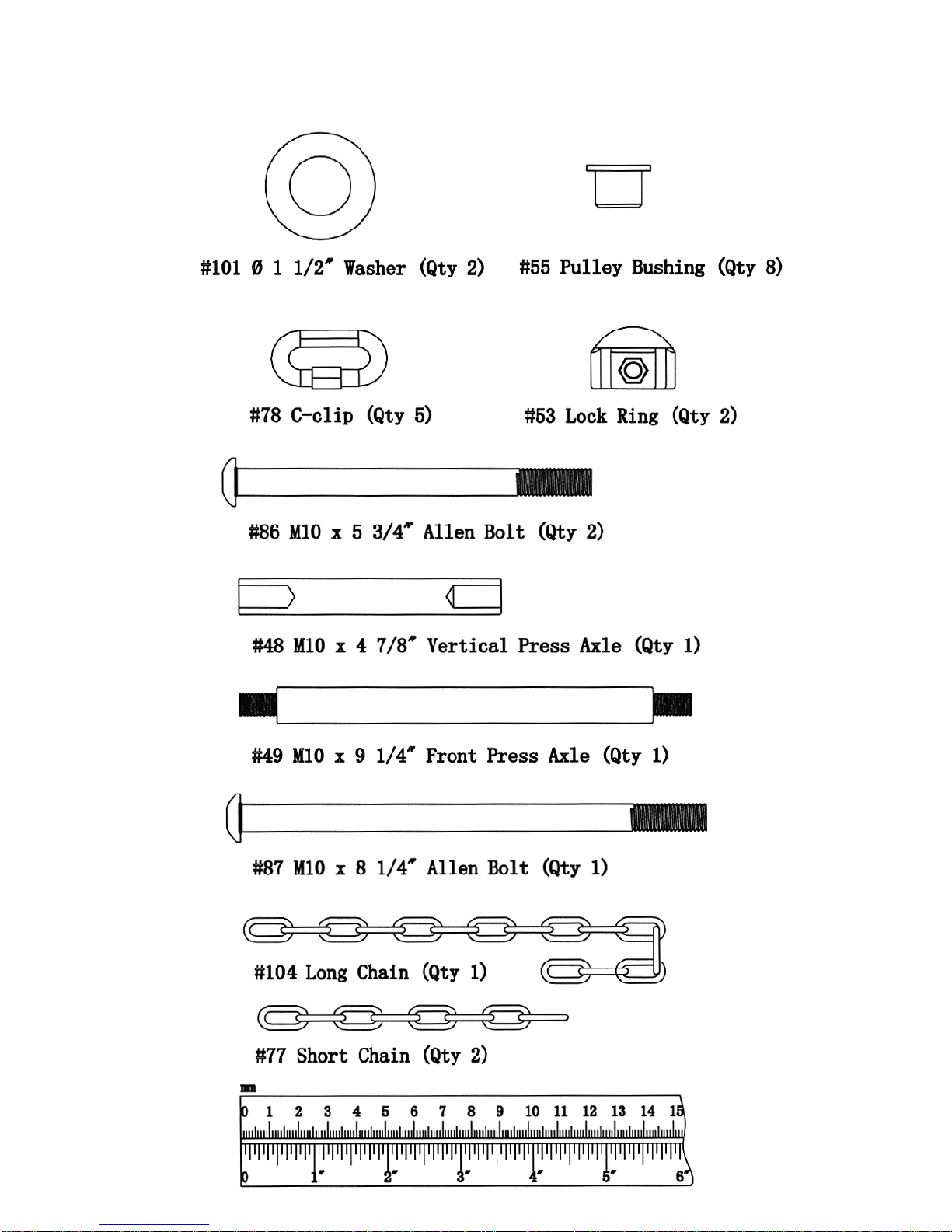

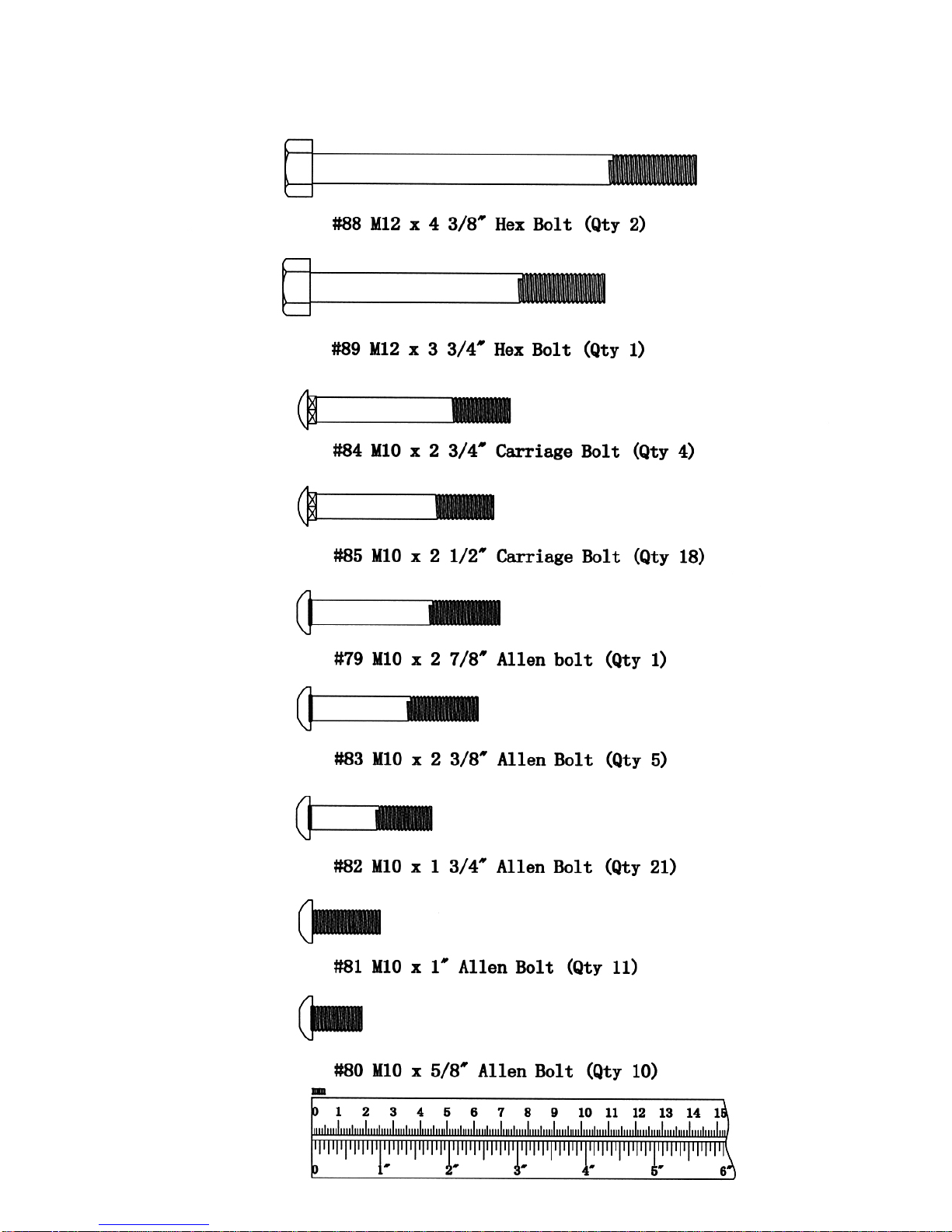

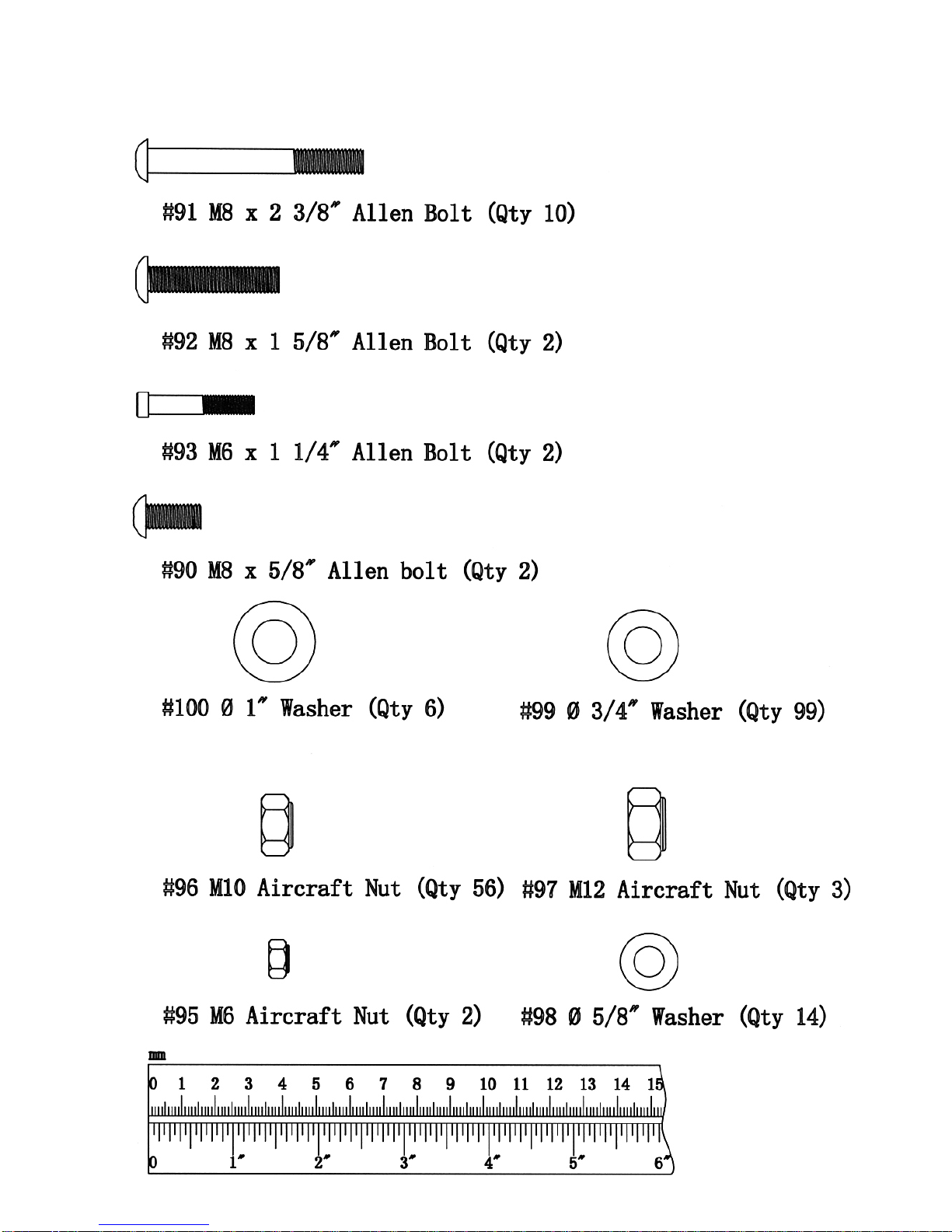

HARDWARE PACK

ASSEMBLY INSTRUCTION

Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen Wrenches

NOTE: It is strongly recommended two or people assembling this machine to avoid

possible injury.

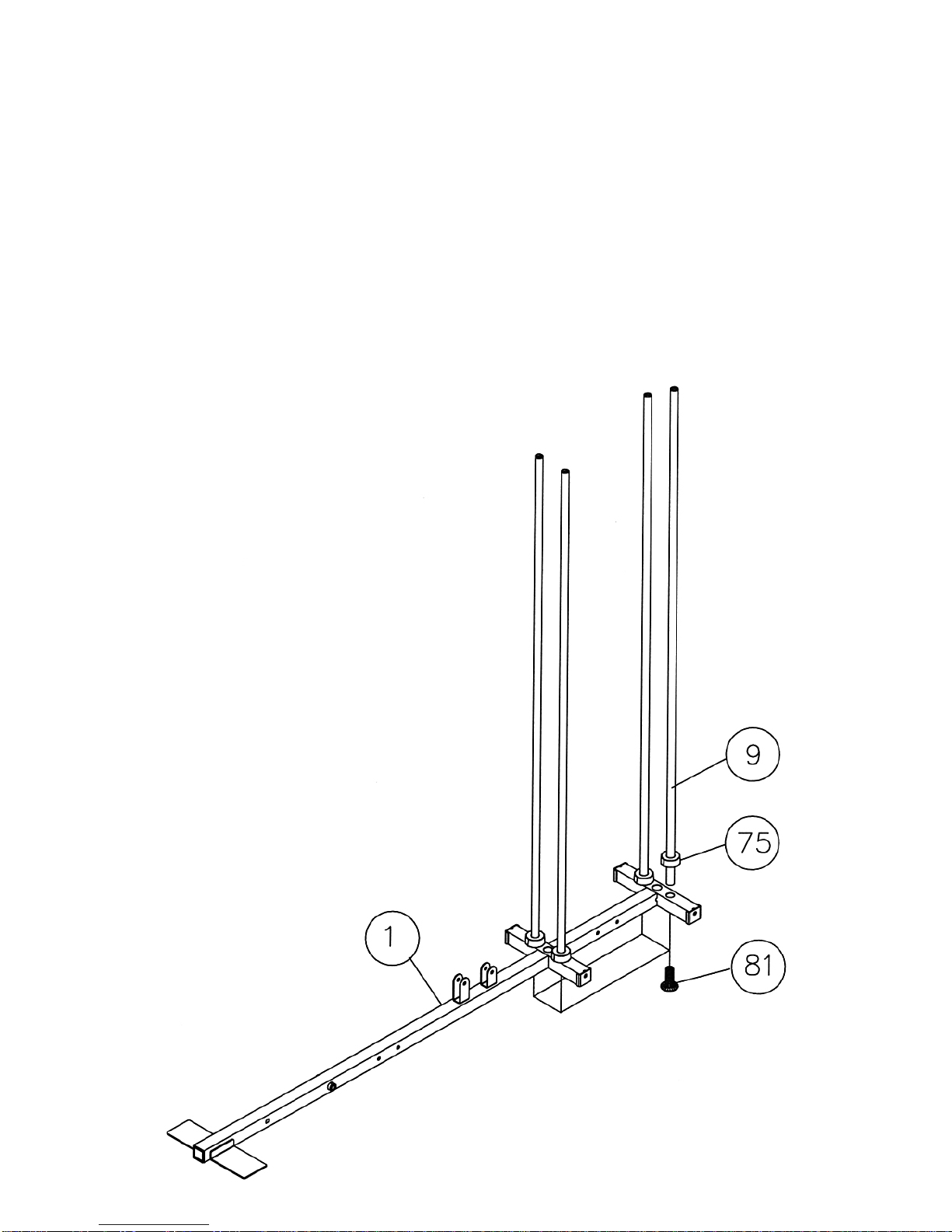

STEP 1 (See Diagram 1)

A.) Place the Right Base Frame (#1) on a flat surface. Make sure there is enough space around

to assemble the machine.

B.) Insert four Guide Rods (#9) into the holes on the Right Base Frame (#1). Secure each Guide

Rod to the Right Base Frame from the bottom with a M10 x 1” Allen Bolt (#81).

C.) Slide four Ø 2 ½” x 1” Rubber Bumpers (#75) onto the Guide Rods.

Diagram 1

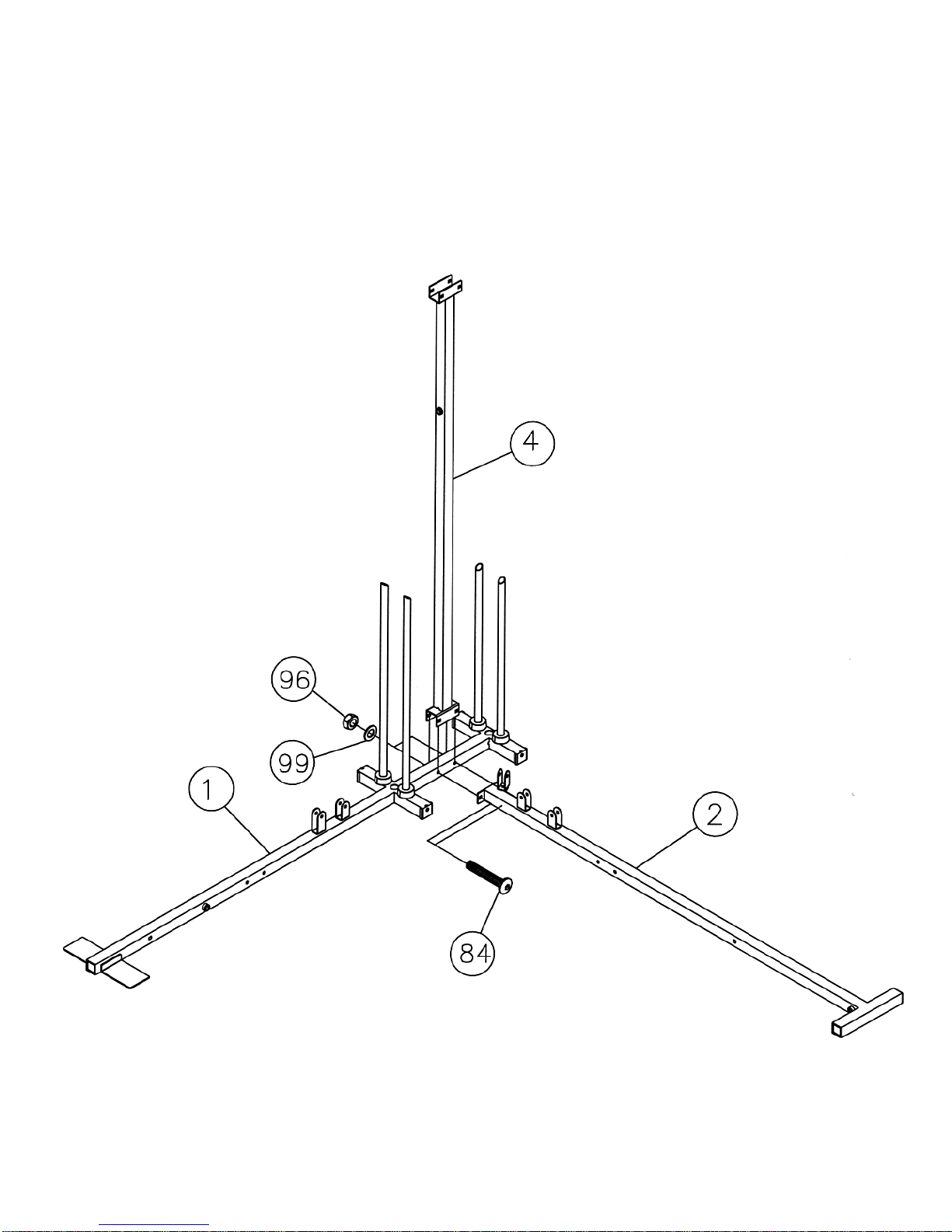

STEP 2 (See Diagram 2)

A.) Attach the Rear Vertical Frame (#4) to the Right Base Frame (#1). Attach the Left Base

Frame (#2) to the Rear Vertical Frame. Align the holes and secure them with two M10 x 2

¾” Carriage Bolts (#84), ∅¾” Washers (#99), and M10 Aircraft Nuts (#96).

B.) Do not tighten the Nuts and Bolts yet. DIAGRAM 2

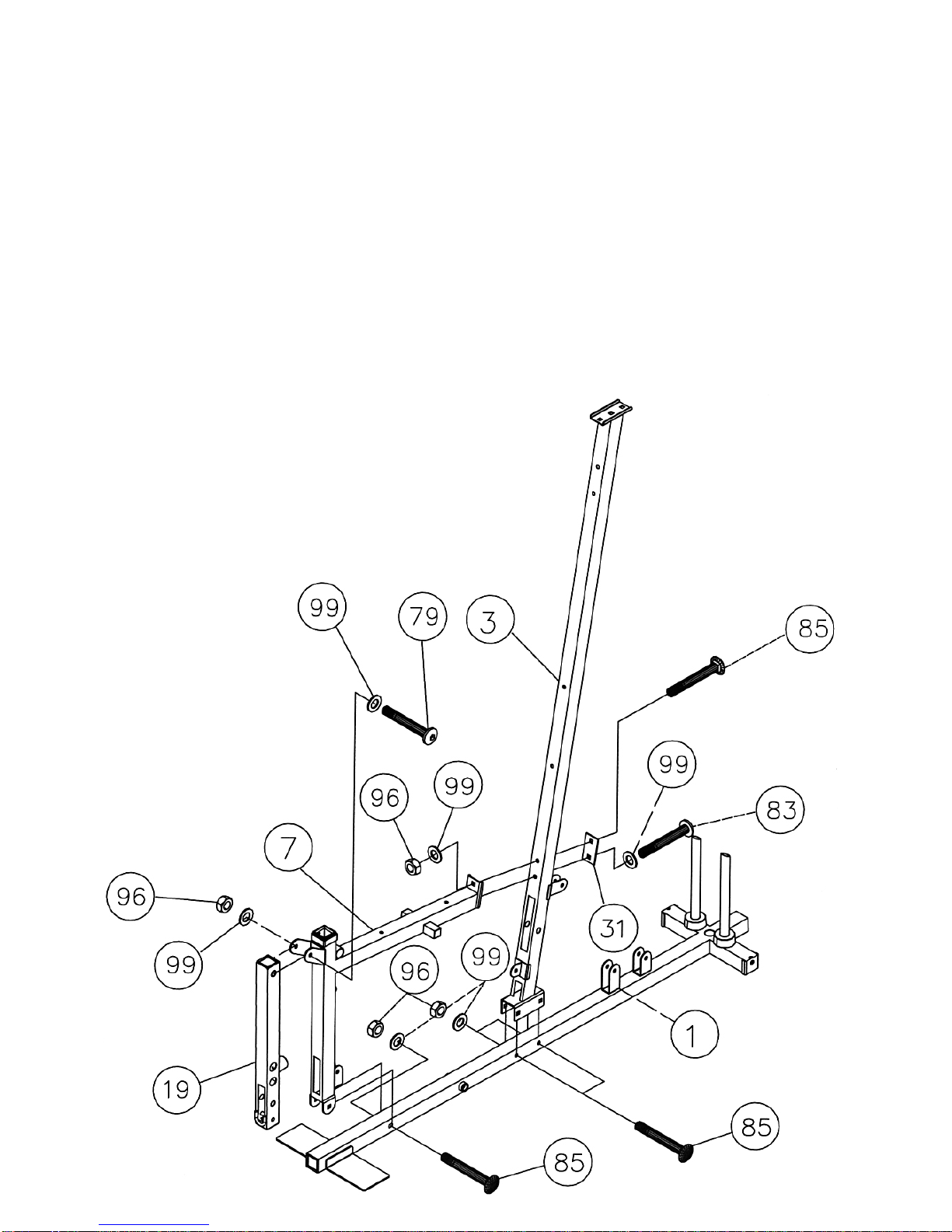

STEP 3 (See Diagram 3)

A.) Attach the Right Vertical Beam (#3) to the Right Base Frame (#1). Secure it with two

M10 x 2 ½” Carriage Bolts (#85), ∅¾” Washers (#99), and M10 Aircraft Nuts (#96). DO

not tighten the Nuts and Bolts yet.

B.) Attach the Right Seat Support (#7) to the Right Vertical Beam (#3). Secure it with one

M10 x 2 ½” Carriage Bolt (#85), one M10 x 2 3/8” Allen Bolt (#83), one 3 1/8” x 1 ¾”

Bracket (#31), two Ø ¾” Washers (#99), and one M10 Aircraft Nut (#96).

C.)Attach the Right Seat Support (#7) to the Right Base Frame (#1). Secure it with one

M10 x 2 ½” Carriage Bolt (#85), ∅¾” Washer (#99), and M10 Aircraft Nut (#96).

D.)Attach the Leg Developer (#19) to the bracket on the Right Seat Support (#7). Secure it

with one M10 x 2 7/8” Allen Bolt (#79), two Ø ¾” Washers (#99), and one M10 Aircraft

Nut (#96). Do not over tighten the Leg Developer, make sure it is able to swivel.

DIAGRAM 3

STEP 4 (See Diagram 4)

A.) Slide fourteen Weight Plates (#44) onto the rear set of Guide Rods (#9). Make sure the

groves on the Plates all face toward the back of the machine. Insert a Selector Rod (#29)

into the centre holes. Slide a Selector Stem (#45) onto the two Guide Rods.

B.) Repeat Procedure A above to install the other fourteen Weight Plates onto the other two

Guide Rods. Make sure the grove on the Plate all face toward the front of the machine.

C.)Place the Upper Frame (#6) onto the Right Vertical Beam (#3), Guide Rods (#9), and the

Rear Vertical Frame (#4).

D.)Secure the Upper Frame (#6) to the Right Vertical Beam (#3) with two M10 x 2 ½” Carriage

Bolts (#85), one 4 3/8” x 1 ¾” Bracket (#73), two Ø ¾” Washers (#99), and two M10 Aircraft

Nuts (#96).

E.) Secure the Upper Frame to each Guide Rod with one M10 x 1” Allen Bolt (#81) and Ø ¾”

Washer (#99).

F.) Attach the Left Vertical Beam (#5) to the Left Base Frame (#2). Secure it with two M10 x 2

½” Carriage Bolts (#85), Ø ¾” Washers (#99), and M10 Aircraft Nuts (#96).

G.)Secure the Left Vertical Beam (#5) to the Upper Frame (#6) and Rear Vertical Frame (#4)

with two M10 x 2 ¾” Carriage Bolts (#84), Ø ¾” Washers (#99), and M10 Aircraft Nuts

(#96).

H.)DO NOT tighten all Nuts and Bolts yet.
