Thank you for purchasing this Marantz product.

To ensure proper operation, please read this owner’s manual carefully before using the product.

After reading this manual, be sure to keep it for future reference.

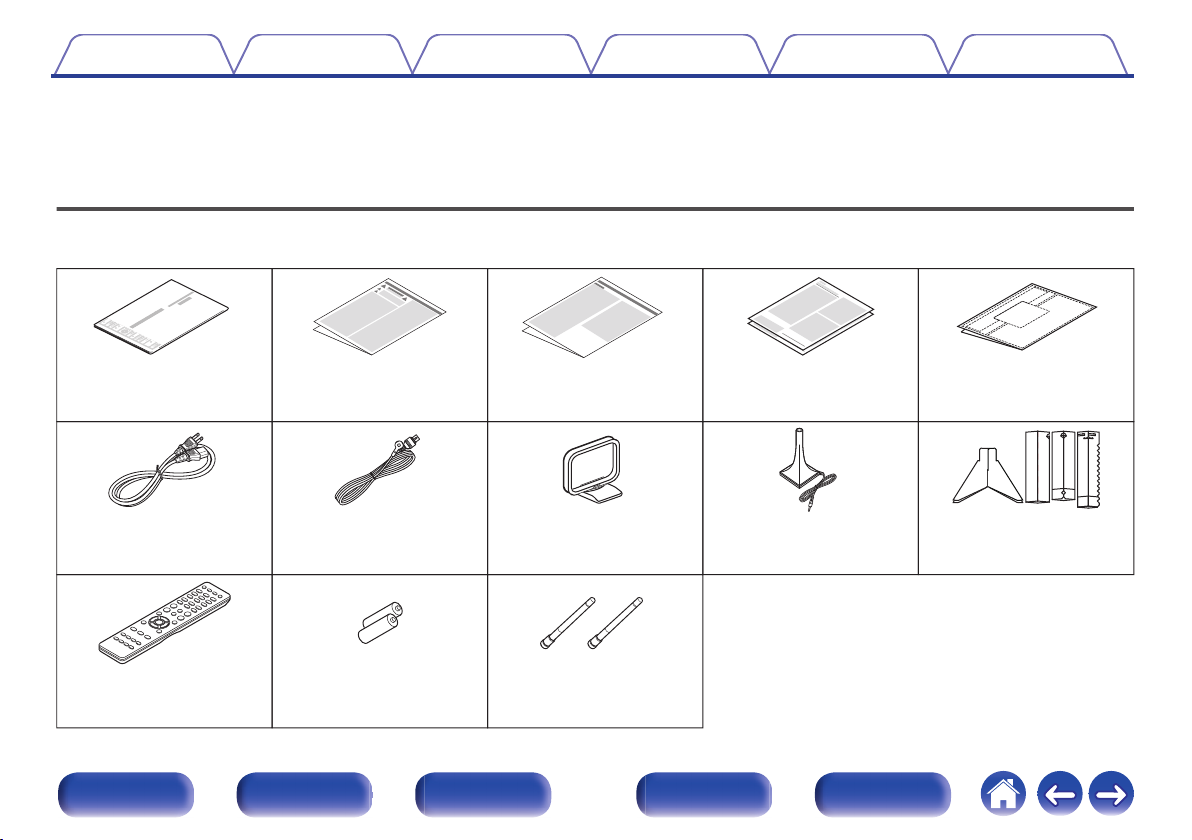

Accessories

Check that the following parts are supplied with the product.

Quick Start Guide Safety Instructions Notes on radio Cable labels

Power cord FM indoor antenna AM loop antenna Sound calibration

microphone

Sound calibration

microphone stand

R03/AAA batteries

Warranty

(for USA/for CANADA)

Remote control unit External antennas for

Bluetooth/wireless

connectivity

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Inserting the batteries

1Remove the rear lid in the direction of the arrow and

remove it.

2Insert two batteries correctly into the battery

compartment as indicated.

Batteries

3Put the rear cover back on.

NOTE

0To prevent damage or leakage of battery fluid:

0Do not use a new battery together with an old one.

0Do not use two different types of batteries.

0Remove the batteries from the remote control unit if it will not be in use for long

periods.

0If the battery fluid should leak, carefully wipe the fluid off the inside of the battery

compartment and insert new batteries.

Operating range of the remote control

unit

Point the remote control unit at the remote sensor when operating it.

30°

Approx. 23 ft/7 m

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Features

High quality sound

0With discrete circuit technology, the power amplifier provides

identical quality for all 9-channels (150 Watts x 9-channels)

For optimum realism and stunning dynamic range, the power amplifier

section features discrete power devices (not integrated circuitry).

By using high current, high power discrete power devices, the amplifier

is able to easily drive high quality speakers.

0Current feedback amplifier

This unit uses a high-speed current feedback amplifier circuit for its

preamplifier so that signals from a Blu-ray Disc player and other

equipment that support high-definition audio formats can be amplified

with high fidelity. The high-speed current feedback amplifier also

reproduces a natural sound space.

0Dolby Atmos (v p. 292)

This unit is equipped with a decoder that supports Dolby Atmos audio

format. The placement or movement of sound is accurately reproduced

by the addition of overhead speakers, enabling you to experience an

incredibly natural and realistic surround sound field.

0DTS:X

This unit is equipped with the DTS:X decoder technology. DTS:X

brings the home theater experience to new heights with its immersive

object based audio technology which removes the bounds of channels.

The flexibility of objects allows for sound to be scaled large or small

and moved around the room with greater accuracy than ever before

leading to a richer immersive audio experience.

0Audyssey LFC™ (Low Frequency Containment) (v p. 182)

Audyssey LFC™ solves the problem of low frequency sounds

disturbing people in neighboring rooms or apartments. Audyssey

LFC™ dynamically monitors the audio content and removes the low

frequencies that pass through walls, floors and ceilings. It then applies

psychoacoustic processing to restore the perception of low bass for

listeners in the room. The result is great sound that no longer disturbs

the neighbors.

0Discrete subwoofers and Audyssey Sub EQ HT™ (v p. 205)

The unit has two subwoofer output capability and can adjust the level

and delay for each subwoofer individually.

Audyssey Sub EQ HT™ makes the integration seamless by first

compensating for any level and delay differences between the two

subwoofers and then applying Audyssey MultEQ® XT32 to both

subwoofers together for improved deep bass response and detail.

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

High performance

04K 60Hz input/output supported

When 4K Ultra HD (High Definition) is used, an input/output speed of 60

frames per second (60p) is achieved for video signals. When connected

to 4K Ultra HD and 60p video signal input compatible TV, you can enjoy

the sense of realism only available from high-definition images, even

when viewing fast-moving video.

This unit also supports image processing for 4K 60p, 4:4:4 and 24-bit

videos. By processing the video at the original resolution, this unit lets

you enjoy flawless, high-definition picture quality.

0HDCP 2.2

This unit is compatible with HDCP 2.2 copyright protection standard.

0Digital video processor upscales analog video signals (SD

resolution) to HD (720p/1080p) and 4K (v p. 195)

Up scaling

Up to 1080p

This unit is equipped with a 4K video upscaling function that allows

analog video or SD (Standard Definition) video to be output via HDMI at

4K (3840 × 2160 pixels) resolution. This function enables the device to

be connected to a TV using a single HDMI cable, and produces high

definition images for any video source.

0Equipped with HDMI ZONE2 output (v p. 163)

The ZONE2 multi-room output includes an HDMI output that lets you

enjoy a different A/V source in that room, with another program playing

in the main room.

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Autres manuels pour SR6011

Table des matières

Autres manuels Marantz Récepteur stéréo

Marantz

Marantz NR1509 Manuel utilisateur

Marantz

Marantz SR5014 Manuel utilisateur

Marantz

Marantz SR4500 Manuel utilisateur

Marantz

Marantz SR6010 Manuel utilisateur

Marantz

Marantz SR7009 Manuel utilisateur

Marantz

Marantz NR1200 Manuel utilisateur

Marantz

Marantz 2275 Manuel utilisateur

Marantz

Marantz SR-7001 Manuel utilisateur

Marantz

Marantz SR-8001 Manuel utilisateur

Marantz

Marantz SR5008 Manuel utilisateur

Marantz

Marantz NR1403 Guide de démarrage rapide

Marantz

Marantz 2230 Manuel utilisateur

Marantz

Marantz 2230B Manuel utilisateur

Marantz

Marantz SR8200 Manuel utilisateur

Marantz

Marantz 2215B Manuel utilisateur

Marantz

Marantz SR7200 Manuel utilisateur

Marantz

Marantz SR-19 Manuel utilisateur

Marantz

Marantz 2238 Manuel utilisateur

Marantz

Marantz 2238B Manuel utilisateur

Marantz

Marantz SR8000 Manuel utilisateur

Marantz

Marantz SR5009/U1B Manuel utilisateur

Marantz

Marantz SR5200 K2G Manuel utilisateur

Marantz

Marantz SR8400 Manuel utilisateur

Marantz

Marantz SR5600 Manuel utilisateur

Manuels Récepteur stéréo populaires d'autres marques

Kenwood

Kenwood KMDX92 Manuel utilisateur

Yamaha

Yamaha RX-830 Manuel utilisateur

Pioneer

Pioneer AVH-Z7250BT Manuel utilisateur

Yamaha

Yamaha RX-750 Manuel utilisateur

Denon

Denon AVR-1311 Manuel utilisateur

Denon

Denon AVR-S760H Manuel utilisateur

Denon

Denon AVR-X7200W Manuel utilisateur

Pioneer

Pioneer SC-LX904 Manuel

Sony

Sony XAV-1500 Manuel utilisateur

Radio Shack

Radio Shack DX-399 Manuel utilisateur

Sony

Sony STR-DE535 - Fm Stereo/fm-am Receiver Manuel utilisateur

Pioneer

Pioneer SX-1000TA Manuel utilisateur

Yamaha

Yamaha MusicCast TSR-5B3D Manuel utilisateur

Sony

Sony STR-DE335 - Fm Stereo/fm-am Receiver Manuel utilisateur

Sony

Sony STR-DG500 - Multi Channel Av Receiver Manuel utilisateur

Panasonic

Panasonic AJSD955B - DVCPRO50 STUDIO DECK Manuel utilisateur

Pioneer

Pioneer SX-838 Manuel utilisateur

Sherwood

Sherwood S-2660CP Manuel technique
