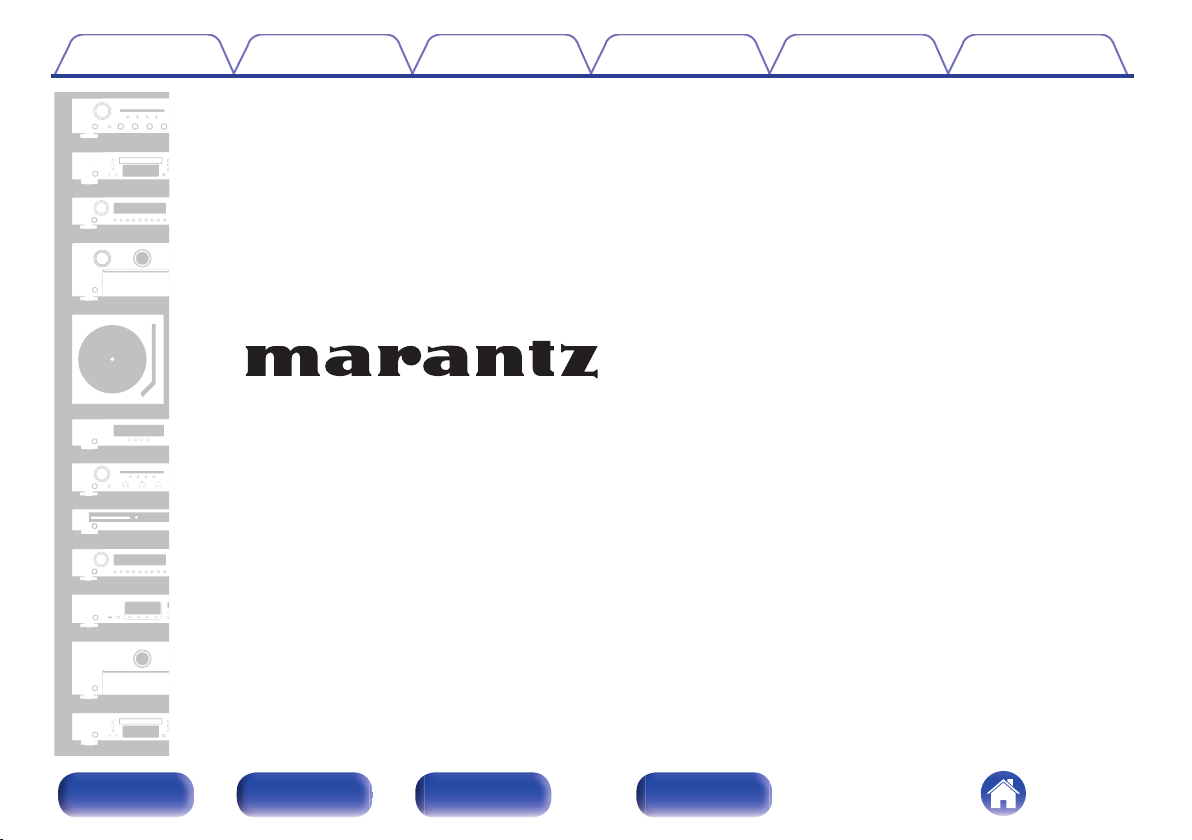

Marantz PM6007 Manuel utilisateur

Integrated Amplifier

PM6007

Owner’s Manual

Contents Connections Playback Settings Tips Appendix

Front panel Rear panel

Remote control

unit

Index

Accessories 4

Inserting the batteries 5

Operating range of the remote control unit 5

Part names and functions 6

Front panel 6

Rear panel 8

Remote control unit 10

Connections

Connecting speakers 16

Speaker A/B connection 17

Bi-wiring connection 18

Subwoofer connection 19

Connecting a playback device 20

Connecting a recording device 21

Connecting to a device with digital audio output connectors 22

Connecting devices with remote control connectors 23

Performing operations by RC on this unit without visual contact 23

Remotely connecting Marantz audio devices 23

Connecting the power cord 24

Playback

Turning the power on 26

Switching the power to standby 26

Selecting the speakers for audio output 27

Selecting the input source 27

Adjusting the volume 27

Turning off the sound temporarily (Muting) 27

Adjusting the tone and balance 28

Playing CDs 28

Connecting and playing back from a digital device (Coaxial/

Optical) 29

Recording 30

Contents Connections Playback Settings Tips Appendix

Front panel Rear panel

Remote control

unit

Index

Settings

Setting the Auto Standby mode 32

Setting the remote signal receiving function 33

Disabling the remote signal receiving function of the remote

control unit 33

Enabling the remote signal receiving function of the remote

control unit 33

Setting remote control codes 34

Setting remote control codes for the remote control 35

Setting remote control codes for the main unit 35

Tips

Tips 37

Troubleshooting 38

Power does not turn on / Power is turned off 39

Operations cannot be performed through the remote control unit 40

No sound comes out 41

Desired sound does not come out 41

Sound is interrupted or noise occurs 42

FILTER 1・2 indicator does not light 42

Appendix

D/A converter 43

Explanation of terms 43

Trademark information 44

Specifications 45

Index 48

Contents Connections Playback Settings Tips Appendix

Front panel Rear panel

Remote control

unit

Index

Thank you for purchasing this Marantz product.

To ensure proper operation, please read this owner’s manual carefully before using the product.

After reading this manual, be sure to keep it for future reference.

Accessories

Check that the following parts are supplied with the product.

Quick Start Guide Safety Instructions

R03/AAA batteries

Power cord Remote control unit

(RC004PMCD)

CD-ROM

(Owner’s Manual)

Warranty

(for USA/for CANADA)

Contents Connections Playback Settings Tips Appendix

Front panel Rear panel

Remote control

unit

Index

Inserting the batteries

1Remove the rear lid in the direction of the arrow and

remove it.

2Insert two batteries correctly into the battery

compartment as indicated.

Batteries

3Put the rear lid back on.

NOTE

0To prevent damage or leakage of battery fluid:

0Do not use a new battery together with an old one.

0Do not use two different types of batteries.

0Remove the batteries from the remote control unit if it will not be in use for long

periods.

0If the battery fluid should leak, carefully wipe the fluid off the inside of the battery

compartment and insert new batteries.

Operating range of the remote control

unit

Point the remote control unit at the remote sensor when operating it.

Approx. 23 ft/7 m

30° 30°

Contents Connections Playback Settings Tips Appendix

Front panel Rear panel

Remote control

unit

Index

Part names and functions

Front panel

uQ2 Q3oQ0 Q1iy

reqw t

For details, see the next page.

Contents Connections Playback Settings Tips Appendix

Front panel Rear panel

Remote control

unit

Index

uQ2 Q3o

0Q1iy

reqw t

APower operation button (X)

This turns the power on/off. (v p. 26)

BPower indicator

This is lit as follows according to the power status:

0Power on : Off

0Standby : Red

0Power off : Off

CINPUT SELECTOR knob

This selects the input source. (v p. 27)

DInput indicators (v p. 27)

EVOLUME knob

These adjust the volume level. (v p. 27)

FHeadphones jack (PHONES)

Used to connect headphones.

Turn off speaker output when using headphones. (v p. 27)

NOTE

0To prevent hearing loss, do not raise the volume level excessively when using

headphones.

GBASS control knob

This setting adjusts the volume level for the bass. (v p. 28)

HSOURCE DIRECT button/indicator

This turns source direct mode on/off. (v p. 28)

ITREBLE control knob

This setting adjusts the volume level for the treble. (v p. 28)

JSpeaker switching buttons/indicators (SPEAKERS A/B)

These select the speaker for audio output. (v p. 27)

KFILTER 1・2 button/indicator

Switches the filter characteristics when digital audio is input.

(v p. 29)

LBALANCE control knob

This adjusts the balance of the volume output from the left and right

speakers. (v p. 28)

MRemote control sensor

This receives signals from the remote control unit. (v p. 5)

07, 9 and b can be adjusted when 8 is off (Source direct mode is off).

Contents Connections Playback Settings Tips Appendix

Front panel Rear panel

Remote control

unit

Index

Rear panel

q w e tr y

uio

For details, see the next page.

Contents Connections Playback Settings Tips Appendix

Front panel Rear panel

Remote control

unit

Index

qw e try

uio

ASIGNAL GND terminal

Used to connect a turntable. (v p. 20)

BDigital audio input connectors (DIGITAL AUDIO IN)

Used to connect devices equipped with digital audio output connectors.

(v p. 22)

CSpeaker terminals (SPEAKERS)

Used to connect speakers. (v p. 16)

DFLASHER IN jack

Used when using a control BOX or other such control devices to control

this unit.

ERemote control input/output connectors (REMOTE CONTROL)

Used to connect to a Marantz audio device that is compatible with the

remote control function. (v p. 23)

FAC inlet (AC IN)

Used to connect the power cord. (v p. 24)

GAnalog audio input connectors (AUDIO IN)

Used to connect devices equipped with analog audio output

connectors.

0“Connecting a playback device” (v p. 20)

0“Connecting a recording device” (v p. 21)

HAUDIO OUT connectors (RECORDER)

Used to connect the input connector of a recorder. (v p. 21)

IPRE OUT connector (SUBWOOFER)

Used to connect a subwoofer with a built-in amplifier. (v p. 19)

Contents Connections Playback Settings Tips Appendix

Front panel Rear panel

Remote control

unit

Index

Remote control unit

The remote control provided with this unit can control a network audio

player in addition to a Marantz CD player.

0“CD player operations” (v p. 11)

0“Network audio player operations” (v p. 13)

oOperating this unit

ARemote control signal transmitter

This transmits signals from the remote control unit. (v p. 5)

BInput source select buttons

This selects the input source. (v p. 27)

CSOURCE DIRECT button

This turns source direct mode on/off. (v p. 28)

DMUTE button (:)

This mutes the output audio. (v p. 27)

EPower operation button (AMP POWER X)

This turns the power on/off (standby). (v p. 26)

FVOLUME buttons (df)

These adjust the volume level. (v p. 27)

Contents Connections Playback Settings Tips Appendix

Front panel Rear panel

Remote control

unit

Index
