Manhattan 460477 Manuel utilisateur

MEGA

CAM

USER

MANUAL

Model 460477

MAN-460477-UM-0808-01

INTRODUCTION

Thank you for purchasing the MANHATTAN

Mega Cam, Model 460477.

Enhance online communications, instant messaging, blogs and more

by easily capturing and sharing photos and video with this remarkable

little camera! Plug and Play and Windows compatible, it’s ready to go

and easy to use, with included software that simplies settings and

operation.

The easy-to-follow instructions in this manual help make the Mega Cam

setup quick and simple, so you’ll also soon be enjoying the benets of

these additional features:

• Automatic tracking that keeps subjects sharp and in frame without

adjusting camera position

• Self-adjusting color, exposure and brightness levels that maximize

clarity in varying light conditions

• Special video and frame effects that make it fun to personalize images

and online conversations

• High-performance megapixel sensor with powerful 4x digital zoom

function

• Lifetime Warranty

NOTE: Some screen images have been modied to t the manual format.

System Requirements

• Windows 2000, XP or Vista

• PC with USB interface

• Pentium 200 or higher CPU

• CD-ROM drive

• 200 MB free disk space

• 32 MB RAM

Package Contents

• Mega Cam, 1.3 M pixels

• Software CD

• User manual

INSTALLATION

Driver

Prior to installing the driver:

• Close any open software applications on your computer;

• Un-install any previously installed camera software or drivers;

• Disable any anti-virus software and any established rewall; and

• Ensure that the camera is not connected to the computer’s USB port

at this time.

With your computer turned on, insert the included CD in the CD-ROM

drive. The installation interface will automatically display.

1. When presented with

the rst InstallShield

Wizard screen

prompt, click “Driver.”

2. On the subsequent

screens, click “Next”

or “Continue Anyway”

to proceed with the

driver installation.

3. When the InstallShield

Wizard prompts you

with a screen saying

the installation is

complete, click “Finish.”

Hardware

1. Connect the Mega Cam to your computer’s USB port.

2. After a few seconds, the computer’s operating system will nd and

recognize the connected Mega Cam, initially displaying a Welcome to

the Found New Hardware Wizard screen. Click “Next.”

3. On subsequent screens, click “Next” or “Continue Anyway” to proceed

with the installation.

4. When the Found New Hardware Wizard prompts you with a screen

that says the software installation is complete, click “Finish.”

Installation Verication

1. From the desktop, go

to My Computer, then

Properties.

2. Select/click on the

Hardware tab, then

click “Device Manager”

to display your list of

application folders.

3. Conrm that the Mega

Cam (or “Touch Cam”)

le appears in the

Imaging Devices

folder. NOTE: Make

sure the folder doesn’t

have an exclamation

point (!) next to it

(which indicates an

improper installation).

4. From the desktop, go to Control

Panel, then click on Sounds

and Audio Devices.

5. Select/click on the Audio tab.

6. In the Sound Recording panel,

select “USB Camera” from the

Default Device drop-down

menu in order to activate the

Mega Cam’s built-in microphone.

666

Adjustable focus ring

Snapshot

Effects

OPERATION

Quick-Access Controls

In addition to a convenient exterior focus

ring, this Mega Cam features a pair of

icons that let you quickly perform a

couple of popular functions without

the need to access a software menu.

• Press the camera icon to take a snapshot.

• Press the “E” (“effects”) icon to move

through a 26-option menu of useful frame

styles and special effects (ranging from “Postcard” to “Merry Christmas”

and from “Aged Photo” to “Mosaic,” as displayed below in Advanced

Settings on the Effects screen).

Advanced Settings

To make any changes to the Mega Cam settings (image controls and

modes and such) or to take advantage of the variety of effects (special

effects and frame options), open the AMCap application (which may be

found in your Control Panel settings or on your desktop, depending on

your operating system). For example:

• To stabilize the video (if needed),

go to Options, then to Video

Capture Filter, and select the

Settings tab to change between

“50 Hz” and “60 Hz” to improve

your results (see the screen

image on the next page).

• To establish a new location for

storing AVI images, go to File,

then Set Capture.

• To select a video output size,

go to Options, then to Video

Capture Pin (which then displays the Stream Format screen and the

Output Size drop-down menu, among several other Video Format and

Compression options).

FREQUENTLY ASKED QUESTIONS

Q What can be done to rectify a dropped frame or video lag?

A The Mega Cam automatically activates White Balance and Exposure

(both displayed on the Auto Mode Control panel of the Settings screen)

when lighting is determined to be insufcient. If continuity or delay

problems occur, deselect the “Auto” option for Exposure.

Q When using MSN, why isn’t my voice heard?

A The built-in microphone probably isn’t activated. Check the “Sounds

and Audio Devices Properties” folder in the Device Manager or Control

Panel and make sure that “USB Camera” is elected as the Default

Device drop-down menu option in the Sound Recording panel. You

can also make sure that your Instant Messenger software is defaulted

to recognize the Mega Cam. Also, conrm that the other IM user has

the same software version and not one that’s incompatible.

Q How do I take 1.3-megapixel snapshots?

A In the AMCAP application, go to Options, then Video Capture Pin to

display the Stream Format screen. In the Output Size eld, select

“640 x 480” (VGA). Then return to Options and go to Video Capture

Filter. In the Image Control panel, set the VGA/SXGA slide bar to

“SXGA” (all the way to the right, which equates to 1280 x 960 pixels).

SPECIFICATIONS

Standards and Certications

• USB 2.0

General

• CMOS Sonix 201 DSP color sensor; 1.3 M pixels

• Lens: plastic, 6 mm (0.25 in.); 64° angle; manual focus with ring

• Color depth: 24-bit true color

• Image focus: 30 mm to innity; format, MPEG

• Built-in compression ratio (JPG)

• Automatic tracking, color equalizing, exposure and brightness balance

adjustments

• Maximum resolution up to 3200 x 2400 (software enhanced)

• Supports video rates up to 30 fps (640 x 480 resolution, VGA), 10 fps

(1280 x 1024, VGA)

• Built-in microphone with front-mount snapshot and effects buttons

• Power consumption: 60 mA

Physical

• LED indicator and decorative lighting

• USB cable, 1.5 m (5 ft.)

• Dimensions: 82 x 50 x 46 mm (3.2 x 2 x 1.8 in.)

• Weight: 86 g (3 oz.)

System Requirements

• Windows 2000, XP or Vista

• PC with USB interface

• Pentium 200 or higher CPU

• CD-ROM drive

• 200 MB free disk space

• 32 MB RAM

Package Contents

• Mega Cam, 1.3 M pixels

• Software CD

• User manual

Table des matières

Autres manuels Manhattan Webcam

Manhattan

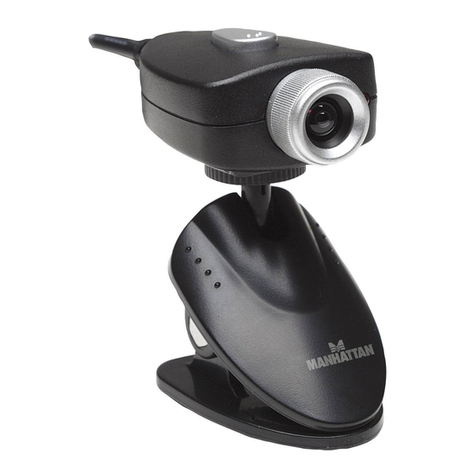

Manhattan 460668 Manuel utilisateur
