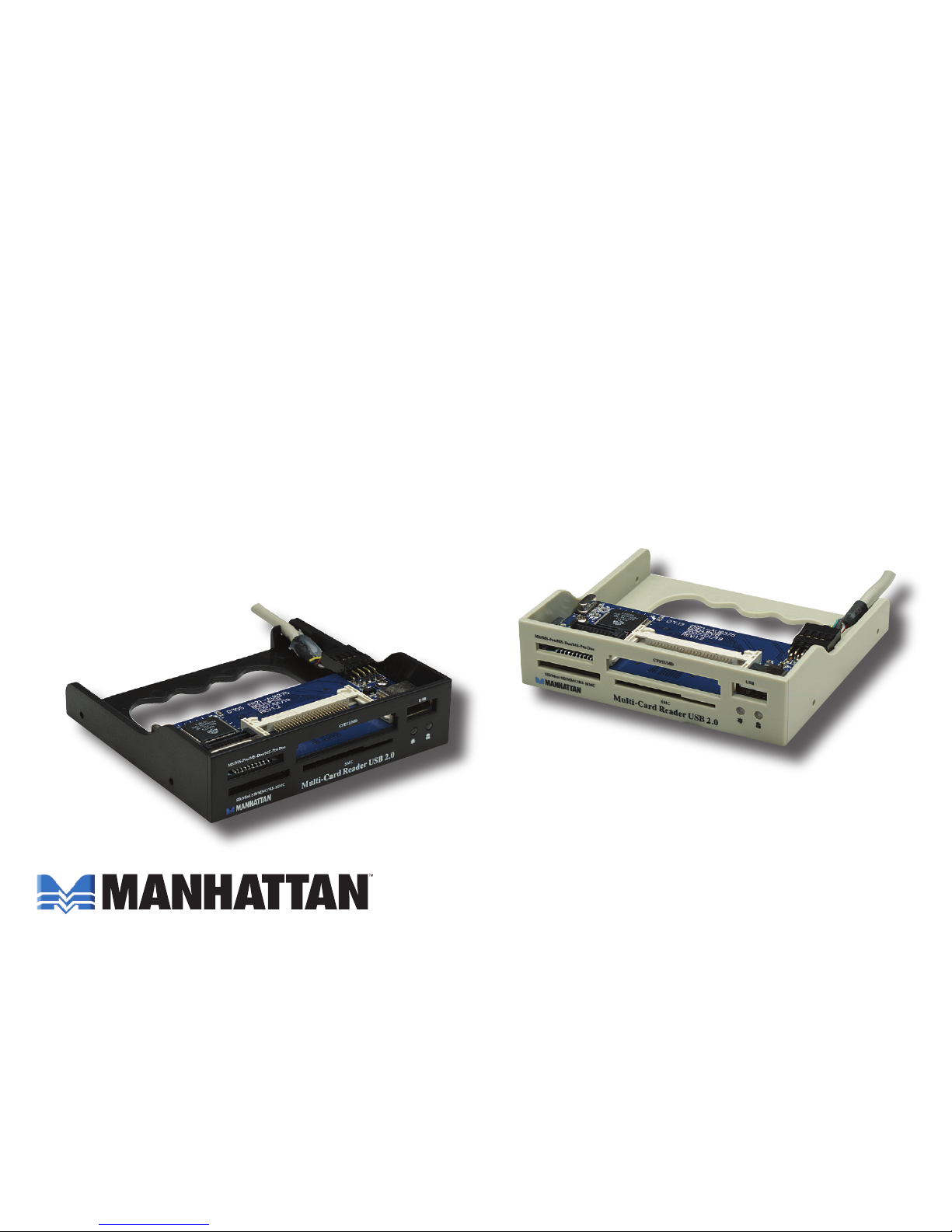

Manhattan 700344 Manuel utilisateur
MAN-700344/701419-UM-0107-05
Multi-Card
reader/Writer
uSer MaNual
MODEL 700344/701419
2
Thank you for purchasing the MANHATTAN®Multi-Card Reader/Writer, Model 700344 (black)
or Model 701419 (beige).
Convert any unused PC bay into a digital content management center that lets you access
picture files from memory cards without directly connecting a camera or other media device to
the computer. Follow the simple instructions in this user manual and enjoy the benefits of these
convenient features:
• Easily access cards and manage content with slot-to-slot read/write/copy capability
• Compatible with CompactFlash, Microdrive, Memory Stick, MagicGate, SecureDigital and
Multimedia
• Supports automatic card detection, hot swapping and Plug and Play
• Convenient front-mount USB port
• Data transfer rates up to 480 Mbps
• Lifetime Warranty
3
hardWare iNStallatioN
1. Turn off the power
to your PC and
remove the two
side panels as
shown at right.
2. Using the split ("Y") end of
the internal cable, make the
connections as shown to
the Card Reader’s circuit
board (near right) and the
USB pins (far right).
4
3. Insert the Multi-Card Reader/Writer
into the front panel of the PC.
4. Secure the Multi-Card Reader/Writer
in place on both sides using the
enclosed mounting screws.
Side view
5
5. Connect the other end of the internal
cable to the USB pins on the PC’s
motherboard. NOTE: The white dot
inside the red highlight box at right
indicates the postion of Pin 1.
6. Replace the side panels on the PC.
SoftWare iNStallatioN
Windows XP:
1. With the Card Reader connected
properly, turn on the PC. NOTE: It
isn’t necessary to install a driver
with Windows XP. The system will
automatically find the driver.
2. Four removable disk icons will
appear on the My Computer
screen, indicating that the device
is ready for use.
6
Memory Card Formatting:
SM (SMC) and XD users may need to format their memory card(s) prior to use, indicated by a
"write protection" or "read/write error" message. If this is the case, follow the steps below to use
the attached program for formatting the memory card.
1. Go to "Start"
‡
"Programs"
‡
"Multimedia Card Reader"
‡
"Memory Card Low Level
Format."
2. Select the SMC/XD icon, then click "Low Level Format."
3. When prompted with "Low level format is completed. Please remove the card," click "OK"
and remove the memory card.
4. Re-insert the memory card and continue using the Multi-Card Reader/Writer.
7
SpeCifiCatioNS
Standards and Certifications
• Hi-Speed USB 2.0; USB 1.1
• CE, FCC, WEEE
Connections
• External USB USB 2.0 A-type female
• Internal 4-pin USB connection (Molex)
• Internal 5-pin connection for card reader (Molex)
• CompactFlash Type I / II, CF Elite Pro, CF High Speed,
CF Picture, CF PRO I/II, Ultra-X CF*, CF Wa, Extreme CF,
Extreme III CF, Ultra II CF, XS-XS CF, IBM & Hitachi Microdrive,
MagicStor, Memory Stick, Memory Stick Duo*, Memory
Stick Extreme III PRO, Memory Stick Extreme PRO, Memory
Stick PRO, Memory Stick PRO Duo*, Memory Stick ROM,
Memory Stick Select, Memory Stick Ultra II PRO, High
Speed Memory Stick PRO, High Speed Memory Stick PRO
Duo*, MagicGate, MagicGate Duo*, MagicGate PRO,
MagicGate PRO Duo*, High Speed MagicGate PRO,
High Speed MagicGate PRO Duo*, SecureDigital (SD),
Elite Pro SD, Extreme III SD, Extreme SD*, High Speed
miniSD*, High Speed SD, microSD / TransFlash*, miniSD*,
miniSDHC*, Pro SD, SDHC, Ultra II SD, Ultra Speed SD,
Ultra-X SD, MMC / MMC II, RS-MMC*, DV-RS MMC*,
High Speed MMC, MMCmobile*, MMCplus/100x/
200x, Ultra RS-MMC*, SmartMedia, SmartMedia ROM
& XD/Type M/Type H
* Adapter required
• Compatible with Windows 2000/XP/Vista
General
• LEDs: Power LED, Activity LED
• Transfer rates: 480 Mbps / 12 Mbps / 1.5 Mbps
• Material: plastic
Environmental
• Operating temperature: 0 – 70˚C (32 – 158˚F)
• Storage temperature: -40 – 70˚C (-40 – 158˚F)
• Operating humidity: 50% non-condensing
• Storage humidity: 95% non-condensing
• Dimensions: 90 x 102 x 25.8 mm (3.5 x 4 x .7 in.) L x W x H
• Weight: 99.25 g (3.5 oz.)
System Requirements
• Internal USB connection
• Windows 2000/XP/Vista
Package Contents
• Multi-Card Reader/Writer
• Internal cable, 46 cm (18 in.)
• Mounting screws
Copyright © MANHATTAN
All products mentioned are trademarks or registered trademarks of their respective owners.
www.manhattan-products.com
MANHATTAN®offers a complete line of PC Components, Peripherals, Cables
and Accessories. Ask your local computer dealer for more information
or visit us online at
