Manaras GH Instructions d'installation et d'utilisation

Addendum –

Addendum – Environmental Applications

Environmental Applications

This addendum is to be used in conjunction with the Installation & Instruction Manual.

GH, MGH, MGT, MGSL

with Nema 4/ 2 - Nema 4X Control Enclosures

Hardwired Electrical Control

READ AND FOLLOW ALL INSTRUCTIONS.

SAVE THESE INSTRUCTIONS.

GIVE TO END-USER.

Serial #

Model #

Wiring Diagram #

Project #/Name

Door #/Name

For technical support, please call -800-36 -2260 or visit www.manaras.com for more information

TABLE OF CONTENTS

Installation Instructions............................................................................................................................................... 3

General Specifications and Dimensions..............................................................................................................................................................4

. GH Dimensions with NEMA 4/ 2 & 4X Control Enclosures......................................................................................................................4

.2 MGH Dimensions with NEMA 4/ 2 & 4X Control Enclosures...................................................................................................................5

2 Electrical Wiring...................................................................................................................................................................................................6

2. Control Enclosure Conduits and Fittings...................................................................................................................................................7

2.2 Low Voltage (Controls) and High Voltage (Power) Connections..............................................................................................................7

2.3 Radio Receiver Connection......................................................................................................................................................................8

3 Electrical Drawings...............................................................................................................................................................................................9

3. Phase Operator – Hardwired Wiring......................................................................................................................................................9

3.2 3 Phase Operator – Hardwired Wiring.................................................................................................................................................... 0

4 Mechanical Exploded Views and Replacement Components...........................................................................................................................

4. GH Nema 4/ 2 & 4X................................................................................................................................................................................

4.2 Nema 4/ 2 & 4X Control Enclosure - Hardwired.................................................................................................................................... 2

4.3 Replacement Motors, Transformers, Solenoids and Resets.................................................................................................................. 3

Notes............................................................................................................................................................................ 4

Warranty...................................................................................................................................................................... 5

For technical support, please call -800-36 -2260 or visit www.manaras.com for more information

Installation Instructions

IMPORTANT INSTALLATION INSTRUCTIONS

WARNING

TO REDUCE THE RISK OF SEVERE INJURY OR

DEATH TO PERSONS:

. READ AND FOLLOW ALL INSTALLATION INSTRUCTIONS.

2. Install only on a properly operating and balanced door. A door that is operating

improperly could cause severe injury. Have qualified service personnel make repairs

to cables, spring assemblies and other hardware before installing the operator.

3. Remove all pull ropes and remove, or make inoperative, all locks (unless

mechanically and/or electrically interlocked to the power unit) that are connected to

the door before installing the operator.

4. Installation of this door operator must be done by a qualified installer.

5. Verify that the operator is correct for type, size of door and frequency of use per the

operator specifications.

6. Install the door operator at least 8 feet (2,4 m) or more above the floor if the operator

has exposed moving parts.

7. Do not connect the door operator to the source of power until instructed to do so.

8. Locate the control station: (a) within sight of the door, (b) at a minimum height of

5 feet ( ,5 m) so small children cannot reach it, and (c) away from all moving parts of

the door.

9. Install the Entrapment Warning Placard next to the control station in a prominent

location.

0. For products having a manual release, instruct the end user on the operation of the

manual release.

. If you have any questions about the safety of the door operating system, do not install

the operator, contact Manaras-Opera at -800-36 -2260.

For technical support, please call -800-36 -2260 or visit www.manaras.com for more information

1 General Specifications and Dimensions

1.1 GH Dimensions with NEMA 4/1 & 4X Control Enclosures

SUPPLY VOLTAGE............................... 5, 230 VAC single-phase, 208, 460, 575 VAC three-phase

CONTROL VOLTAGE............................24 VAC class 2 transformer, 2 amp fuse type ACG

MOTOR.................................................Continuous duty /2, 3/4, , - /2, 2 horsepower (2HP avail. in 3-phase only)

OPERATOR OUTPUT SPEED..............38 RPM

NET WEIGHT (Operator only)............... 22 Lbs (55 Kg)

STANDARD WIRING TYPE..................C2 (momentary contact to open/stop and constant-pressure-to-close)

APPLICATION.......................................Heavy duty worm gear for sectional doors, rolling doors and grilles

DUTY.....................................................25 cycles/hour or >80 cycles/day maximum

Table 1 - Operator Selection Guide

Maximum Area in Square Feet (general guideline)

Rolling Doors Sectional Doors

HP Insulated

Steel

6 ga

Steel

Steel Grilles

20 ga

Steel

Alu. Door

22 ga Steel

Alu. Grilles

24 ga

Steel

8 ga

ins.

Steel

8 ga

20 ga

ins.

Wood

Steel 20 ga,

22 & 24 ga

ins.

Alu. Steel

22 & 24 ga

Fiber

Glass

½57 236 260 3 9 358 96 245 3 4 343 392

¾206 294 358 45 5 5 270 3 9 44 490 549

255 358 446 574 6 3 294 392 490 564 6 3

½ 353 486 633 373 466 549 6 3

245 6 3

For technical support, please call -800-36 -2260 or visit www.manaras.com for more information

Figure 1 - GHW/C Dimensions

1. MGH Dimensions with NEMA 4/1 & 4X Control Enclosures

For technical support, please call -800-36 -2260 or visit www.manaras.com for more information

Figure 2 - MGHW/C Dimensions

Electrical Wiring

WARNING

To reduce risk of SEVERE INJURY or DEATH to persons:

•All electrical wiring should be done by a qualified professional and in accordance to local

electrical codes.

•Always shut OFF the main power before performing any electrical intervention.

•Use proper wire gauge for incoming power line and for accessory connections.

•Install operator main circuit breaker next to operator for easy access for power shut-off.

•Use separate knockouts on operator control box for accessories and main power cables.

•Always separate low and high voltage wires.

•Operator should be properly grounded to the building ground and to the main power

supply ground lug.

•Always use suitable and appropriate rating circuit breakers for operator protection.

•Compare available power supply voltage to voltage on operator name plate prior to

electrical connection. Failure to connect appropriate power supply voltage may cause

serious damage to the operator.

NOTICE

•THE OPERATOR MUST BE ADEQUATELY PROTECTED AGAINST OVERCURRENT AND SHORT-

CIRCUIT.

•PLEASE REFER TO LOCAL ELECTRICAL CODE.

•PLEASE REFER TO NATIONAL ELECTRIC CODE (NFPA 70) ARTICLE 430 SECTION IV (430.5 /

430.52 / 430,53).

•PLEASE REFER TO CANADIAN ELECTRIC CODE (CSA 22. ) SECTIONS 28-200 / 28-206.

Guideline to determine the branch-circuit rating of the protective device [A]:

Time Delay Fuse: ,75 x FLA

Non-Time Delay Fuse: 3,0 x FLA

A fuse that does not exceed the next higher standard ampere rating shall be permitted.

Example: If FLA = 3,8A

•Time Delay Fuse: ,75 x 3,8A = 6,65A → Standard fuse to use: 0A

•Non-Time Delay Fuse: 3,0 x 3,8A = ,4A → Standard fuse to use: 5A

For technical support, please call -800-36 -2260 or visit www.manaras.com for more information

FLA = Full Load Amp

NOTICE

•The installer MUST test for proper connection and functionality of the operator and its accessories

before leaving the job site.

•The installer should also perform a demonstration for the end-user.

•Use materials as per NEMA guidelines and always follow manufacturers instructions for conduit

preparation.

.1 Control Enclosure Conduits and Fittings

Compared to NEMA enclosures, the NEMA 4/ 2 and NEMA 4X enclosures are not supplied with pre-drilled fitting

entry holes to attach fittings for incoming power and other different accessories. All appropriate holes and cuttings

should be performed by the installer.

Always use liquid-tight and flexible non-metallic conduits and fittings. Use appropriate cutting tools or jigs to cut the

entry holes. While inserting the conduit to the fitting, ensure that the gland is properly compressed and that the

conduit jacket is not cut or ripped anywhere, in order to avoid liquid from leaking-in.

. Low Voltage (Controls) and High Voltage (Power) Connections

. Route the power line wires either from

the right or from the left of the control

box, as shown in Figure 3.

2. Route all low voltage control wires, as

shown in Figure 3. KEEP LOW

VOLTAGE WIRES SEPARATE FROM

LINE VOLTAGE WIRES.

3. USE COPPER CONDUCTORS ONLY.

For technical support, please call -800-36 -2260 or visit www.manaras.com for more information

Power

Figure - Low Voltage (Controls) and

High Voltage (Power) Connections

Power

Control

Power

Control

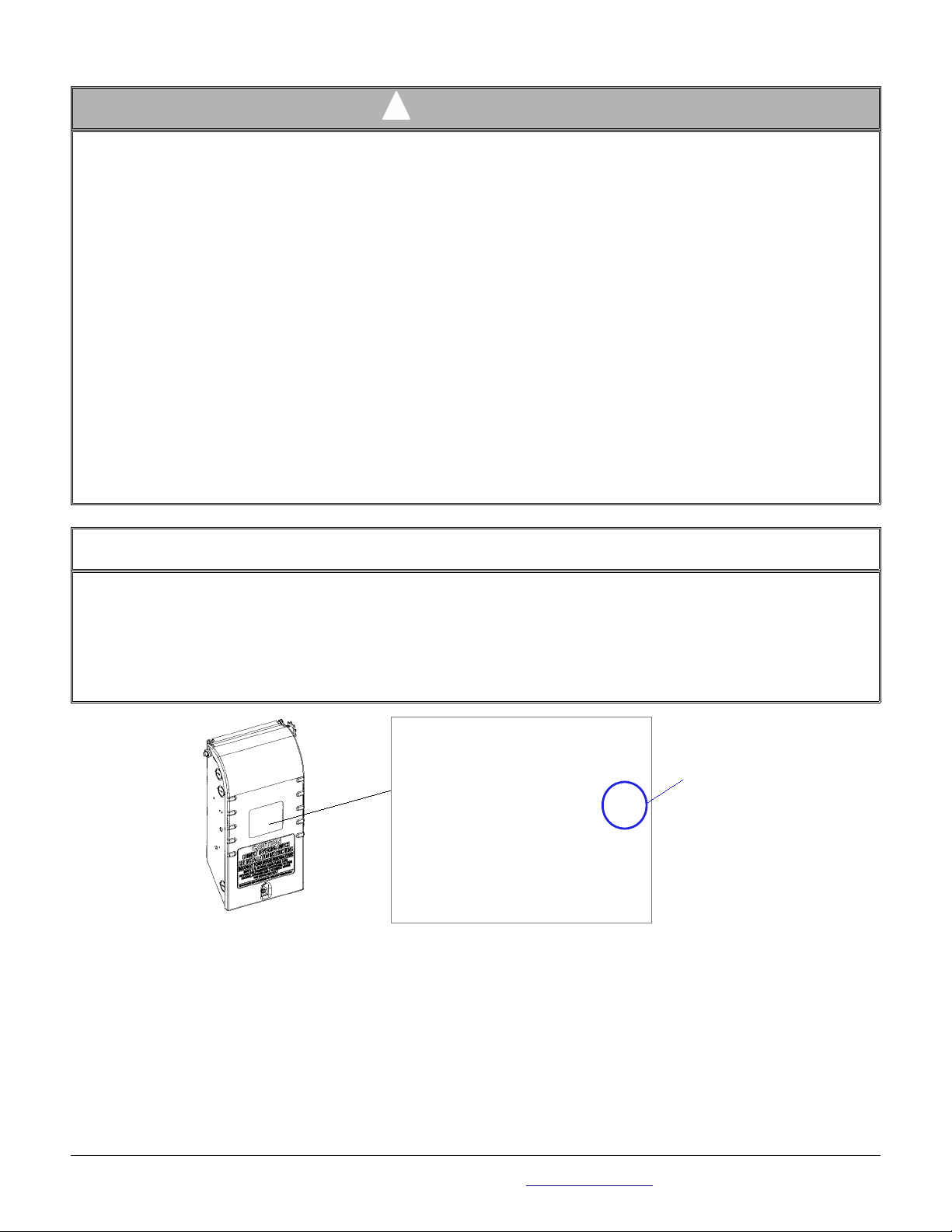

.3 Radio Receiver Connection

NOTICE

•The radio receiver should be located in a remote or protected area to avoid damage caused by liquid

immersion.

.3.1 External Single-Button Radio Control Receiver

In NEMA 4/ 2 and NEMA 4X applications, a terminal strip is not provided on the outside of the control box.

If a 3-pin radio control receiver is being used, appropriate terminals are provided on the terminal strip in order to

connect the radio receiver. Please refer to Figure 4 for wiring instructions.

Figure 4 - RADIO 014 or RADIO 015

For technical support, please call -800-36 -2260 or visit www.manaras.com for more information

Manaras

BROWN (24VOLTS)

BLUE (RELAY)

PURPLE (RADIO POWER)

O/C

24 VAC

COM

3 Electrical Drawings

3.1 1 Phase Operator – Hardwired Wiring

For technical support, please call -800-36 -2260 or visit www.manaras.com for more information

Figure 5 - OPERA11W_N4

3. 3 Phase Operator – Hardwired Wiring

For technical support, please call -800-36 -2260 or visit www.manaras.com for more information

Figure 6 - OPERA 1W_N4
