malkans SF5A Manuel utilisateur
SF5A
Assembly Instructions
© malkans ltd
2
Warning
Do not overtighten screws. Overtightening will damage the head and
threads of the screws.
Case structure fragile during assembly. Construct with care and avoid
unnecessary movement.
Remove the protective layer from both sides of all case panels before
assembling the case.
3

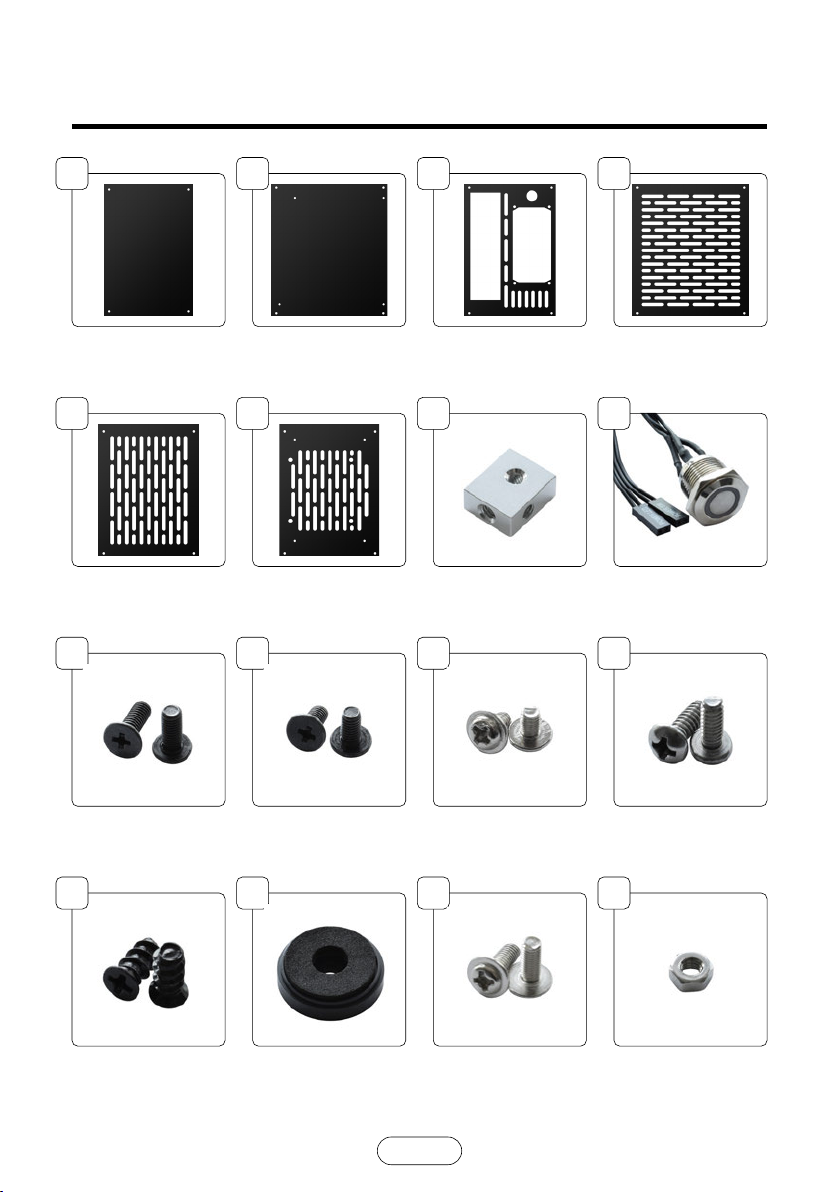

Parts List
1
Front Panel
1
Top Panel
12
M3 x 8 mm
4
M5 x 10 mm
1
Right Panel
1
Bottom Panel
12
M3 x 6 mm
4
Case Feet
1
Back Panel
8
Aluminium Nut
4
M3 x 5 mm
Button Head
4
M3 x 8 mm
Button Head
1
Left Panel
Power Switch
4
6-32, 3/8”
4
Hexagonal Nut
1
4
Step 1
Use 4 M3 x 8 mm screws to attach 4 Aluminium Nuts to the Right
Panel, making sure that the corners of the Aluminium Nuts are
aligned with the corners of the panel.
5
Step 2
Install your CPU, CPU Cooler, RAM and M.2 SSD to your
Motherboard. (Refer to your motherboard instruction manual)
6
Step 3
Align your Motherboard with the standos on the Right Panel and
use 4 M3 x 5 mm Button Head screws to attach the Motherboard to
the Right Panel.
7
Step 4
Use 2 M3 x 8 mm screws to attach the Back Panel to the Right Panel.
Tip: The holes in the panels are slightly larger than the screws to allow for
adjustments. During the build, you may loosen screws, adjust panels and
retighten screws to ensure that all panel edges are correctly aligned.
8
Step 5
Use 2 M3 x 8 mm screws to attach 2 Aluminium Nuts to the Back
Panel.
9
Step 6
Attach the Power Switch to the Back Panel.
10

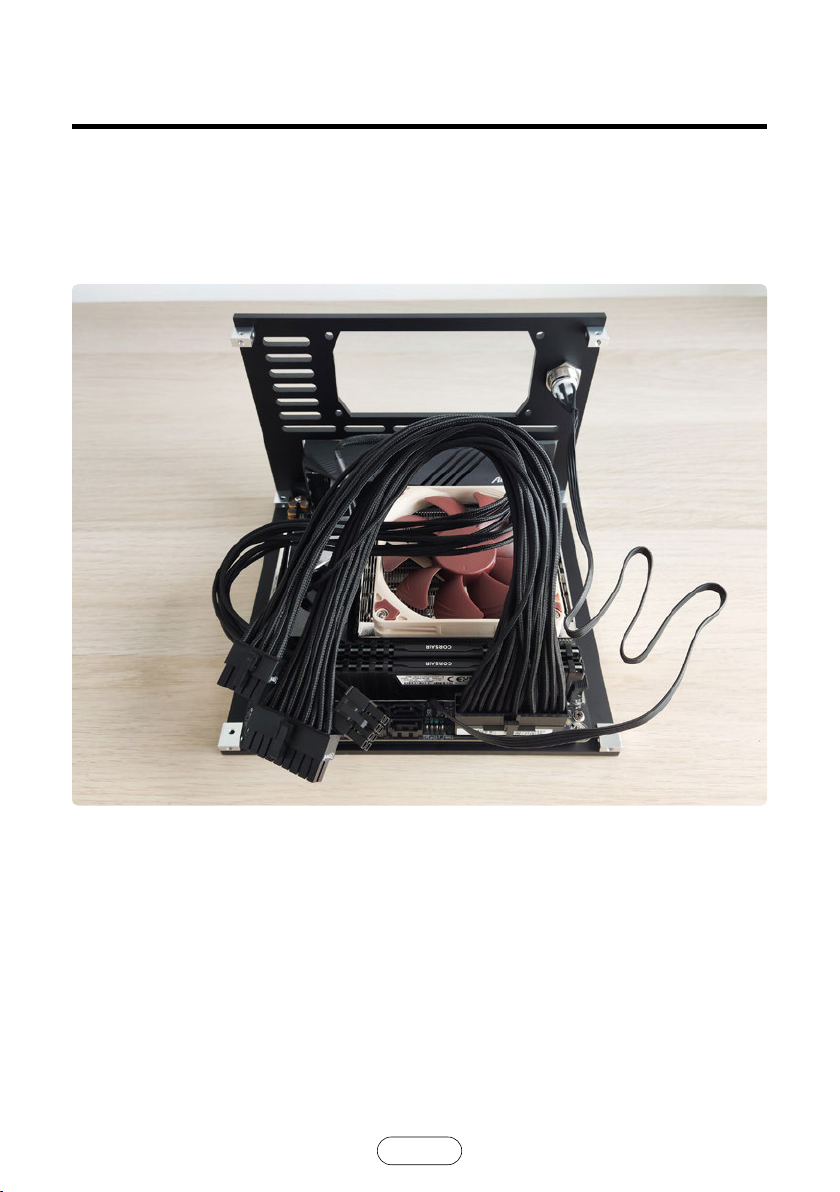

Step 7
Connect the power supply cables, and power switch cable to the
corresponding motherboard connectors. Refer to your power supply
and motherboard instructions manuals.
