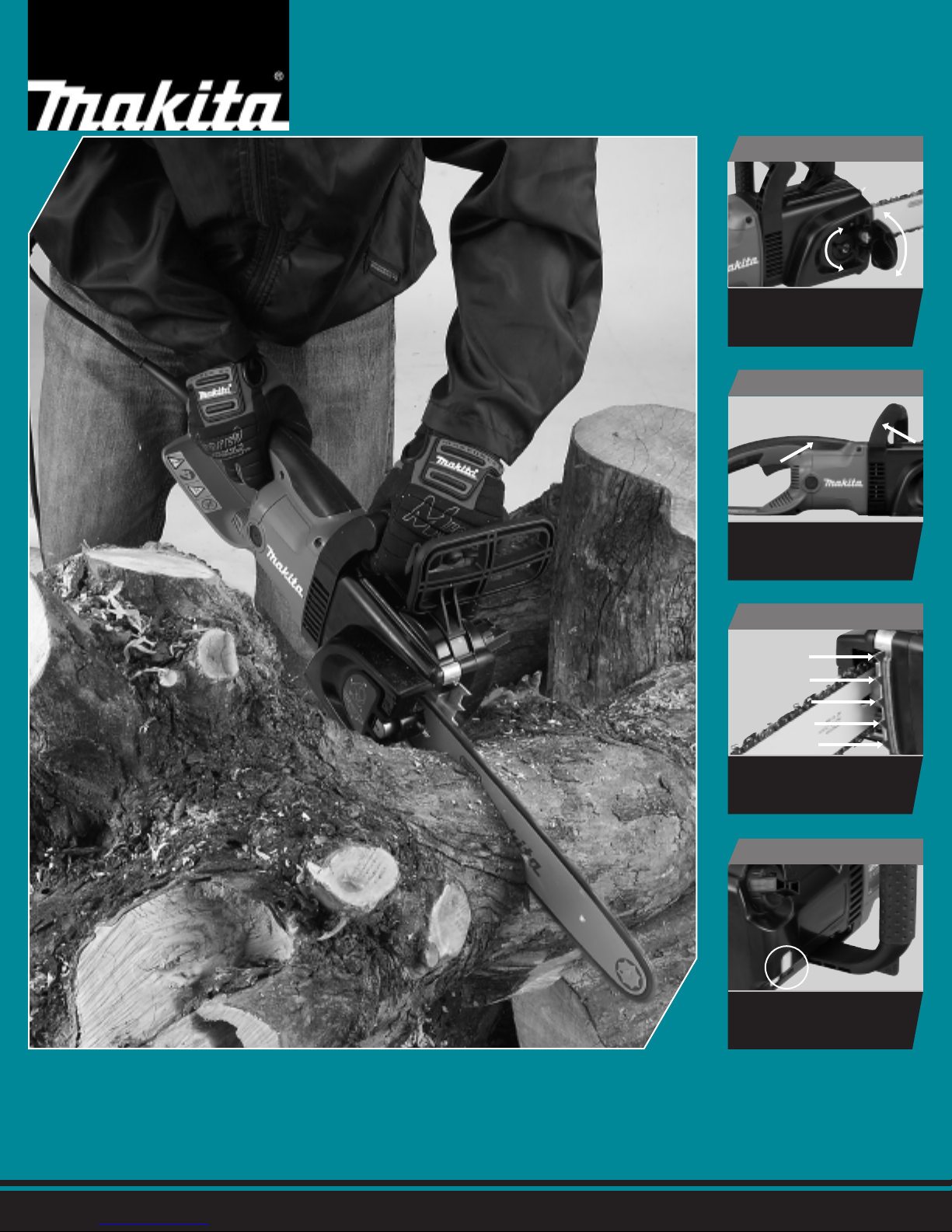

Makita UC3530A Manuel utilisateur

14" & 16"

ELECTRIC CHAIN SAWS

EASY OPERATION & MAINTENANCE

INNOVATION

“Tool-less” blade and chain

adjustment /replacement

by simply turning a lever

COMFORT

Rubberized grip handles and

large trigger switch for

comfortable operation

PERFORMANCE

Large metal spike creates a

stable pivot on wood

for steady cutting

CONVENIENCE

Large oil tank view window

for easy checking of oil level

HEAVY-DUTY, FAST CUTTING AND EASY TO OPERATE

Powerful 15 AMP Motor for High Performance

One-touch“tool-less” blade and chain adjustments for easy operation

and maintenance

Rubberized grip handles are ergonomically designed for comfort and

easy handling

Large trigger switch with soft start for smooth start-ups

Built-in current limiter helps protect motor from burn-out by reducing

power to motor when the saw is overloaded

HEAVY-DUTY, FAST CUTTING AND EASY TO OPERATE

Powerful 15 AMP Motor for High Performance

One-touch“tool-less” blade and chain adjustments for easy operation

and maintenance

Rubberized grip handles are ergonomically designed for comfort and

easy handling

Large trigger switch with soft start for smooth start-ups

Built-in current limiter helps protect motor from burn-out by reducing

power to motor when the saw is overloaded

makitatools.com

Models

UC3530A (14")

UC4030A (16")

Models

UC3530A (14")

UC4030A (16")

UC3530A UC4030A

Guide bar length 14'' 16''

Chain speed 2,600 FPM 2,600 FPM

Chain pitch 3/8'' 3/8''

Chain gauge .050'' .050''

AMPS 15.0 15.0

Overall length (w/o bar) 19-3/8'' 19-3/8''

Net weight (w/ bar and chain) 10.8 lbs.11.0 lbs.

n14'' Chain (528-092-652)

n14'' Guide bar (442-035-661)

nChain cover (952-100-630)

nOne-touch “tool-less”blade and chain adjustments for easy

operation and maintenance

nRubberized grip handles are ergonomically designed for comfort

and easy handling

nLarge trigger switch with soft start for smooth start-ups

nBuilt-in current limiter helps protect motor from burn-out by

reducing power to motor when the saw is overloaded

nLarge oil reservoir with view window allows operator to check

bar oil level

nAutomatic chain oiler for heavy continuous cutting

nElectric chain brake for maximum productivity

nDouble insulated for operator protection

All specifications subject to change without prior notice. All models and accessories subject to stock on hand.

NTF-1207-.3M MA-0974-07 For more information, call 1-800-4MAKITA or visit makitatools.com Makita U.S.A., 14930 Northam St., La Mirada, CA 90638

Models UC3530A / UC4030A

14'' & 16'' ELECTRIC CHAIN SAWS

Makita offers a wide variety of accessories for Electric Chain Saws. For a complete listing, please

refer to the Makita General Catalog, or visit our website at makitatools.com, or call 1-800-4MAKITA.

FEATURES & BENEFITS

STANDARD EQUIPMENT

SPECIFICATIONS

Model UC4030A

UC3530A

UC4030A

n16'' Chain (528-092-656)

n16'' Guide bar (442-040-661)

nChain cover (952-100-630) Model UC3530A
