Magellan TR7 CAM Manuel utilisateur
Off-Road GPS Navigator
Quick Start Guide
Magellan®TR7 CDP
Safety.
This Magellan device is a GPS navigator and recording device designed to assist you in navigation, recording
videos, taking photos, and managing the content stored on the device.
Please check with your state or local law enforcement for applicable regulations regarding mounting to the
windshield.
The driver should enter data or program the Magellan receiver only when the vehicle is stopped. Only a vehicle
passenger should enter data or program the device while the vehicle is moving. It is your responsibility to
comply with all traffic laws.
Every attempt is made to ensure that the database is accurate. However, roadways, points of interest (POIs),
and business and service locations may change over time.
Keep the receiver safe from extreme temperature conditions. For example, do not leave it exposed to direct
sunlight for an extended period of time. The maximum operating temperature is 140°F (60°C).
Take care when mounting the device in your vehicle, whether using the windshield mount or other mount or
accessories, that it does not obstruct the driver’s view of the road, interfere with the operation of the vehicle’s
safety devices such as air bags, or present a hazard to occupants of the vehicle should the receiver be
dislodged while driving.
You assume the risks associated with damage to your vehicle or vehicle occupants as the result of your
choices in mounting the receiver.
The battery is rechargeable and should not be removed. In the event it should need to be replaced, please
contact Magellan Technical Support.
Safety.
In some jurisdictions, audio recordings require the consent of all parties before you begin recording. It is your
responsibility to know and comply with applicable audio recording consent laws in your jurisdiction.
In some jurisdictions, it could be considered an invasion of privacy rights to take or publicly display
photographs or videos of people or their vehicles using this product. It is your responsibility to know and
comply with applicable laws and rights to privacy in your jurisdiction.
Before using the suction cup mount on your windshield, check the state and local laws and ordinances where
you drive. Some state laws prohibit or restrict drivers from using suction mounts on their windshields while
operating motor vehicles.
IT IS THE USER’S RESPONSIBILITY TO MOUNT AND OPERATE THE DEVICE IN COMPLIANCE WITH ALL
APPLICABLE LAWS AND ORDINANCES.
FCC RF Radiation Exposure Statement
1. This Transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with a minimum distance of 20 centimeters between the
radiator and your body.
Wi-Fi 5G Band 1 is for indoor use only.
Magellan’s Take-Back Program provides a way for
consumers to recycle certain Magellan equipment.
As part of this program, all Magellan GPS models will
be accepted.
Visit magellanGPS.com for more information.
Magellan Take-Back Program
Getting To Know Your TR7 CAM.
1. Home button
2. Volume up/down
3. Power button
4. Power LED
5. Microphone
6. Touchscreen
7. Speaker
8. Micro-USB connector
9. Camera lens
10. Microphone
11. Memory card slot
Getting To Know Your TR7 CAM.
11 12 13 14
109
15
1 2 3
4 5 6 7 8
1. Map: Tap to open the Map screen.
2. Off-Road Trails: Quick search for
off-road trails nearby.
3. OHV Areas: Quick search for OHV
areas nearby.
4. Journal: Contains your Logs &
Plans.
5. Search: Search for Trails, Tracks,
POIs, etc.
6. Camera: Tap to open the Camera
app.
7. Album: Tap to open the Album app.
8. Settings: Edit account, vehicle
profiles, connectivity, etc.
9. DVR: Tap to open DashCam.
10. Map Options: View map display
settings.
11. Delete: Discard current Track.
12. Finish: Save Track with details and
commentary.
13. Backtrack: Follow active Track
back to starting point.
14. Start/Pause: Tap to pause tracking
or resume tracking.
15. Waypoint: Mark Waypoints while
driving or recording a Track.
Setting Up.
1. Power On.
Press and hold the Power button on the top of your device. Within seconds, you’ll see the
Magellan logo, and your device will boot up.
2. Charge the Device.
Using the included AC Adapter or Vehicle Power Adapter (VPA):
1. Insert AC adapter into wall outlet or insert VPA plug into vehicle power outlet.
2. Insert micro-USB connector end of AC adapter or VPA into the back side of the device.
Note: Your device may take several hours to reach a full charge.
Setting Up.

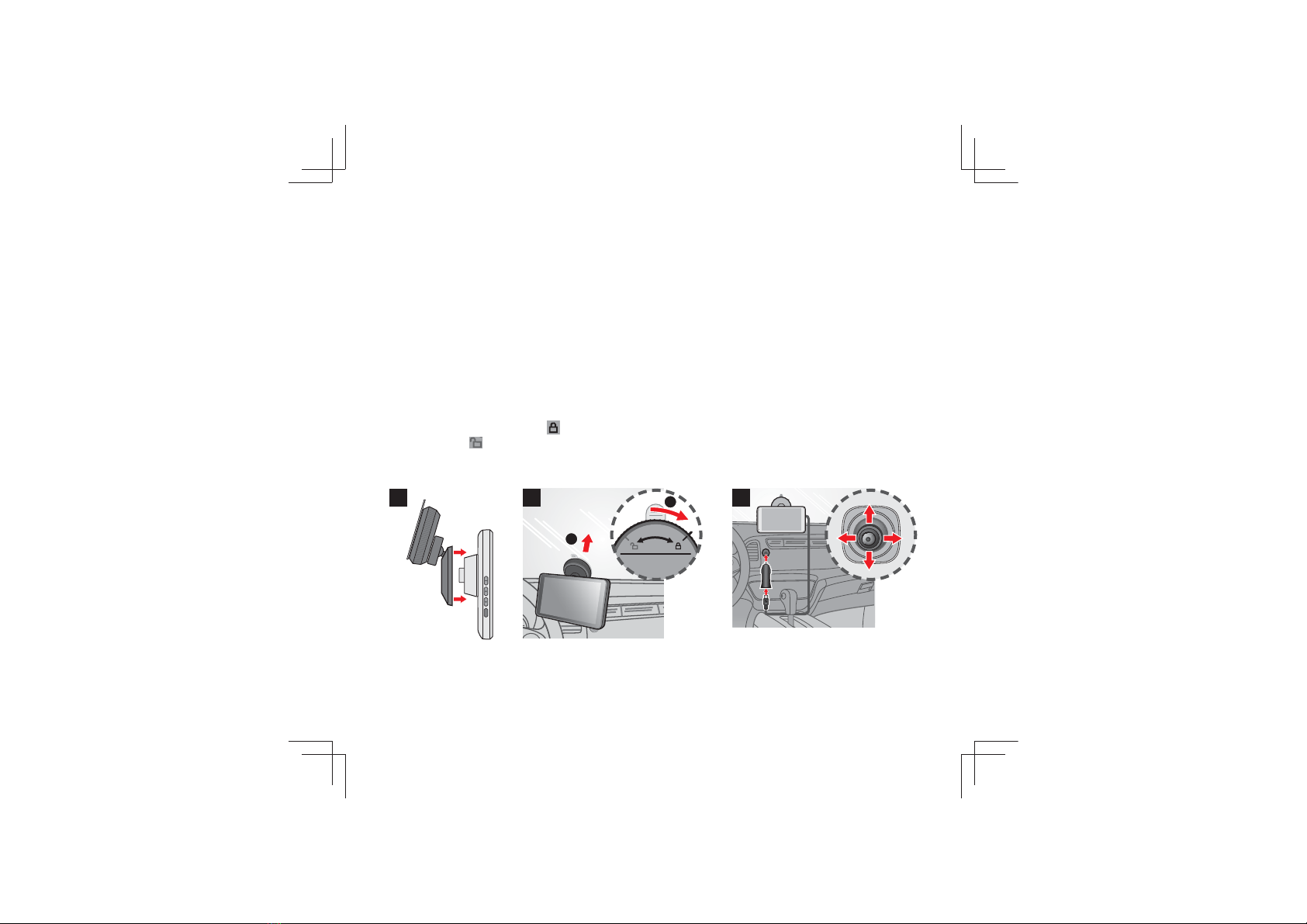

3. Mount the Device.
Attach your device to the included mount and use suction cup base to adhere your device to your
vehicle’s windshield (or dashboard).
For best image quality, mount your device as follows:
1. Clean the area of the windshield where you intend to mount the device. Attach the mount to
the device by inserting the camera lens through the centre opening of the mounting plate.
Magnets will ensure proper alignment.
2. Peel the plastic cover off and press the suction cup firmly in place. Rotate the knob in
the clockwise direction ( ) to secure the device in place; rotate in the counterclockwise
direction ( ) to release the mount from the windshield.
3. Adjust the camera angle as necessary. Connect the power cable to complete installation.
321
1
2
WARNING: Observe local laws and regulations regarding proper mounting of devices.
Get Started.
1. Connect to WIFI.
1. Press and hold the Power button to turn the device on.
2. Tap Settings from the TRX Dashboard.
3. Scroll down to WIFI > tap the check box next to the WIFI option to see available networks.
4. Tap the network you want to connect to.
5. Enter WIFI password (if applicable).
6. Tap Connect.
2. Update Software + Maps.
Note: WIFI must be ON to get updates as well as to sync your TRX with your TRX Trailhead
account. You must also have a good internet connection to complete updates.
1. Tap Settings from the TRX Dashboard.
2. Tap Updates > Software Update or Map Update.
3. Follow the instructions to update to the latest software version or download the latest map
data.
3. Create Your TRX Account.
1. Tap Settings from the TRX Dashboard.
2. Tap Account Profile.
3. Enter your account details. Use your existing MagellanGPS.com account if you have one.
4. Tap Create Account to confirm your account details.
If you used an existing MagellanGPS.com account, your TRX will be registered to that
account.
A MagellanGPS.com account will also be created if you’re new to Magellan and you’re registering
an email address for the first time.
Go to www.TRXTrailhead.com once you’ve created your account > enter your email and
password to log in with your TRX/Magellan GPS account.
4. Get a GPS Signal.
1. Access to the device's Settings app.
2. Scroll down to Security & location > tap Location.
3. Slide User location button to On to let the device apps use your location information.
Various factors influence GPS signal reception and
there are some tips you can follow to improve the signal
reception and time it takes to calculate the current
location.
• Leave any enclosed structure, (garage, parking
structures, etc.).
• Make sure you have a ‘clear view of the sky’. Buildings
and trees can have an impact on GPS signal reception.
• Be sure that the device is mounted where it can have a
clear line of sight to the windshield.
Note: The first time the device calculates its location can take up
to 1 minute. Subsequent times will be 15 seconds on average.
Important
5. Search For Trails.
Your TRX helps you filter for Trails, Tracks, Trips, or POIs around you. You can also search for
map data in other locales no matter their distance from your current location.
1. Tap Search from the TRX Dashboard.
2. Search for an Address, Trail, or other location that you want to get to.
3. Tap any desired filter button > tap Search.
4. Tap individual items in the results list.
5. Tap Save to add items of interest to your plan list.
To follow saved Trails or Tracks, go to your plan list on the TRX Dashboard > Journal > Plans.
