The Magellan eXplorist Pro 10 is a navigation aid designed to assist you in
arriving at your selected destination. When using the Magellan eXplorist receiver,
these safety rules must be followed to prevent accidents that can result in injury
or death to yourself or others.
Please do not try and change any settings on the Magellan eXplorist receiver
while driving. Come to a complete stop or ask a passenger to make any changes.
This product is an excellent navigation aid, but does not replace the need for
careful orienteering and good judgement. Never rely solely on one device for
navigating.
The Global Positioning System (GPS) is operated by the U.S. Government,
which is solely responsible for the accuracy and maintenance of the GPS
network. The accuracy of position xes can be affected by the periodic
adjustments to GPS satellites made by the U.S. government and is subject to
change in accordance with the Department of Defence civil GPS user policy and
the Federal Radionavigation Plan. Accuracy can also be affected by poor satellite
geometry and obstructions, like buildings and large trees.
Use only Magellan cables and accessories; the use of non-Magellan cables and
accessories may severely degrade performance or damage the receiver, and will
void the warranty.
The information provided in this document is subject to change without notice.
Improvements and enhancements to the product may occur without any formal
notication. Check the Magellan website (www.magellanGPS.com) for product
updates and additional information.
Maximum normal use temperature is 60°C.
Safety Notice
Touch Pro 10 QSG.indd 2 1/11/2011 10:11:39 AM
Magellan eXplorist Pro 10
[A] Power Button: Press and hold for 2
seconds to turn the receiver on. Press
again to bring up the Power Options
menu.
Pressing and holding the power button
down for 5 seconds will reset the receiver.
Suspend turns the display off but your
track will still be recorded. This reduces
battery life consumption but does not
eliminate it entirely.
[B] Back Button. Steps back to the
previous screen.
[C] Camera Button. Accesses the
camera function and is used as the shutter
button to take photograph.
Touch Pro 10 QSG.indd 3 1/11/2011 10:11:39 AM
The Magellan eXplorist Pro 10 is powered by two AA batteries. Alkaline, lithium
or rechargeable batteries may be used but both batteries must be of the same
type.
Battery Door Removal
Raise the arm [A].
Turn the battery door lock counter
clockwise a quarter turn.
Lift the top of the battery door
until the pivot point at the bottom
releases, allowing the door to
become free from the receiver.
Install two AA batteries observing
the polarity as shown in the battery
tray.
When reinstalling the battery door be sure to rst insert the hinge point at the
base of the door. Pivot the battery door down and lock it in place by turning
the battery door lock clockwise for a quarter of a turn.
Installing Batteries
Camera Speaker
A
Pivot Point
Touch Pro 10 QSG.indd 4 1/11/2011 10:11:40 AM
The Magellan eXplorist Pro 10 can be connected to a personal computer or
external power using the USB connector located at the bottom of the receiver in
the back. It has a rubber cover to protect the connector from water or dirt and
should always be closed rmly when not being used to connect the receiver to a
remote device.
Accessing the USB Connector
Using your ngernail at [B], open the USB
Port cover. When done, be sure to close
the cover rmly to prevent water or dirt from
entering the USB port. (Note that the USB
connector is angled up slightly.)
Applying External Power
The receiver can be powered from an external 12 VDC source using a
Magellan-approved VPA (Vehicle Power Adapter) or by connecting it to a
personal computer using a standard USB cable. If connecting to a vehicle
receptacle, connect the VPA to the USB connector on the receiver and the other
end to a vehicle 12 VDC power receptacle. (Note: Some power receptacle’s
apply 12 VDC only when the vehicle ignition is on.)
Connecting to the USB Port
B
Touch Pro 10 QSG.indd 5 1/11/2011 10:11:40 AM

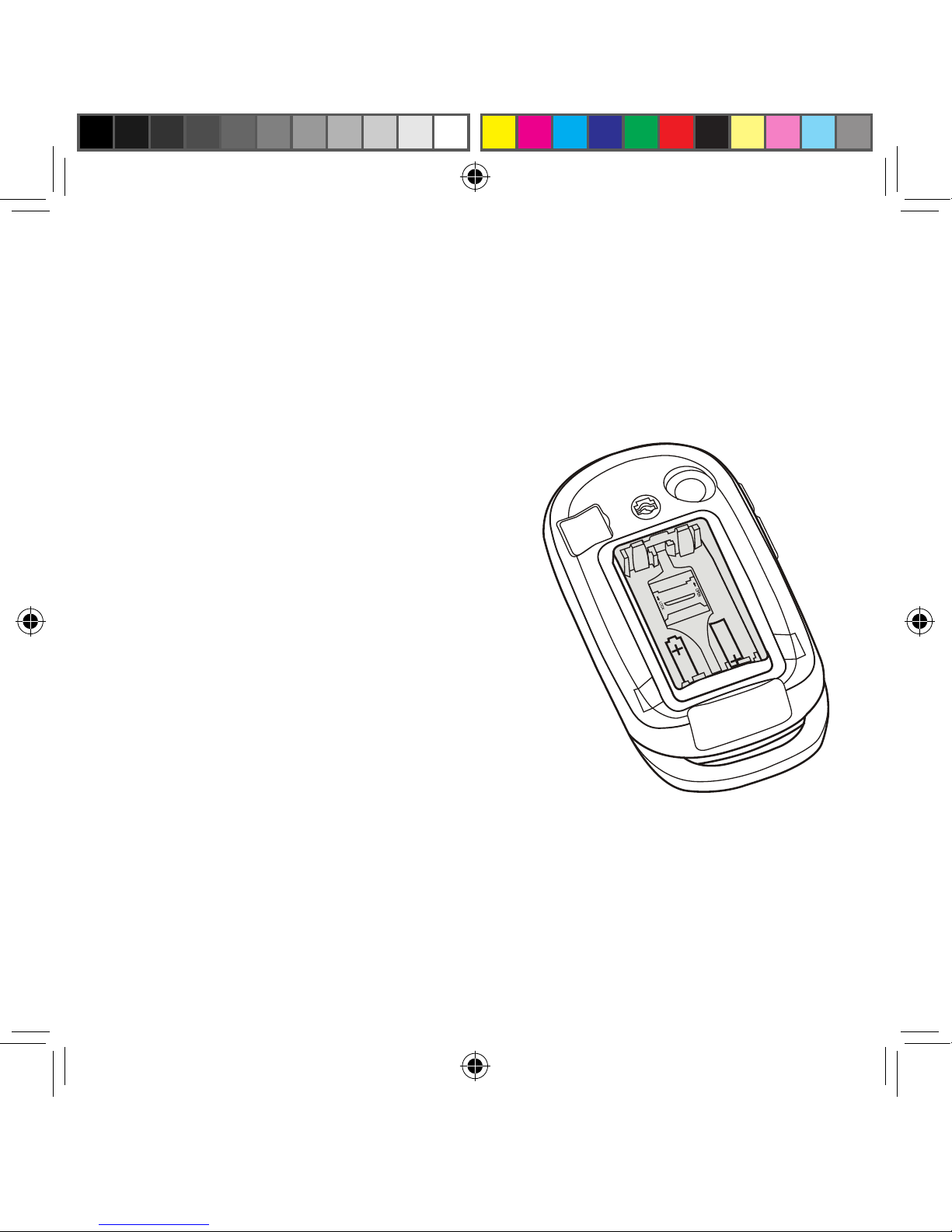

A micro SD card can be installed in the Magellan eXplorist Pro 10 to store and
retrieve data. Please see your application instructions for details on how to save
to or access data from the micro SD card.
Installing the SD Card
Remove the battery door and batteries.
Slide the silver micro SD card retaining
plate towards the top of the receiver.
Lift the retaining plate up with your
ngernail.
Insert a micro SD card with the
contacts down, pointing towards the
top of the receiver.
Close the retaining plate and slide
towards the bottom of the receiver,
locking the micro SD card in place.
Reinstall the batteries and replace the
battery door..
Installing a micro SD Card
Touch Pro 10 QSG.indd 6 1/11/2011 10:11:40 AM
The Magellan eXplorist Pro 10 has a built-in camera that can be used to take
photographs as an internal function of the applications installed. See the user
manual for the application installed for information as how the camera functions
with the application. However, the camera can also be used when an application
is not running by pressing the bottom button on the left side of the eXplorist.
After pressing the bottom button the “Pictures & Video” application built-in to
Windows Mobile® opens. Use the display as the viewnder and point the camera
towards the area you want to photograph. Press
the bottom button again to take the picture (or
begin taking a video if in video operation).
Use the Mode button in the lower right corner
to access a pop-up menu where you can set
the mode, brightness, resolution, zoom and
white balance. The images are saved to your
Magellan eXplorist internal memory and can
be viewed by accessing the “Pictures & Video”
application.
Using the Camera
Touch Pro 10 QSG.indd 7 1/11/2011 10:11:41 AM
Notice: You can synchronize your e-mail, calendar, songs, pictures and internet
favorites with your Windows®-based PC. Start by visiting http://www.microsoft.
com/windowsmobile/en-us/help/getstarted/getstarted.mspx.
© 2011 MiTAC International Corporation. The Magellan logo, Magellan and
eXplorist are registered trademarks of MiTAC International Corporation and
are used under license by MiTAC Digital Corp. All rights reserved. Microsoft,
Windows and the Windows Mobile logo are trademarks of the Microsoft Group of
Companies. All rights reserved. The Bluetooth word mark and logo are registered
trademarks and are owned by the Bluetooth SIG, Inc. All other trademarks and
registrations are the property of their respective owners.
605-0341-001 B
Touch Pro 10 QSG.indd 8 1/11/2011 10:11:41 AM
