IMPORTANT SAFETY WARNINGS

The Magellan eXplorist TRX7 is an off-

road vehicle navigation aid designed to

assist you in driving on your route and

arriving to your selected destinations.

Please check with your state or local law

enforcement for applicable regulations

regarding mounting to the windshield.

The driver should enter data or program

the Magellan device only when the

vehicle is stopped. Only a vehicle

passenger should enter data or program

the device while the vehicle is moving.

It is your responsibility to comply with all

trafﬁc laws.

Every attempt is made to ensure that the

database is accurate. However, roadways,

points of interest (POIs), and business

and service locations may change over

time.

Keep the device safe from extreme

temperature conditions. For example,

do not leave it exposed to direct sunlight

for an extended period of time. The

minimum operating temperature is 14ºF

(-10ºC), and the maximum operating

temperature is 140°F (60°C).

Mount the device in your vehicle, whether

using the windshield mount or other

mount or accessories, so that the device

does not obstruct the driver’s view of

the road, interfere with the operation

of the vehicle’s safety devices, such as

airbags, or present a hazard to occupants

of the vehicle should the device become

dislodged while driving.

Comply with all local, state, and federal

laws before mounting the device in your

vehicle.

You assume the risks associated with

damage to your vehicle or vehicle

occupants as the result of your choices in

mounting the device.

The battery is rechargeable and should

not be removed. Should the battery need

to be replaced, please contact Magellan

Technical Support at 800-707-9971, or go

to http://support.magellangps.com.

Charging the Magellan eXplorist TRX7

An AC adapter is included with your

eXplorist TRX7. Only use the car charger

approved for/supplied with your eXplorist

TRX7. Use of another type of car charger

will result in ﬁre or electric shock.

For safety reasons, the battery in your

eXplorist TRX7 will stop charging when

the ambient temperature is less than

32°F (0°C) or more than 113°F (45°C).

The TRX7 requires approximately 4 hours

of charging through the vehicle power

adapter or AC adapter to obtain a full

battery charge. Charge your TRX7 battery

initially for at least 2 hours.

Estimated usage of the eXplorist TRX

on battery power is approximately 4-6

hours.

Note: Use a 3.5V-5V 2A charger should

you need to replace your adapter.

Section TitleBe Safe.

ReferencesBe Safe.

FCC RF Radiation Exposure Statement

1. This Transmitter must not be co-

located or operating in conjunction

with any other antenna or transmitter.

2. This equipment complies with FCC

RF radiation exposure limits set forth

for an uncontrolled environment. This

equipment should be installed and

operated with a minimum distance of

20 centimeters between the radiator

and your body.

Wi-Fi 5G Band 1 is for indoor use only.

Canada, Industry Canada (IC) Notices

This device complies with Industry

Canada licence-exempt RSS standard(s).

Operation is subject to the following

two conditions: (1) this device may not

cause interference, and (2) this device

must accept any interference, including

interference that may cause undesired

operation of the device.

Canada, avis d’Industry Canada (IC)

Le présent appareil est conforme aux

CNR d’Industrie Canada applicables

aux appareils radio exempts de licence.

L’exploitation est autorisée aux deux

conditions suivantes : (1) l’appareil ne

doit pas produire de brouillage, et (2)

l’utilisateur de l’appareil doit accepter

tout brouillage radioélectrique subi,

même si le brouillage est susceptible

d’en compromettre le fonctionnement.

The Magellan logo and Magellan

are registered trademarks of MiTAC

International Corporation, and OneTouch

is a trademark of MiTAC International

Corporation and are used under license

by MiTAC Digital Corporation. All rights

reserved. All other trademarks and

registered trademarks are property of

their respective owners.

All other products and brand names are

trademarks of their respective holders.

No part of this user manual may be

reproduced or transmitted in any form or

by any means, electronic or mechanical,

including photocopying and recording, for

any purpose other than the purchaser’s

personal use, without the prior written

permission of MiTAC International

Corporation.

The information provided in this

document is correct at the time that it is

created. MiTAC International Corporation

assumes no responsibility or liability

for any errors or inaccuracies that may

appear in the contents of this User

Manual.

Magellan Take-Back Program

Magellan’s Take-Back Program provides

a way for customers to recycle certain

Magellan equipment. This program

accepts all Magellan GPS models. Visit

magellanGPS.com for more information.

References

Magellan Explorist TRX7

The Magellan eXplorist TRX7 connects

you and your off-road vehicle to the

ultimate TRX off-roading experience.

Record off-road adventures, log Dirt

Miles, capture and share adventures by

creating Tracks and marking Waypoints

to share with the TRX Community, ﬁnd

new Tracks submitted by other TRX

users, share favorite Trails with the

community, and more.

It all starts with Magellan eXplorist TRX7.

With the TRX7, you can:

• Search for and route to Trails, Tracks,

and Points of Interest (POIs) preloaded

into your TRX7.

• Create a Wish List of Trails, Trips, and

POIs for future navigation.

• Track your rides and off-road routes.

• Log Waypoints along your Tracks,

including water, obstacles, and scenic

spots.

• Connect to Twitter and Instagram to

share off-road experiences with your

friends and the TRX Community.

• Earn achievements by logging Dirt

Miles in the United States and Canada

and participating in off-road events.

• Organize your Tracks and publish your

Tracks on TRX Web.

• Access a database of 44,000+ public

Trails and user-generated Tracks

published by the TRX Community.

Get To Know TRX7.

ReferencesGet To Know TRX7.

Note: Use caution when opening the

USB power port and headphone jack

covers to avoid damaging the covers.

Note: The Camera button is not yet

implemented in this release.

1. Microphone

2. Touchscreen

3. Lanyard attach point

4. POWER button

5. Volume buttons

6. MUTE button

7. RESET button (unused)

8. Camera button

(unused)

9. BACK button

10. HOME button

11. MENU button

12. Cradle screws

13. Speakers

14. Pogo pins

15. Mount Plate

16. Mini-USB Power port

17. Headphone jack

18. USB port

(unavailable)

19. Memory card slot

20. Cover latch

References

Get Started at Home

Power On

Press the Power button on the right side

of the device to turn the device on.

Connect to Wi-Fi

1. Tap > > from the

Home screen.

2. Slide On/Off button to .

3. Tap again to see networks.

4. Enter password (if applicable).

5. Tap .

Get Started in Your Vehicle

1. Get a clear view of the sky.

2. Clean the area on the windshield

where you want to mount the device.

Allow the surface to dry.

3. Hold the suction cup ﬁrmly against the

windshield surface

4. Push the level towards the base.

5. Screw the baseplate on the cradle.

6. Attach the device onto the mount.

Connect to Wi-Fi Hot Spot

1. Tap > > .

2. Slide the On/Off button to .

3. Tap again to see networks.

4. Enter password (if applicable).

5. Tap .

Note: Wi-Fi must be in order to

synchronize your TRX7 with your TRX

Web account.

Get Started.

Important

Various factors inﬂuence GPS signal

reception. To improve the signal reception

and time to calculate the current location:

• Leave any enclosed structure (garage,

parking structures, etc.).

• Make sure you have a ‘clear view of the

sky’. Buildings and trees can have an

impact on GPS signal reception.

• Make sure that the device is mounted

where it can have a clear line of sight to

the windshield.

Note: The ﬁrst time the device calculates its

location can take up to 1 minute. Subsequent

times will be 15 seconds on average.

References

Powering On the TRX7

Press the Power button until you hear a

click, then release the button. The Boot

screen appears with the Magellan logo.

The Boot screen disappears, and the

Home screen appears.

Powering Off the TRX7

Press the Power button to lock the TRX7.

To power the device off completely:

1. Press and hold the Power button for 3

seconds.

2. Select Power off from the menu that

appears.

From this menu, you can also:

• Turn the device to Airplane Mode to

deactivate all data connections (Wi-Fi,

Bluetooth, etc.).

• Restart the device.

• Turn the device on Silent mode to turn

off all device sounds.

Note: You can continue to record a Track

while the TRX7 is in Airplane Mode.

Viewing the Battery Level Indicator

The Battery Level is always displayed on

the top right corner of the screen. The

Battery Level is indicated by the icon

based on the percentage of battery life

remaining.

To view Battery Level details:

1. Slide your ﬁnger downward from the

top right corner of the screen.

2. Tap .

A display screen appears:

Tap any of these options to display details

of each type of battery use.

Note: The TRX7 battery lasts for 4-6

hours when charged to 100%.

Get Started.

References

Checking GPS Status

1. Slide your ﬁnger downward from the

top left corner of the screen.

2. Tap on .

A display screen appears with:

• Access to my location: lets device

apps use your location information.

Tap to use this function.

• Location Sources: indicates the

sources that provide your device

position (see GPS satellites below).

• GPS satellites: lets apps use GPS on

your TRX7 to pinpoint your location.

This option automatically activates

when Location Access is .

Another way to check GPS Status:

1. Slide your ﬁnger downward from the

top right corner of the screen.

2. Tap .

3. Scroll down to .

This will display the same options

described above.

Adjusting Volume

Adjust the volume using the two volume

buttons on the right side of the TRX7

(under the Power button).

Using these buttons causes a volume

indicator to appear on the screen. Adjust

the volume by tapping on the circle in

the volume level and sliding it left (for

volume down) or right (for volume up).

Tap to open a Notiﬁcation volume

indicator. Slide this indicator left and

right to adjust notiﬁcation volume.

Adjusting Brightness

1. Slide your ﬁnger downward from the

top right corner of the screen.

2. Tap .

3. Tap the circle in the Brightness

indicator and slide the indicator left

(to decrease brightness) or right (to

increase brightness).

Get Started.

References

Home Screen

The Home Screen displays the TRX7

Dashboard app, the current time and

date, local weather, and other basic

functions.

The Home Screen allows you to access:

Magellan eXplorist TRX7 Dashboard

Internet browser

Apps, Widgets, and Settings

Contacts List

Note: The TRX7 is built on Ulmo Pro

N496(x) Series tablet hardware. Refer

to the N497(x) Series User Manual for

detailed information about the tablet’s

technical speciﬁcations and functionality.

Note: The TRX7 uses the Android 4.2.2

Jelly Bean software platform. Please

refer to Android Jelly Bean software

documentation for detailed information

about Jelly Bean software.

Dashboard

The TRX7 Dashboard is the central hub of

activity for your TRX7.

Access the Dashboard by tapping the TRX

icon on the Home screen.

From the Dashboard, you can:

• : Track your progress in real-

time using your GPS location.

• : Manage your Log and

Wish List.

• : Explore and save nearby

Trails using a Map or List view.

• : Access software updates,

your Account Proﬁle, Social Networks,

Achievements, Data/Account Resets,

and view TRX7 Product Information.

• View your total number of Dirt Miles,

Trails, and Achievements.

Get Started.

References

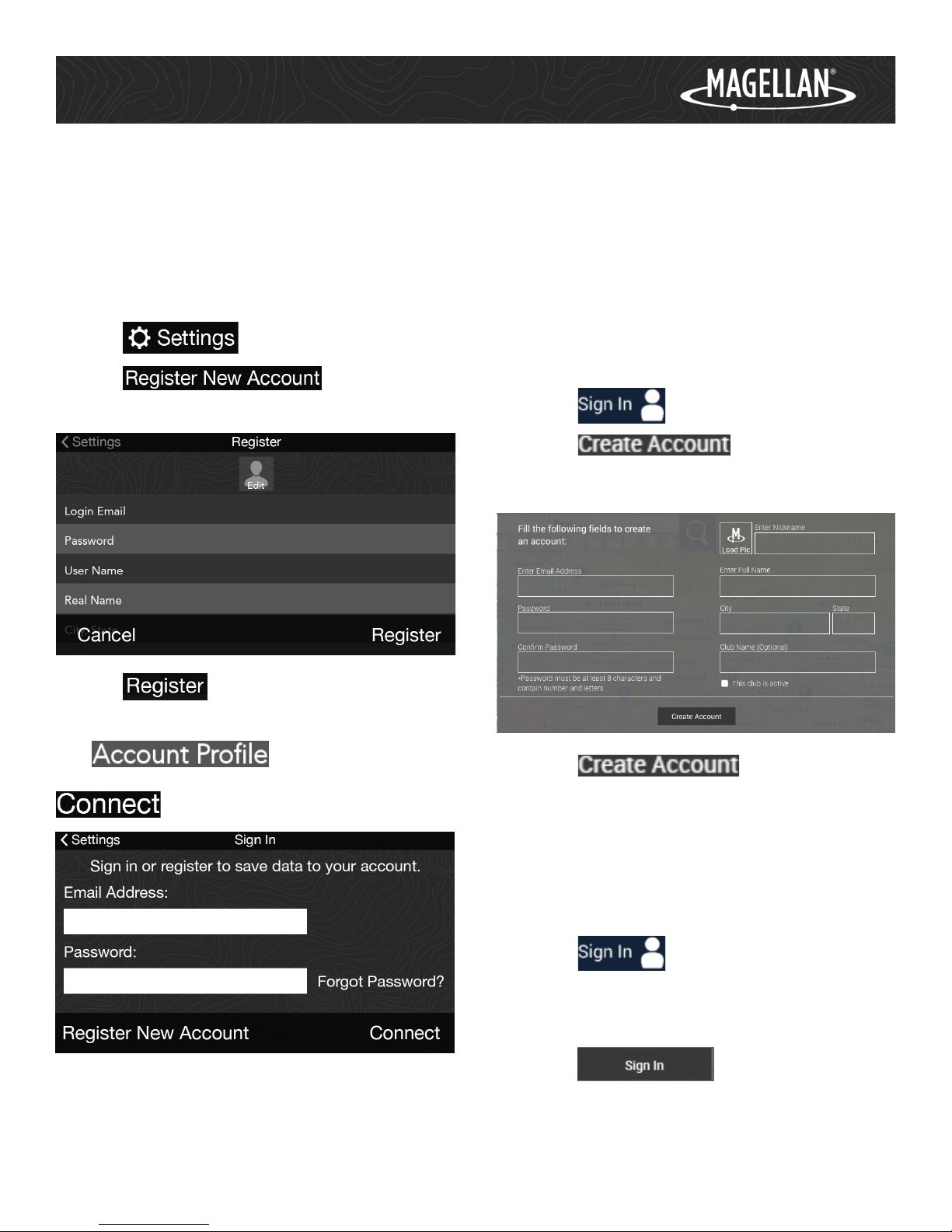

Create Your Account on TRX7

Before taking your TRX7 off-road, create

your TRX account proﬁle from your TRX7

device in order to save Tracks, Trails,

Waypoints, and Achievements to your

TRX Account.

1. Tap from the Dashboard.

2. Tap to enter your

account details.

3. Tap to create your account.

Note: Whenever you need to log in,

tap > enter your

TRX email address and password > tap

Create Your Account on TRX Web

You can also create your TRX account

or sync the account you created on your

TRX7 with TRX Web, the TRX online

application optimized to search for Trails

as well as organize and publish your

Track data.

1. Go to www.mytrxjournal.com.

2. Click .

3. Click .

4. Enter your account details.

5. Click again to

conﬁrm your new TRX account. A

conﬁrmation email will be sent to your

email address inbox.

If you’ve already created your account,

sync your TRX Account with TRX Web:

1. Click .

2. Enter your Email Address and

password.

3. Click .

Any data you save on your TRX7 device

will sync with TRX Web when you sign in

to both with the same account.

Get Started.

Autres manuels pour eXplorist TRX7

Table des matières

Autres manuels Magellan GPS

Magellan

Magellan RoadMate 860T Manuel utilisateur

Magellan

Magellan ProMark3 Manuel utilisateur

Magellan

Magellan Triton 200 - Hiking GPS Receiver Manuel utilisateur

Magellan

Magellan Triton 2000 Manuel utilisateur

Magellan

Magellan Maestro 4200 - Automotive GPS Receiver Manuel utilisateur

Magellan

Magellan RoadMate 360 - Automotive GPS Receiver Manuel utilisateur

Magellan

Magellan NAV 6500 Manuel utilisateur

Magellan

Magellan Maestro 4245 Manuel utilisateur

Magellan

Magellan RoadMate 360 - Automotive GPS Receiver Manuel utilisateur

Magellan

Magellan NAV 5000DLX Manuel utilisateur

Magellan

Magellan Meridian Platinum Manuel utilisateur

Magellan

Magellan RoadMate 1700 - Automotive GPS Receiver Manuel utilisateur

Magellan

Magellan eXplorist 200 - Hiking GPS Receiver Manuel utilisateur

Magellan

Magellan eXplorist 200 - Hiking GPS Receiver Manuel utilisateur

Magellan

Magellan RoadMate 3000T - Automotive GPS Receiver Manuel utilisateur

Magellan

Magellan Magellan RoadMate 1210 1200 Series Manuel utilisateur

Magellan

Magellan Maestro 4220 - Automotive GPS Receiver Manuel utilisateur

Magellan

Magellan GPS 300 Manuel utilisateur

Magellan

Magellan eXplorist 310 Manuel utilisateur

Magellan

Magellan RoadMate 700 - Automotive GPS Receiver Manuel utilisateur

Magellan

Magellan MobileMapper CE - Hiking GPS Receiver Manuel utilisateur

Magellan

Magellan RoadMate 1412 Mode d’emploi

Magellan

Magellan MobileMapper CE - Hiking GPS Receiver Manuel utilisateur

Magellan

Magellan MobileMapper - GPS Software Manuel utilisateur

Manuels GPS populaires d'autres marques

Raven

Raven Cruizer II Manuel

Hama

Hama 53118 Manuel utilisateur

Garmin

Garmin SOUNDER 125 Manuel utilisateur

Garmin

Garmin DEZL 580 Manuel utilisateur

Jigabot

Jigabot EX Manuel utilisateur

Pointer

Pointer Cellocator CelloTrack XT LTE Guide d'installation

Queclink

Queclink GV55LITE Manuel utilisateur

Voxson

Voxson Voxtrack GPS500 Manuel d'instructions

Garmin

Garmin ECHOMAP PLUS Manuel utilisateur

Starcom Systems

Starcom Systems Kylos Compact Manuel utilisateur

Garmin

Garmin 15 H Series Manuel utilisateur

Cobra

Cobra Marine MC 600Ci Manuel utilisateur

Cellocator

Cellocator CelloTrack T Manuel utilisateur

Enfora

Enfora Mini-MT GSM2228UG001 Manuel utilisateur

LTE

LTE G50B Manuel utilisateur

Garmin

Garmin DEZL OTR500 Manuel utilisateur

SkyGolf

SkyGolf SkyCaddie SG1 Manuel utilisateur

Garmin

Garmin GPSMAP 78 series Manuel utilisateur

Magellan eXplorist TRX7 Manuel utilisateur

Manuels GPS populaires d'autres marques
