PR2000

Pressure Data Logger with LCD

Product User Guide

PR2000

Table of Contents

To view the full MadgeTech product line, visit our website at www.madgetech.com.

Quick Start Steps ........................................................ 3

Product Overview ....................................................... 4

Software Installation ..................................................... 5

Device Operation.......................................................... 5

Computer Interface ...................................................... 6

Front Panel Overview.................................................... 7

Screen Descriptions ................................................... 8-9

Maintenance ............................................................. 10

General Speciﬁcations................................................ 11

Product User Guide

Quick Start Steps

Please refer to the PR2000 Product Manual for full product details by going to

www.madgetech.com/product-documentation.

1. Install the MadgeTech 4 Software and USB Drivers onto a Windows PC.

2. Wire the data logger with the desired probes.

3. Connect the data logger to the Windows PC with the IFC200 (sold separately).

4. Launch the MadgeTech 4 Software. The pHTemp2000 will appear in the Connected

Devices window indicating the device has been recognized.

5. Select the start method, reading rate and any other parameters appropriate for the

desired data logging application. Once conﬁgured, click the Start icon and deploy the

data logger

6. To download data, connect the data logger to the windows PC with the IFC200, select

the device in the list, click the Stop icon, and then click the Download icon. A graph will

automatically display the data.

PR2000

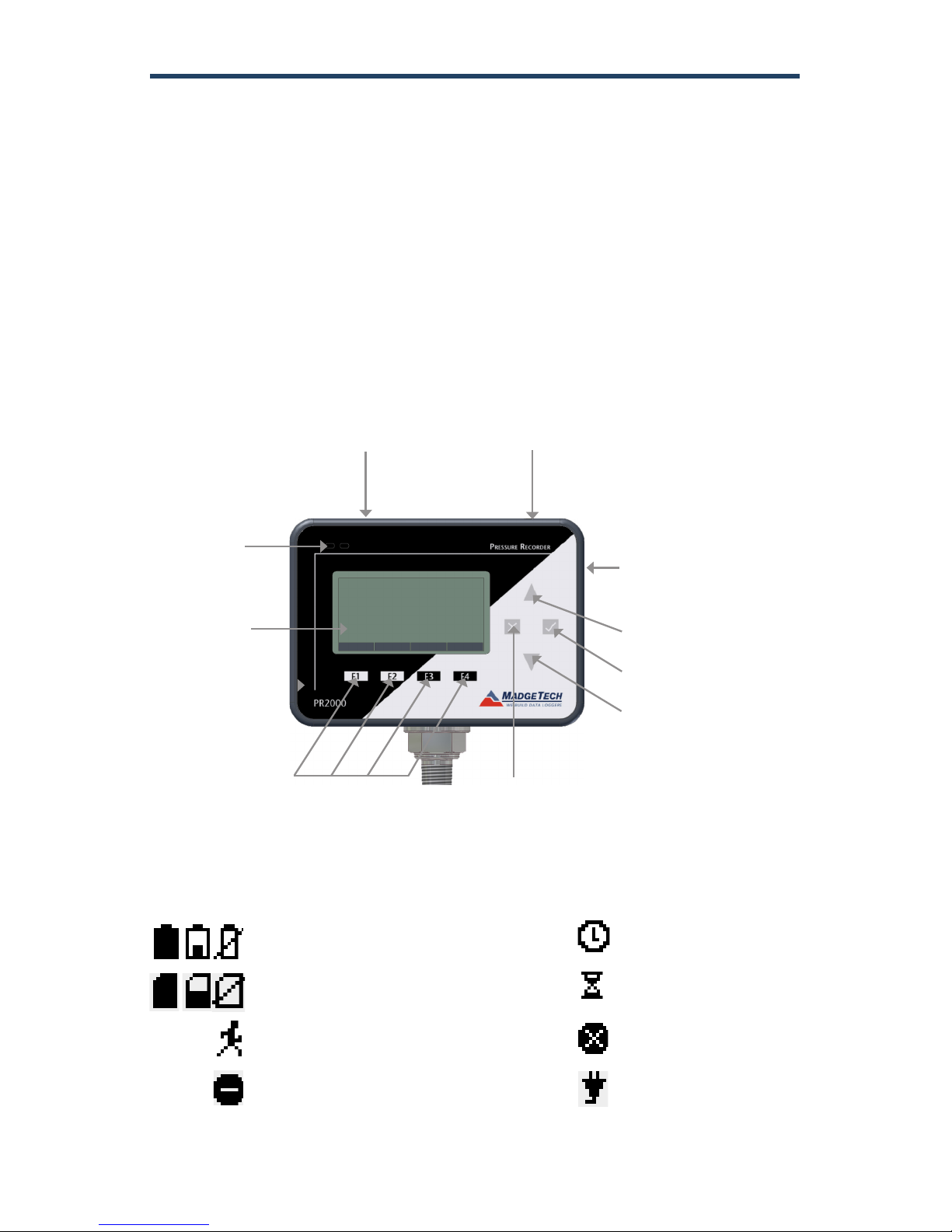

Display Overview

Product Overview

The PR2000 is a pressure data logger with LCD display. The device features an IP rating

of 65, which means it is dust proof, and splash proof making it available to be used

outdoors. The convenient LCD provides access to the current pressure reading, as well as

minimum, maximum and average statistics. A trending graph is also displayed of the last

100 readings.

Please refer to the PR2000 Product Manual for full product details by going to

www.madgetech.com/product-documentation.

LED

Indicators

LCD Screen

Pressure Sensor Power Jack

Communication

Jack

Up Key

Okay Key

Down Key

Cancel Key

Function Keys

Battery Power (Full, Half-full, Empty)

Memory Remaining (Empty, Half-full, Full)

Device is running

Device is stopped

Status Indicators

Delay Start

Wait Icon (device is busy)

Device reset has occurred

External power present

Product User Guide

Software Installation

Installing the MadgeTech 4 Software

The MadgeTech 4 Software makes the process of downloading and reviewing data quick

and easy, and is free to download from the MadgeTech website.

1. Download the MadgeTech 4 Software on a Windows PC by going to:

www.madgetech.com/software-download.

2. Locate and unzip the downloaded ﬁle (typically you can do this by right clicking on the

ﬁle and selecting Extract).

3. Open the MTInstaller.exe ﬁle.

4. You will be prompted to select a language, then follow the instructions provided in the

MadgeTech 4 Setup Wizard to ﬁnish the MadgeTech 4 Software installation.

Device Operation

Connecting and Starting the data logger

- Once the software is installed and running, plug the interface cable into the data logger.

- Connect the USB end of the interface cable into an open USB port on the computer.

- The device will appear in the Connected Devices list, highlight the desired data logger.

- For most applications, select “Custom Start” from the menu bar and choose the desired

start method, reading rate and other parameters appropriate for the data logging

application and click “Start”. (“Quick Start” applies the most recent custom start options,

“Batch Start” is used for managing multiple loggers at once, “Real Time Start” stores the

dataset as it records while connected to the logger.)

- The status of the device will change to “Running”, “Waiting to Start” or “Waiting to

Manual Start”, depending upon your start method.

- Disconnect the data logger from the interface cable and place it in the environment to

measure.

Note: The device will stop recording data when the end of memory is reached or the device is stopped. At this point the

device cannot be restarted until it has been re-armed by the computer.

Downloading data from a data logger

- Connect the logger to the interface cable.

- Highlight the data logger in the Connected Devices list. Click “Stop” on the menu bar.

- Once the data logger is stopped, with the logger highlighted, click “Download”. You will

be prompted to name your report.

- Downloading will ofﬂoad and save all the recorded data to the PC

PR2000

Computer Interface

Fully insert the male connector of the IFC200 interface cable into the female receptacle of

the data logger. Fully insert the female USB connector into the USB. (Please see the Data

Logger Software manual for further information.)

*WARNING: Install driver before connecting a device using a USB for the ﬁrst time. See the

Software manual for further information.

Product User Guide

Front Panel Overview

Changing the display units

The PR2000 comes with factory default display units of PSI for pressure and the real-time

pressure graphing feature. These units can be easily changed by pressing the F3 button

in the main screen and then selecting F1 for pressure or F2 for the pressure graph. After

selecting the channel, the available units can be scrolled through by either pressing the

channel’s function key repeatedly or using the UP and DOWN keys

Button pressing chain: Main Screen -> F3 -> F1 (pressure) or F2 (pressure graph) ->

function key repeatedly or UP and DOWN

Checking the memory status

A status icon appears on all screens representing memory, but further information includ-

ing percent memory left and number of readings taken can also be viewed. From the Main

Screen press the F1 key to enter the Status screens then press F2 to view memory status

information.

Button pressing chain: Main Screen -> F1 -> F2

Checking power status

A battery status and external power status (if available) icon appear on all screens, but per-

cent battery power remaining and external power presence as well as battery type, current

battery voltage, and current external voltage can also be viewed. From the Main Screen

press F4 to view the Device Conﬁguration Menu, F2 to access the power options, then F4

twice to view the Power Status screen, including battery power percent remaining and the

presence of external power. Battery type and battery voltage are also displayed, as well as

external power voltage (if connected).

Button pressing chain: Main Screen -> F4 -> F2 -> F4 -> F4

Changing the Contrast

The PR2000’s LCD screen contrast values can be changed in two ways. One method is

outlined in the Function Reference Guide. A faster, simpler way involves simultaneously

pressing the CANCEL and UP or DOWN button in any screen.

Button pressing chain: CANCEL + UP (to increase) or DOWN (to decrease)

PR2000

Screen Descriptions

Main Screen

Displays last measured values

Statistics

Status Screens

Run Parameters

Statistics Menu Screen: Displays options

available within the statistics menu

Type Statistics: Displays statistics from the

pressure channel

Memory Status

Channel Statistics: Displays statistics

Statistics Information Screen: Displays

current statistics information

Date and Time

Product User Guide

Device Conﬁguration Menu

Displays options available within the device conﬁguration menu

F1 = DISPLAY: enters Adjust Visibility screen

F2 = POWER: enters Power Modes screen

F3 = INFO: goes to Device Information screens

F4 = EXIT: returns to main screen

CANCEL = returns to main screen

OK = returns to main screen

UP = no function

Down = no function

Device Reset

This device include two reset options, Hardware and Power Interruption

Power Interruption: Displayed as notiﬁcation when power is interrupted during device

operation.

F1 = OK: accepts notiﬁcation and displays main screen

F2 = no function

F3 = no function

F4 = no function

CANCEL = no function

OK = accepts notiﬁcation and displays main screen

UP = no function

DOWN = no function

Hardware Reset: Displayed as notiﬁcation when a hardware reset has occurred.

F1 = OK: accepts notiﬁcation and displays main screen

F2 = no function

F3 = no function

F4 = no function

CANCEL = no function

OK = accepts notiﬁcation and displays main screen

UP = no function

DOWN = no function

PR2000

Recalibration

The PR2000 standard calibration is dependant upon the range.

Additional:

Custom calibration and veriﬁcation point options available, please call for pricing.

Call for custom calibration options to accommodate speciﬁc application needs.

Prices and speciﬁcations subject to change. See MadgeTech’s terms and conditions at www.madgetech.com

To send devices to MadgeTech for calibration, service or repair, please use the MadgeTech RMA Process by visiting

www.madgetech.com, then under the services tab, select RMA Process.

BATTERY WARNING

This data logger contains a lithium battery. Do not cut the battery open,

incinerate, or recharge. Do not heat lithium batteries above the speciﬁed operating

temperature.* Dispose of the battery in accordance with local regulations.

*See the individual speciﬁcation sheets at www.madgetech.com.

Battery Information

Device Maintenance

Materials: 3/32” HEX Driver (Allen Key) and a Replacement Battery (U9VL-J)

- Remove the back cover from the device by unscrewing the four screws.

- Remove the battery from its compartment and unsnap it from the connector.

- Snap the new battery into the terminals and verify it is secure.

- Replace the cover taking care not to pinch the wires. Screw the enclosure back together.

Note: Be sure not to over tighten the screws or strip the threads.

For any other maintenance or calibration issues, we recommend the unit be returned to the

factory for service. Before returning the device, you must obtain an RMA from the factory.

Battery Replacement

This product does not have any user-serviceable parts except the battery which should be

replaced periodically. The battery life is affected by battery type, ambient temperature,

sample rate, sensor selection, off-loads and LCD usage. The device has a battery status indi-

cator on the LCD. If the battery indication is low, or if the device seems to be inoperable, it

is recommended that the battery be replaced.
