Macpower & Tytech M9-LAN Instructions d'installation et d'utilisation

Network Drive for

3.5” IDE HDD

M9-LAN

User Manual

& Installation Guide

v1.1

Table of Contents

CHAPTER 1 - INTRODUCTION - 1 - CHAPTER 4 – LAN DISK SETUP - 10 -

ICON KEY -1-NETWORK INSTALLATION ON A PC - 10 -

NETWORK INSTALLATION ON A MAC -10 -

THE M9-LAN - 1-

PACKAGE CONTENTS -1-CONFIGURING THE LAN DISK -10 -

SYSTEM REQUIREMENTS -2-LOGIN ON A PC - 10 -

PC REQUIREMENTS -2-LOGIN ON A MAC -10 -

MAC REQUIREMENTS -2-SYSTEM INFORMATION -11 -

INTERFACE INFORMATION -2-MAINTENANCE -11 -

SMB SERVER -12 -

FILE ACCESS ON A PC - 12 -

CHAPTER - 2 INSTALLING THE HDD - 3 - FILE ACCESS ON A MAC -13 -

PREPARING THE ENCLOSURE -3-FTPCONFIGURATION -13 -

HARD DRIVE ASSEMBLY -3-DISK UTILITY -14 -

TECHNICAL QUESTIONS -15 -

CHAPTER 3 - SYSTEM SET UP - 4 - FAQ - 15 -

INSTALLATION ON A PC USING USB 2.0 - 5-

WIN2000 OR WINXP WITH USB - 5-

WIN98/SE WITH USB - 5-

UNPLUG PROCEDURE -5-

INSTALLATION ON A MAC USING USB 2.0 - 6-

MAC OS 9.X OR MAC OS 10.X WITH USB - 6-

MAC OS 10.2 OR ABOVE WITH USB 2.0 - 6-

UNPLUG PROCEDURE -6-

PARTITIONING &FORMATTING -7-

ABOUT THIS MANUAL -16 -

PC RUNNING WIN98/SE OR WINME - 7-

PC RUNNING WIN2000 OR WINXP - 8-

MAC OS - 9-

Package Content

may vary,

depending on

vendor & version.

Chapter 1 - Introduction

Icon Key

Throughout this manual you will see icons in the left margin

that denote either Notes or Special Remarks as outlined below:

General Notes and Tips

Remarks for PC users

Remarks for Mac users

The M9-LAN

The M9 external disk drive enclosure incorporates both USB

2.0 High Speed and LAN connections in one unit. It is a sleek

and stylish enclosure for your 3.5” IDE hard drive, and its

heatsink and smart fan technology ensures optimum heat

dissipation. Designed specially for the modern home/office

environment, the M9 offers exceptional performance and a

timeless design.

Product Dimensions: 16.5cm x 16.5 cm x 3.8 cm

6.50” x 6.50” x 1.50”

Package Contents

•M9-LAN

•External Power Adapter;

Input 100-240V, Output +12V/1.5A, +5V/1.5A

•USB 2.0 High Speed cable

•Ethernet cable

•Driver CD

- 1 -

If you forget your

password, press

and hold the reset

button, turn on the

device and wait for

10 seconds before

releasing it. This will

reset the device to

its factory default

settings.

System Requirements

PC Requirements

•Minimum Intel Processor II 350MHz, 64MB RAM

•USB 1.1 equipped PC; WinME, Win2000, WinXP

•USB 2.0 equipped PC; WinME, Win2000, WinXP

•10 Mbps, 100 Mbps or 10/100Mbps Fast Ethernet card, or a

USB-to-Ethernet converter equipped PC; Win2000, WinXP

Mac Requirements

•Minimum Apple G3 processor, 64MB RAM

•USB 1.1 equipped Mac; Mac OS 9.1, 9.2, 10.1.5, 10.2, 10.3

•USB 2.0 equipped Mac; Mac OS 10.2, 10.3 or more

•10 Mbps, 100Mbps or 10/100Mbps Fast Ethernet card, or a

USB-to-Ethernet converter equipped Mac OS 9.2, 10.2 or

more.

Interface Information

Front LED status lights:

Red = HDD Access

Amber = Network Status (LINK)

Green = System (OS)

XYZ[\]

1. Power switch

2. Power receptacle

3. Switch for fan speed *

4. 10/100 auto sensing port

5. Reset button

6. USB 2.0 interface

* Fan settings:

A = Auto

M = Manual

H = High Speed

L = Low Speed

- 2 -

Your unit might

come with a pre-

installed hard drive.

Before opening

your enclosure,

please read the

warranty and any

other notes from

your vendor

carefully before

doing so, as this

might void your

warranty.

Ensure that the

HDD jumper is set

to Master.

Be careful not to

damage any cables

or components and

double check the

connection between

the cables, the

bridge board and

your hard drive

before replacing the

case cover.

Chapter - 2 Installing the HDD

Preparing the Enclosure

1. Remove the 4 screws on the bottom of the unit.

2. Lift the top cover off the body.

3. Remove the heat sink from the enclosure.

4. Place the hard drive upside down in the heat sink.

5. Fasten the heat sink to the hard drive using four screws

Hard Drive Assembly

1. Connect the IDE cable and the power line to your hard drive.

2. Place the hard drive into the enclosure.

3. Fasten the 4 screws on the bottom of the heat sink.

4. Attach the thermal probe with the tape provided to the

spindle motor on the bottom-side of the drive.

5. Align the top cover with the body and push lightly into place.

- 3 -

Make sure your

computer is

connected to the

same network as

your LAN disk.

Do not connect

the USB and

Ethernet cables at

the same time!

To assure optimum

performance on the

network, only use

network switches

and routers.

If you buy a spare

power adapter,

make sure the

specifications are

identical with the

power adapter

supplied!

Chapter 3 - System Set Up

In LAN mode, the ‘M9-LAN’ is attached to an Ethernet switch

or router. Each user on the network can use the LAN disk and

access it using FTP or SMB.

In USB 2.0 High Speed mode, the ‘M9-LAN’ is directly attached

to a single computer via the USB port.

A few tips on how to connect your external storage enclosure:

•Do not cover the Enclosure and leave enough room around

it for the drive to cool down

•Do not expose the product to water or humid conditions

•Always check for visible damage and defects of power and

interface cables before use

•We recommend using the cables and adapter supplied with

your product

- 4 -

If the system

doesn’t recognise

the drive, turn on

the power first,

before connecting

the USB cable.

For safe removal of

your drive and to

assure that no data

is lost, always follow

the unplug

procedure. Not

following these

instructions may

lead to an error

message showing

up.

Installation on a PC using USB 2.0

Win2000 or WinXP with a USB connection:

•Turn on your Computer and start Windows

•Connect the M9 and turn it on

•Let Windows search and install the driver automatically

•Open “My Computer” to see your external hard drive **

Win98/SE with a USB connection:

•Turn on your Computer and start Windows

•Insert the driver CD into your CD-ROM

•Connect the M9 and turn it on

•Follow the on-screen instructions and install the drivers

•Open “My Computer” to see your external hard drive **

Unplug Procedure:

•Click on the taskbar icon for external hardware

•Choose your external hard drive and confirm to remove it

** For factory new drives and formatting, see “Partitioning & Formatting”

- 5 -

If the system

doesn’t recognise

the drive, turn on

the power first,

before connecting

the USB cable.

For safe removal of

your drive and to

assure that no data

is lost, always follow

the unplug

procedure. Not

following these

instructions may

lead to an error

message showing

up.

Installation on a Mac using USB 2.0

Mac OS 9.x or Mac OS 10.x with a USB connection:

•Turn on your computer and start Mac OS

•Connect the M9 and turn it on

•No driver installation required

•The external drive will mount and show up on your

desktop**

Mac OS 10.2 or above with a USB 2.0 connection:

•Turn on your computer and start Mac OS

•Connect the M9 and turn it on

•No driver installation required

•The external drive will mount and show up on your

desktop**

Unplug Procedure:

•Drag the external hard drive icon into the trash bin

•Turn off your device

** For factory new drives and formatting, see “Partitioning & Formatting”

- 6 -

You can choose to

create several

partitions via USB.

However please

note that only the

first partition will be

recognised on the

network (LAN disk

function).

The drive must be

formatted using the

FAT32 file system.

Alternatively, you

can also format the

LAN disk using the

disk utility option.

Connect the device

to your LAN, login,

go to disk utility and

choose “Format”.

Partitioning & Formatting

Be aware that this will destroy all existing data on the drive, so

make sure you have a backup! This step is usually only

required the first time you install a factory new hard drive, if you

change the format or want to erase all data on your drive.

PC running Win98/SE or WinME:

MS-DOS command “fdisk” (press Enter to confirm)

•Type “fdisk” and press Enter

•Select ”Y” and press Enter

•Enter "5” to change the drive

•Select the drive you want to format

•Choose “1” and follow the onscreen instructions

- 7 -

The drive must be

formatted using the

FAT32 file system.

If NTFS is used, the

drive will only be

recognised on USB.

If you use Win2000

or WinXP and

FAT32, the biggest

single partition you

can create will be

32GB. To create

larger partitions,

you need to use the

DOS command

under Win98SE or

WinME or use 3rd

party software.

You can choose to

create several

partitions through

USB but be aware

that only the first

partition will be

recognised on the

network (LAN disk

function).

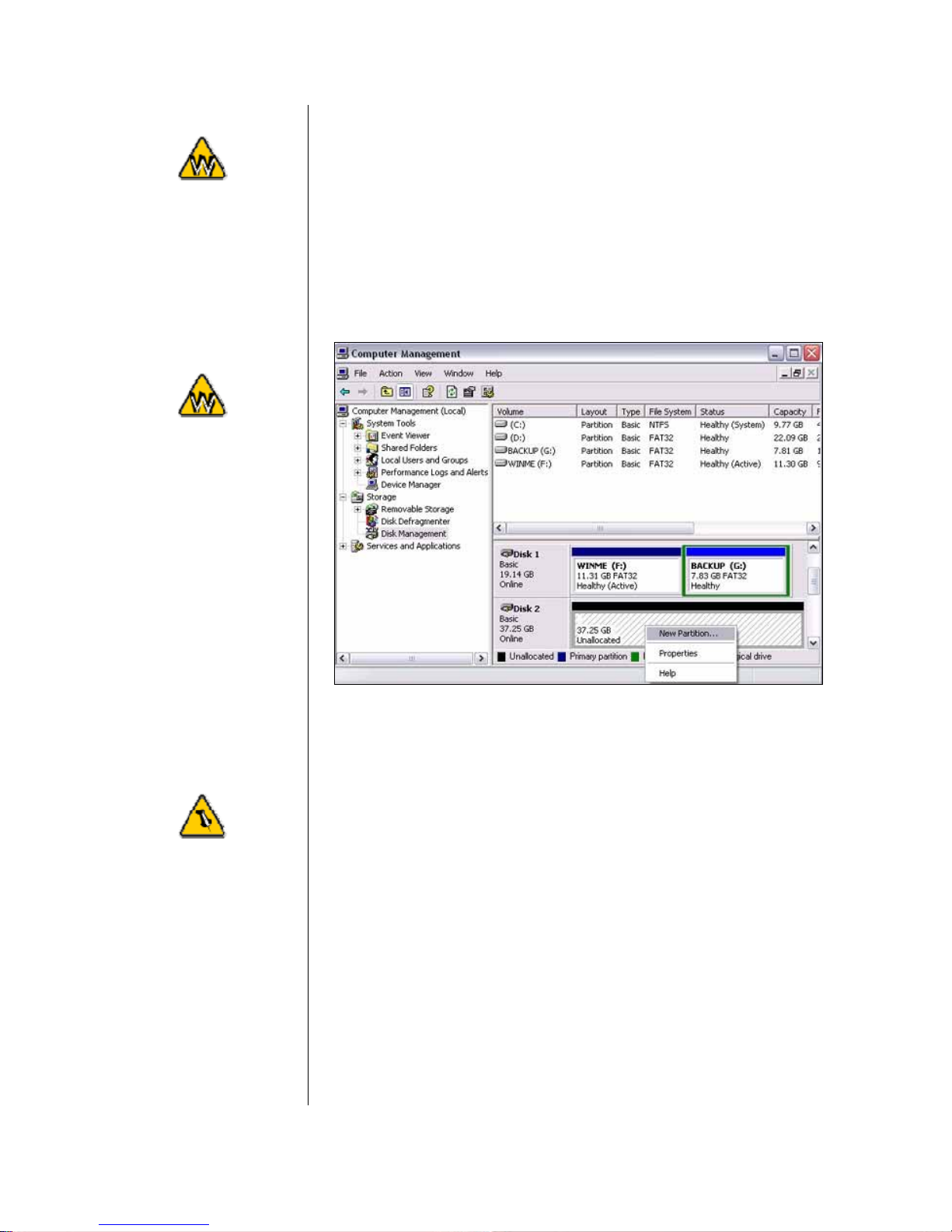

PC running Win2000 or WinXP:

Disk Management Program

•Right click on “My Computer” and choose “Manage”

•Select “Disk Management”

•Choose the drive you want to format and right click on it for

further commands (Choose New Partition)

•Follow the Partition Wizard and create a FAT32 partition

Alternatively, you can also format the LAN disk using the disk

utility option. Connect the device to your LAN, login, go to disk

utility and choose “Format”.

- 8 -
