Macpower & Tytech IceCube Instructions d'installation et d'utilisation

External Storage Enclosure for

3.5” Hard Drive

IceCube

Pleiades

User Manual

& Installation Guide

Table of Contents

CHAPTER 1

INTRODUCTION - 1 -

ICON KEY -1-

THE ICECUBE PLEIADES -1-

AVAILABLE INTERFACES -1-

SYSTEM REQUIREMENTS -2-

PC REQUIREMENTS -2-

MAC REQUIREMENTS -2-

PACKAGE CONTENTS -2-

CHAPTER 2

INSTALLING THE HARD DRIVE - 3 -

PREPARING THE ENCLOSURE -3-

HARD DRIVE ASSEMBLY -4-

CHAPTER 3

SYSTEM SET UP - 5 -

CONNECTION TO YOUR COMPUTER -5-

INSTALLATION ON A PC - 6-

WIN2000 OR WINXP WITH A USB OR FIREWIRE

CONNECTION -6-

WIN2000 OR WINXP WITH A SERIALATA

CONNECTION -6-

WIN98SE WITH A FIREWIRE CONNECTION -6-

WIN98/SE WITH A USB CONNECTION -6-

UNPLUG PROCEDURE -6-

INSTALLATION ON A MACINTOSH -7-

MAC OS 9.X OR MAC OS 10.X WITH A FIREWIRE

OR USB CONNECTION -7-

MAC OS 10.2 OR 10.3 WITH A FIREWIRE 800 OR

USB 2.0 CONNECTION -7-

UNPLUG PROCEDURE -7-

PARTITIONING &FORMATTING -8-

PC RUNNING WIN98/SE OR WINME - 8-

PC RUNNING WIN2000 OR WINXP - 9-

MAC OS - 10 -

TECHNICAL QUESTIONS -11 -

ABOUT THIS MANUAL -11 -

Chapter 1 Introduction

Icon Key

Throughout this manual you will see icons on the left margin

that denote either Notes or Special Remarks as outlined below:

General Notes and Tips

Remarks for PC users and Microsoft Windows OS

Remarks for Mac users and Apple Macintosh OS

The IceCube Pleiades

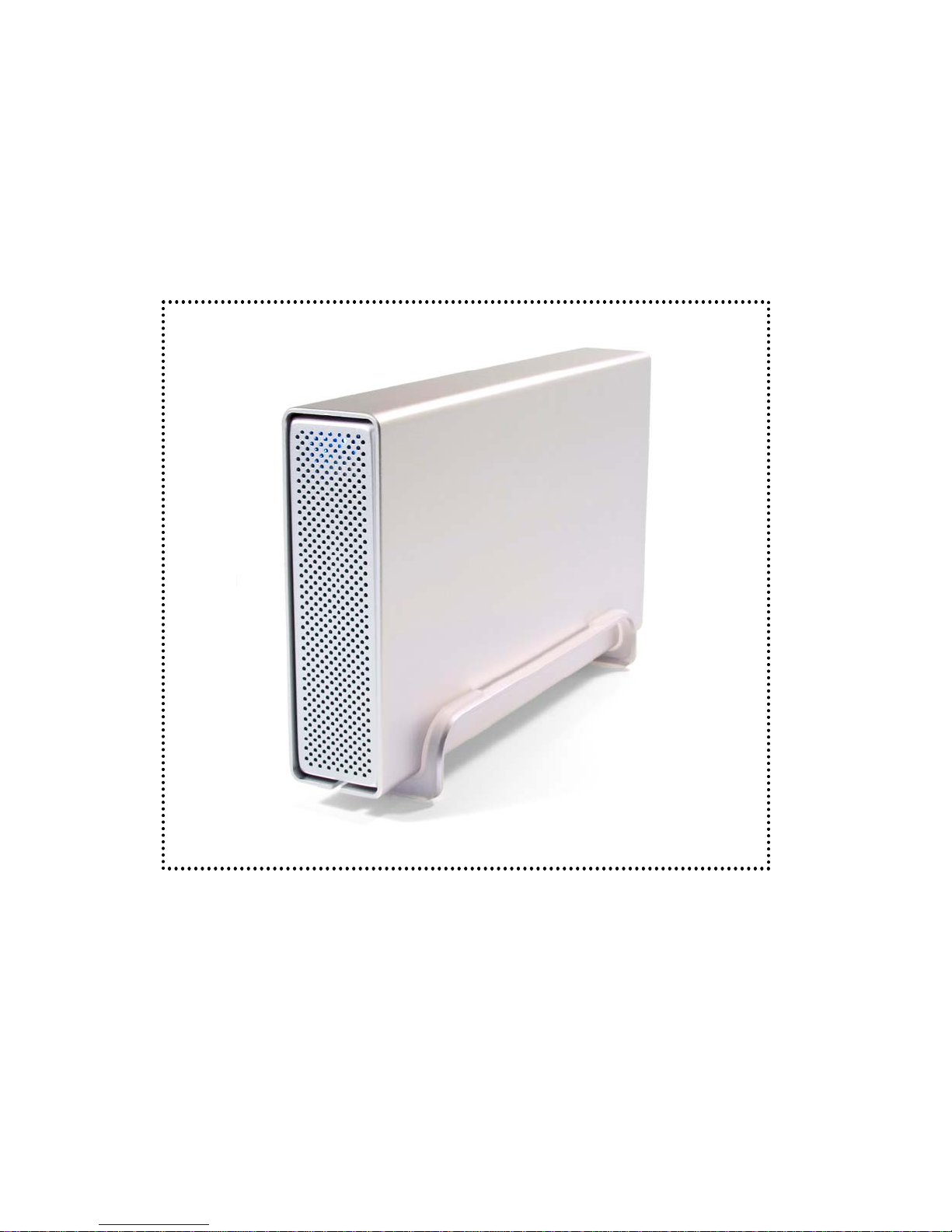

The External Storage Enclosure “IceCube Pleiades” is made of

high quality aluminum, excellent for heat-dissipation.Available

with various types of interfaces, this is the perfect solution for

additional external storage, data backup as well as for

transferring data between computers and platforms.

Product Dimensions: 23.0cm x 14.0 cm x 5.0 cm

9.05” x 5.50” x 1.95”

Available Interfaces

•USB 2.0 High Speed

•Firewire 1394a

•Firewire 1394a & USB 2.0

•Firewire 1394a & Firewire 800 & USB 2.0

•Firewire 800 (1394b)

•Serial ATA (For Serial ATA Hard Drive!)

Mac OS 8.6 users

should use USB

extension 1.41 or

Firewire extension

2.6 and later, to be

able to use USB 1.1

or 1394a.

Package Content

may vary,

depending on

vendor & version.

System Requirements

PC Requirements

•Minimum Intel Processor II 350MHz, 64MB RAM

•USB 1.1 equipped PC; WinME, Win2000, WinXP

•USB 2.0 equipped PC; WinME, Win2000, WinXP

•1394a equipped PC; Win98SE, WinME, Win2000, WinXP

•1394b equipped PC; Win2000, WinXP

•Serial ATA equipped PC; Win2000, WinXP

Mac Requirements

•Minimum Apple G3 processor (G4 for 1394b), 64MB RAM

•USB 1.1 equipped Mac; Mac OS 9.1, 9.2, 10.1.5, 10.2, 10.3

•USB 2.0 equipped Mac; Mac OS 10.2, 10.3

•1394a equipped Mac; Mac OS 9.1, 9.2, 10.1.5, 10.2, 10.3

•1394b equipped Mac; Mac OS 10.2, 10.3

•

Package Contents

•IceCube Pleiades

•External Power Adapter;

Input 100-240V, Output 12V/2A, 5V-2A

•Power Cord

•Interface Cable

•Aluminum Stand

•Driver CD (USB only)

- 2 -

Your unit might

come with an

installed hard drive.

Before opening

such an enclosure,

please read the

warranty and any

other notes from

your vendor

carefully before

doing so, as this

might void your

warranty.

Chapter 2 Installing the Hard Drive

Preparing the Enclosure

Remove the 4 screws on the bottom, slide the case off the

body, remove the screws for the top cover and open up the

case.

- 3 -

The hard drive

jumper settings

should be master or

factory default.

Be careful not to

damage any cables

or components and

double check the

connection between

the cables, the

bridge board and

your hard drive

before you close up

the case.

Hard Drive Assembly

Connect the ATA cable and the power line to your hard drive.

Install the hard drive and fasten the screws. Align the top cover

with the body and fasten the screws, before you slide it back

into the casing. Fasten the 4 screws on the bottom and

connect your power adapter and interface cable.

- 4 -

Most problems

occur due to driver

problems on the

Host Card side!

If you buy a spare

power adapter for

your working place

or at home, make

sure the output and

polarity is identical

with the power

adapter supplied!

Make sure not to

insert the Firewire

6-pin connector the

wrong way around,

or you will damage

the device!

Chapter 3 System Set Up

Connection to your Computer

A few tips on how to connect your external storage enclosure:

•Make sure your PCI Host Card is installed correctly

•Double check that the Host Card driver is up to date

•If required, update your Operating System or BIOS

•Only one interface at the time can be used

•Only one computer at the time can access the drive

•To use one drive on several computers, it can be shared

through one computer on the network (1394 network,

company network)

•Firewire can be daisy chained

•All devices in a daisy chain have to be switched on to

permit the hub/daisy chain function

•Do not cover the Enclosure and leave enough room around

it for the drive to cool down

•Do not expose the product to water or humid conditions

•If possible, arrange the cables so they do not cross each

other

•Always check for visible damage and defects of power and

interface cables before using it

•We recommend using the cables and adapter supplied with

your product

- 5 -

If the system

doesn’t recognize

the drive, turn on

the power first,

before connecting

the USB/Firewire

cable.

Win98 does not

support Firewire,

you need to

upgrade your OS to

Win98SE or higher.

For safe removal of

your drive and to

assure that no data

is lost, always follow

the unplug

procedure. If not, an

error message will

show up.

Installation on a PC

Win2000 or WinXP with a USB or Firewire connection:

•Turn on your Computer and start Windows

•Connect the IceCube Pleiades and turn it on

•Let Windows search and install the driver automatically

•Open “My Computer” to see your external hard drive **

Win2000 or WinXP with a Serial ATA connection:

•Turn on your Computer and start Windows

•Connect the IceCube Pleiades and turn it on

•Let Windows search and install the driver automatically

•Open “My Computer” to see your external hard drive **

Win98SE with a Firewire connection:

•Turn on your Computer and start Windows

•Connect the IceCube Pleiades and turn it on

•Let Windows search and install the driver automatically

•Open “My Computer” to see your external hard drive **

Win98/SE with a USB connection:

•Turn on your Computer and start Windows

•Insert the driver CD into your CD-ROM

•Connect the IceCube Pleiades and turn it on

•Follow the onscreen instructions and install the drivers

•Open “My Computer” to see your external hard drive **

Unplug Procedure:

•Click on the taskbar icon for external hardware

•Choose your external hard drive and confirm to remove it

** For factory new drives and formatting, see “Partitioning & Formatting”

- 6 -

If the system

doesn’t recognize

the drive, turn on

the power first,

before connecting

the USB/Firewire

cable.

For Mac OS 8.6, the

USB extension has

to be at least v1.41.

For Mac OS 8.6, the

Firewire extension

has to be at least

v2.6.

For save removal of

your drive and to

assure that no data

is lost, always follow

the unplug

procedure. If not, an

error message will

show up.

Installation on a Macintosh

Mac OS 9.x or Mac OS 10.x with a Firewire or USB

connection:

•Turn on your computer and start Mac OS

•Connect the IceCube Pleiades and turn it on

•No driver installation required

•The external drive will mount and show up on your

desktop**

Mac OS 10.2 or 10.3 with a Firewire 800 or USB 2.0

connection:

•Turn on your computer and start Mac OS

•Connect the IceCube Pleiades and turn it on

•No driver installation required

•The external drive will mount and show up on your

desktop**

Unplug Procedure:

•Drag the external hard drive icon into the trash bin

•Turn off your device

** For factory new drives and formatting, see “Partitioning & Formatting”

- 7 -

You can choose to

create several

partitions but be

aware that if you

want to change this

at a later point, it’s

required to format

the drive again or

use 3rd party

software.

Win98/SE and

WinME do not

recognize NTFS

formatted drives, so

if you want to use

your drive on those

platforms, we

recommend you to

use FAT32 instead.

If you use this

device to backup

your data using a

3rd party software

running MS-DOS,

we recommend you

to format the drive

using FAT32.

Partitioning & Formatting

Be aware that this will destroy all your existing data on the

drive, so make sure you have a backup! This step is usually

only required the first time you install a factory new hard drive,

if you change the format or want to erase all data on your drive.

PC running Win98/SE or WinME:

MS-DOS command “fdisk” (press Enter to confirm)

•Type “fdisk” and press Enter

•Select ”Y” and press Enter

•Enter "5” to change the drive

•Select the drive you want to format

•Choose “1” and follow the onscreen instructions

- 8 -

Autres manuels pour IceCube

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Macpower & Tytech Enceinte

Macpower & Tytech

Macpower & Tytech MantaRay Instructions d'installation et d'utilisation

Macpower & Tytech

Macpower & Tytech Hydra 800+ Manuel utilisateur

Macpower & Tytech

Macpower & Tytech PD-SATA Manuel utilisateur

Macpower & Tytech

Macpower & Tytech Alumni Instructions d'installation et d'utilisation

Macpower & Tytech

Macpower & Tytech DC-SATA Manuel utilisateur

Macpower & Tytech

Macpower & Tytech Pleiades USB/LAN Instructions d'installation et d'utilisation

Macpower & Tytech

Macpower & Tytech Freshman Manuel utilisateur

Macpower & Tytech

Macpower & Tytech Orion II Manuel utilisateur

Macpower & Tytech

Macpower & Tytech The Bermuda Instructions d'installation et d'utilisation

Macpower & Tytech

Macpower & Tytech M9 - Mini Pod Manuel utilisateur

Macpower & Tytech

Macpower & Tytech Igloo 800 Manuel utilisateur

Macpower & Tytech

Macpower & Tytech Alumni Freshman USB 2.0 Manuel utilisateur

Macpower & Tytech

Macpower & Tytech Hydra S2 Manuel utilisateur

Macpower & Tytech

Macpower & Tytech IceCube Instructions d'installation et d'utilisation

Macpower & Tytech

Macpower & Tytech Clearlight Instructions d'installation et d'utilisation

Macpower & Tytech

Macpower & Tytech Hydra LAN Manuel utilisateur

Macpower & Tytech

Macpower & Tytech DaisyCutter Instructions d'installation et d'utilisation

Manuels Enceinte populaires d'autres marques

SilentiumPC

SilentiumPC Armis AR5 Manuel

Pulsar

Pulsar 17/TRP80/DSPR Manuel utilisateur

Thermaltake

Thermaltake V150 TG Manuel utilisateur

MSI

MSI MPG SEKIRA 500X Manuel utilisateur

Antec

Antec Dark fleet DF-10 Manuel utilisateur

Nexans

Nexans WTC05 Manuel utilisateur

Peavey

Peavey DS 1502 Manuel utilisateur

D-Link

D-Link ShareCenter Pro DNS-1550-04 Manuel utilisateur

Rosewill

Rosewill RX82-U(JBOD) Manuel utilisateur

QNAP

QNAP SAS JBOD CLI 1.0 Manuel utilisateur

GAMDIAS

GAMDIAS Talos P1 Manuel utilisateur

Auvs

Auvs KR615 Manuel utilisateur

Digitus

Digitus DA-71114 Manuel utilisateur

CommScope

CommScope FDH 3000 Manuel utilisateur

FS FHD-FWME4 Manuel utilisateur

JBL

JBL CS1215T Manuel utilisateur

Pulsar

Pulsar ARAD-S4 Manuel utilisateur

Pulsar

Pulsar AWO454 Manuel utilisateur
