Maco SMART DEADBOLT Manuel utilisateur
SMART DEADBOLT
www.macoware.com
Installation & User Guide
C) Kindly confirm the door’s interior thickness.
(Must be between 35mm to 70mm)
B) Check the door's opening direction: If the front panel is fastened on
the left, turn the toggle button to the L, and if it is fastened on the right,
turn it to the R.
(Seen from outside)
Door thickness shall be
1-3/8” to 2-3/4”
Different thickness might
not be suitable
A) If you have already mounted a mechanical deadbolt, please remove
and replace it with our smart deadbolt. The installation is drilling-free.
1. Prior to assembly,
6WDWXV9HUL´FDWLRQ
2. Parts & Components Layout
4 AA Batteries
(Not included)
1"(25.4mm)
5/16"(8mm)
x2 x4 x1 x1 x1 x1
25/32"(20mm)
1-1/2"(40mm)
x1 x1 x1 x3
3/16"(5mm) 1/8"(3mm)
x2 x2

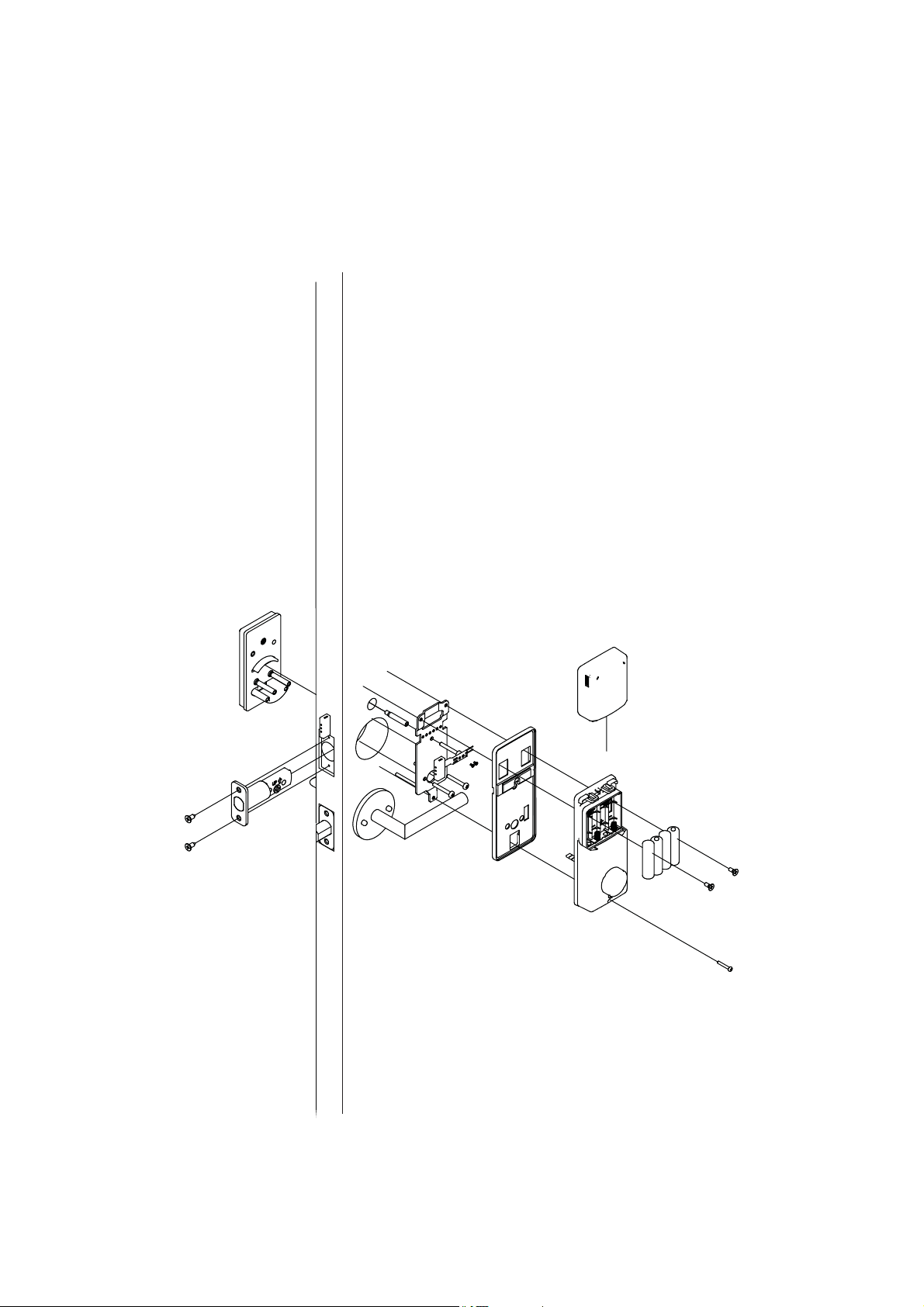

3. General Assembly
25.5
57.1
4. Set-Up
Leave an allowance of
4 inches between the
handle and the drilled hole.
4” min.
4mm depth for the plate cover
5. Insert the bolt
1"(25.4mm)
Adjust the length of the bolt
if it's required.
x2
6. Touch-screen installation
Make sure it fits through this hole in the correct position
(Attach the bolt here if you have already
drilled a hole. If not, it’s not necessary.)
7. Back-side assembly
1-1/2"(40mm)
x3 (or x 2)
8. Sensor
3/16"(5mm)
x2
9. Rubber Pad
